wpf-窗口设计-常用小技巧-保持更新

窗口

2022/9/13 更新：

禁止关闭窗口

重写OnClosing函数

protected override void OnClosing(System.ComponentModel.CancelEventArgs e)
{
	e.Cancel = true;
}

去掉窗口标题栏的关闭按钮

只是去掉标题栏的关闭按钮，窗体内仍然可以调用Close()函数。

在窗口类中加入以下代码：

using System.Runtime.InteropServices;
using System.Windows.Interop;

{
		...
        private const int GWL_STYLE = -16;
        private const int WS_SYSMENU = 0x80000;
        [DllImport("user32.dll", SetLastError = true)]
        private static extern int GetWindowLong(IntPtr hWnd, int nIndex);
        [DllImport("user32.dll")]
        private static extern int SetWindowLong(IntPtr hWnd, int nIndex, int dwNewLong);

        private void Window_OnLoaded(object sender, RoutedEventArgs e) {
            var hwnd = new WindowInteropHelper(this).Handle;
            SetWindowLong(hwnd, GWL_STYLE, GetWindowLong(hwnd, GWL_STYLE) & ~WS_SYSMENU);

        }
        ...
}

同时修改xaml文件：

<Window ... Loaded="Window_OnLoaded" ...>

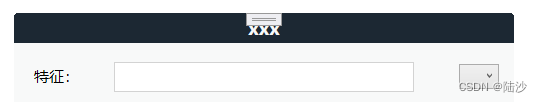

修改窗口标题栏格式（颜色、字体等）

<Window x:Class="xxxxxx.UserDefinedWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:shell="clr-namespace:Microsoft.Windows.Shell;assembly=Xceed.Wpf.AvalonDock"
        xmlns:local="clr-namespace:"
        mc:Ignorable="d"
        Height="700" Width="500" ResizeMode="NoResize" Loaded="Window_OnLoaded" WindowStyle="None">
    <shell:WindowChrome.WindowChrome>
        <shell:WindowChrome GlassFrameThickness="0" CornerRadius="5" />
    </shell:WindowChrome.WindowChrome>

    <Grid>
		<!-- 窗口背景颜色 -->
        <Border Background="#F8F9F9" />
		<!-- 标题栏颜色 -->
        <Border Height="30" Background="#1C2833" VerticalAlignment="Top">
            <!-- 标题栏内容 -->
			<Grid>
                <TextBlock Text="xxx" VerticalAlignment="Center" HorizontalAlignment="Center" Foreground="#F8F9F9" FontSize="18" FontWeight="SemiBold" />
            </Grid>
        </Border>

        <Grid Margin="0,40,0,0">
			<!-- 窗口的内容 -->
		</Grid>
	</Grid>
</Window>

---

（可能没用）窗口标题居中

在Title后直接写TextBlock居中即可。

<Window ... Title="Demo" TextBlock.TextAlignment="Center" ...>

窗口居中

public partial class WelcomeWindow : Window{
	public WelcomeWindow(){
		// 设置窗体居中
        WindowStartupLocation = WindowStartupLocation.CenterScreen;
        InitializeComponent();
	}
}

窗口取消最大化按钮

只保留最小化和关闭按钮

<Window ... ResizeMode="CanMinimize" ...>

按钮

圆角按钮

先写资源，其中Border的CornerRadius控制了按钮的弧度

<Window.Resources>
    <ControlTemplate x:Key="roundCornerBtnTemplate" TargetType="Button">
        <Border BorderThickness="1" BorderBrush="DarkGray" CornerRadius="5" Background="{TemplateBinding Background}">
            <ContentPresenter VerticalAlignment="Center" HorizontalAlignment="Center"/>
        </Border>
    </ControlTemplate>
</Window.Resources>

使用时：

<Button ...Template="{StaticResource roundCornerBtnTemplate}".../>

穿过按钮点击下面的控件

举例：写一个按钮样式的菜单，点击菜单，出现下拉列表

但是因为按钮本身可以点击，会禁掉菜单的效果，即无法出现下拉列表。此时，只要给button加个属性：IsHitTestVisible=“False”

<Menu Background="Transparent" Height="42" Width="150" HorizontalAlignment="Left">
    <MenuItem HorizontalContentAlignment="Stretch">
        <MenuItem.Header>
            <Button x:Name="helpBtn" ... IsHitTestVisible="False">
                ...
            </Button>
        </MenuItem.Header>

        <MenuItem Click="helpBtn_Click">
            <MenuItem.Header>
                <TextBlock Text="用户手册" HorizontalAlignment="Center"/>
            </MenuItem.Header>
        </MenuItem>
        <Separator/>
        <MenuItem>
            <MenuItem.Header>
                <TextBlock Text="设置参数" HorizontalAlignment="Center"/>
            </MenuItem.Header>
        </MenuItem>
    </MenuItem>
</Menu>
