此文章（系列），记录项目引入Camunda的过程与问题记录，不包含对于Camunda的介绍。

目前此文章写于Camunda还未正式启用时，只是熟悉一下，后续项目正式引用Camunda后会继续更新文章，所以在文末会记录一些待解决的问题，正式引入后思考解决方案。

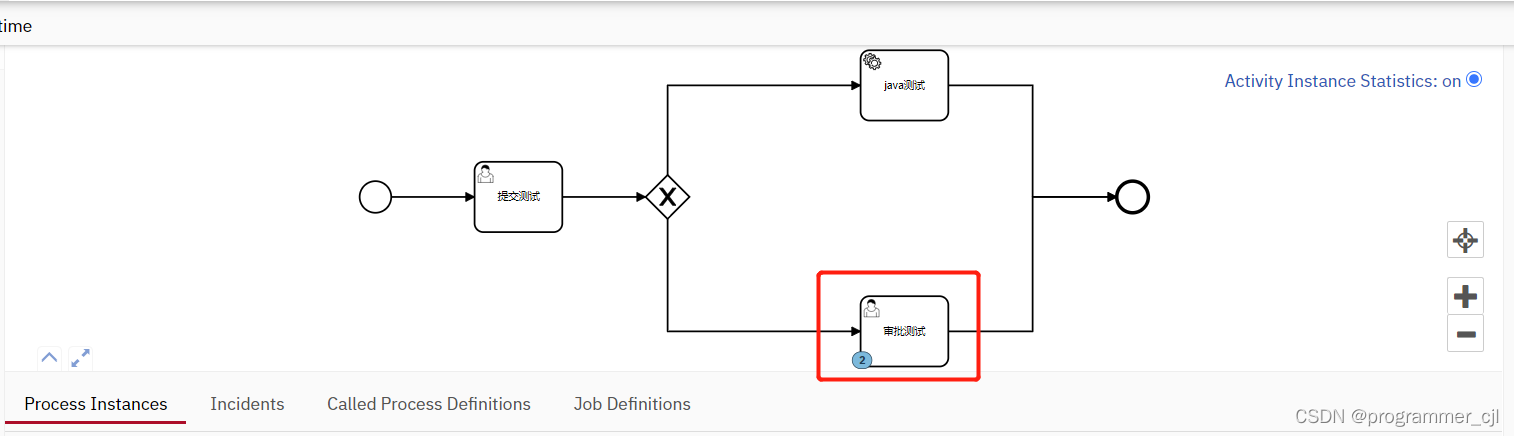

流程图示例：

其中包含了两个人工审批节点，一个叫提交测试，一个叫审核测试；包含了一个自动节点，叫java测试；网关是配置的approve这个参数控制走向的，下面附上流程图文件。

<?xml version="1.0" encoding="UTF-8"?>
<bpmn:definitions xmlns:bpmn="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:dc="http://www.omg.org/spec/DD/20100524/DC" xmlns:camunda="http://camunda.org/schema/1.0/bpmn" xmlns:di="http://www.omg.org/spec/DD/20100524/DI" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" id="Definitions_0ght17g" targetNamespace="http://bpmn.io/schema/bpmn" exporter="Camunda Modeler" exporterVersion="5.12.0">
  <bpmn:process id="test" name="测试流程" isExecutable="true">
    <bpmn:startEvent id="StartEvent_1">
      <bpmn:outgoing>SequenceFlow_0y59rpv</bpmn:outgoing>
    </bpmn:startEvent>
    <bpmn:userTask id="test1" name="提交测试" camunda:candidateGroups="cjlgroup">
      <bpmn:incoming>SequenceFlow_0y59rpv</bpmn:incoming>
      <bpmn:outgoing>Flow_09n832u</bpmn:outgoing>
    </bpmn:userTask>
    <bpmn:sequenceFlow id="SequenceFlow_0y59rpv" sourceRef="StartEvent_1" targetRef="test1" />
    <bpmn:serviceTask id="test2" name="java测试" camunda:class="com.powershare.emsp.flow.service.delegate.Test">
      <bpmn:incoming>Flow_1j3al1t</bpmn:incoming>
      <bpmn:outgoing>Flow_0rg2b62</bpmn:outgoing>
    </bpmn:serviceTask>
    <bpmn:endEvent id="Event_0tirpzn">
      <bpmn:incoming>Flow_0rg2b62</bpmn:incoming>
      <bpmn:incoming>Flow_1fu356n</bpmn:incoming>
    </bpmn:endEvent>
    <bpmn:exclusiveGateway id="Gateway_1eh4b64">
      <bpmn:incoming>Flow_09n832u</bpmn:incoming>
      <bpmn:outgoing>Flow_1deqcsi</bpmn:outgoing>
      <bpmn:outgoing>Flow_1j3al1t</bpmn:outgoing>
    </bpmn:exclusiveGateway>
    <bpmn:sequenceFlow id="Flow_09n832u" sourceRef="test1" targetRef="Gateway_1eh4b64" />
    <bpmn:sequenceFlow id="Flow_1deqcsi" sourceRef="Gateway_1eh4b64" targetRef="test3">
      <bpmn:conditionExpression xsi:type="bpmn:tFormalExpression">${approve==1}</bpmn:conditionExpression>
    </bpmn:sequenceFlow>
    <bpmn:sequenceFlow id="Flow_1j3al1t" sourceRef="Gateway_1eh4b64" targetRef="test2">
      <bpmn:extensionElements>
        <camunda:properties>
          <camunda:property />
        </camunda:properties>
      </bpmn:extensionElements>
      <bpmn:conditionExpression xsi:type="bpmn:tFormalExpression">${approve==2}</bpmn:conditionExpression>
    </bpmn:sequenceFlow>
    <bpmn:sequenceFlow id="Flow_0rg2b62" sourceRef="test2" targetRef="Event_0tirpzn" />
    <bpmn:sequenceFlow id="Flow_1fu356n" sourceRef="test3" targetRef="Event_0tirpzn" />
    <bpmn:userTask id="test3" name="审批测试">
      <bpmn:incoming>Flow_1deqcsi</bpmn:incoming>
      <bpmn:outgoing>Flow_1fu356n</bpmn:outgoing>
    </bpmn:userTask>
  </bpmn:process>
  <bpmndi:BPMNDiagram id="BPMNDiagram_1">
    <bpmndi:BPMNPlane id="BPMNPlane_1" bpmnElement="test">
      <bpmndi:BPMNShape id="_BPMNShape_StartEvent_2" bpmnElement="StartEvent_1">
        <dc:Bounds x="179" y="229" width="36" height="36" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="UserTask_14eoyii_di" bpmnElement="test1">
        <dc:Bounds x="310" y="207" width="100" height="80" />
        <bpmndi:BPMNLabel />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="Gateway_1eh4b64_di" bpmnElement="Gateway_1eh4b64" isMarkerVisible="true">
        <dc:Bounds x="505" y="222" width="50" height="50" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="Activity_0zr2m8v_di" bpmnElement="test3">
        <dc:Bounds x="750" y="360" width="100" height="80" />
        <bpmndi:BPMNLabel />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="Activity_1elmo82_di" bpmnElement="test2">
        <dc:Bounds x="750" y="80" width="100" height="80" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="Event_0tirpzn_di" bpmnElement="Event_0tirpzn">
        <dc:Bounds x="1042" y="229" width="36" height="36" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNEdge id="SequenceFlow_0y59rpv_di" bpmnElement="SequenceFlow_0y59rpv">
        <di:waypoint x="215" y="247" />
        <di:waypoint x="310" y="247" />
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_09n832u_di" bpmnElement="Flow_09n832u">
        <di:waypoint x="410" y="247" />
        <di:waypoint x="505" y="247" />
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_1deqcsi_di" bpmnElement="Flow_1deqcsi">
        <di:waypoint x="530" y="272" />
        <di:waypoint x="530" y="400" />
        <di:waypoint x="750" y="400" />
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_1j3al1t_di" bpmnElement="Flow_1j3al1t">
        <di:waypoint x="530" y="222" />
        <di:waypoint x="530" y="120" />
        <di:waypoint x="750" y="120" />
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_0rg2b62_di" bpmnElement="Flow_0rg2b62">
        <di:waypoint x="850" y="120" />
        <di:waypoint x="946" y="120" />
        <di:waypoint x="946" y="247" />
        <di:waypoint x="1042" y="247" />
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_1fu356n_di" bpmnElement="Flow_1fu356n">
        <di:waypoint x="850" y="400" />
        <di:waypoint x="946" y="400" />
        <di:waypoint x="946" y="247" />
        <di:waypoint x="1042" y="247" />
      </bpmndi:BPMNEdge>
    </bpmndi:BPMNPlane>
  </bpmndi:BPMNDiagram>
</bpmn:definitions>

下面是写的几个接口调用过程，来完整执行流程。目前初版实现想法是，业务层还是有申请、审批表的，他们来关联流程实例编号，只引入流程服务来方便编排流程，因此中间过程参数也都存储在业务层，流程中参数只传递影响流程走向的参数，所以示例比较简单，但该想法并不一定是最终想法，只是对于下面接口设计的一些说明。

api接口调用流程

1.新增流程至指定用户审批

参数就不解释了，贴代码自行理解

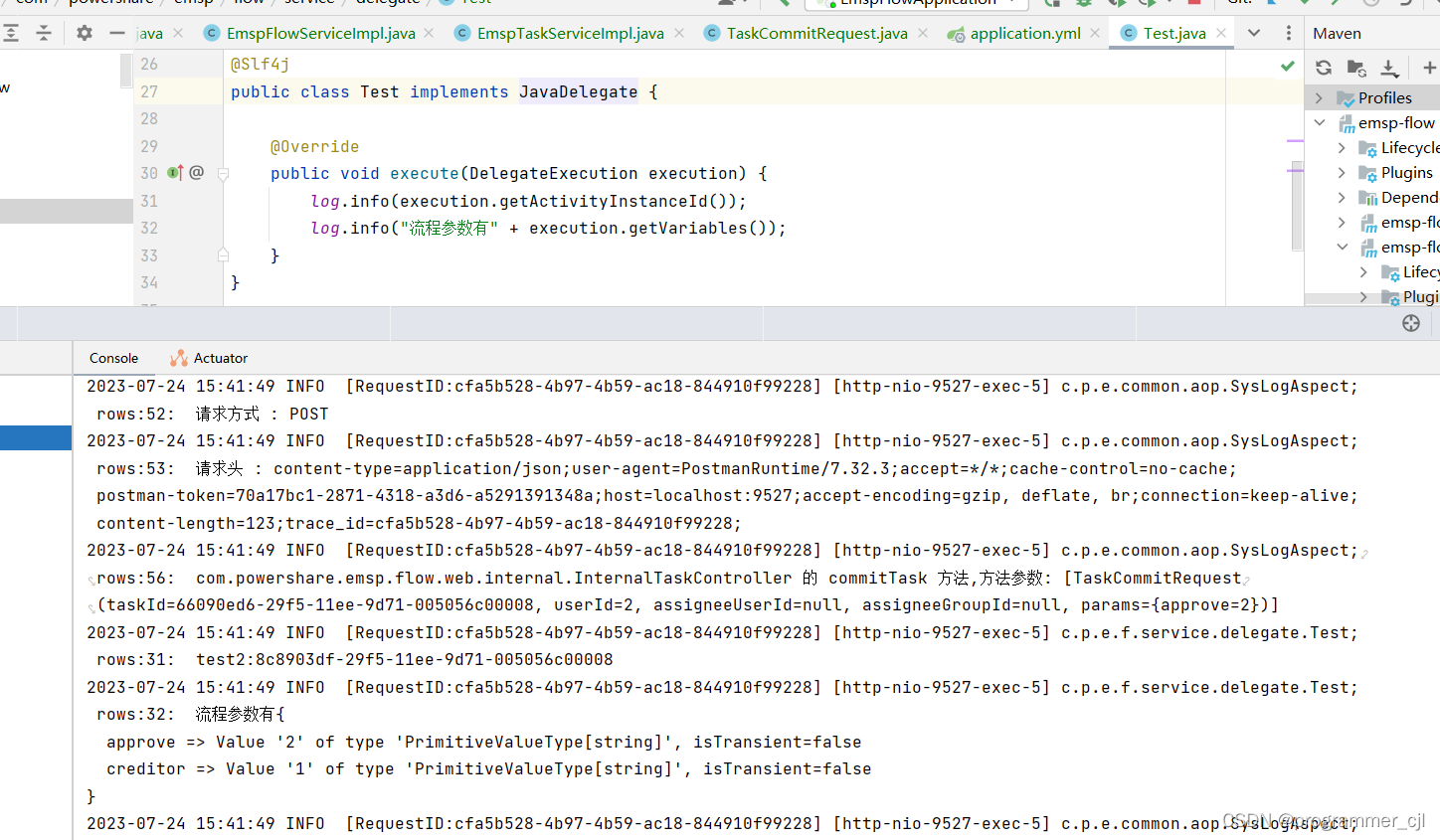

        FlowCreateResponse response = new FlowCreateResponse();
        // 可选择的传入参数
        // 可用来传递requestid
        Map<String, Object> variables = new HashMap<>();
        variables.put("creditor", request.getUserId());
        ProcessInstance instance = runtimeService.startProcessInstanceByKey(
            request.getProcessDefinitionKey(), variables);

        response.setProcessInstanceId(instance.getProcessInstanceId());

        // todo 如果第一个节点为用户节点，需要创建流程后即分配用户
        TaskAssignRequest taskAssignRequest = new TaskAssignRequest();
        taskAssignRequest.setAssigneeUserId(request.getAssigneeUserId());
        taskAssignRequest.setOwnerUserId(request.getUserId());
        taskAssignRequest.setProcessInstanceId(instance.getProcessInstanceId());
        taskService.assignTask(taskAssignRequest);

        return response;

2.查看指定用户的相关流程

只有用户1有流程

上代码

        FlowListResponse flowListResponse = new FlowListResponse();
        List<FlowInfo> flowInfoList = new ArrayList<>();
        flowListResponse.setFlowInfoList(flowInfoList);
        // 流程实例查询
        List<ProcessInstance> processInstanceList =                 runtimeService.createProcessInstanceQuery()
            .variableValueEquals("creditor", request.getUserId())
            .processDefinitionKey(request.getProcessDefinitionKey())
            .list();

        if (CollUtil.isNotEmpty(processInstanceList)) {
            for (ProcessInstance processInstance : processInstanceList) {
                FlowInfo flowInfo = new FlowInfo();
                flowInfo.setProcessInstanceId(processInstance.getId());

                flowInfoList.add(flowInfo);
            }
        }

        return flowListResponse;

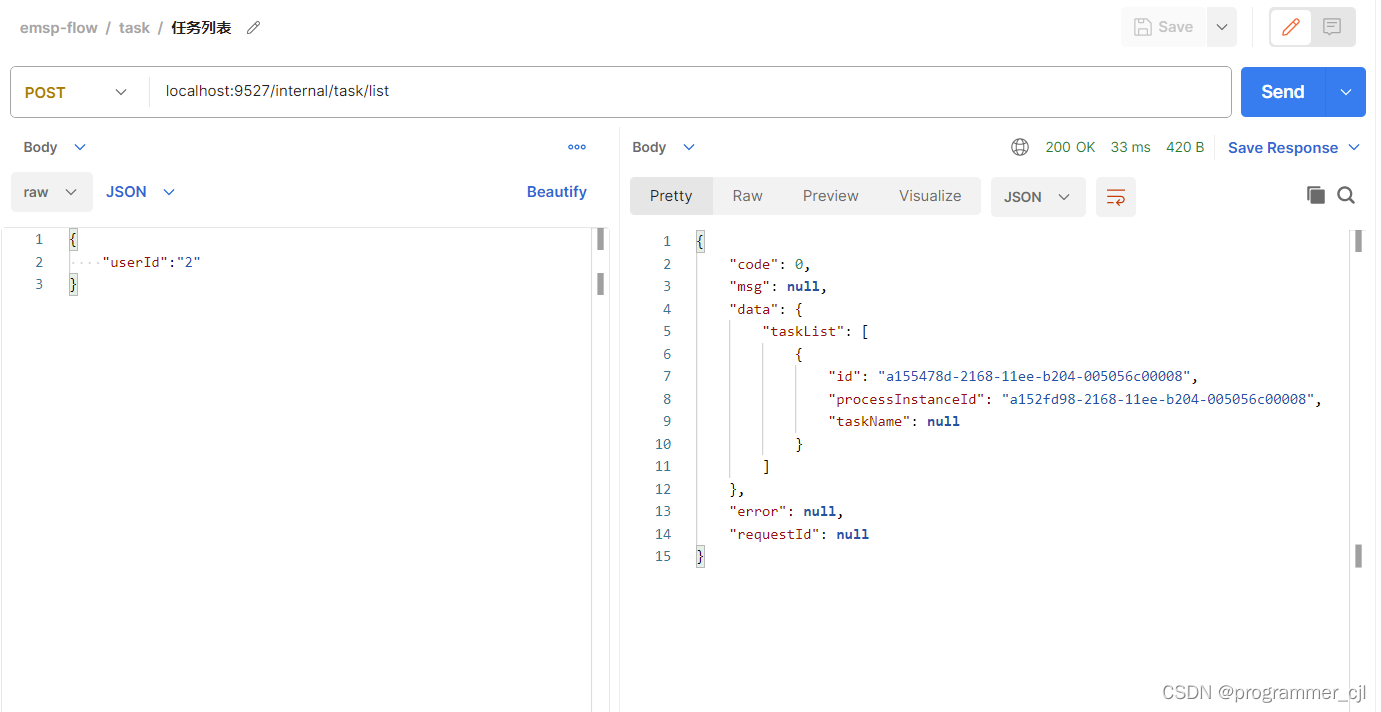

3.查看指定用户的流程任务

用户2有待执行的任务

上代码

        TaskListResponse response = new TaskListResponse();
        List<Task> taskList = taskService.createTaskQuery()
            .taskAssignee(request.getUserId())
            .active().list();

        List<TaskInfo> list = new ArrayList<>();
        for (Task task : taskList) {
            TaskInfo taskInfo = new TaskInfo();
            taskInfo.setId(task.getId());
            taskInfo.setProcessInstanceId(task.getProcessInstanceId());
            taskInfo.setTaskName(taskInfo.getTaskName());

            list.add(taskInfo);
        }

        response.setTaskList(list);
        return response;

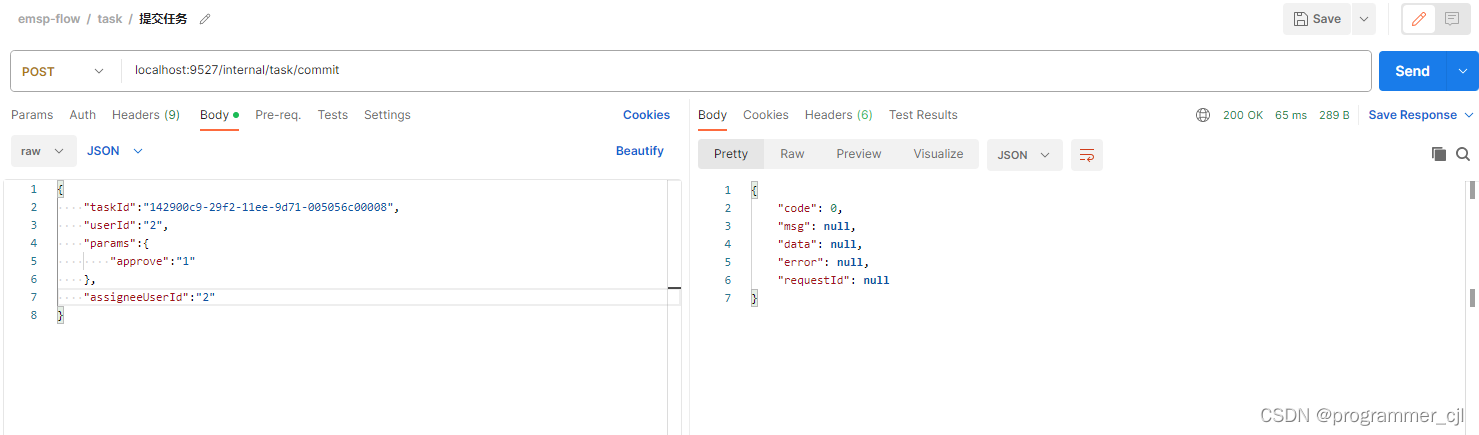

4.1提交流程至下一个用户审批

该种情况下，请求中的assigneeUserId不能为空
