[云原生|k8s-dashboard] k8s部署dashboard-优快云博客

本文链接：https://blog.youkuaiyun.com/pingyufeng/article/details/125821969

部署dashboard(只在master执行)

Kubernetes官方可视化界面：https://github.com/kubernetes/dashboard

部署
dashboard和kubernetes的版本对应关系，参考：https://github.com/kubernetes/dashboard/blob/v2.5.1/go.mod

kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.5.1/aio/deploy/recommended.yaml

# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: Namespace
metadata:
  name: kubernetes-dashboard

---

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 443
      targetPort: 8443
  selector:
    k8s-app: kubernetes-dashboard

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-certs
  namespace: kubernetes-dashboard
type: Opaque

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-csrf
  namespace: kubernetes-dashboard
type: Opaque
data:
  csrf: ""

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-key-holder
  namespace: kubernetes-dashboard
type: Opaque

---

kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-settings
  namespace: kubernetes-dashboard

---

kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
rules:
  # Allow Dashboard to get, update and delete Dashboard exclusive secrets.
  - apiGroups: [""]
    resources: ["secrets"]
    resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
    verbs: ["get", "update", "delete"]
    # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
  - apiGroups: [""]
    resources: ["configmaps"]
    resourceNames: ["kubernetes-dashboard-settings"]
    verbs: ["get", "update"]
    # Allow Dashboard to get metrics.
  - apiGroups: [""]
    resources: ["services"]
    resourceNames: ["heapster", "dashboard-metrics-scraper"]
    verbs: ["proxy"]
  - apiGroups: [""]
    resources: ["services/proxy"]
    resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
    verbs: ["get"]

---

kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
rules:
  # Allow Metrics Scraper to get metrics from the Metrics server
  - apiGroups: ["metrics.k8s.io"]
    resources: ["pods", "nodes"]
    verbs: ["get", "list", "watch"]

---

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
    spec:
      securityContext:
        seccompProfile:
          type: RuntimeDefault
      containers:
        - name: kubernetes-dashboard
          image: kubernetesui/dashboard:v2.5.1
          imagePullPolicy: Always
          ports:
            - containerPort: 8443
              protocol: TCP
          args:
            - --auto-generate-certificates
            - --namespace=kubernetes-dashboard
            # Uncomment the following line to manually specify Kubernetes API server Host
            # If not specified, Dashboard will attempt to auto discover the API server and connect
            # to it. Uncomment only if the default does not work.
            # - --apiserver-host=http://my-address:port
          volumeMounts:
            - name: kubernetes-dashboard-certs
              mountPath: /certs
              # Create on-disk volume to store exec logs
            - mountPath: /tmp
              name: tmp-volume
          livenessProbe:
            httpGet:
              scheme: HTTPS
              path: /
              port: 8443
            initialDelaySeconds: 30
            timeoutSeconds: 30
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      volumes:
        - name: kubernetes-dashboard-certs
          secret:
            secretName: kubernetes-dashboard-certs
        - name: tmp-volume
          emptyDir: {}
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 8000
      targetPort: 8000
  selector:
    k8s-app: dashboard-metrics-scraper

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: dashboard-metrics-scraper
  template:
    metadata:
      labels:
        k8s-app: dashboard-metrics-scraper
    spec:
      securityContext:
        seccompProfile:
          type: RuntimeDefault
      containers:
        - name: dashboard-metrics-scraper
          image: kubernetesui/metrics-scraper:v1.0.7
          ports:
            - containerPort: 8000
              protocol: TCP
          livenessProbe:
            httpGet:
              scheme: HTTP
              path: /
              port: 8000
            initialDelaySeconds: 30
            timeoutSeconds: 30
          volumeMounts:
          - mountPath: /tmp
            name: tmp-volume
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
      volumes:
        - name: tmp-volume
          emptyDir: {}

执行会下载kubernetesui/dashboard:v2.5.1、kubernetesui/metrics-scraper:v1.0.7两个镜像

Every 3.0s: kubectl get pods -A                                                                                                       k8s-master: Sat Jul 16 00:34:18 2022

NAMESPACE              NAME                                         READY   STATUS              RESTARTS      AGE
kube-system            calico-kube-controllers-7bc6547ffb-m2pzb     1/1     Running             0             60m
kube-system            calico-node-lnsp2                            1/1     Running             0             35m
kube-system            calico-node-p8mdb                            1/1     Running             1 (54m ago)   60m
kube-system            coredns-6d8c4cb4d-95r6n                      1/1     Running             0             4h22m
kube-system            coredns-6d8c4cb4d-v966r                      1/1     Running             0             4h22m
kube-system            etcd-k8s-master                              1/1     Running             3 (95m ago)   4h22m
kube-system            etcd-k8s-node1                               1/1     Running             0             36m
kube-system            kube-apiserver-k8s-master                    1/1     Running             3 (95m ago)   4h22m
kube-system            kube-apiserver-k8s-node1                     1/1     Running             0             36m
kube-system            kube-controller-manager-k8s-master           1/1     Running             6 (36m ago)   4h22m
kube-system            kube-controller-manager-k8s-node1            1/1     Running             0             36m
kube-system            kube-proxy-brd6p                             1/1     Running             1 (97m ago)   4h22m
kube-system            kube-proxy-ksxtw                             1/1     Running             0             35m
kube-system            kube-scheduler-k8s-master                    1/1     Running             6 (36m ago)   4h22m
kube-system            kube-scheduler-k8s-node1                     1/1     Running             0             35m
kubernetes-dashboard   dashboard-metrics-scraper-799d786dbf-bv49k   1/1     Running             0             2m3s
kubernetes-dashboard   kubernetes-dashboard-fb8648fd9-rtng4         0/1     ContainerCreating   0             2m3s

设置访问端口
将type: ClusterIP改为：type: NodePort

# 编辑
kubectl edit svc kubernetes-dashboard -n kubernetes-dashboard

# 查看状态
kubectl -n kubernetes-dashboard get service kubernetes-dashboard

# Please edit the object below. Lines beginning with a '#' will be ignored,
# and an empty file will abort the edit. If an error occurs while saving this file will be
# reopened with the relevant failures.
#
apiVersion: v1
kind: Service
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"v1","kind":"Service","metadata":{"annotations":{},"labels":{"k8s-app":"kubernetes-dashboard"},"name":"kubernetes-dashboard","namespace":"kubernetes-dashboard"},"spec":{"ports":[{"port":443,"targetPort":8443}],"selector":{"k8s-app":"kubernetes-dashboard"}}}
  creationTimestamp: "2022-07-16T07:32:10Z"
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
  resourceVersion: "21775"
  uid: bc742f12-a910-433b-9021-3d74882678f1
spec:
  clusterIP: 10.109.43.174
  clusterIPs:
  - 10.109.43.174
  externalTrafficPolicy: Cluster
  internalTrafficPolicy: Cluster
  ipFamilies:
  - IPv4
  ipFamilyPolicy: SingleStack
  ports:
  - nodePort: 30080   # 指定访问端口
    port: 443
    protocol: TCP
    targetPort: 8443
  selector:
    k8s-app: kubernetes-dashboard
  sessionAffinity: None
  type: NodePort    # 修改为NodePort
status:
  loadBalancer: {}
~

查看端口命令

$ kubectl get svc -A | grep kubernetes-dashboard
kubernetes-dashboard   dashboard-metrics-scraper   ClusterIP   10.97.177.65    <none>        8000/TCP                 11m
kubernetes-dashboard   kubernetes-dashboard        NodePort    10.109.43.174   <none>        443:32184/TCP            11m

访问dashborad页面：https://192.168.244.134:32184

创建账号

$ kubectl apply -f dashboard-admin.yaml
serviceaccount/admin-user created
clusterrolebinding.rbac.authorization.k8s.io/admin-user created

dashboad-admin.yaml内容如下：

apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user    # 自定义账号名
  namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user     # 自定义账号名
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user     # 自定义账号名
  namespace: kubernetes-dashboard

生成登录token

#获取访问令牌
$ kubectl -n kubernetes-dashboard describe secret $(kubectl -n kubernetes-dashboard get secret | grep admin-user | awk '{print $1}')


# 或者

kubectl -n kubernetes-dashboard get secret $(kubectl -n kubernetes-dashboard get sa/admin-user -o jsonpath="{.secrets[0].name}") -o go-template="{{.data.token | base64decode}}"

设定账号密码登陆

Kubernetes Dashboard使用用户名密码形式登录
 Dashboard开启用户密码登录
~~k8s-1:dashboard使用用户名，密码登录以及使用http方式登录~~


A。备份kube-apiserver.yaml（重要）

cp /etc/kubernetes/manifests/kube-apiserver.yaml  /etc/kubernetes/manifests/kube-apiserver.yaml.bak

B。新增密码

#账户admin-user密码admin，唯一id是1
#user,passwd,id
echo "admin-user,admin-user,1" > /etc/kubernetes/pki/basic_auth_file

每行写一个账号，id不能重复

C。修改apiserver.yaml

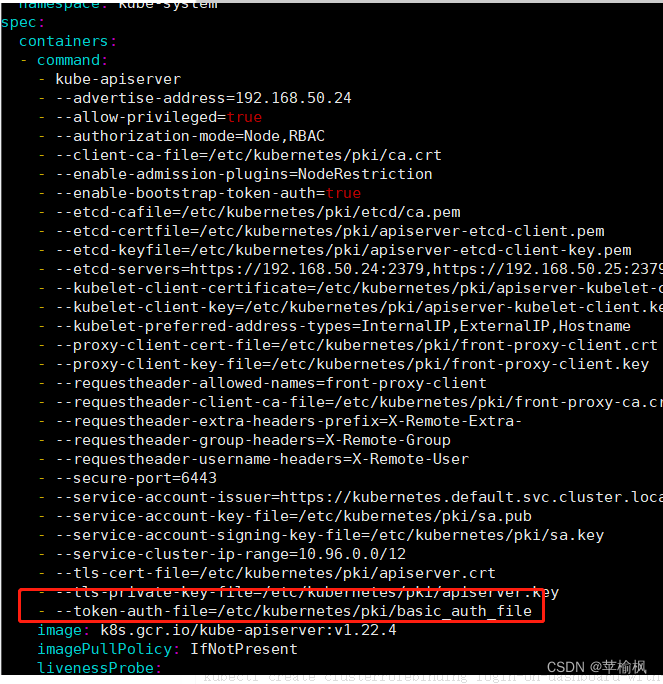

vim /etc/kubernetes/manifests/kube-apiserver.yaml

#加入这一行

- --token-auth-file=/etc/kubernetes/pki/basic_auth_file
#会自动更新
#kubectl apply -f /etc/kubernetes/manifests/kube-apiserver.yaml

#保存退出
D。查看状态

apiserver.yaml被修改后会自动重启（十秒左右），查看状态有报错

E.为admin-user用户绑定权限
创建一个cluster-admin角色的service account , 和一个clusterrolebinding
kubectl create serviceaccount admin-user

# admin绑定权限
kubectl create clusterrolebinding login-on-dashboard-with-cluster-admin --clusterrole=cluster-admin --user=admin-user

//给匿名用户添加权限
kubectl create clusterrolebinding test:anonymous --clusterrole=cluster-admin --user=system:anonymous

# 查看绑定结果
kubectl get clusterrolebinding login-on-dashboard-with-cluster-admin

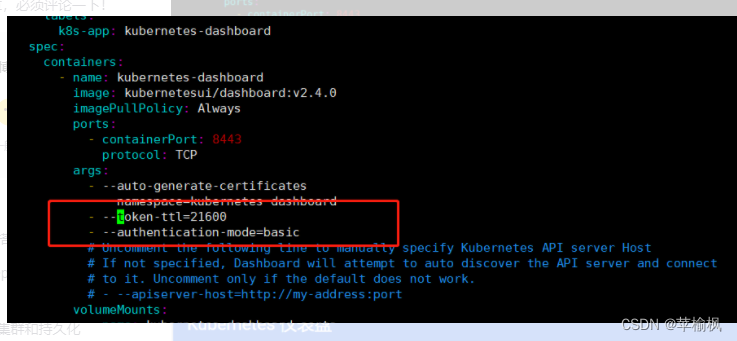

F。修改recommended.yaml

recommended.yaml 是dashboard相关部署文件。

- --token-ttl=21600
- --authentication-mode=basic

#更新
kubectl apply -f dashboard-admin.yaml
