基于kafka的日志收集分析平台搭建详解

本文链接：https://blog.youkuaiyun.com/pengxb0v0/article/details/126978337

基于kafka的日志收集分析平台搭建详解

文章目录

- - 基于kafka的日志收集分析平台搭建详解

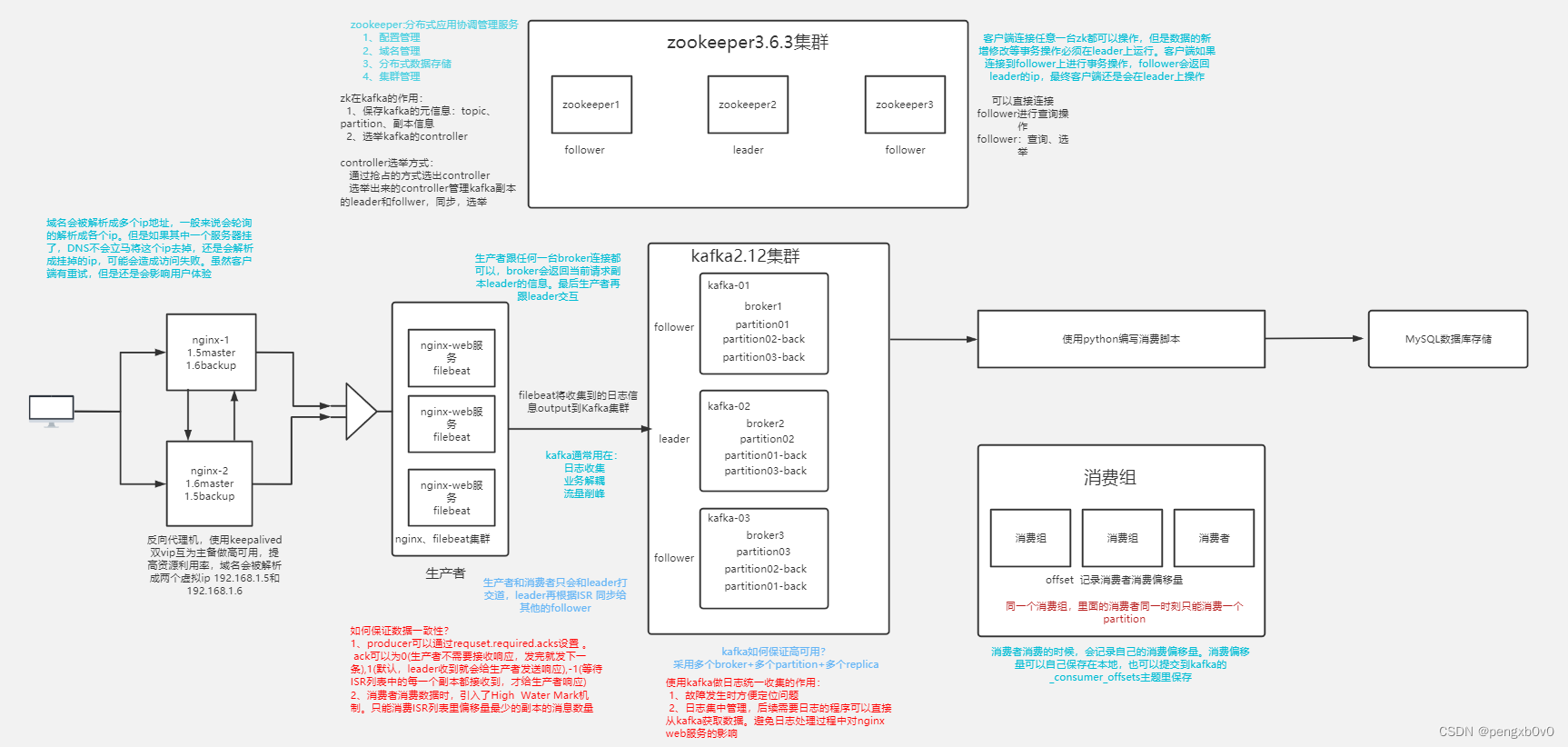

整体架构图

主机名	IP	描述
keepalived-1	192.168.175.110	反向代理机1，使用keepalived做高可用
keepalived-2	192.168.175.111	反向代理机2，使用keepalived做高可用
nginx-1	192.168.175.120	运行nginx和filebeat服务
nginx-2	192.168.175.121	运行nginx和filebeat服务
nginx-3	192.168.175.122	运行nginx和filebeat服务
kafka-zp01	192.168.175.133	运行kafka和zookeeper服务
kafka-zp02	192.168.175.134	运行kafka和zookeeper服务
kafka-zp03	192.168.175.135	运行kafka和zookeeper服务

准备工作

1、准备好8台虚拟机（centos7 2核1G ）

2、全部配置好对应的静态IP地址修改好主机名

修改主机名

[root@localhost ~]# hostnamectl set-hostname nginx-1
[root@localhost ~]# su	#重新登录
[root@nginx-1 ~]#

配置静态IP地址

修改/etc/sysconfig/network-scripts/ifcfg-ens33，以nginx-1主机为例

[root@nginx-1 ~]# vim /etc/sysconfig/network-scripts/ifcfg-ens33
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static	#设置静态IP
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=ens33
UUID=933b7c00-91f4-4ad1-911d-d913192d3161
DEVICE=ens33
ONBOOT=yes
IPADDR=192.168.175.135	#IP地址
GATEWAY=192.168.175.2	#网关
DNS1=114.114.114.114	#DNS
PREFIX=24

重启network服务

[root@nginx-1 ~]# service network restart

3、关闭防火墙和selinux服务

关闭防火墙服务

systemctl stop firewalld
systemctl disable firewalld

关闭selinux服务

临时修改

setenforce 0

永久修改

vim /etc/selinux/config
#将SELINUX由enforce修改为disabled
SELINUX=disabled

4、所有机器配置好对kafka、zookeeper集群的机器的域名解析

192.168.0.94  kafka-zp01
192.168.0.95  kafka-zp02
192.168.0.96  kafka-zp03

搭建keepalived双VIP高可用

执行机器：keepalived-1、keepalived-2

1、安装keepalived

yum install keepalived -y

2、配置keepalived

配置keepalived-1为VIP1：192.168.175.188的master，为VIP2：192.168.175.198的backup

[root@keepalived-1 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance VI_1 {
    state MASTER
    interface ens33
    virtual_router_id 51  #虚拟路由id 在同一个局域网内来区分不同的keepalived集群，如>果在同一个keepalived集群中，那每台主机的router id都是一样的
    priority 120
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.175.188
    }
}

vrrp_instance VI_2 {
    state BACKUP
    interface ens33
    virtual_router_id 52
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.175.198
    }
}

配置keepalived-2为VIP2：192.168.175.198的master，为VIP1：192.168.175.188的backup

[root@keepalived-2 ~]# vim /etc/keepalived/keepalived.conf
vrrp_instance VI_1 {
    state BACKUP
    interface ens33
    virtual_router_id 51  #虚拟路由id 在同一个局域网内来区分不同的keepalived集群，如>果在同一个keepalived集群中，那每台主机的router id都是一样的
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.175.188
    }
}

vrrp_instance VI_2 {
    state MASTER
    interface ens33
    virtual_router_id 52
    priority 120
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.175.198
    }
}

3、重启keepalived服务

systemctl restart keepalived

4、查看效果

使用ip add命令查看VIP的归属

[root@keepalived-1 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UNKNOWN group default qlen 1000
    link/ether 00:0c:29:0b:4e:b7 brd ff:ff:ff:ff:ff:ff
    inet 192.168.175.110/24 brd 192.168.175.255 scope global dynamic ens33
       valid_lft 1510sec preferred_lft 1510sec
    inet 192.168.175.188/32 scope global ens33
       valid_lft forever preferred_lft forever

[root@keepalived-2 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UNKNOWN group default qlen 1000
    link/ether 00:0c:29:ff:e9:c1 brd ff:ff:ff:ff:ff:ff
    inet 192.168.175.111/24 brd 192.168.175.255 scope global dynamic ens33
       valid_lft 1510sec preferred_lft 1510sec
    inet 192.168.175.198/32 scope global ens33
       valid_lft forever preferred_lft forever

搭建nginx集群

执行机器：nginx-1、nginx-2、nginx-3

1、安装nginx

yum install epel-release -y		#安装epel扩展源
yum install  nginx -y

2、启动nginx并设置开机自启

systemctl start nginx	#启动nginx
systemctl enable nginx	#设置开机自启

3、编辑配置文件

[root@nginx-1 ~]# cd /etc/nginx/
[root@nginx-1 nginx]# ls
conf.d        fastcgi.conf.default    koi-utf     mime.types.default  scgi_params          uwsgi_params.default
default.d     fastcgi_params          koi-win     nginx.conf          scgi_params.default  win-utf
fastcgi.conf  fastcgi_params.default  mime.types  nginx.conf.default  uwsgi_params

主配置文件： nginx.conf

...              #全局块

events {         #events块
   ...
}

http      #http块
{
    ...   #http全局块
    server        #server块
    {
        ...       #server全局块
        location [PATTERN]   #location块
        {
            ...
        }
        location [PATTERN]
        {
            ...
        }
    }
    server
    {
      ...
    }
    ...     #http全局块
}

1、全局块：配置影响nginx全局的指令。一般有运行nginx服务器的用户组，nginx进程pid存放路径，日志存放路径，配置文件引入，允许生成worker process数等。

2、events块：配置影响nginx服务器或与用户的网络连接。有每个进程的最大连接数，选取哪种事件驱动模型处理连接请求，是否允许同时接受多个网路连接，开启多个网络连接序列化等。

3、http块：可以嵌套多个server，配置代理，缓存，日志定义等绝大多数功能和第三方模块的配置。如文件引入，mime-type定义，日志自定义，是否使用sendfile传输文件，连接超时时间，单连接请求数等。

4、server块：配置虚拟主机的相关参数，一个http中可以有多个server。

5、location块：配置请求的路由，以及各种页面的处理情况

修改配置文件,在nginx.conf中的http全局块中添加include /etc/nginx/conf.d/*.conf;

在/etc/nginx下新建conf.d目录，在此目录下添加sc.conf配置文件，信息如下

vim  /etc/nginx/conf.d/sc.conf

server {
    listen 80 default_server;
    server_name  www.sc.com;

    root         /usr/share/nginx/html;		#设置根目录

    access_log  /var/log/nginx/sc/access.log main;	#设置日志存储目录 日志格式采用主配置文件里的main格式

    location  / {

    }
}

使用nginx -t对配置进行语法检测

[root@nginx-1 html]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: [emerg] open() "/var/log/nginx/sc/access.log" failed (2: No such file or directory)
nginx: configuration file /etc/nginx/nginx.conf test failed
[root@nginx-1 html]# mkdir /var/log/nginx/sc
[root@nginx-1 html]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful

重新加载nginx

nginx -s  reload

nginx反向代理配置

执行机器：keepalived-1、keepalived-2

配置keepalived-1、keepalived-2 nginx服务反向代理到nginx集群

1、安装nginx

yum install epel-release -y		#安装epel扩展源
yum install  nginx -y

2、启动nginx并设置开机自启

systemctl start nginx	#启动nginx
systemctl enable nginx	#设置开机自启

3、修改配置

修改/etc/nginx/nginx.conf,在http全局块中添加include /etc/nginx/conf.d/*.conf;

在/etc/nginx下新建conf.d目录，在此目录下添加sc.conf配置文件，信息如下

upstream nginx_backend {
    server 192.168.175.120:80;	#nginx-1
    server 192.168.175.121:80;	#nginx-2
    server 192.168.175.122:80;	#nginx-3
}

server {
        listen 80 default_server;
        root      /usr/share/nginx/html;
        location / {
         proxy_pass http://nginx_backend;
        }
}

使用nginx -t对配置进行语法检测，检测无误后使用nginx -s reload对nginx服务进行重新加载

4、效果

访问VIP1：192.168.175.188和VIP2：192.168.175.198时自动代理访问到后端nginx集群。

搭建kafka集群和zookeeper集群

执行机器：kafka-zp01、kafka-zp02、kafka-zp03

1、安装

安装java：

yum install java wget -y

安装kafka：

wget http://mirrors.aliyun.com/apache/kafka/2.8.2/kafka_2.12-2.8.2.tgz

解包：

tar xf kafka_2.12-2.8.1.tgz

安装zookeeper：

wget https://mirrors.bfsu.edu.cn/apache/zookeeper/zookeeper-3.6.3/apache-zookeeper-3.6.3-bin.tar.gz

解包：

tar xf apache-zookeeper-3.6.3-bin.tar.gz

2、配置kafka

修改kafka_2.12-2.8.1/config /server.properties：

broker.id=0
listeners=PLAINTEXT://kafka-zp01:9092
zookeeper.connect=192.168.175.133:2181,192.168.175.134:2181,192.168.175.135:2181

kafka的日志存储在kafka目录下的logs中，可以按照两个维度来设置清除
1、按时间 7天
2、按大小

任意一个按时间或者按大小的条件满足，都可以触发日志清理

kafka日志保存是按段保存的，segment
假设有如下segment
00.log 11.log 22.log

00.log保存的是第一条到11条的日志
11.log保存的是第12条到第22条的日志
22.log保存的是第22条之后的日志

3、配置zk

进入apache-zookeeper-3.6.3-bin/conf

cp zoo_sample.cfg zoo.cfg

修改zoo.cfg, 添加如下三行：

server.1=192.168.175.133:3888:4888
server.2=192.168.175.134:3888:4888
server.3=192.168.175.135:3888:4888

3888和4888都是端口一个用于数据传输，一个用于检验存活性和选举

创建/tmp/zookeeper目录，在目录中添加myid文件，文件内容就是本机指定的zookeeper id内容
如：在192.168.175.133机器上

echo 1 > /tmp/zookeeper/myid

启动zookeeper：

apache-zookeeper-3.6.3-bin/bin/zkServer.sh start

开启zk和kafka的时候，一定是先启动zk，再启动kafka
关闭服务的时候，kafka先关闭，再关闭zk

查看

[root@kafka-zp03 apache-zookeeper-3.6.3-bin]# bin/zkServer.sh status
/usr/bin/java
ZooKeeper JMX enabled by default
Using config: /opt/apache-zookeeper-3.6.3-bin/bin/../conf/zoo.cfg
Client port found: 2181. Client address: localhost. Client SSL: false.
Mode: leader

启动kafka：

bin/kafka-server-start.sh -daemon config/server.properties

zookeeper使用：

zookeeper 分布式，开源的配置管理服务 etcd

运行

bin/zkCli.sh

[zk: localhost:2181(CONNECTED) 1] ls /
[admin, brokers, cluster, config, consumers, controller, controller_epoch, feature, isr_change_notification, latest_producer_id_block, log_dir_event_notification, sc, zookeeper]
[zk: localhost:2181(CONNECTED) 2] ls /brokers/ids
[1, 2, 3]
[zk: localhost:2181(CONNECTED) 3] create /sc/yy
Created /sc/yy
[zk: localhost:2181(CONNECTED) 4] ls /sc
[page, xx, yy]
[zk: localhost:2181(CONNECTED) 5] set /sc/yy 90
[zk: localhost:2181(CONNECTED) 6] get /sc/yy
90

测试

1、创建topic

[root@kafka-zp01 kafka_2.12-2.8.1]# bin/kafka-topics.sh --create --zookeeper 192.168.175.133:2181 --replication-factor 1 --partitions 1 --topic sc

2、查看topic

[root@kafka-zp01 kafka_2.12-2.8.1]# bin/kafka-topics.sh --list --zookeeper 192.168.175.133:2181
--topic pxb

3、创建生产者

[root@kafka-zp01 kafka_2.12-2.8.1]# bin/kafka-console-producer.sh --broker-list 192.168.175.133:9092 --topic pxb
>sdajagd
>adajg
>adadw

4、创建消费者

[root@kafka-zp02 kafka_2.12-2.8.1]# bin/kafka-console-consumer.sh --bootstrap-server 192.168.175.133:9092 --topic pxb --from-beginning

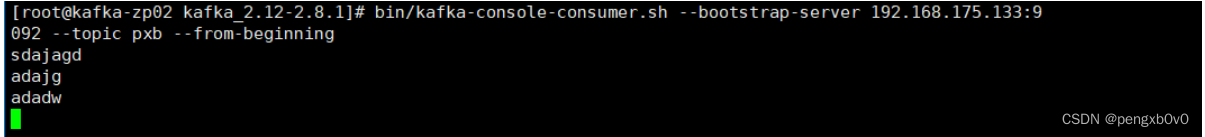

此时消费者会输出生产者输入的数据，表明测试成功。如下图所示

部署filebeat集群

执行机器：nginx-1、nginx-2、nginx-3

1、安装

下载资源包

rpm --import https://packages.elastic.co/GPG-KEY-elasticsearch

编辑 vim /etc/yum.repos.d/fb.repo

[elastic-7.x]
name=Elastic repository for 7.x packages
baseurl=https://artifacts.elastic.co/packages/7.x/yum
gpgcheck=1
gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch
enabled=1
autorefresh=1
type=rpm-md

yum安装

yum  install  filebeat -y
rpm -qa  |grep filebeat  #可以查看filebeat有没有安装  rpm -qa 是查看机器上安装的所有软件包
rpm -ql  filebeat  #查看filebeat安装到哪里去了，牵扯的文件有哪些

设置开机自启

systemctl enable filebeat

#ymal格式
{
“filebeat.inputs”: [
{ “type”:“log”,
“enabled”:true,
“paths”:[“/var/log/nginx/sc_access”]
},
],

}

2、配置

修改配置文件/etc/filebeat/filebeat.yml

filebeat.inputs:
- type: log
 # Change to true to enable this input configuration.
  enabled: true
 # Paths that should be crawled and fetched. Glob based paths.
  paths:
   - /var/log/nginx/sc/access.log
#==========------------------------------kafka-----------------------------------
output.kafka:
   hosts: ["192.168.175.133:9092","192.168.175.134:9092","192.168.175.135:9092"]
   topic: nginxlog
   keep_alive: 10s

3、创建主题nginxlog

bin/kafka-topics.sh --create --zookeeper 192.168.175.133:2181 --replication-factor 3 --partitions 1 --topic nginxlog

4、启动服务

systemctl start  filebeat

访问nginx集群生成日志

执行机器：kafka-zp01

1、在/etc/hosts下添加域名解析，将www.pxb.com网站解析成VIP1和VIP2

vim /etc/hosts

192.168.175.188	www.pxb.com
192.168.175.198	www.pxb.com

2、访问www.pxb.com产生日志

curl  www.pxb.com

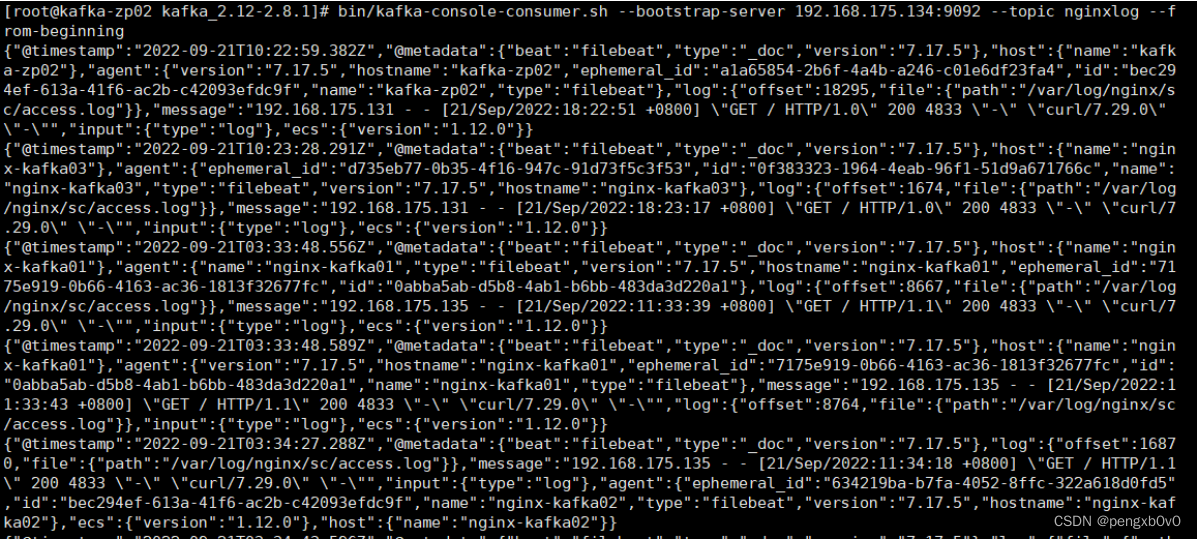

3、创建消费者获取日志

[root@kafka-zp01 kafka_2.12-2.8.1]# bin/kafka-console-consumer.sh --bootstrap-server 192.168.175.134:9092 --topic nginxlog --from-beginning

数据入库

1、需求分析

需要nginx日志的ip，时间，带宽字段
将ip字段解析成相应的省份、运营商
存入数据库的字段： id，时间，省份，运营商，带宽

2、步骤

创建数据表
编写python脚本，从kafka获取nginx日志
获取nginx日志，提取出ip，时间，带宽字段
提取出的ip字段通过淘宝的一个接口解析出省份和运营商
url = “https://ip.taobao.com/outGetIpInfo?accessKey=alibaba-inc&ip=114.114.114.114”
格式化时间字段 “2021-10-12 12:00:00”
存入数据库

3、实施

建表

CREATE TABLE `log` (
  `ip` varchar(50) DEFAULT NULL,
  `time` datetime DEFAULT NULL,
  `dk` varchar(30) DEFAULT NULL,
  `isp` varchar(50) DEFAULT NULL,
  `prov` varchar(30) DEFAULT NULL
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

编写python脚本 vim python_consumer.py

#!/bin/python3
#encoding:utf-8
import json
import requests
import time
import pymysql


#连接数据库
db = pymysql.connect(
  host = "192.168.175.135",
  user = "root",
  passwd = "123456",
  database = "nginx_log"
)

cursor = db.cursor()

taobao_url = "https://ip.taobao.com/outGetIpInfo?accessKey=alibaba-inc&ip="
#查询ip地址的信息（省份和运营商isp），通过taobao网的接口
def resolv_ip(ip):
    response = requests.get(taobao_url+ip)
    if response.status_code == 200:
       tmp_dict = json.loads(response.text)
       prov = tmp_dict["data"]["region"]
       isp = tmp_dict["data"]["isp"]
       return prov,isp
    return None,None

#将日志里读取的格式转换为我们指定的格式
def trans_time(dt):
     #把字符串转成时间格式
    timeArray = time.strptime(dt, "%d/%b/%Y:%H:%M:%S")
    #timeStamp = int(time.mktime(timeArray))
    #把时间格式转成字符串
    new_time = time.strftime("%Y-%m-%d %H:%M:%S", timeArray)
    return new_time

#从kafka里获取数据，清洗为我们需要的ip，时间，带宽
from pykafka import KafkaClient
client = KafkaClient(hosts="192.168.175.133:9092,192.168.175.134:9092,192.168.175.135:9092")
topic = client.topics['nginxlog']
balanced_consumer = topic.get_balanced_consumer(
  consumer_group = 'testgroup',
  auto_commit_enable = True,
  zookeeper_connect = '192.168.175.133:2181,192.168.175.134:2181,192.168.175.135:2181'
)
#consumer = topic.get_simple_consumer()
for message in balanced_consumer:
   if message is not None:
       line = json.loads(message.value.decode("utf-8"))
       log = line["message"]
       tmp_lst = log.split()
       ip = tmp_lst[0]
       dt = tmp_lst[3].replace("[","")
       bt = tmp_lst[9]
       dt = trans_time(dt)
       prov, isp = resolv_ip(ip)
       insert = "insert into log(ip, time, dk, prov, isp) values( %s, %s, %s, %s, %s)"
       values = (ip, dt, bt, prov,isp)
       cursor.execute(insert,values)
       db.commit()
       if prov and isp:
          print(prov, isp,dt)
db.close()

4、执行效果

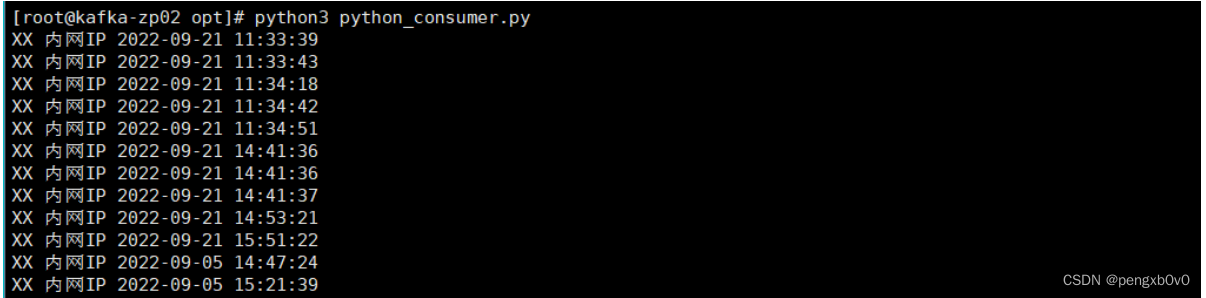

运行python脚本

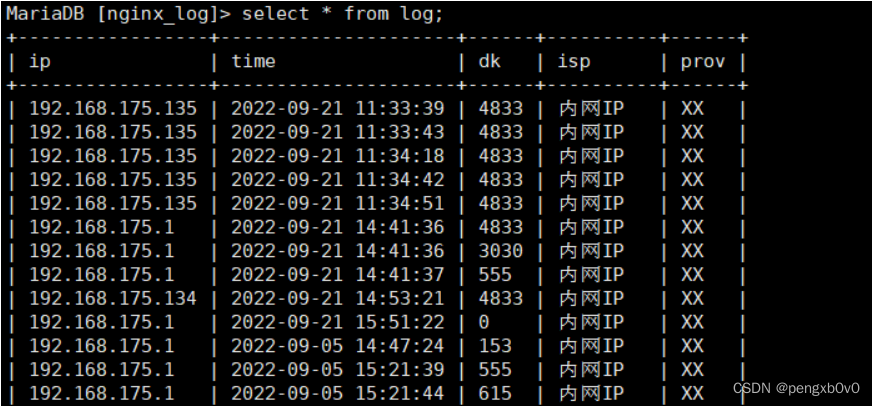

查看数据库

问题

遇到的问题：

重启kafka服务之后运行zookeeper查看brokers/ids显示为空列表

解决：

查看kafka目录下的logs/server.log日志

kafka.common.InconsistentClusterIdException: The Cluster ID yjMbix25TJ6VpXSNceA72w doesn't match stored clusterId Some(yqcsYK4cSJKkhfu6kR0_Yw) in meta.properties. The broker is trying to join the wrong cluster. Configured zookeeper.connect may be wrong.
	at kafka.server.KafkaServer.startup(KafkaServer.scala:252)
	at kafka.server.KafkaServerStartable.startup(KafkaServerStartable.scala:44)
	at kafka.Kafka$.main(Kafka.scala:82)
	at kafka.Kafka.main(Kafka.scala)
