文章系列：

前言

我打算把接下来要写的几篇文章写成一个系列，用来记录一下如何基于Vue一步一步地搭建一个后台管理系统。

文章前传：

《Vue组件中引入jQuery》

《Webpack项目中引入Bootstrap4.x》

《Webpack项目中使用ToolTipster》

本篇文章就是这个系列的第一篇，将对整个系统的页面布局进行设计。在菜单目录树的实现中我们还将使用到前一篇《前端无小事--Webpack项目中使用ToolTipster》中创建好的提示框组件，最终实现的页面效果如下。

Layout.vue

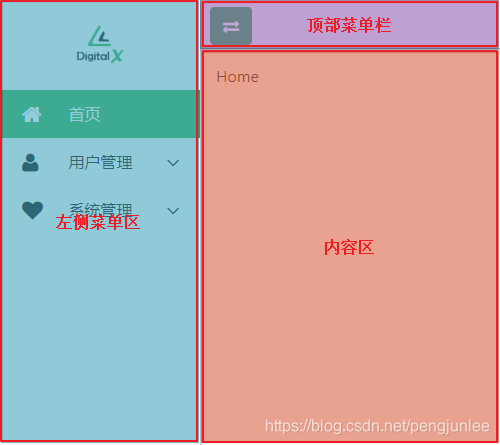

整个页面的布局分为三块区域：左侧菜单区、顶部菜单栏和内容区。

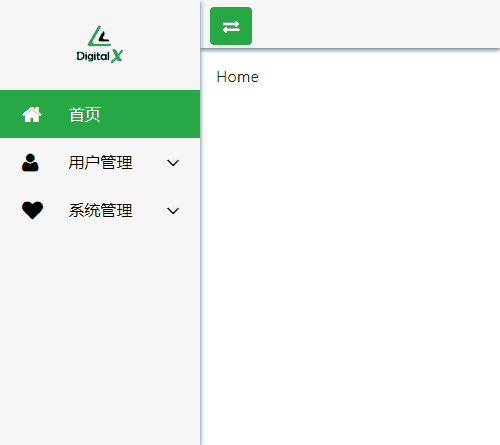

下面是它的完整代码：

<template>
  <div class="layout">
    <div class="left-container" :style="{width: status.isCollapsed?'64px':'200px'}">
      <div class="logo-wrapper">
        <img style="width:50px;height:50px;" src="./DigitalX1.png" />
      </div>
      <div class="menu-wrapper">
        <v-menu v-for="(menu,index) in this.menu_list" :key="index" :menu="menu" :status="status"></v-menu>
      </div>
    </div>

    <div class="topbar-container" :style="{left: this.status.isCollapsed?'64px':'200px'}">
      <div class="btn btn-mini btn-success" @click="collapsed">
        <i class="icon-exchange"></i>
      </div>
    </div>
    <div class="content-container" :style="{left: this.status.isCollapsed?'64px':'200px'}">
      <div class="content">
        <router-view></router-view>
      </div>
    </div>
  </div>
</template>
<script>
import $ from "jquery";
import MenuItem from "../menu/MenuItem";

export default {
  components: {
    "v-menu": MenuItem
  },
  data() {
    return {
      menu_list: [
        {
          path: "/home",
          title: "首页",
          icon: "icon-home icon-large"
        },
        {
          path: "/user",
          title: "用户管理",
          icon: "icon-user icon-large",
          children: [
            { path: "/user/roles", title: "用户角色" },
            { path: "/user/auths", title: "用户权限" }
          ]
        },
        {
          path: "/sys",
          title: "系统管理",
          icon: "icon-heart icon-large",
          children: [
            { path: "/sys/jobs", title: "定时任务" },
            { path: "/sys/menus", title: "菜单管理" }
          ]
        }
      ],
      status: {
        isCollapsed: false,
        currentMenu: "首页",
        parentMenu: "首页"
      }
    };
  },
  methods: {
    collapsed: function() {
      if (this.status.isCollapsed) {
        this.status.isCollapsed = false;
        $(".l2").removeClass("hidden");
      } else {
        this.status.isCollapsed = true;
        $(".l2").addClass("hidden");
      }
    }
  }
};
</script>
<style scoped>
.left-container {
  position: fixed;
  top: 0;
  bottom: 0;
  left: 0;
  z-index: 99;
  background-color: #f6f6f6;
  transition: all 0.3s ease-in-out;
  box-shadow: 0 2px 4px 0 rgba(96, 125, 139, 0.9),
    0 0 6px 0 rgba(96, 125, 139, 0.4);
}
.logo-wrapper {
  display: block;
  margin: 20px 5px;
  text-align: center;
}
.topbar-container {
  position: fixed;
  right: 0;
  top: 0;
  height: 48px;
  line-height: 48px;
  padding: 0 10px;
  background-color: #f6f6f6;
  box-shadow: 0 2px 4px 0 rgba(96, 125, 139, 0.9),
    0 0 6px 0 rgba(96, 125, 139, 0.4);
  transition: all 0.3s ease-in-out;
  z-index: 99;
}
.content-container {
  position: fixed;
  right: 0;
  top: 48px;
  bottom: 0;
  padding: 16px;
  overflow: auto;
  transition: all 0.3s ease-in-out;
}
</style>

MenuItem.vue

MenuItem是一个自定义的菜单组件，每一个一级菜单都会被渲染成一个MenuItem实例，并包含了该一级菜单下面的二级菜单。

<template>
  <div class="menu">
    <div class="menu-box l1">
      <vue-tooltipster
        :tooltipsterOptions="{side:'right'}"
        v-if="hasChildren && status.isCollapsed"
      >
        <div
          :class="menu.title==status.parentMenu || menu.title==status.currentMenu? 'menu-item current-menu':'menu-item'"
          @click="menuClick($event)"
        >
          <span class="icon-span">
            <i v-bind:class="menu.icon"></i>
          </span>
        </div>
        <div slot="content">
          <li
            class="tip-menu"
            v-for="(submenu,index) in menu.children"
            :key="index"
            :title="submenu.title"
            @click="tipMenuClick($event)"
          >
            <span>{{submenu.title}}</span>
          </li>
        </div>
      </vue-tooltipster>
      <div
        v-else
        :class="menu.title==status.currentMenu? 'menu-item current-menu':'menu-item'"
        @click="menuClick($event)"
      >
        <span class="icon-span">
          <i v-bind:class="menu.icon"></i>
        </span>
        <span v-if="!status.isCollapsed">{{menu.title}}</span>
        <span class="arrow-span" v-if="hasChildren && !status.isCollapsed">
          <i v-if="showSubMenu" class="menu-arrow icon-angle-up icon-large"></i>
          <i v-else class="menu-arrow icon-angle-down icon-large"></i>
        </span>
      </div>
      <ul class="menu-box l2" v-if="showSubMenu && hasChildren && !status.isCollapsed">
        <li
          v-for="(submenu,index) in menu.children"
          :key="index"
          :class="submenu.title==status.currentMenu? 'menu-item current-menu':'menu-item'"
          :title="submenu.title"
          @click="subMenuClick($event)"
        >
          <span class="icon-span"></span>
          <span v-if="!status.isCollapsed">{{submenu.title}}</span>
        </li>
      </ul>
    </div>
  </div>
</template>
<script>
import $ from "jquery";
import VueTooltipster from "../tooltip/V-ToolTip";

export default {
  data() {
    return {
      showSubMenu: this.menu.title == this.status.parentMenu
    };
  },
  components: {
    VueTooltipster
  },
  props: ["menu", "status"],
  computed: {
    hasChildren: function() {
      return this.menu.children && this.menu.children.length > 0;
    }
  },
  methods: {
    menuClick: function(event) {
      var $this = $(event.currentTarget);
      var $arrow = $this.find(".menu-arrow");
      if (this.hasChildren) {
        if ($arrow.hasClass("icon-angle-down")) {
          $arrow.removeClass("icon-angle-down").addClass("icon-angle-up");
          this.showSubMenu = true;
        } else {
          $arrow.removeClass("icon-angle-up").addClass("icon-angle-down");
          this.showSubMenu = false;
        }
      } else {
        this.status.parentMenu = this.menu.title;
        this.status.currentMenu = this.menu.title;
        $(".menu-item").removeClass("current-menu");
        $this.addClass("current-menu");
        console.log("进入菜单:"+this.status.currentMenu);
      }
    },
    subMenuClick: function(event) {
      var $this = $(event.currentTarget);
      $(".menu-item").removeClass("current-menu");
      $this.addClass("current-menu");
      this.status.parentMenu = this.menu.title;
      this.status.currentMenu = $this.attr("title");
      console.log("进入菜单:"+this.status.currentMenu);
    },
    tipMenuClick: function(event) {
      var $this = $(event.currentTarget);
      this.status.currentMenu = $this.attr("title");
      this.status.parentMenu = this.menu.title;
      console.log("进入菜单:"+this.status.currentMenu);
    }
  }
};
</script>
<style scoped>
.menu-box {
  text-align: left;
  list-style: none;
  margin: 0;
  padding: 0;
}
.menu-item {
  cursor: pointer;
  color: black;
  line-height: 48px;
  white-space: nowrap;
  list-style: none;
}
.menu-item:hover {
  color: #7bb6e4;
  background-color: rgba(40, 167, 69, 0.5);
}
.current-menu {
  color: white !important;
  background-color: #28a745 !important;
}
.tip-menu {
  cursor: pointer;
  color: black;
  line-height: 48px;
  white-space: nowrap;
  list-style: none;
}
.tip-menu:hover {
  color: #28a745;
}
.icon-span {
  display: inline-block;
  width: 64px;
  padding-left: 22px;
}
.arrow-span {
  display: inline-block;
  position: absolute;
  right: 20px;
}
.hidden {
  display: none !important;
}
</style>

==============================我是分割线===============================

如果你想和我一样自己写一个目录树组件，我的建议是最好不要自己写，原因很简单可能出现的意外太多了，你很难能考虑到所有情况。所以，你的目录树组件好用不好用还不一定。我上面自己写的那个组件在实际使用时就出现了问题：当用户直接在地址栏输入地址时，如何定位到菜单；当用户输入一个错误的地址时，菜单要如何展示；云云。。。

明智的做法是使用开源的组件，省得去重复造轮子，关键是稳定性也是经过大家考验的。

例如，我使用的是 Element ，对上面的布局进行调整后代码如下：

<template>
  <div class="layout">
    <div class="left-container" :style="{width: status.isCollapsed?'64px':'200px'}">
      <div class="logo-wrapper">
        <img style="width:50px;height:50px;" src="./DigitalX1.png" />
      </div>
      <div class="menu-wrapper">
        <el-menu
          text-color="#000000"
          active-text-color="#ffffff"
          router
          unique-opened
          :collapse="status.isCollapsed"
          :default-active="$route.path"
        >
          <template v-for="(menu, index) in menu_list">
            <el-menu-item class="menu-item" v-if="!menu.children" :index="menu.path" :key="index">
              <i :class="menu.icon" style="font-size:24px;"></i>
              <span slot="title">{{menu.title}}</span>
            </el-menu-item>
            <el-submenu v-else :index="menu.path">
              <template slot="title">
                <i :class="menu.icon" style="font-size:24px;"></i>
                <span slot="title">{{menu.title}}</span>
              </template>
              <el-menu-item
                class="menu-item"
                v-for="(subMenu, subIndex) in menu.children"
                :index="subMenu.path"
                :key="subIndex"
              >
                <span slot="title" style="margin-left:13px;">{{subMenu.title}}</span>
              </el-menu-item>
            </el-submenu>
          </template>
        </el-menu>
      </div>
    </div>

    <div class="topbar-container" :style="{left: this.status.isCollapsed?'64px':'200px'}">
      <div class="el-button el-button--default el-button--small" @click="collapsed">
        <i id="collapsedIcon" class="el-icon-s-fold"></i>
      </div>
    </div>
    <div class="content-container" :style="{left: this.status.isCollapsed?'64px':'200px'}">
      <div class="content" style="height: 100%;">
        <router-view></router-view>
      </div>
    </div>
  </div>
</template>
<script>
export default {
  data() {
    return {
      menu_list: [
        {
          path: "/home",
          title: "首页",
          icon: "el-icon-s-home"
        },
        {
          path: "/user",
          title: "用户管理",
          icon: "el-icon-user-solid",
          children: [
            { path: "/user/roles", title: "用户角色" },
            { path: "/user/auths", title: "用户权限" }
          ]
        },
        {
          path: "/sys",
          title: "系统管理",
          icon: "el-icon-s-tools",
          children: [
            { path: "/sys/jobs", title: "定时任务" },
            { path: "/sys/menus", title: "菜单管理" }
          ]
        }
      ],
      status: {
        isCollapsed: false,
        parentMenu: "用户管理"
      }
    };
  },
  methods: {
    collapsed: function() {
      if (this.status.isCollapsed) {
        this.status.isCollapsed = false;
        $("#collapsedIcon")
          .removeClass("el-icon-s-unfold")
          .addClass("el-icon-s-fold");
      } else {
        this.status.isCollapsed = true;
        $("#collapsedIcon")
          .removeClass("el-icon-s-fold")
          .addClass("el-icon-s-unfold");
      }
    }
  }
};
</script>
<style scoped>
.left-container {
  position: fixed;
  top: 0;
  bottom: 0;
  left: 0;
  z-index: 99;
  background-color: #f6f6f6;
  transition: all 0.3s ease-in-out;
  box-shadow: 0 2px 4px 0 rgba(96, 125, 139, 0.9),
    0 0 6px 0 rgba(96, 125, 139, 0.4);
}
.logo-wrapper {
  display: block;
  margin: 20px 5px;
  text-align: center;
}
.topbar-container {
  position: fixed;
  right: 0;
  top: 0;
  height: 48px;
  line-height: 48px;
  padding: 0 10px;
  background-color: #f6f6f6;
  box-shadow: 0 2px 4px 0 rgba(96, 125, 139, 0.9),
    0 0 6px 0 rgba(96, 125, 139, 0.4);
  transition: all 0.3s ease-in-out;
  z-index: 99;
}
.content-container {
  position: fixed;
  right: 0;
  top: 48px;
  bottom: 0;
  padding: 16px;
  overflow: auto;
  transition: all 0.3s ease-in-out;
}
.menu-item.is-active {
  background-color: #28a745 !important;
}
</style>

代码少了不少，是不是清爽了许多！！！
