springcloudgateway进行feign调用校验用户的实现方案

Spring Cloud Gateway是Spring Cloud生态中的新一代API网关，基于Spring 5、Spring Boot 2.0和Project Reactor等技术构建，旨在为微服务架构提供统一的API路由管理、过滤器功能（如熔断、限流）及动态路由能力。

使用Spring Cloud Gateway可以非常方便的进行API路由管理，实现过滤功能，也可进行用户验证，权限校验。在Spring Cloud Gateway的GlobalFilter中使用Feign调用进行用户校验是一个常见的需求（如统一鉴权），但需要注意异步调用、依赖注入和错误处理问题。

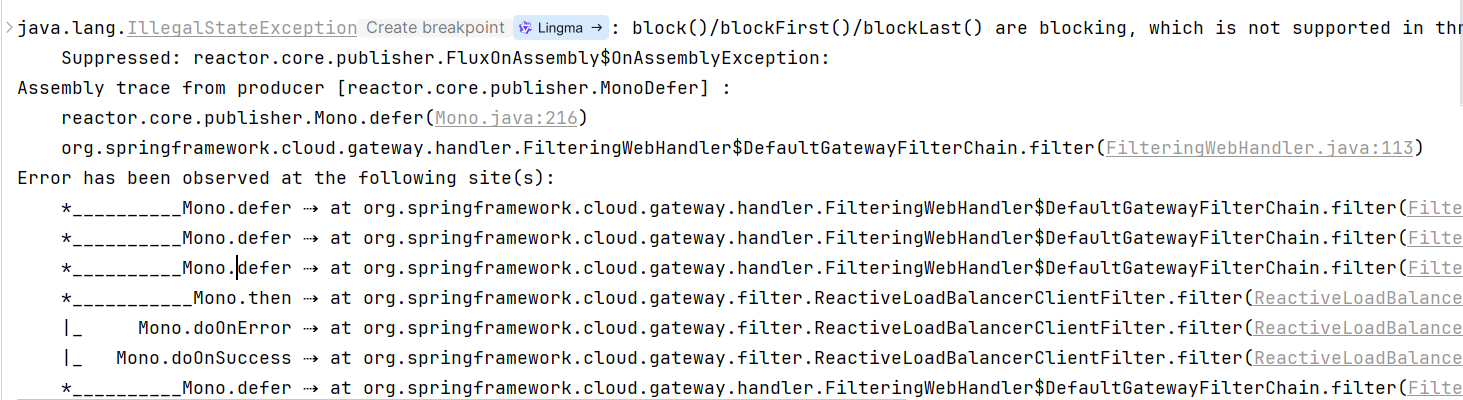

在gateway中进行用户验证鉴权，如果直接在Filter中使用Feign调用进行用户校验，会出现java.lang.IllegalStateException，因为Feign是同步调用，而Gateway基于Reactor异步模型，故有如下图所示的错误信息：

以下是在gateway中使用Feign调用进行用户校验的具体实现方案和注意事项：

---

一、创建Gateway网关模块

1. 添加依赖 (pom.xml)

确保网关模块已引入OpenFeign和Spring Cloud LoadBalancer（Gateway默认使用Reactive环境）以及nacos依赖

		<dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-loadbalancer</artifactId>
            <version>3.1.1</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
            <version>3.1.1</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
            <version>3.1.1</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-circuitbreaker-reactor-resilience4j</artifactId>
            <version>3.1.1</version>
        </dependency>

        <!-- nacos -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
            <version>2021.0.1.0</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
            <version>2021.0.1.0</version>
        </dependency>

2. 启用Feign客户端

在Gateway启动类上类启用FeignClients：

@SpringBootApplication
@EnableFeignClients // 关键注解 启用FeignClients
public class ApiGatewayApplication {
    public static void main(String[] args) {
        SpringApplication.run(ApiGatewayApplication.class, args);
    }
}

3. 定义Feign客户端接口

import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;

@FeignClient(name = "user", fallback = UserClientFallback.class)
public interface UserFeignClients {

    @GetMapping("/verifyUser")
    ResponseEntity<Boolean> verifyUser();

}

4.定义降级策略

import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Component;

@Component
public class UserClientFallback implements UserFeignClients {
    @Override
    public ResponseEntity<Boolean> verifyUser() {
        return ResponseEntity.status(HttpStatus.SERVICE_UNAVAILABLE).body(false);
    }
}

5.配置HttpMessageConverters

在GatewayConfig配置类中添加HttpMessageConverters Bean

import org.springframework.boot.autoconfigure.http.HttpMessageConverters;
import org.springframework.cloud.client.ServiceInstance;
import org.springframework.cloud.client.discovery.DiscoveryClient;
import org.springframework.cloud.client.loadbalancer.Request;
import org.springframework.cloud.client.loadbalancer.reactive.ReactiveLoadBalancer;
import org.springframework.cloud.loadbalancer.blocking.client.BlockingLoadBalancerClient;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.converter.HttpMessageConverter;
import org.springframework.http.converter.json.MappingJackson2HttpMessageConverter;

import java.util.ArrayList;
import java.util.List;
import java.util.Random;

@Configuration
public class GatewayConfig {

    @Bean
    public HttpMessageConverters messageConverters() {
        List<HttpMessageConverter<?>> converters = new ArrayList<>();
        converters.add(new MappingJackson2HttpMessageConverter());
        return new HttpMessageConverters(converters);
    }

}

6.路由配置

在配置文件中配置路由，开启熔断器。

server:
  port: 8080
spring:
  application:
    name: gateway
  cloud:
    nacos:
      config:
        server-addr: localhost:8848
        file-extension: yaml
      discovery:
        server-addr: localhost:8848
    gateway:
      # 路由配置项，对应 RouteDefinition 数组
      routes:
        - id: user
          uri: lb://user
          predicates:
            - Path=/user/**
          filters:
            - StripPrefix=0
        - id: order
          uri: lb://order
          predicates:
            - Path=/order/**
          filters:
            - StripPrefix=0
# 开启熔断器
feign:
  circuitbreaker:
    enabled: true

7.实现GlobalFilter

创建MyFilter类实现GlobalFilter，在filter中进行调用验证用户

import com.demo.feigh.UserFeignClients;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.http.server.reactive.ServerHttpResponse;
import org.springframework.stereotype.Component;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;

@Component
public class MyFilter implements GlobalFilter {
    @Autowired
    private UserFeignClients userFeignClients;

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {

        ResponseEntity<Boolean> responseEntity = userFeignClients.verifyUser();
        if (responseEntity.getStatusCode().is2xxSuccessful() && Boolean.TRUE.equals(responseEntity.getBody())) {
            return chain.filter(exchange); // 校验通过
        }
        ServerHttpResponse response = exchange.getResponse();
        response.setStatusCode(HttpStatus.UNAUTHORIZED);
        return response.setComplete();

    }

}

8.创建User和Order模块

user和order模块的创建此处略过，只展示controller中的伪代码，具体业务可自行实现。

UserController：

import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class UserController {


    @GetMapping("/verifyUser")
    public ResponseEntity<Boolean> verifyUser(){
        return new ResponseEntity<>(true, HttpStatus.OK);
    }
}

OrderController:

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class OrderController {

    @GetMapping("order")
    public String Orders(){
        return "orders";
    }
}

二、方法一：配置负载均衡客户端，手动实现负载均衡算法

在GatewayConfig配置类中添加以下代码

	@Bean
    public BlockingLoadBalancerClient blockingLoadBalancerClient(ReactiveLoadBalancer.Factory<ServiceInstance> loadBalancerClientFactory,
                                                                 DiscoveryClient discoveryClient) {
        return new BlockingLoadBalancerClient(loadBalancerClientFactory) {
            @Override
            public <T> ServiceInstance choose(String serviceId, Request<T> request) {
                List<ServiceInstance> instanceList = discoveryClient.getInstances(serviceId);
                return loadBalancerInstance(instanceList);
            }
        };
    }

    private static ServiceInstance loadBalancerInstance(List<ServiceInstance> instanceList) {
        if (instanceList == null || instanceList.isEmpty()) {
            return null;
        }
        if (instanceList.size() == 1) {
            return instanceList.get(0);
        }
        // 随机负载
        Random random = new Random();
        int index = random.nextInt(instanceList.size());
        return instanceList.get(index);
    }

三、 方法二：异步调用

在GlobalFilter的实现类MyFilter中进行异步调用验证用户。

关键：使用Mono.fromFuture将Feign同步调用转为异步

import com.demo.feigh.UserFeignClients;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.http.server.reactive.ServerHttpResponse;
import org.springframework.stereotype.Component;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;

import java.util.concurrent.CompletableFuture;

@Component
public class MyFilter implements GlobalFilter {
    @Autowired
    private UserFeignClients userFeignClients;

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {

//        ResponseEntity<Boolean> responseEntity = userFeignClients.verifyUser();
//        if (responseEntity.getStatusCode().is2xxSuccessful() && Boolean.TRUE.equals(responseEntity.getBody())) {
//            return chain.filter(exchange); // 校验通过
//        }
//        ServerHttpResponse response = exchange.getResponse();
//        response.setStatusCode(HttpStatus.UNAUTHORIZED);
//        return response.setComplete();

        return Mono.fromFuture(
                        CompletableFuture.supplyAsync(() -> userFeignClients.verifyUser())
                )
                .flatMap(response -> {
                    if (response.getStatusCode().is2xxSuccessful() && Boolean.TRUE.equals(response.getBody())) {
                        return chain.filter(exchange); // 校验通过
                    }
                    return unauthorizedResponse(exchange, "Invalid user");
                })
                .onErrorResume(e ->
                        unauthorizedResponse(exchange, "user service error: " + e.getMessage())
                );

    }

    private Mono<Void> unauthorizedResponse(ServerWebExchange exchange, String message) {
        exchange.getResponse().setStatusCode(HttpStatus.UNAUTHORIZED);
        exchange.getResponse().getHeaders().add("Content-Type", "application/json");
        return exchange.getResponse().writeWith(
                Mono.just(exchange.getResponse()
                        .bufferFactory().wrap(message.toString().getBytes())
                )
        );
    }
}

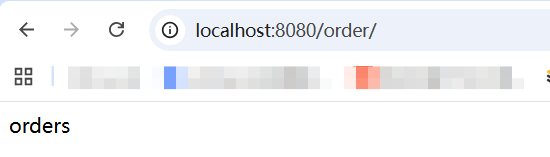

启动gateway、user、order，并在浏览器中访问，结果如下：

四、总结

1. 异步转同步
   Feign是同步调用，而Gateway基于Reactor异步模型。必须通过CompletableFuture.supplyAsync将阻塞调用提交到线程池，再用Mono.fromFuture转为响应式流。

2. 线程池隔离
   CompletableFuture.supplyAsync默认使用ForkJoinPool，高并发时建议指定独立线程池：

   private static final ExecutorService asyncPool = Executors.newFixedThreadPool(100);
   // 使用时：
   CompletableFuture.supplyAsync(() -> userFeignClients.verifyUser(), asyncPool)


3. 超时控制
   在Feign客户端添加超时配置：

   feign:
     client:
       config:
         default:
           connectTimeout: 2000
           readTimeout: 5000


4. 服务降级
   使用fallback处理熔断，防止认证服务不可用导致网关雪崩。

5. 信息传递
   如需将用户信息传给下游服务，可追加请求头：

   exchange.getRequest().mutate().header("user-id", userId).build();


优化建议

• 缓存机制：对已验证Token做短期缓存（如redis或者本地缓存Caffeine），减少Feign调用频次
• JWT本地校验：如果使用JWT，网关可本地验签，无需远程调用
• 权限信息预加载：将用户权限缓存在网关，避免每次请求都查库

异常场景处理

场景	处理方式
token缺失或校验失败	返回401 UNAUTHORIZED
Feign调用超时	返回503 SERVICE_UNAVAILABLE
用户服务返回false	返回403 FORBIDDEN
网络异常	启用熔断降级，拒绝访问

本地缓存Caffeine），减少Feign调用频次

• JWT本地校验：如果使用JWT，网关可本地验签，无需远程调用
• 权限信息预加载：将用户权限缓存在网关，避免每次请求都查库

异常场景处理

场景	处理方式
token缺失或校验失败	返回401 UNAUTHORIZED
Feign调用超时	返回503 SERVICE_UNAVAILABLE
用户服务返回false	返回403 FORBIDDEN
网络异常	启用熔断降级，拒绝访问

通过以上实现，网关可在不影响异步性能的前提下，安全调用远程服务完成鉴权，同时保障系统的弹性和稳定性。
