kubeadm+keepalived+HAproxy搭建高可用kubernetes集群(三主三从两LB)

pcj_888

已于 2025-03-20 21:20:29 修改

阅读量1.3k

点赞数 16

分类专栏： kubernetes 文章标签： kubernetes 容器

于 2024-12-04 15:02:50 首次发布

本文链接：https://blog.youkuaiyun.com/pcj_888/article/details/144240636

版权

kubernetes 专栏收录该内容

20 篇文章

订阅专栏

文章目录

集群规划
一、搭建一主一从集群
二、配置负载均衡
三、搭建高可用集群(三主三从两LB)
参考

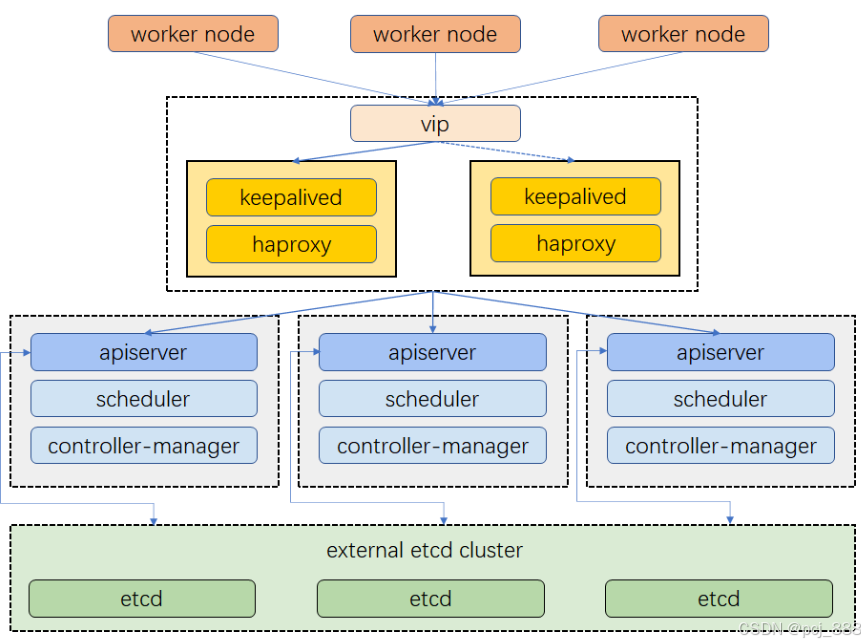

集群规划

8台Linux虚拟机, Rocky Linux 9.5 x86_64

主节点(3个): 2CPU, 3G内存, 20G硬盘
工作节点(2个): 2CPU, 3G内存, 20G硬盘
LB(2个): 1CPU, 2G内存, 10G硬盘

各个机器IP、主机名、角色如下

192.168.52.91 k8s-master1 主节点1
192.168.52.92 k8s-master2 主节点2
192.168.52.93 k8s-master3 主节点3

192.168.52.101 k8s-slave1 从节点1
192.168.52.102 k8s-slave2 从节点2
192.168.52.103 k8s-slave3 从节点3

192.168.52.80 k8s-lb1 HAProxy
192.168.52.81 k8s-lb2 HAProxy
192.168.52.88 www.petertest.com Virtual IP(VIP)

以下分步搭建kubernetes集群

搭建一主一从集群
添加负载均衡(HAProxy)
搭建高可用集群(三主三从两LB)

一、搭建一主一从集群

0. 准备工作

创建两台虚拟机, 1台作为主节点, 1台作为工作节点

192.168.52.91 k8s-master1 主节点1
192.168.52.101 k8s-slave1 从节点1

更新系统软件包

dnf update -y

修改主机名

hostnamectl set-hostname XXX

修改hosts文件

192.168.52.91 k8s-master1
192.168.52.92 k8s-master2
192.168.52.93 k8s-master3

192.168.52.101 k8s-slave1
192.168.52.102 k8s-slave2
192.168.52.103 k8s-slave3

192.168.52.80 k8s-lb1
192.168.52.81 k8s-lb2
192.168.52.88 www.petertest.com

关闭防火墙

systemctl stop firewalld
systemctl disable firewalld

关闭SELINUX

setenforce 0
sed --follow-symlinks -i "s/SELINUX=enforcing/SELINUX=disabled/g" /etc/selinux/config

禁用交换分区

kubelet默认行为是在节点上检测到交换内存时无法启动，所以这里先禁用交换分区。临时禁用交换分区方法:

swapoff -a

永久禁用交换分区，修改/etc/fstab, 注释掉swap分区那一行的配置

sed -i '/\/dev\/mapper\/rl-swap/s/^/#/' /etc/fstab

加载内核模块, 再设置内核参数

临时加载内核模块

modprobe ip_vs_rr
modprobe br_netfilter
modprobe overlay

每次启动时自动加载内核模块

cat <<EOF | sudo tee /etc/modules-load.d/k8s.conf
br_netfilter
overlay
ip_vs_rr
EOF

再设置内核参数

cat <<EOF | tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables 	= 1
net.ipv4.ip_forward 				= 1
EOF

sysctl -p /etc/sysctl.d/k8s.conf

1. 安装containerd, kubeadm, kubelet, kubectl

国内机器需要更换YUM源

sed -e 's|^mirrorlist=|#mirrorlist=|g' \
    -e 's|^#baseurl=http://dl.rockylinux.org/$contentdir|baseurl=https://mirrors.aliyun.com/rockylinux|g' \
    -i.bak \
    /etc/yum.repos.d/[Rr]ocky-*.repo
dnf makecache

安装containerd

dnf config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo # 国内用阿里源
#dnf config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
dnf install -y containerd

配置containerd

containerd config default > /etc/containerd/config.toml

再修改/etc/containerd/config.toml

把SystemdCGroup的值改成true
把sandbox_image改为registry.aliyuncs.com/google_containers/pause:3.9 (国内用户需要做这一步，把镜像换成阿里的)

启动containerd

systemctl daemon-reload
systemctl enable --now containerd

查看containerd版本

# ctr version
Client:
  Version:  1.7.25
  Revision: bcc810d6b9066471b0b6fa75f557a15a1cbf31bb
  Go version: go1.22.10

Server:
  Version:  1.7.25
  Revision: bcc810d6b9066471b0b6fa75f557a15a1cbf31bb
  UUID: 086ce061-3335-48a7-9b78-67b3f12c43ef

安装kubeadm, kubelet, kubectl

先添加k8s的repo

cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

再通过yum安装kubelet, kubeadm, kubectl

yum install -y kubelet kubeadm kubectl
systemctl enable --now kubelet

查看kubelet, kubeadm, kubectl版本

kubeadm version
kubeadm version: &version.Info{Major:"1", Minor:"28", GitVersion:"v1.28.2", GitCommit:"89a4ea3e1e4ddd7f7572286090359983e0387b2f", GitTreeState:"clean", BuildDate:"2023-09-13T09:34:32Z", GoVersion:"go1.20.8", Compiler:"gc", Platform:"linux/amd64"}

# kubectl version
Client Version: v1.28.2
Kustomize Version: v5.0.4-0.20230601165947-6ce0bf390ce3
The connection to the server localhost:8080 was refused - did you specify the right host or port?

# kubelet --version
Kubernetes v1.28.2

说明: kubelet现在每隔几秒就会重启，它陷入了一个等待 kubeadm 指令的死循环, 这是符合预期的。接下来需要在主节点执行kubeadm init，初始化k8s集群

2. 初始化k8s集群

在主节点执行kubeadm init

kubeadm init --apiserver-advertise-address 192.168.52.91 \
			 --image-repository registry.aliyuncs.com/google_containers \
			 --kubernetes-version v1.28.2 \
			 --pod-network-cidr=198.18.0.0/16

参数说明:
–apiserver-advertise-address：监听地址，填主节点IP
–image-repository：国内用户需指定镜像地址为阿里云的，默认是海外镜像你无法访问。
–kubernetes-version：指定kubernetes的版本
–pod-network-cidr=198.18.0.0/16 (这个cidr表示Pod的IP地址范围，根据你的网络环境自定义，不能和其他IP发生冲突即可)

执行时间较长，耐心等几分钟。执行成功后，会打印如下内容，提示你下一步怎么做

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

Alternatively, if you are the root user, you can run:

  export KUBECONFIG=/etc/kubernetes/admin.conf

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 192.168.52.91:6443 --token qtmi2g.1jnqftmkjm72xb75 \
        --discovery-token-ca-cert-hash sha256:0b94fe5b0e0405dc3cea832a5d2100ef8f4505196f52f8c7c992504b5b419532

我使用的是root用户，参照上面的提示，只需export环境变量KUBECONFIG，操作如下：
编辑/etc/profile，结尾添加一行

export KUBECONFIG=/etc/kubernetes/admin.conf

使环境变量立即生效

source /etc/profile

此时，kubectl已经可以查到如下pod, 但coredns pod运行不成功。下一步需要在主节点上安装网络插件

kubectl get pods -A
NAMESPACE     NAME                                 READY   STATUS    RESTARTS   AGE
kube-system   coredns-66f779496c-8ctsc             0/1     Pending   0          3m11s
kube-system   coredns-66f779496c-hx76v             0/1     Pending   0          3m11s
kube-system   etcd-k8s-master                      1/1     Running   0          3m24s
kube-system   kube-apiserver-k8s-master            1/1     Running   0          3m24s
kube-system   kube-controller-manager-k8s-master   1/1     Running   0          3m24s
kube-system   kube-proxy-89c9k                     1/1     Running   0          3m11s
kube-system   kube-scheduler-k8s-master            1/1     Running   0          3m24s

在主节点安装calico网络插件

安装网络插件，可以选择calico或者flannel，我这里选calico，安装参考官方文档
1、Install the Tigera Calico operator and custom resource definitions.

yum install -y wget
wget https://raw.githubusercontent.com/projectcalico/calico/v3.29.1/manifests/tigera-operator.yaml
kubectl create -f tigera-operator.yaml

2、Install Calico by creating the necessary custom resource.

wget https://raw.githubusercontent.com/projectcalico/calico/v3.29.1/manifests/custom-resources.yaml
修改custom-resources.yaml, 把cidr改成198.18.0.0/16
kubectl create -f custom-resources.yaml

3、Confirm that all of the pods are running with the following command.

watch kubectl get pods -n calico-system

Wait until each pod has the STATUS of Running.

4、Remove the taints on the control plane so that you can schedule pods on it.

kubectl taint nodes --all node-role.kubernetes.io/control-plane-
node/k8s-master untainted

(后续如果希望业务容器只调度到工作节点, 需要加上这个污点)

5、 Confirm that you now have a node in your cluster with the following command.

kubectl get nodes -o wide
NAME         STATUS   ROLES           AGE     VERSION   INTERNAL-IP     EXTERNAL-IP   OS-IMAGE                      KERNEL-VERSION                 CONTAINER-RUNTIME
k8s-master   Ready    control-plane   5h16m   v1.28.2   10.206.216.96   <none>        Rocky Linux 9.4 (Blue Onyx)   5.14.0-427.13.1.el9_4.x86_64   containerd://1.7.24

注: 如果是国内用户，会遇到Pod启动失败问题，需要手动从国内镜像站拉取镜像，再改一下tag即可 (国内镜像站: https://docker.aityp.com)

ctr -n k8s.io images pull swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/apiserver:v3.29.1
ctr -n k8s.io images tag swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/apiserver:v3.29.1 docker.io/calico/apiserver:v3.29.1

ctr -n k8s.io images pull swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/cni:v3.29.1
ctr -n k8s.io images tag swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/cni:v3.29.1 docker.io/calico/cni:v3.29.1

ctr -n k8s.io images pull swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/csi:v3.29.1
ctr -n k8s.io images tag swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/csi:v3.29.1 docker.io/calico/csi:v3.29.1

ctr -n k8s.io images pull swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/kube-controllers:v3.29.1
ctr -n k8s.io images tag swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/kube-controllers:v3.29.1 docker.io/calico/kube-controllers:v3.29.1

ctr -n k8s.io images pull swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/node-driver-registrar:v3.29.1
ctr -n k8s.io images tag swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/node-driver-registrar:v3.29.1 docker.io/calico/node-driver-registrar:v3.29.1

ctr -n k8s.io images pull swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/node:v3.29.1
ctr -n k8s.io images tag swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/node:v3.29.1 docker.io/calico/node:v3.29.1

ctr -n k8s.io images pull swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/pod2daemon-flexvol:v3.29.1
ctr -n k8s.io images tag swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/pod2daemon-flexvol:v3.29.1 docker.io/calico/pod2daemon-flexvol:v3.29.1

ctr -n k8s.io images pull swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/typha:v3.29.1
ctr -n k8s.io images tag swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/typha:v3.29.1 docker.io/calico/typha:v3.29.1

导入镜像后, 查看calico Pod创建成功

kubectl get pods -A
NAMESPACE          NAME                                       READY   STATUS    RESTARTS        AGE
calico-apiserver   calico-apiserver-5cb44cddc4-tjb85          1/1     Running   0               22m
calico-apiserver   calico-apiserver-5cb44cddc4-v4nlj          1/1     Running   0               22m
calico-system      calico-kube-controllers-69d6c7f5d4-tnnn7   1/1     Running   0               107s
calico-system      calico-node-bwg5x                          1/1     Running   0               47s
calico-system      calico-typha-8cc7f9579-hksgd               1/1     Running   0               107s
calico-system      csi-node-driver-j4tfr                      2/2     Running   0               107s
kube-system        coredns-66f779496c-5k796                   1/1     Running   0               49m
kube-system        coredns-66f779496c-mxc5j                   1/1     Running   0               49m
kube-system        etcd-k8s-master1                           1/1     Running   1 (3m50s ago)   50m
kube-system        kube-apiserver-k8s-master1                 1/1     Running   1 (3m50s ago)   50m
kube-system        kube-controller-manager-k8s-master1        1/1     Running   1 (3m50s ago)   50m
kube-system        kube-proxy-gczxm                           1/1     Running   1 (3m50s ago)   49m
kube-system        kube-scheduler-k8s-master1                 1/1     Running   1 (3m50s ago)   50m
tigera-operator    tigera-operator-c7ccbd65-rzt2l             1/1     Running   1 (3m50s ago)   27m

安装calicoctl

参考官方文档: https://docs.tigera.io/calico/latest/operations/calicoctl/install

curl -L https://github.com/projectcalico/calico/releases/download/v3.29.1/calicoctl-linux-amd64 -o calicoctl
chmod +x ./calicoctl
cp calicoctl /usr/bin/

calicoctl查看节点

# calicoctl node status
Calico process is running.

IPv4 BGP status
No IPv4 peers found.

IPv6 BGP status
No IPv6 peers found.

# calicoctl get nodes
NAME
k8s-master1

3. 把从节点加入集群

先在Master节点上获取token

kubeadm token list | awk '{print $1}'
TOKEN
qtmi2g.1jnqftmkjm72xb75

默认token 24小时内过期，如果过期了，可以在主节点上重新创建新token

kubeadm token create

再从主节点上获取–discovery-token-ca-cert-hash的值

openssl x509 -pubkey -in /etc/kubernetes/pki/ca.crt | openssl rsa -pubin -outform der 2>/dev/null | \
   openssl dgst -sha256 -hex | sed 's/^.* //'
0b94fe5b0e0405dc3cea832a5d2100ef8f4505196f52f8c7c992504b5b419532

最后, 从节点执行kubeadm join命令，将从节点加入集群:

kubeadm join --token qtmi2g.1jnqftmkjm72xb75 \
		192.168.52.91:6443 \
		--discovery-token-ca-cert-hash sha256:0b94fe5b0e0405dc3cea832a5d2100ef8f4505196f52f8c7c992504b5b419532

[preflight] Running pre-flight checks
        [WARNING Service-Kubelet]: kubelet service is not enabled, please run 'systemctl enable kubelet.service'
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...

This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.

Run 'kubectl get nodes' on the control-plane to see this node join the cluster.

将kubelet设为开机自启动

systemctl enable kubelet.service

查看从节点是否加入成功

需要等几分钟，直到所有Pod创建完成 (国内用户需要手动在从节点上下载calico镜像)

# kubectl get pods -A
NAMESPACE          NAME                                       READY   STATUS    RESTARTS      AGE
calico-apiserver   calico-apiserver-5cb44cddc4-tjb85          1/1     Running   0             50m
calico-apiserver   calico-apiserver-5cb44cddc4-v4nlj          1/1     Running   0             50m
calico-system      calico-kube-controllers-69d6c7f5d4-tnnn7   1/1     Running   0             30m
calico-system      calico-node-bwg5x                          1/1     Running   0             29m
calico-system      calico-node-rtsfd                          1/1     Running   0             14m
calico-system      calico-typha-8cc7f9579-hksgd               1/1     Running   0             30m
calico-system      csi-node-driver-chs4d                      2/2     Running   0             14m
calico-system      csi-node-driver-j4tfr                      2/2     Running   0             30m
kube-system        coredns-66f779496c-5k796                   1/1     Running   0             78m
kube-system        coredns-66f779496c-mxc5j                   1/1     Running   0             78m
kube-system        etcd-k8s-master1                           1/1     Running   1 (32m ago)   78m
kube-system        kube-apiserver-k8s-master1                 1/1     Running   1 (32m ago)   78m
kube-system        kube-controller-manager-k8s-master1        1/1     Running   1 (32m ago)   78m
kube-system        kube-proxy-gczxm                           1/1     Running   1 (32m ago)   78m
kube-system        kube-proxy-wfhh7                           1/1     Running   0             14m
kube-system        kube-scheduler-k8s-master1                 1/1     Running   1 (32m ago)   78m
tigera-operator    tigera-operator-c7ccbd65-rzt2l             1/1     Running   1 (32m ago)   56m

可以查到主, 从节点已经Ready

# kubectl get nodes
NAME         STATUS   ROLES           AGE     VERSION
k8s-master   Ready    control-plane   5h33m   v1.28.2
k8s-node1    Ready    <none>          11m     v1.28.2
k8s-node2    Ready    <none>          11m     v1.28.2

# calicoctl node status
Calico process is running.

IPv4 BGP status
+----------------+-------------------+-------+----------+-------------+
|  PEER ADDRESS  |     PEER TYPE     | STATE |  SINCE   |    INFO     |
+----------------+-------------------+-------+----------+-------------+
| 192.168.52.101 | node-to-node mesh | up    | 14:38:07 | Established |
+----------------+-------------------+-------+----------+-------------+

IPv6 BGP status
No IPv6 peers found.

# calicoctl get nodes
NAME
k8s-master1
k8s-slave1

4. 简单测试一主一从集群，在集群上部署Nginx

创建Nginx deployment(nginx-deployment.yaml), 设置副本数为2

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
spec:
  selector:
    matchLabels:
      app: nginx
  replicas: 3 # 副本数设置为3，假设集群中有三个节点，每个节点上会尝试运行一个Nginx实例（但k8s会根据资源情况和调度策略来实际分配）
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/nginx:1.19-alpine
        ports:
        - containerPort: 80

创建Service(nginx-service.yaml), NodePort暴露服务

apiVersion: v1
kind: Service
metadata:
  name: nginx-service
spec:
  type: NodePort
  selector:
    app: nginx
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
      nodePort: 30080  # 可以指定具体的NodePort，确保端口不冲突且在范围内(30000-32767)

应用deployment, Service

kubectl apply -f nginx-deployment.yaml
kubectl apply -f nginx-service.yaml

查看Pod, Nginx pod只调度到了工作节点上

# kubectl get pods -o wide
NAME                                READY   STATUS    RESTARTS   AGE   IP            NODE         NOMINATED NODE   READINESS GATES
nginx-deployment-645d5cfc8b-h8qnr   1/1     Running   0          14s   198.18.0.72   k8s-slave1   <none>           <none>
nginx-deployment-645d5cfc8b-hdn8k   1/1     Running   0          14s   198.18.0.71   k8s-slave1   <none>           <none>
nginx-deployment-645d5cfc8b-lkjms   1/1     Running   0          14s   198.18.0.73   k8s-slave1   <none>           <none>

kubectl get svc  | grep nginx
nginx-service   NodePort    10.105.69.177   <none>        80:30080/TCP   49s

通过任意节点请求Nginx, 返回200 OK

# curl k8s-master1:30080 -i
HTTP/1.1 200 OK
# curl k8s-slave1:30080 -i
HTTP/1.1 200 OK

删除deployment和service

[root@k8s-master ~]# kubectl delete deploy nginx-deployment
deployment.apps "nginx-deployment" deleted
# kubectl delete service nginx-service
service "nginx-service" deleted

二、配置负载均衡

准备两个节点用于负载均衡, 以及一个Virtual IP, 某个节点发生故障时, Virtual IP可以漂移到另一个节点, 从而实现高可用

192.168.52.80 HAProxy
192.168.52.81 HAProxy
192.168.52.88 www.petertest.com Virtual IP

关闭SELinux和firewalld

systemctl stop firewalld
systemctl disable firewalld
setenforce 0
sed --follow-symlinks -i "s/SELINUX=enforcing/SELINUX=disabled/g" /etc/selinux/config

安装keepalived和HAproxy

yum install keepalived haproxy psmisc -y

配置HAproxy

vi /etc/haproxy/haproxy.cfg

global
    log /dev/log local0 warning
    chroot /var/lib/haproxy
    pidfile /var/run/haproxy.pid
    maxconn 4000
    user haproxy
    group haproxy
    daemon
    stats socket /var/lib/haproxy/stats

defaults
    log global
    option httplog
    option dontlognull
    timeout connect 5000
    timeout client 50000
    timeout server 50000

frontend kube-apiserver
    bind *:6443
    mode tcp
    option tcplog
    default_backend kube-apiserver

backend kube-apiserver
    mode tcp
    option tcplog
    option tcp-check
    balance roundrobin
    default-server inter 10s downinter 5s rise 2 fall 2 slowstart 60s maxconn 250 maxqueue 256 weight 100
    server kube-apiserver-1 192.168.52.91:6443 check # Replace the IP address with your own.

重启HAProxy, 设置开机自动运行

systemctl restart haproxy
systemctl enable haproxy

测试一下HAProxy

curl localhost:6443
curl: (52) Empty reply from server
tcpdump dst port 6443
22:51:02.055968 IP 192.168.52.80.41304 > k8s-master1.sun-sr-https: Flags [S], seq 1465862176, win 32120, options [mss 1460,sackOK,TS val 2222524931 ecr 0,nop,wscale 7], length 0

配置keepalived

192.168.52.80 k8s-lb1 HAProxy
192.168.52.81 k8s-lb2 HAProxy
192.168.52.88 www.petertest.com Virtual IP

k8s-lb1配置
vi /etc/keepalived/keepalived.conf

global_defs {
    router_id LVS_DEVEL # 每个keepalived实例应该有一个唯一的router_id
}

vrrp_script chk_haproxy {
    script "killall -0 haproxy" # 使用killall命令检查haproxy是否存活
    interval 2 # 检查间隔为2秒
    weight 2 # 如果脚本失败，优先级减少2
}

vrrp_instance haproxy-vip {
    state MASTER # 对于主服务器应设置为MASTER，对于备用服务器设置为BACKUP
    priority 100 # 主服务器的优先级应高于备用服务器
    interface ens160 # 绑定的网络接口名称，请根据实际情况调整
    virtual_router_id 60 # 虚拟路由ID，必须在主备服务器上保持一致
    advert_int 1 # 广告间隔时间
    authentication { # 认证信息，用于主备服务器间通信
        auth_type PASS
        auth_pass 1111 # 这里的密码需要在主备服务器上保持一致
    }

    unicast_src_ip 192.168.52.80 # 本机IP地址

    unicast_peer { # 单播对等体列表，列出所有参与VRRP组的其他节点
        192.168.52.81 # 备用服务器的IP地址
    }

    virtual_ipaddress {
        192.168.52.88/24 # 虚拟IP地址及其子网掩码
    }

    track_script {
        chk_haproxy # 引用之前定义的健康检查脚本
    }
}

重启keepalived, 设置自启动

systemctl restart keepalived
systemctl enable keepalived

k8s-lb2也配置keepalived, 如下:

global_defs {
    router_id LVS_DEVEL_BACKUP # 这个ID需要和主服务器的router_id区分开来
}

vrrp_script chk_haproxy {
    script "killall -0 haproxy" # 检查haproxy是否存活
    interval 2 # 每2秒执行一次检查
    weight 2 # 如果脚本失败，优先级减少2
}

vrrp_instance haproxy-vip {
    state BACKUP # 设置为BACKUP状态
    priority 99 # 优先级要比主服务器低，例如设置为99
    interface ens160 # 绑定的网络接口，根据实际情况修改
    virtual_router_id 60 # 虚拟路由ID，必须与主服务器保持一致
    advert_int 1 # 广告间隔时间
    authentication {
        auth_type PASS
        auth_pass 1111 # 认证密码需与主服务器相同
    }

    unicast_src_ip 192.168.52.81 # 当前服务器的IP地址
    unicast_peer {
        192.168.52.80 # 主服务器的IP地址
    }

    virtual_ipaddress {
        192.168.52.88/24 # 虚拟IP地址及其子网掩码，需与主服务器保持一致
    }

    track_script {
        chk_haproxy # 引用健康检查脚本
    }
}

验证高可用

curl测试VIP, 同时可以在某个LB实例上通过ip addr查到VIP

curl 192.168.52.88:6443
curl: (52) Empty reply from server

ip addr
# ip addr
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:4f:99:01 brd ff:ff:ff:ff:ff:ff
    altname enp3s0
    inet 192.168.52.80/24 brd 192.168.52.255 scope global noprefixroute ens160
       valid_lft forever preferred_lft forever
    inet 192.168.52.88/24 scope global secondary ens160
       valid_lft forever preferred_lft forever

测试高可用, 任意关机一台LB, VIP仍能访问, 且成功漂移到另一台LB

三、搭建高可用集群(三主三从两LB)

重置之前的k8s节点

在主节点执行如下命令, 把从节点移出集群

kubectl delete node k8s-slave1

在从节点执行, 重置从节点

systemctl stop kubelet
kubeadm reset
rm -rf /etc/kubernetes/*

重置主节点

kubeadm reset
rm -rf $HOME/.kube

用VIP重新初始化主节点

kubeadm init --control-plane-endpoint="www.petertest.com:6443" --upload-certs \
			 --image-repository registry.aliyuncs.com/google_containers \
			 --kubernetes-version v1.28.2 \
			 --pod-network-cidr=198.18.0.0/16

执行后，输出提示, 它告诉你如何加入其他主节点和工作节点

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

Alternatively, if you are the root user, you can run:

  export KUBECONFIG=/etc/kubernetes/admin.conf

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

You can now join any number of the control-plane node running the following command on each as root:

  kubeadm join www.petertest.com:6443 --token oa0iql.m7pbqe76ox30cmj2 \
        --discovery-token-ca-cert-hash sha256:f68a231370853f52c1894f34b86e32069f2748be8f54d67f661d59d6e11a8fc8 \
        --control-plane --certificate-key 548e38fad35f8f97ff066decd6a779a037e30cf0490e2facd78cd6dbb14a7371

Please note that the certificate-key gives access to cluster sensitive data, keep it secret!
As a safeguard, uploaded-certs will be deleted in two hours; If necessary, you can use
"kubeadm init phase upload-certs --upload-certs" to reload certs afterward.

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join www.petertest.com:6443 --token oa0iql.m7pbqe76ox30cmj2 \
        --discovery-token-ca-cert-hash sha256:f68a231370853f52c1894f34b86e32069f2748be8f54d67f661d59d6e11a8fc8

测试VIP, 返回200 OK

curl https://www.petertest.com:6443/healthz -k
ok

注: 国内用户需手动下载calico镜像

加入其余两个主节点

kubeadm join www.petertest.com:6443 --token oa0iql.m7pbqe76ox30cmj2 \
        --discovery-token-ca-cert-hash sha256:f68a231370853f52c1894f34b86e32069f2748be8f54d67f661d59d6e11a8fc8 \
        --control-plane --certificate-key 548e38fad35f8f97ff066decd6a779a037e30cf0490e2facd78cd6dbb14a7371

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

systemctl enable kubelet.service

注: 国内用户需手动下载并导入calico镜像

加入其余两个从节点

kubeadm join www.petertest.com:6443 --token oa0iql.m7pbqe76ox30cmj2 \
        --discovery-token-ca-cert-hash sha256:f68a231370853f52c1894f34b86e32069f2748be8f54d67f661d59d6e11a8fc8

systemctl enable kubelet.service
