project_serial_port

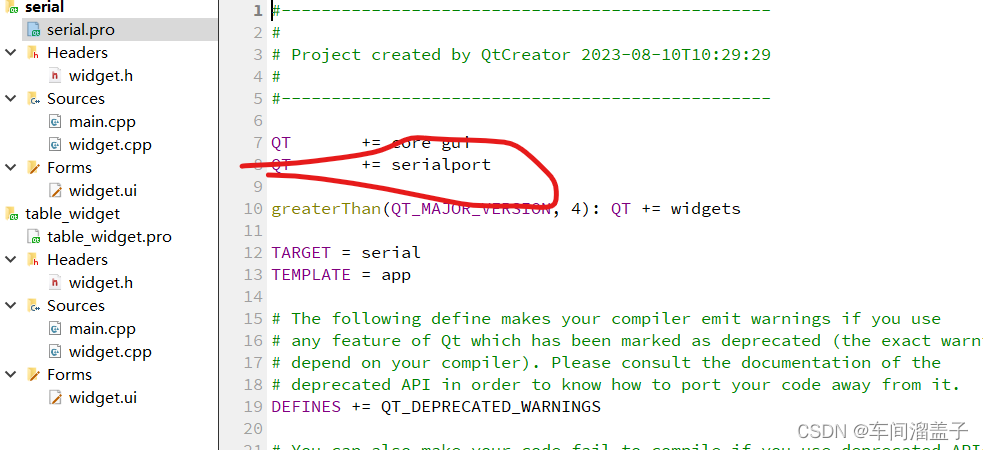

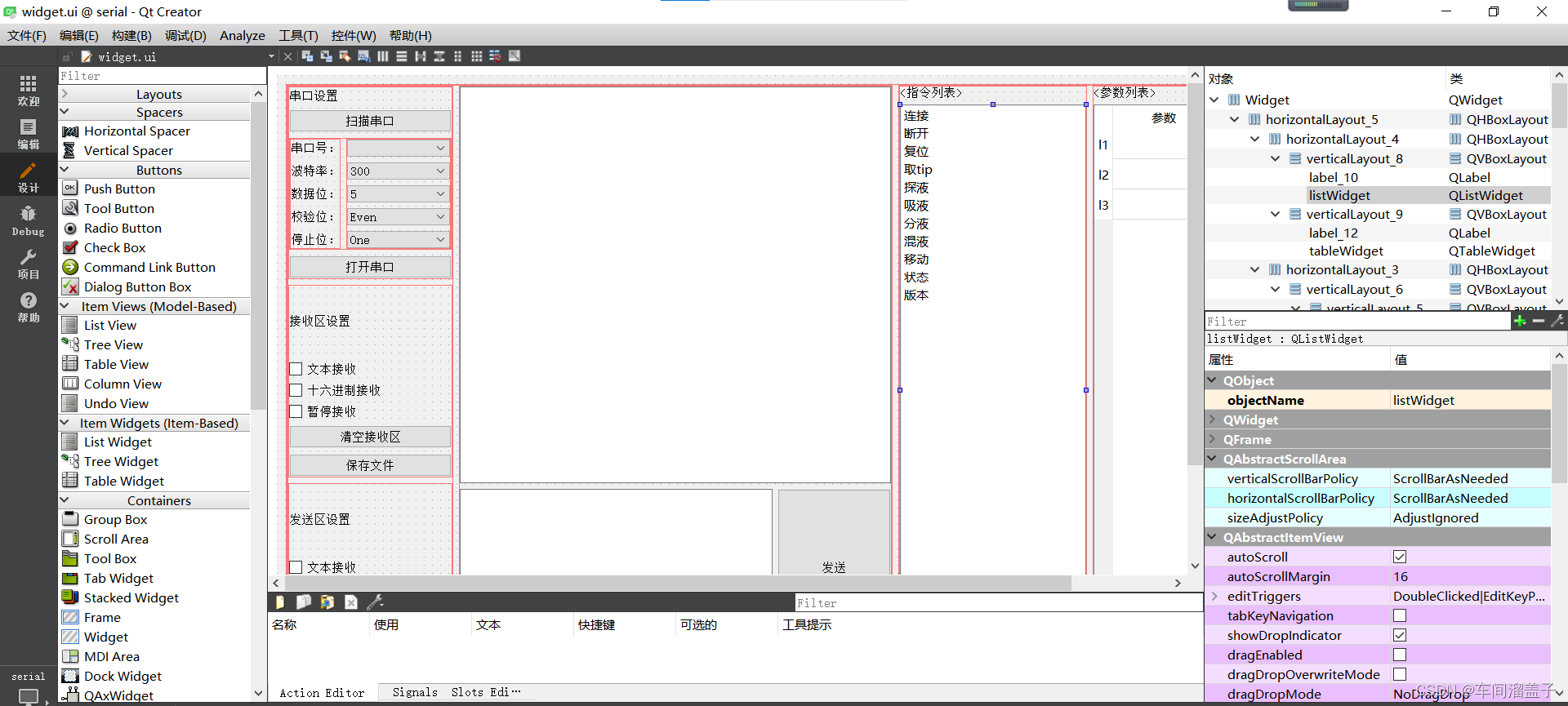

效果

源码

widget.cpp

#include "widget.h"
#include "ui_widget.h"

Widget::Widget(QWidget *parent) :
    QWidget(parent),
    ui(new Ui::Widget)
{
    ui->setupUi(this);
    Init();
    tableWidgetInit();
    listWidgetInit();
}

Widget::~Widget()
{
    delete ui;
}

void Widget::Init(void){

    resize(1130,660);
    setWindowTitle("serial_port");
    SendByte=0;ReceByte=0;
    serial = new QSerialPort(this);

    connect(serial,SIGNAL(readyRead()),this,SLOT(serialPort_readyRead()));
    connect(ui->btn_serial_scan,SIGNAL(clicked(bool)),this,SLOT(btn_serial_scan_clicked()));
    connect(ui->btn_serial_send,SIGNAL(clicked(bool)),this,SLOT(btn_serial_send_clicked()));
    connect(ui->btn_serial_open,SIGNAL(clicked(bool)),this,SLOT(btn_serial_open_clicked()));
    connect(ui->btn_tx_clear,SIGNAL(clicked(bool)),this,SLOT(btn_tx_clear_clicked()));
    connect(ui->btn_rx_clear,SIGNAL(clicked(bool)),this,SLOT(btn_rx_clear_clicked()));
    connect(ui->btn_file_save,SIGNAL(clicked(bool)),this,SLOT(btn_file_save_clicked()));
    connect(ui->btn_file_open,SIGNAL(clicked(bool)),this,SLOT(btn_file_open_clicked()));
    connect(ui->btn_counter_clear,SIGNAL(clicked(bool)),this,SLOT(btn_clear_counter_clicked()));

    connect(ui->chk_rx_tx,SIGNAL(clicked(bool)),this,SLOT(chk_rx_tx_clicked()));
    connect(ui->chk_rx_hex,SIGNAL(clicked(bool)),this,SLOT(chk_rx_hex_clicked()));
    connect(ui->chk_tx_tx,SIGNAL(clicked(bool)),this,SLOT(chk_tx_tx_clicked()));
    connect(ui->chk_tx_hex,SIGNAL(clicked(bool)),this,SLOT(chk_tx_hex_clicked()));
    connect(ui->chk_rx_pause,SIGNAL(clicked(bool)),this,SLOT(chk_rx_pause_clicked()));
    connect(ui->lineEdit,SIGNAL(returnPressed()),this,SLOT(on_lineEdit_ending()));

    portTime=0;
    Times = 0;
    lineEditData = 1000;

    timer = new QTimer;
    timer->start(1);
    connect(timer,SIGNAL(timeout()),this,SLOT(timerout_event()));


    ui->cmb_baud->setCurrentIndex(5);
    ui->cmb_databit->setCurrentIndex(3);
    ui->cmb_crcbit->setCurrentIndex(2);
    ui->cmb_stopbit->setCurrentIndex(0);

    ui->lineEdit->setText("1000");
    ui->chk_tx_tx->setCheckState(Qt::Checked);//勾选
    ui->chk_rx_tx->setCheckState(Qt::Checked);//勾选
    ui->btn_serial_send->setEnabled(false);//按钮是灰色的，不响应任何触发事件
    ui->chk_timer->setEnabled(false);//按钮是灰色的，不响应任何触发事件
}

//打开串口
void Widget::btn_serial_open_clicked()
{
    qDebug()<<"open serialport"<<endl;
    if(ui->btn_serial_open->text()==QString("打开串口"))
    {
        //设置串口名
        serial->setPortName(ui->cmb_serail->currentText());
        qDebug()<<ui->cmb_serail->currentText()<<endl;
        //设置波特率
        serial->setBaudRate(ui->cmb_baud->currentText().toInt());
        qDebug()<<ui->cmb_baud->currentText().toInt()<<endl;
        //设置数据位
        switch(ui->cmb_databit->currentText().toInt())
        {
        case 5:serial->setDataBits(QSerialPort::Data5);break;
        case 6:serial->setDataBits(QSerialPort::Data6);break;
        case 7:serial->setDataBits(QSerialPort::Data7);break;
        case 8:serial->setDataBits(QSerialPort::Data8);break;
        default:serial->setDataBits(QSerialPort::UnknownDataBits);break;
        }
        //设置奇偶校验位
        switch(ui->cmb_crcbit->currentIndex())
        {
        case 0:serial->setParity(QSerialPort::EvenParity);break;
        case 1:serial->setParity(QSerialPort::MarkParity);break;
        case 2:serial->setParity(QSerialPort::NoParity);break;
        case 3:serial->setParity(QSerialPort::OddParity);break;
        default:serial->setParity(QSerialPort::UnknownParity);break;
        }
        //设置停止位
        switch (ui->cmb_stopbit->currentIndex())
        {
        case 0:serial->setStopBits(QSerialPort::OneStop);break;
        case 1:serial->setStopBits(QSerialPort::OneAndHalfStop);break;
        case 2:serial->setStopBits(QSerialPort::TwoStop);break;
        default:serial->setStopBits(QSerialPort::UnknownStopBits);break;
        }
        //设置流控制
        serial->setFlowControl(QSerialPort::NoFlowControl);

        //打开串口
        if(!serial->open(QIODevice::ReadWrite))
        {
            QMessageBox::about(NULL,"提示","无法打开串口");
            return;
        }
        //下拉控件失能
        ui->cmb_serail->setEnabled(false);
        ui->cmb_baud->setEnabled(false);
        ui->cmb_databit->setEnabled(false);
        ui->cmb_crcbit->setEnabled(false);
        ui->cmb_stopbit->setEnabled(false);
        ui->btn_serial_scan->setEnabled(false);

        ui->chk_timer->setEnabled(true);
        ui->btn_serial_open->setText(tr("关闭串口"));
        ui->btn_serial_send->setEnabled(true);
    }
    else
    {
        //关闭串口
        serial->close();
        //下拉按键使能
        ui->cmb_serail->setEnabled(true);
        ui->cmb_baud->setEnabled(true);
        ui->cmb_databit->setEnabled(true);
        ui->cmb_crcbit->setEnabled(true);
        ui->cmb_stopbit->setEnabled(true);
        ui->btn_serial_scan->setEnabled(true);

        ui->chk_timer->setEnabled(false);
        ui->btn_serial_open->setText(tr("打开串口"));
        //发送失能
        ui->btn_serial_send->setEnabled(false);
    }
}


//串口扫描
void Widget::btn_serial_scan_clicked(){
    int i,n;
    qDebug()<<"btn_serial_scan_clicked"<<endl;
     ui->cmb_serail->clear();
     portStringLine.clear();
     foreach(const QSerialPortInfo &info,QSerialPortInfo::availablePorts())
         portStringLine +=info.portName();
     n=portStringLine.size();
     for(i=0;i<n;i++)
     {
         serial->setPortName(portStringLine[i]);
         if(!serial->open(QIODevice::ReadWrite))
         {
             portStringLine[i]+="(不可用)";
             QVariant v(0);          //禁用
             ui->cmb_serail->setItemData(1, v, Qt::UserRole - 1);
         }
         else
         {
             QVariant v(1|32);       //可用
             ui->cmb_serail->setItemData(1, v, Qt::UserRole - 1);
         }
         serial->close();
     }
     ui->cmb_serail->addItems(portStringLine);
}

//串口接收
void Widget::serialPort_readyRead()
{
    int i,length;
    QString lasttext;
    if(ui->chk_rx_pause->checkState()!=Qt::Checked)
    {
        lasttext=ui->tx_rev->toPlainText();
        Receivetext = serial->readAll();
        ReceByte+=Receivetext.length();
        ui->label_rx->setText(QString::number(ReceByte));
        if(ui->chk_rx_pause->checkState()==Qt::Checked)
        {
            Receivetext=Receivetext.toLatin1().toHex();     //字符串转十六进制
            length=Receivetext.length();
            for(i=0;i<=length/2;i++)
            {
                Receivetext.insert((2+3*i),' ');            //插入空格字符串
            }
        }
        else
            Receivetext=Receivetext.toLatin1();
        lasttext=lasttext.append(Receivetext);
        ui->tx_rev->setText(lasttext);
    }
}

//定时事件，1ms
void Widget::timerout_event(){
    int t=500;                                                  //扫描串口时间
   Times++;portTime++;
   if(Times>=lineEditData)                                     //定时发送
   {
       if(ui->chk_timer->checkState()==Qt::Checked)
           Widget::btn_serial_send_clicked();
       Times=0;
   }
   if(portTime==t)                                             //定时扫描串口
   {
       QStringList newPortStringList;
       newPortStringList.clear();
       foreach(const QSerialPortInfo &info,QSerialPortInfo::availablePorts())
           newPortStringList += info.portName();
       if(newPortStringList.size() != portStringLine.size())
       {
           portStringLine = newPortStringList;
           ui->cmb_serail->clear();
           ui->cmb_serail->addItems(portStringLine);
       }
       portTime=0;
   }
}

//串口发送
void Widget::btn_serial_send_clicked()
{
    QByteArray bytearray;
    Sendtext=ui->tx_send->toPlainText();
    if(ui->chk_tx_wrap->checkState()==Qt::Checked)
        Sendtext += '\n';
    if(ui->chk_tx_hex->checkState()!=Qt::Checked)
        bytearray = Sendtext.toLatin1();
    else
        bytearray = QByteArray::fromHex(Sendtext.toUtf8());     //十六进制转字符串
    serial->write(bytearray);
    //定长发送
    //serial->write((const char *)param_data,16);
    SendByte+=Sendtext.length();
    ui->label_tx->setText(QString::number(SendByte));
    ui->tx_send->moveCursor(QTextCursor::End);
}

//清空计数
void Widget::btn_clear_counter_clicked(){
    qDebug()<<"btn_clear_counter_clicked"<<endl;
    SendByte = 0;
    ReceByte = 0;
    ui->label_tx->setText(QString::number(SendByte));
    ui->label_rx->setText(QString::number(ReceByte));
}

//清空接收区
void Widget::btn_rx_clear_clicked(){
    qDebug()<<"btn_rx_clear_clicked"<<endl;
    ui->tx_rev->clear();
}

//清空发送区
void Widget::btn_tx_clear_clicked(){
     qDebug()<<"btn_tx_clear_clicked"<<endl;
    ui->tx_send->clear();
}

//文本进制接收
void Widget::chk_rx_tx_clicked(){
    ui->chk_rx_tx->setCheckState(Qt::Checked);
    ui->chk_rx_hex->setCheckState(Qt::Unchecked);
    ui->chk_rx_pause->setCheckState(Qt::Unchecked);
}

//hex进制接收
void Widget::chk_rx_hex_clicked(){
    ui->chk_rx_tx->setCheckState(Qt::Unchecked);
    ui->chk_rx_hex->setCheckState(Qt::Checked);
    ui->chk_rx_pause->setCheckState(Qt::Unchecked);
}

//暂停接收
void Widget::chk_rx_pause_clicked()
{
    qDebug()<<"chk_rx_pause_clicked"<<endl;
    ui->chk_rx_tx->setCheckState(Qt::Unchecked);
    ui->chk_rx_hex->setCheckState(Qt::Unchecked);
    ui->chk_rx_pause->setCheckState(Qt::Checked);
}

//文本形式发送
void Widget::chk_tx_tx_clicked(){
    ui->chk_tx_tx->setCheckState(Qt::Checked);
    ui->chk_tx_hex->setCheckState(Qt::Unchecked);
}

//hex进制发送
void Widget::chk_tx_hex_clicked(){
    ui->chk_tx_tx->setCheckState(Qt::Unchecked);
    ui->chk_tx_hex->setCheckState(Qt::Checked);
}

//打开文件
void Widget::btn_file_open_clicked(){
    QString fileName = QFileDialog::getOpenFileName(this);
    QFile file(fileName); //新建QFile对象
    if(!file.open((QFile::ReadOnly|QFile::Text)))
    {
     QMessageBox::warning(this,tr("多文档编辑器"),
                  tr("无法读取文件 %1:\n%2").arg(fileName,file.errorString()));
    }
    QTextStream in(&file);//新建文本流对象
    // 鼠标指针变为等待状态
    QApplication::setOverrideCursor(Qt::WaitCursor);
    //读取文件的全部文本内容，并添加到编辑器中
    ui->tx_send->setPlainText(in.readAll());
    //鼠标指针恢复为原来状态
    QApplication::restoreOverrideCursor();
    ui->tx_rev->setVisible(true);
}

//保存文件
void Widget::btn_file_save_clicked(){
    QString fileName = QFileDialog::getSaveFileName(this);

    QFile file(fileName);
    if (!file.open(QFile::WriteOnly | QFile::Text))
    {
        // %1和%2分别对应后面arg两个参数，/n起换行的作用
        QMessageBox::warning(this, tr("多文档编辑器"),
                    tr("无法写入文件 %1：/n %2")
                   .arg(fileName, file.errorString()));
    }
    QTextStream out(&file);
    // 鼠标指针变为等待状态
    QApplication::setOverrideCursor(Qt::WaitCursor);
    out << ui->tx_rev->toPlainText();
    // 鼠标指针恢复原来的状态
    QApplication::restoreOverrideCursor();
}

//输入定时时间
void Widget::on_lineEdit_ending()
{
    if(ui->lineEdit->text().toInt()>0)
        lineEditData=ui->lineEdit->text().toInt();
    qDebug()<<ui->lineEdit->text()<<endl;
}

//窗体大小事件
void Widget::resizeEvent(QResizeEvent *event){
        qDebug()<<"old:"<<event->oldSize()<<endl;
        qDebug()<<"new:"<<event->size()<<endl;
}


//tablewidget 初始化
void Widget::tableWidgetInit(){
    int i,j;

     ui->tableWidget->horizontalHeader()->setStretchLastSection(true);//设置每一行最后一个单元格不留空格
     ui->tableWidget->horizontalHeader()->setSectionResizeMode(QHeaderView::ResizeToContents);//设置自适应大小
     ui->tableWidget->horizontalHeader()->setSectionResizeMode(QHeaderView::Stretch);//设置等宽

     //设置表格中每一行的内容
     row_count = ui->tableWidget->rowCount();
     column_count = ui->tableWidget->columnCount();
     qDebug()<<"row"<<row_count<<"column"<<column_count;
     for( i=0;i<row_count;i++)
     {
        for( j=0;j<column_count;j++)
        {
            ui->tableWidget->setItem(i,j,new QTableWidgetItem(QString::number(j)));
        }
     }

     //打印表格数据
     //遍历数据
     QTableWidgetItem* item;
     QString str;
     for(int i = 0; i < ui->tableWidget->rowCount(); i++){
         for(int j = 0; j < ui->tableWidget->columnCount(); j++){
             item = ui->tableWidget->item(i, j);
             str = str + item->text() + " ";
         }
     }
     qDebug()<<"str = "<<str;

    // 返回鼠标单击的所在单元格的row和col
    connect(ui->tableWidget,SIGNAL(cellClicked(int,int)),this,SLOT(show_prodcut_sets(int,int)));
    connect(ui->tableWidget->selectionModel(), SIGNAL(currentChanged(const QModelIndex &, const QModelIndex &)),SLOT(doProcessSelLine(void)));
}

//单击某个单元格
void Widget::show_prodcut_sets(int row,int col)
{

    QString str;
    qDebug() << "所点击的单元格的row=" << row << ",col=" << col;
    // 获取所点击的单元格
    QTableWidgetItem* item = ui->tableWidget->item(row ,col);
        qDebug() <<"内容为："<< item->text();
}

//选中某一列
void Widget::doProcessSelLine(){
    int current_column;
    QString str;
    QTableWidgetItem* item;

    current_column = ui->tableWidget->currentColumn();//获取当前行号

    //打印行内容
    for(int j = 0; j < ui->tableWidget->columnCount(); j++){
        item = ui->tableWidget->item(current_column, j);
        str = str + item->text() + " ";
    }
    qDebug()<<str<<endl;
}

void Widget::listWidgetInit(){

    mylistWidget = ui->listWidget;
    // 点击列表时，当前选中的项
    connect(ui->listWidget,&QListWidget::itemClicked,this,  &Widget::SLOT_ListWidget_ItemClicked);
}

void Widget::SLOT_ListWidget_ItemClicked(QListWidgetItem* item)
{
    qDebug() << item->text();
    QString text;
    text = item->text();

    if((text)=="连接")
    {
        qDebug()<<111111<<endl;
    }
}

widget.h

#ifndef WIDGET_H
#define WIDGET_H

#include <QWidget>
#include <QtSerialPort>
#include <QtSerialPortVersion>
#include <QMessageBox>
#include <QDebug>
#include <QFile>
#include <QFileDialog>
#include <QTimer>
#include <QStringList>
#include <QMouseEvent>
#include <QListWidget>
namespace Ui {
class Widget;
}

class Widget : public QWidget
{
    Q_OBJECT

public:
    explicit Widget(QWidget *parent = nullptr);
    ~Widget();
    int Times,portTime,lineEditData;
private:
    Ui::Widget *ui;
private:
    void Init(void);
    QSerialPort *serial;                    //串口端口
    QTimer *timer;                          //定时器
    QString Sendtext,Receivetext;           //发送、接收缓存区
    long int SendByte,ReceByte;             //发送、接收字符数
    QStringList portStringLine;             //端口链表

    int row_count,column_count;
    QListWidget *mylistWidget;
    void tableWidgetInit(void);
    void listWidgetInit(void);

private slots:
    void serialPort_readyRead();            //串口接收
    void timerout_event();                  //定时发送、更新串口
    void btn_serial_scan_clicked();         //扫描串口
    void btn_serial_send_clicked();         //串口发送
    void btn_serial_open_clicked();         //打开串口
    void btn_clear_counter_clicked();       //清空计数
    void btn_tx_clear_clicked();            //清空发送区
    void btn_rx_clear_clicked();            //清空接收区
    void btn_file_save_clicked();           //保存文件
    void btn_file_open_clicked();           //文件打开
    void chk_rx_tx_clicked();               //文本方式接收
    void chk_rx_hex_clicked();              //hex方式接收
    void chk_tx_tx_clicked();               //文本方式发送
    void chk_tx_hex_clicked();              //hex方式发送
    void chk_rx_pause_clicked();            //暂停接收
    void on_lineEdit_ending();              //输入定时时间

    void show_prodcut_sets(int,int);        //选择单元格
    void doProcessSelLine(void);            //选择行

    void SLOT_ListWidget_ItemClicked(QListWidgetItem *item);        //选中列表


protected:
    void resizeEvent(QResizeEvent *event);
};

#endif // WIDGET_H
