netty中转并返回数据

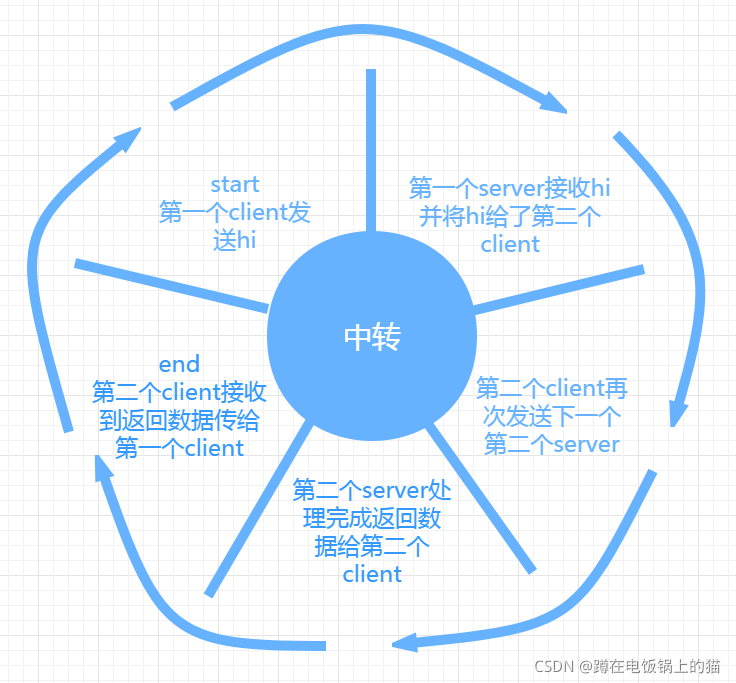

以上是一个tcp以客户端开始发数数据给服务端，最后服务端返回数据给客户的图，以下代码最为关键的地方是在第一个server接收数据传给第二个client端时,要将当前server端的通道(ChannelHandlerContext)
传给第二个客户端，为客户端接返回给第一个客户端做准备。

一、创建服务端环境
NettyServer .java

package com.netty;

import com.util.ReadProperties;
import io.netty.bootstrap.ServerBootstrap;
import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelFutureListener;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.codec.DelimiterBasedFrameDecoder;
import io.netty.handler.codec.string.StringDecoder;
import io.netty.handler.codec.string.StringEncoder;
import io.netty.handler.timeout.IdleStateHandler;
import io.netty.util.CharsetUtil;

import java.nio.charset.Charset;
import java.util.concurrent.TimeUnit;


/**
 * NETTY服务
 */
public class NettyServer {
    /**
     * netty启动端口号
     */

    private static final int port = ReadProperties.bindPort;

    public static void main(String[] args) {
        // 用于接受客户端连接的请求 （并没有处理请求）
        NioEventLoopGroup bossGroup = new NioEventLoopGroup();
        // 用于处理客户端连接的读写操作
        NioEventLoopGroup workGroup = new NioEventLoopGroup();
        // 用于创建我们的ServerBootstrap
        ServerBootstrap serverBootstrap = new ServerBootstrap();
        serverBootstrap.group(bossGroup, workGroup).channel(NioServerSocketChannel.class)
                .childHandler(new ChannelInitializer<SocketChannel>() {
                    @Override
                    protected void initChannel(SocketChannel socketChannel) throws Exception {
                        socketChannel.pipeline().addLast(new IdleStateHandler(10, 0, 0, TimeUnit.SECONDS));
                        socketChannel.pipeline().addLast(new HeartBeatServerHandler());

                        // 解码器--负责将消息从字节或其他序列形式转成指定的消息对象
                        socketChannel.pipeline().addLast("decoder", new StringDecoder(CharsetUtil.UTF_8));
                        //编码器--将消息对象转成字节或其他序列形式在网络上传输
                        socketChannel.pipeline().addLast("encoder", new StringEncoder(CharsetUtil.UTF_8));

                        socketChannel.pipeline().addLast(new ServerHandler());
                    }
                });
        //  绑定我们的端口号码
        try {
            // 绑定端口号，同步等待成功
            ChannelFuture future = serverBootstrap.bind(port).sync();
            System.out.println("服务器启动成功...");
            future.addListener((ChannelFutureListener) future1 -> {
                if (future1.isSuccess()) {
                    System.out.println(port + "启动成功!");
                } else {
                    System.out.println(port + "启动失败!");
                }
            });
            // 等待服务器监听端口
            future.channel().closeFuture().sync();
        } catch (Exception e) {
            e.printStackTrace();

        } finally {
            // 优雅的关闭连接
            bossGroup.shutdownGracefully();
            workGroup.shutdownGracefully();
        }
    }


}

ServerHandler .java

package com.netty;


import com.clien.NettyClient;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;

public class ServerHandler extends SimpleChannelInboundHandler<String> {

    @Override
    protected void channelRead0(ChannelHandlerContext ctx, String data) throws Exception {
        try {
            new NettyClient("127.0.0.1", 7022, data,ctx).start();
        } catch (Exception e) {
            e.printStackTrace();
        }
    }


}

二、创建客户端环境
NettyClient .java

package com.clien;

import com.alibaba.fastjson.JSONObject;
import io.netty.bootstrap.Bootstrap;
import io.netty.channel.*;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioSocketChannel;
import io.netty.handler.codec.DelimiterBasedFrameDecoder;
import io.netty.handler.codec.Delimiters;
import io.netty.handler.codec.string.StringEncoder;
import io.netty.util.AttributeKey;

import java.util.Map;

/**
 * Netty客户端编写
 *
 * @author Administrator
 */
public class NettyClient {
    private String ip;
    private int port;
    private String data;
    private ChannelHandlerContext ctx;//服务端通道


    public NettyClient(String ip, int port, String data, ChannelHandlerContext ctx) {
        this.ip = ip;
        this.port = port;
        this.data = data;
        this.ctx = ctx;
    }

    public void start() throws InterruptedException {
        Bootstrap client = new Bootstrap();

        EventLoopGroup group = new NioEventLoopGroup();
        client.group(group);

        client.channel(NioSocketChannel.class);

        client.handler(new ChannelInitializer<NioSocketChannel>() {  //通道是NioSocketChannel
            @Override
            protected void initChannel(NioSocketChannel ch) throws Exception {
                ch.pipeline().addLast(new StringEncoder());
                ch.pipeline().addLast(new SimpleClientHandler(ctx));
            }
        });

        //连接服务器
        ChannelFuture future = client.connect(ip, port).sync();

        //发送数据给服务器

        future.channel().writeAndFlush(JSONObject.toJSONString(data));

        future.channel().closeFuture().sync();

        //接收服务端返回的数据
    }

}

处理服务端返回的数据 SimpleClientHandler.java

package com.clien;

import io.netty.buffer.ByteBuf;
import io.netty.channel.*;
import io.netty.util.AttributeKey;

import java.nio.charset.Charset;
import java.util.Map;

/**
 * 处理服务端返回的数据
 *
 * @author Administrator
 */
public class SimpleClientHandler extends ChannelInboundHandlerAdapter {
    private ChannelHandlerContext context;

    public SimpleClientHandler(ChannelHandlerContext context) {
        this.context = context;
    }

    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
        if (msg instanceof ByteBuf) {
            String value = ((ByteBuf) msg).toString(Charset.defaultCharset());
            context.writeAndFlush(value);
        }
        //把服务端的通道关闭
        context.channel().close();
        //把客户端的通道关闭
        ctx.channel().close();
    }

}
