Vue中使用百度地图绘制多个多边形

• 因公司项目需要绘制配送范围 之前也没接触过百度地图这一块 自己花了些时间去研究了一下 目前可实现绘制多个圆形、多个多边形

该功能是一个组件 直接放入项目即可

<template>
  <div>
    <div class="map">
      <div class="title">
        <div>
          <img src="@/assets/home/z_x_green_mini.png" alt />
        </div>
        <div>请选定配送范围 <span style="color:red;fontSize:14px;"> (注：最多只能绘制5个配送范围)</span></div>
      </div>
      <div class="container" id="container">
        <baidu-map
          class="bm-view"
          :center="center"
          :zoom="zoom"
          @ready="handler"
          @click="clickEvent"
          :inertial-dragging="true"
          :scroll-wheel-zoom="true"
        >
          <div>
            <bm-polygon
              v-for="(item,i) in polygonPath"
              :key="i"
              :path="item"
              stroke-color="blue"
              :stroke-opacity="0.5"
              :stroke-weight="2"
              :editing="true"
              :clicking="false"
              @lineupdate="updatePolygonPath($event,i)"
            />
          </div>

          <div>
            <bm-geolocation
              anchor="BMAP_ANCHOR_BOTTOM_RIGHT"
              :showAddressBar="true"
              :autoLocation="true"
            ></bm-geolocation>
          </div>

          <div>
            <bm-city-list anchor="BMAP_ANCHOR_TOP_LEFT"></bm-city-list>
          </div>
        </baidu-map>

        <div class="draw" @click="ploy">绘制多边形</div>
        <!-- <div class="exit" @click="canPloy">结束绘制</div> -->
        <div class="reset" @click="resetfun">取消所选</div>
      </div>

      <div class="btn" @click="submitmapfun">确认设置</div>
    </div>
  </div>
</template>
<script>
export default {
  data() {
    return {
      /**
       * 初始位置
       */
      center: {
        lng: 121.833138,
        lat: 39.081725
      },
      zoom: 12,

      /**
       * 绘制多边形
       */
      polygonPath: [],
      mapDatas: [],
    };
  },
  created() {
    this.initCirclePath();
  },
  props: {
    //商家坐标
    store: {
      type: Object,
      default: {}
    }
  },
  methods: {

    /**
     * 回填以绘制的范围
     */
    initCirclePath() {
      this.$http.get("/v1/Savescopeselect").then(res => {
        if (res.data.code == "200") {
          this.mapDatas = res.data.data.polygon;
          this.polygonPath = this.mapDatas || []; //回填数据
        } else {
          this.$notify({
            type: "warning",
            title: "提示",
            message: "获取数据失败！！！"
          });
        }
      });
    },

    /**
     * 地图实例
     */
    handler({ BMap, map }) {
      this.center.lng = 104.07;
      this.center.lat = 30.67;
      this.zoom = 10;
    },

    /**
     * 获取当前点击地图的经纬度
     */
    clickEvent(e) {},

    /**
     * 清除绘制
     */
    resetfun() {
      this.polygonPath = [];
    },

    /**
     * 提交设置
     */
    submitmapfun() {
      this.$http
        .post("/v1/Savescope", {
          pts: this.polygonPath
        })
        .then(res => {
          if (res.data.code == "200") {
            this.$notify({
              type: "success",
              title: "提示",
              message: "设置成功"
            });
          } else {
            this.$notify({
              type: "error",
              title: "提示",
              message: "设置失败！！！"
            });
          }
        });
    },

    /**
     * 绘制多边形
     */
    ploy() {
      if (this.polygonPath && this.polygonPath.length > 4) {
        this.$notify({
          type: "warning",
          title: "提示",
          message: "最多能绘制5个配送范围哦！！！"
        });
        return;
      }

      // 添加默认的初始位置
      this.polygonPath.unshift([
        {
          lng: 104.092709,
          lat: 30.67733
        },
        {
          lng: 104.092278,
          lat: 30.656953
        },
        {
          lng: 104.05419,
          lat: 30.656829
        },
        {
          lng: 104.05419,
          lat: 30.677827
        }
      ]);
    },

    //多边形结束绘制
    canPloy() {},

    //绘制时改变的属性
    updatePolygonPath(e, i) {
      this.polygonPath[i] = e.target.getPath();
    }
  }
};
</script>
<style lang="less" scoped>
.shippingFee {
  font-size: 16px;
  color: #666666;
  margin-left: 30px;
  .shippingFee-input{
    width: 202px;
    height: 40px;
    outline: none;
    padding-left: 10px;
    margin-left: 20px;
    border: 1px solid #dddfe6;
    color: #666666;
  }
  :focus{
   border: 1px solid #00be6e;
  }
}
.map {
  width: 98%;
  height: 700px;
  min-width: 1500px;
  margin: 30px 0 0 25px;
  border: 1px solid #e4e4e4;

  .title {
    width: 100%;
    height: 53px;
    border-bottom: 1px solid #e4e4e4;
    display: flex;
    align-items: center;

    img {
      transform: translateY(3px);
    }

    div {
      color: #666666;
      font-size: 18px;
      padding-left: 15px;
    }
  }

  .container {
    width: 100%;
    height: 600px;
    position: relative;

    .bm-view {
      margin: 20px auto;
      width: 95%;
      height: 100%;
    }

    .reset {
      width: 81px;
      height: 29px;
      text-align: center;
      line-height: 29px;
      color: white;
      font-size: 15px;
      background: #01be6e;
      position: absolute;
      right: 60px;
      top: 7px;
      cursor: pointer;
      border-radius: 5px;
    }

    .exit {
      width: 81px;
      height: 29px;
      text-align: center;
      line-height: 29px;
      color: white;
      font-size: 15px;
      background-color: rgb(97, 173, 235);
      position: absolute;
      right: 60px;
      top: 60px;
      cursor: pointer;
      border-radius: 5px;
    }

    .draw,
    .ploy {
      width: 81px;
      height: 29px;
      text-align: center;
      line-height: 29px;
      color: white;
      font-size: 15px;
      background: #f56c6c;
      position: absolute;
      border: 0;
      outline: none;
      left: 135px;
      top: 7px;
      cursor: pointer;
      border-radius: 5px;
    }

    .ploy {
      background-color: #01be6e;
      top: 60px;
    }
  }

  .btn {
    width: 317px;
    height: 87px;
    margin: 60px auto;
    line-height: 87px;
    background: #01be6e;
    font-size: 27px;
    color: white;
    text-align: center;
    border-radius: 10px;
    cursor: pointer;
  }
}
</style>

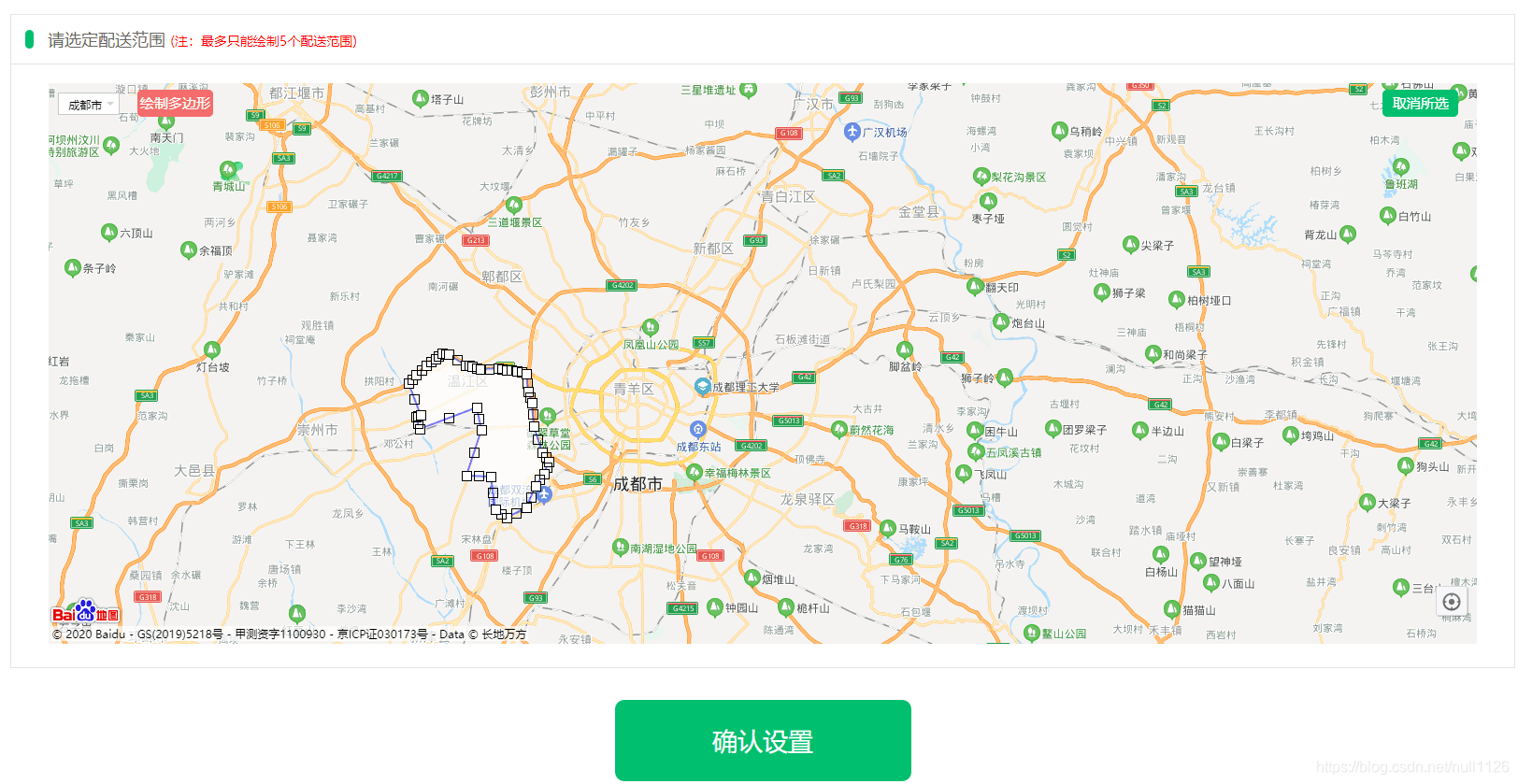

效果图：

若有需要绘制多个圆形，或者有什么不明白的欢迎评论或私我

不喜勿喷！！！
