数仓搭建DWS层

最新推荐文章于 2025-02-19 20:48:20 发布

原创

最新推荐文章于 2025-02-19 20:48:20 发布 · 2.5k 阅读

8 ·

CC 4.0 BY-SA版权

文章标签：

#kafka #flume #hadoop #sqoop #zookeeper

1、数仓DWS层

dws层分区规划

请添加图片描述

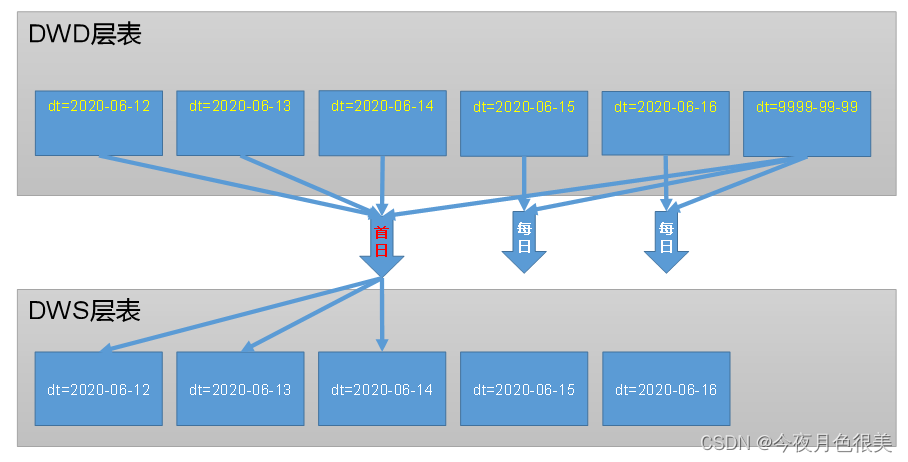

dws层数据装载

在这里插入图片描述

2、访客主题

1）建表语句

DROP TABLE IF EXISTS dws_visitor_action_daycount;
CREATE EXTERNAL TABLE dws_visitor_action_daycount
(
    `mid_id` STRING COMMENT '设备id',
    `brand` STRING COMMENT '设备品牌',
    `model` STRING COMMENT '设备型号',
    `is_new` STRING COMMENT '是否首次访问',
    `channel` ARRAY<STRING> COMMENT '渠道',
    `os` ARRAY<STRING> COMMENT '操作系统',
    `area_code` ARRAY<STRING> COMMENT '地区ID',
    `version_code` ARRAY<STRING> COMMENT '应用版本',
    `visit_count` BIGINT COMMENT '访问次数',
    `page_stats` ARRAY<STRUCT<page_id:STRING,page_count:BIGINT,during_time:BIGINT>> COMMENT '页面访问统计'
) COMMENT '每日设备行为表'
PARTITIONED BY(`dt` STRING)
STORED AS PARQUET
LOCATION '/warehouse/gmall/dws/dws_visitor_action_daycount'
TBLPROPERTIES ("parquet.compression"="lzo");

2）数据装载

insert overwrite table dws_visitor_action_daycount partition(dt='2022-04-11')
select
    t1.mid_id,
    t1.brand,
    t1.model,
    t1.is_new,
    t1.channel,
    t1.os,
    t1.area_code,
    t1.version_code,
    t1.visit_count,
    t3.page_stats
from
(
    select
        mid_id,
        brand,
        model,
        if(array_contains(collect_set(is_new),'0'),'0','1') is_new,--ods_page_log中，同一天内，同一设备的is_new字段，可能全部为1，可能全部为0，也可能部分为0，部分为1(卸载重装),故做该处理
        collect_set(channel) channel,
        collect_set(os) os,
        collect_set(area_code) area_code,
        collect_set(version_code) version_code,
        sum(if(last_page_id is null,1,0)) visit_count
    from dwd_page_log
    where dt='2022-04-11'
    and last_page_id is null
    group by mid_id,model,brand
)t1
join
(
    select
        mid_id,
        brand,
        model,
        collect_set(named_struct('page_id',page_id,'page_count',page_count,'during_time',during_time)) page_stats
    from
    (
        select
            mid_id,
            brand,
            model,
            page_id,
            count(*) page_count,
            sum(during_time) during_time
        from dwd_page_log
        where dt='2022-04-11'
        group by mid_id,model,brand,page_id
    )t2
    group by mid_id,model,brand
)t3
on t1.mid_id=t3.mid_id
and t1.brand=t3.brand
and t1.model=t3.model;

3、用户主题

1）建表语句

DROP TABLE IF EXISTS dws_user_action_daycount;
CREATE EXTERNAL TABLE dws_user_action_daycount
(
    `user_id` STRING COMMENT '用户id',
    `login_count` BIGINT COMMENT '登录次数',
    `cart_count` BIGINT COMMENT '加入购物车次数',
    `favor_count` BIGINT COMMENT '收藏次数',
    `order_count` BIGINT COMMENT '下单次数',
    `order_activity_count` BIGINT COMMENT '订单参与活动次数',
    `order_activity_reduce_amount` DECIMAL(16,2) COMMENT '订单减免金额(活动)',
    `order_coupon_count` BIGINT COMMENT '订单用券次数',
    `order_coupon_reduce_amount` DECIMAL(16,2) COMMENT '订单减免金额(优惠券)',
    `order_original_amount` DECIMAL(16,2)  COMMENT '订单单原始金额',
    `order_final_amount` DECIMAL(16,2) COMMENT '订单总金额',
    `payment_count` BIGINT COMMENT '支付次数',
    `payment_amount` DECIMAL(16,2) COMMENT '支付金额',
    `refund_order_count` BIGINT COMMENT '退单次数',
    `refund_order_num` BIGINT COMMENT '退单件数',
    `refund_order_amount` DECIMAL(16,2) COMMENT '退单金额',
    `refund_payment_count` BIGINT COMMENT '退款次数',
    `refund_payment_num` BIGINT COMMENT '退款件数',
    `refund_payment_amount` DECIMAL(16,2) COMMENT '退款金额',
    `coupon_get_count` BIGINT COMMENT '优惠券领取次数',
    `coupon_using_count` BIGINT COMMENT '优惠券使用(下单)次数',
    `coupon_used_count` BIGINT COMMENT '优惠券使用(支付)次数',
    `appraise_good_count` BIGINT COMMENT '好评数',
    `appraise_mid_count` BIGINT COMMENT '中评数',
    `appraise_bad_count` BIGINT COMMENT '差评数',
    `appraise_default_count` BIGINT COMMENT '默认评价数',
    `order_detail_stats` array<struct<sku_id:string,sku_num:bigint,order_count:bigint,activity_reduce_amount:decimal(16,2),coupon_reduce_amount:decimal(16,2),original_amount:decimal(16,2),final_amount:decimal(16,2)>> COMMENT '下单明细统计'
) COMMENT '每日用户行为'
PARTITIONED BY (`dt` STRING)
STORED AS PARQUET
LOCATION '/warehouse/gmall/dws/dws_user_action_daycount/'
TBLPROPERTIES ("parquet.compression"="lzo");

2）数据装载

（1）首日装载

with
tmp_login as
(
    select
        dt,
        user_id,
        count(*) login_count
    from dwd_page_log
    where user_id is not null
    and last_page_id is null
    group by dt,user_id
),
tmp_cf as
(
    select
        dt,
        user_id,
        sum(if(action_id='cart_add',1,0)) cart_count,
        sum(if(action_id='favor_add',1,0)) favor_count
    from dwd_action_log
    where user_id is not null
    and action_id in ('cart_add','favor_add')
    group by dt,user_id
),
tmp_order as
(
    select
        date_format(create_time,'yyyy-MM-dd') dt,
        user_id,
        count(*) order_count,
        sum(if(activity_reduce_amount>0,1,0)) order_activity_count,
        sum(if(coupon_reduce_amount>0,1,0)) order_coupon_count,
        sum(activity_reduce_amount) order_activity_reduce_amount,
        sum(coupon_reduce_amount) order_coupon_reduce_amount,
        sum(original_amount) order_original_amount,
        sum(final_amount) order_final_amount
    from dwd_order_info
    group by date_format(create_time,'yyyy-MM-dd'),user_id
),
tmp_pay as
(
    select
        date_format(callback_time,'yyyy-MM-dd') dt,
        user_id,
        count(*) payment_count,
        sum(payment_amount) payment_amount
    from dwd_payment_info
    group by date_format(callback_time,'yyyy-MM-dd'),user_id
),
tmp_ri as
(
    select
        date_format(create_time,'yyyy-MM-dd') dt,
        user_id,
        count(*) refund_order_count,
        sum(refund_num) refund_order_num,
        sum(refund_amount) refund_order_amount
    from dwd_order_refund_info
    group by date_format(create_time,'yyyy-MM-dd'),user_id
),
tmp_rp as
(
    select
        date_format(callback_time,'yyyy-MM-dd') dt,
        rp.user_id,
        count(*) refund_payment_count,
        sum(ri.refund_num) refund_payment_num,
        sum(rp.refund_amount) refund_payment_amount
    from
    (
        select
            user_id,
            order_id,
            sku_id,
            refund_amount,
            callback_time
        from dwd_refund_payment
    )rp
    left join
    (
        select
            user_id,
            order_id,
            sku_id,
            refund_num
        from dwd_order_refund_info
    )ri
    on rp.order_id=ri.order_id
    and rp.sku_id=rp.sku_id
    group by date_format(callback_time,'yyyy-MM-dd'),rp.user_id
),
tmp_coupon as
(
    select
        coalesce(coupon_get.dt,coupon_using.dt,coupon_used.dt) dt,
        coalesce(coupon_get.user_id,coupon_using.user_id,coupon_used.user_id) user_id,
        nvl(coupon_get_count,0) coupon_get_count,
        nvl(coupon_using_count,0) coupon_using_count,
        nvl(coupon_used_count,0) coupon_used_count
    from
    (
        select
            date_format(get_time,'yyyy-MM-dd') dt,
            user_id,
            count(*) coupon_get_count
        from dwd_coupon_use
        where get_time is not null
        group by user_id,date_format(get_time,'yyyy-MM-dd')
    )coupon_get
    full outer join
    (
        select
            date_format(using_time,'yyyy-MM-dd') dt,
            user_id,
            count(*) coupon_using_count
        from dwd_coupon_use
        where using_time is not null
        group by user_id,date_format(using_time,'yyyy-MM-dd')
    )coupon_using
    on coupon_get.dt=coupon_using.dt
    and coupon_get.user_id=coupon_using.user_id
    full outer join
    (
        select
            date_format(used_time,'yyyy-MM-dd') dt,
            user_id,
            count(*) coupon_used_count
        from dwd_coupon_use
        where used_time is not null
        group by user_id,date_format(used_time,'yyyy-MM-dd')
    )coupon_used
    on nvl(coupon_get.dt,coupon_using.dt)=coupon_used.dt
    and nvl(coupon_get.user_id,coupon_using.user_id)=coupon_used.user_id
),
tmp_comment as
(
    select
        date_format(create_time,'yyyy-MM-dd') dt,
        user_id,
        sum(if(appraise='1201',1,0)) appraise_good_count,
        sum(if(appraise='1202',1,0)) appraise_mid_count,
        sum(if(appraise='1203',1,0)) appraise_bad_count,
        sum(if(appraise='1204',1,0)) appraise_default_count
    from dwd_comment_info
    group by date_format(create_time,'yyyy-MM-dd'),user_id
),
tmp_od as
(
    select
        dt,
        user_id,
        collect_set(named_struct('sku_id',sku_id,'sku_num',sku_num,'order_count',order_count,'activity_reduce_amount',activity_reduce_amount,'coupon_reduce_amount',coupon_reduce_amount,'original_amount',original_amount,'final_amount',final_amount)) order_detail_stats
    from
    (
        select
            date_format(create_time,'yyyy-MM-dd') dt,
            user_id,
            sku_id,
            sum(sku_num) sku_num,
            count(*) order_count,
            cast(sum(split_activity_amount) as decimal(16,2)) activity_reduce_amount,
            cast(sum(split_coupon_amount) as decimal(16,2)) coupon_reduce_amount,
            cast(sum(original_amount) as decimal(16,2)) original_amount,
            cast(sum(split_final_amount) as decimal(16,2)) final_amount
        from dwd_order_detail
        group by date_format(create_time,'yyyy-MM-dd'),user_id,sku_id
    )t1
    group by dt,user_id
)
insert overwrite table dws_user_action_daycount partition(dt)
select
    coalesce(tmp_login.user_id,tmp_cf.user_id,tmp_order.user_id,tmp_pay.user_id,tmp_ri.user_id,tmp_rp.user_id,tmp_comment.user_id,tmp_coupon.user_id,tmp_od.user_id),
    nvl(login_count,0),
    nvl(cart_count,0),
    nvl(favor_count,0),
    nvl(order_count,0),
    nvl(order_activity_count,0),
    nvl(order_activity_reduce_amount,0),
    nvl(order_coupon_count,0),
    nvl(order_coupon_reduce_amount,0),
    nvl(order_original_amount,0),
    nvl(order_final_amount,0),
    nvl(payment_count,0),
    nvl(payment_amount,0),
    nvl(refund_order_count,0),
    nvl(refund_order_num,0),
    nvl(refund_order_amount,0),
    nvl(refund_payment_count,0),
    nvl(refund_payment_num,0),
    nvl(refund_payment_amount,0),
    nvl(coupon_get_count,0),
    nvl(coupon_using_count,0),
    nvl(coupon_used_count,0),
    nvl(appraise_good_count,0),
    nvl(appraise_mid_count,0),
    nvl(appraise_bad_count,0),
    nvl(appraise_default_count,0),
    order_detail_stats,
    coalesce(tmp_login.dt,tmp_cf.dt,tmp_order.dt,tmp_pay.dt,tmp_ri.dt,tmp_rp.dt,tmp_comment.dt,tmp_coupon.dt,tmp_od.dt)
from tmp_login
full outer join tmp_cf
on tmp_login.user_id=tmp_cf.user_id
and tmp_login.dt=tmp_cf.dt
full outer join tmp_order
on coalesce(tmp_login.user_id,tmp_cf.user_id)=tmp_order.user_id
and coalesce(tmp_login.dt,tmp_cf.dt)=tmp_order.dt
full outer join tmp_pay
on coalesce(tmp_login.user_id,tmp_cf.user_id,tmp_order.user_id)=tmp_pay.user_id
and coalesce(tmp_login.dt,tmp_cf.dt,tmp_order.dt)=tmp_pay.dt
full outer join tmp_ri
on coalesce(tmp_login.user_id,tmp_cf.user_id,tmp_order.user_id,tmp_pay.user_id)=tmp_ri.user_id
and coalesce(tmp_login.dt,tmp_cf.dt,tmp_order.dt,tmp_pay.dt)=tmp_ri.dt
full outer join tmp_rp
on coalesce(tmp_login.user_id,tmp_cf.user_id,tmp_order.user_id,tmp_pay.user_id,tmp_ri.user_id)=tmp_rp.user_id
and coalesce(tmp_login.dt,tmp_cf.dt,tmp_order.dt,tmp_pay.dt,tmp_ri.dt)=tmp_rp.dt
full outer join tmp_comment
on coalesce(tmp_login.user_id,tmp_cf.user_id,tmp_order.user_id,tmp_pay.user_id,tmp_ri.user_id,tmp_rp.user_id)=tmp_comment.user_id
and coalesce(tmp_login.dt,tmp_cf.dt,tmp_order.dt,tmp_pay.dt,tmp_ri.dt,tmp_rp.dt)=tmp_comment.dt
full outer join tmp_coupon
on coalesce(tmp_login.user_id,tmp_cf.user_id,tmp_order.user_id,tmp_pay.user_id,tmp_ri.user_id,tmp_rp.user_id,tmp_comment.user_id)=tmp_coupon.user_id
and coalesce(tmp_login.dt,tmp_cf.dt,tmp_order.dt,tmp_pay.dt,tmp_ri.dt,tmp_rp.dt,tmp_comment.dt)=tmp_coupon.dt
full outer join tmp_od
on coalesce(tmp_login.user_id,tmp_cf.user_id,tmp_order.user_id,tmp_pay.user_id
