vb.net&cad二开自学笔记5：ActiveX链接CAD的.net写法

一、必不可少的对象引用

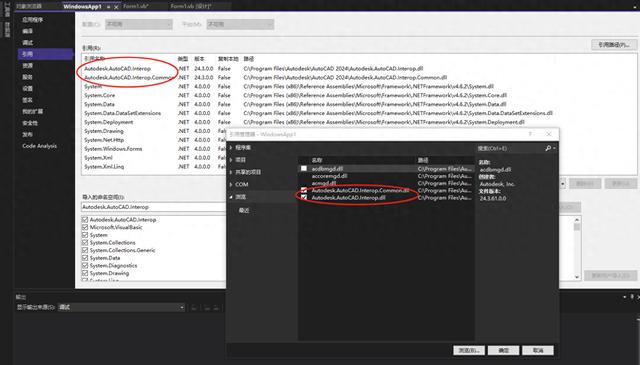

使用activex需要在项目属性中勾选以下两个引用，若找不到，则浏览定位直接添加下面两个文件，可以看到位于cad的安装路径下，图中的3个mgd.dll也可以勾选。

C:\Program Files\Autodesk\AutoCAD 2024\Autodesk.AutoCAD.Interop.dll

C:\Program Files\Autodesk\AutoCAD 2024\Autodesk.AutoCAD.Interop.Common.dll

二、新建一个窗体和按钮，并在代码窗口，输入如下代码

Imports Autodesk.AutoCAD.Interop

Imports Autodesk.AutoCAD.Interop.Common

Public Class Form1

Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click

Dim ta As New AcadApplication'定义并实例化一个cad对象，会在后台启动cad

dim aLin As AcadLine, ms As AcadModelSpace'定义一个直线和模型空间对象

Dim pt1(0 To 2) As Double'定义起终点数组

Dim pt2(0 To 2) As Double

pt1(0) = 0 : pt1(1) = 0 : pt1(2) = 0'给起终点数组赋值

pt2(0) = 10 : pt2(1) = 10 : pt2(2) = 0

ta.Visible = True'显示cad窗口

ta
