eclipse 安装jetty WTP Adaptor插件

在eclipse中安装jetty插件,首先在eclipse菜单栏，Help-->Install new software

1.




2. 之后可以输入以下地址(第一个即可):
   • Stable releases of the plugin: http://download.eclipse.org/jetty/updates/jetty-wtp
   • More bleeding edge versions of the plugin (each successful build on Hudson): http://download.eclipse.org/jetty/updates/jetty-wtp/development
3. 点击返回.




4. 点击下一步 Next.



5. 继续点击Next .

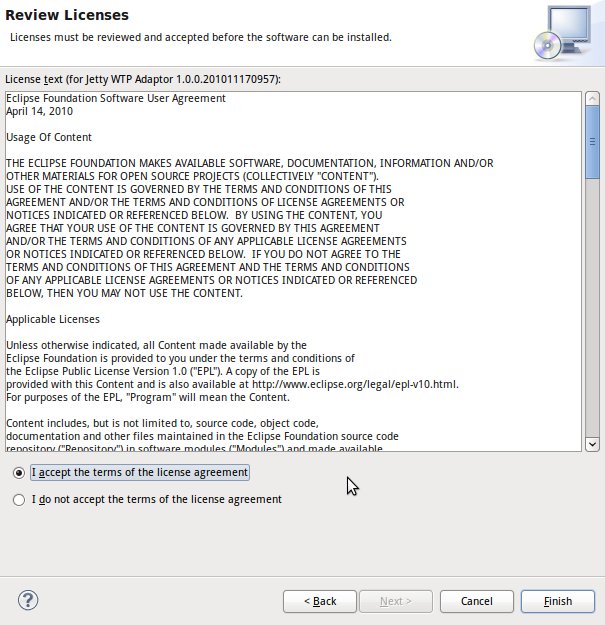

6. 接受条款并点击finish.

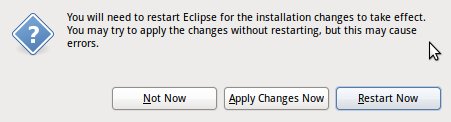

7. 点击重启 Restart Now.

1.
   1.


           7.下载jetty压缩包地址:http://download.eclipse.org/jetty/ windows下载zip包,直接解压即可,Linux可以参照如下步骤:

Jetty@eclipse Download

• Eclipse Downloads
  • Core Jetty Web Server (HTTP & Websocket)
  • Core Jetty Servlet Container
  • JNDI, JMX, OSGi, JASPI modules
  • HTTP Client

JETTY_VERSION=7.5.0.v20110901
wget http://download.eclipse.org/jetty/$JETTY_VERSION/dist/jetty-distribution-$JETTY_VERSION.tar.gz
tar xfz jetty-distribution-$JETTY_VERSION.tar.gz
cd jetty-distribution-$JETTY_VERSION
java -jar start.jar

Jetty@codehaus Download

• Codehaus Downloads:
  • Hightide Application Server (Jetty WebServer plus EE features)
  • Jetty with non-eclipse modules: JSP, Spring, Terracotta, Openspaces, etc.
  • Jetty Maven plugin
  • Debian, RPM distributions
  • Older Jetty releases

wget http://dist.codehaus.org/jetty/jetty-hightide-8.0.0/jetty-hightide-8.0.0.v20110901.tar.gz
tar xfz jetty-hightide-8.0.0.v20110901.tar.gz
cd jetty-hightide-8.0.0.v20110901
java -jar start.jar

解压后进入解压后目录,一般是jetty-distribution-8.*。然后打开CMD控制台运行java -jar start.jar 成功启动说明ok了,注意依赖JDK和端口默认是8080,注意避免冲突

8.配置eclipse的服务,从Window-->进入Preferences找到如下图:

点击添加后如下图配置,选择合适的版本,根据下载的jetty来:

之后配置服务的信息,如下图:

最后添加工程到刚刚建好的jetty当中,选择新建好的jetty服务,右键选择 Add and Remove...加入相应的工程,如下图:

参考链接:官网按照WTP    Jetty官方说明文档  jetty安装包和bundles下载地址
