最新spring源码5.2.8介绍

最新推荐文章于 2024-02-29 15:02:30 发布

置顶

M YQ

最新推荐文章于 2024-02-29 15:02:30 发布

阅读量705

点赞数 2

分类专栏： spring源码文章标签： java ioc spring

本文链接：https://blog.youkuaiyun.com/myq666666/article/details/107850891

版权

本文详细介绍了Spring源码的环境搭建和IOC容器的创建流程。从ClassPathXmlApplicationContext的构造器开始，逐步解析了从配置文件加载bean定义、初始化bean的过程，包括refresh()、preInstantiateSingletons()、doGetBean()等关键步骤，直至bean的实例化和保存在单例bean容器中。通过本文，读者可以深入理解Spring如何管理bean的生命周期。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

spring源码

环境搭建

maven依赖

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context</artifactId>
    <version>5.2.8.RELEASE</version>
</dependency>

简单的一个Student类

package lean.bean;

public class Student {

    String name;
    int id;

    public Student() {

        System.out.println("Student被创建。。。。");
    }

    @Override
    public String toString() {

        return "Student{" +
                "name='" + name + '\'' +
                ", id=" + id +
                '}';
    }

    public String getName() {

        return name;
    }

    public void setName(String name) {

        this.name = name;
    }
}

spring的配置文件：spring.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">
<bean id="stu1" class="lean.bean.Student"/>
</beans>

测试的main函数

package lean;

import lean.bean.Student;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;


public class Main {

    public static void main(String[] args) {

        ApplicationContext context = new ClassPathXmlApplicationContext("spring.xml");
        Student stu1 = context.getBean("stu1",Student.class);
        System.out.println(stu1);
    }
}

源码调用过程

废话不多说直接上spring ioc创建流程
ClassPathXmlApplicationContext 这个类是饿汉式加载的，即创建这个类的时候就会加载配置文件中的所有的bean。
下面是进入该类的构造器：

public ClassPathXmlApplicationContext(String configLocation) throws BeansException {

   this(new String[] {
   configLocation}, true, null);
}

从代码可以看出，构造器又调用了一个构造器，如下。
该构造器核心是

public ClassPathXmlApplicationContext(
      String[] configLocations, boolean refresh, @Nullable ApplicationContext parent)
      throws BeansException {


   super(parent); //调用父对象进行初始化
   setConfigLocations(configLocations);
   if (refresh) {
    //默认传入的是true，即直接加载bean
      refresh(); //该函数是如何加载bean的核心
   }
}

refresh()如下

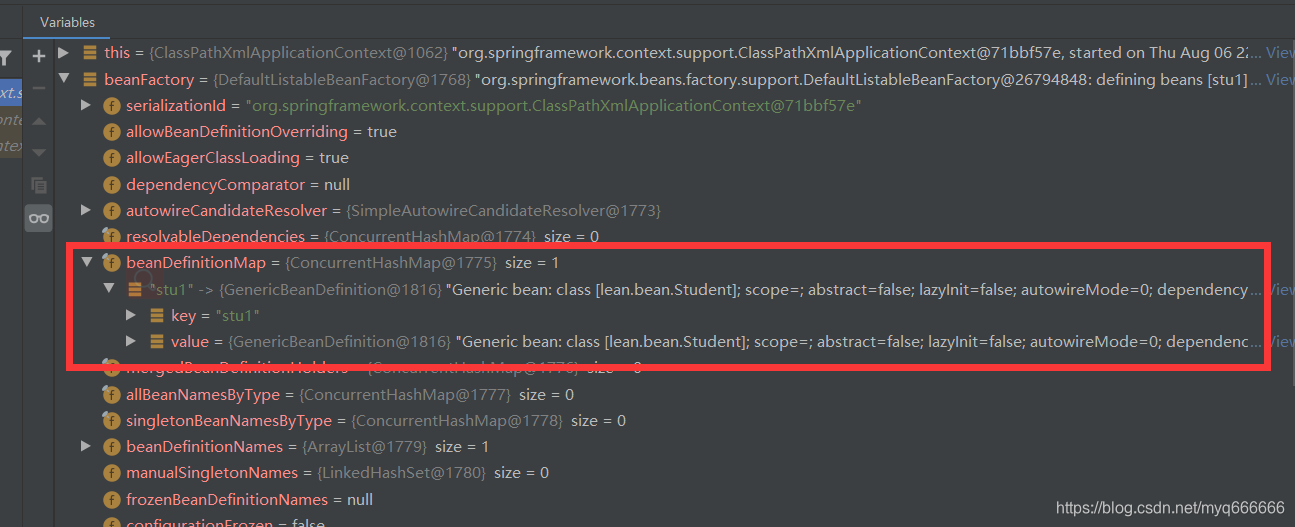

在2处执行完之后，得到的beanFactory中的属性如下：其中的beanDefinitionMap中记录了从配置文件spring.xml中读取到的bean的配置信息。
在这里插入图片描述

public void refresh() throws BeansException, IllegalStateException {

   synchronized (this.startupShutdownMonitor) {

      // Prepare this context for refreshing.
      prepareRefresh(); //1. 预处理

      // Tell the subclass to refresh the internal bean factory.
      ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory(); //2. 得到一个beanFactory，用来创建bean，该步骤解析了spring.xml文件

      // Prepare the bean factory for use in this context.
      prepareBeanFactory(beanFactory); //3. 预处理beanFactory

      try {

         // Allows post-processing of the bean factory in context subclasses.
         postProcessBeanFactory(beanFactory); // 4. beanFactory的后置处理器

         // Invoke factory processors registered as beans in the context.
         invokeBeanFactoryPostProcessors(beanFactory); //5. 注册后置处理器，注册spring自己用到的组件

         // Register bean processors that intercept bean creation.
         registerBeanPostProcessors(beanFactory); //6.注册拦截bean创建的bean处理器。

         // Initialize message source for this context.
         initMessageSource(); //7. 初始化消息源，国际化相关

         // Initialize event multicaster for this context.
         initApplicationEventMulticaster(); //8. 初始化事件转发器，因为在bean的生命周期可能有很多事件，因此需要事件转发器

         // Initialize other special beans in specific context subclasses.
         onRefresh(); //9. 初始化特定上下文子类中的其他特殊bean。一般留给子类创建

         // Check for listener beans and register them.
         registerListeners(); //10.注册监听器

         // Instantiate all remaining (non-lazy-init) singletons.
         finishBeanFactoryInitialization(beanFactory); //11.初始化非懒加载的bean，所有的bean都是单例模式

         // Last step: publish corresponding event.
         finishRefresh();
      }

      catch (BeansException ex) {

         if (logger.isWarnEnabled()) {

            logger.warn("Exception encountered during context initialization - " +
                  "cancelling refresh attempt: " + ex);
         }

         // Destroy already created singletons to avoid dangling resources.
         destroyBeans();

         // Reset 'active' flag.
         cancelRefresh(ex);

         // Propagate exception to caller.
         throw ex;
      }

      finally {

         // Reset common introspection caches in Spring's core, since we
         // might not ever need metadata for singleton beans anymore...
         resetCommonCaches();
      }
   }
}

上面的第11步骤是初始化所有单实例bean的函数，如下：
该函数是AbstractApplicationContext的函数

/**
 * Finish the initialization of this context's bean factory,
 * initializing all remaining singleton beans.
 */
protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {

   // Initialize conversion service for this context.
   // 为此上下文初始化转换服务，内部用到的，暂时不管
   if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
         beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {

      beanFactory.setConversionService(
            beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
   }

   // Register a default embedded value resolver if no bean post-processor
   // (such as a PropertyPlaceholderConfigurer bean) registered any before:
   // at this point, primarily for resolution in annotation attribute values.
   // 看翻译，也是内部用到的
   if (!beanFactory.hasEmbeddedValueResolver()) {

      beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));
   }

   // Initialize LoadTimeWeaverAware beans early to allow for registering their transformers early.
   String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
   for (String weaverAwareName : weaverAwareNames) {

      getBean(weaverAwareName);
   }

   // Stop using the temporary ClassLoader for type matching.
   beanFactory.setTempClassL/oader(null); //设置临时的类加载器

   // Allow for caching all bean definition metadata, not expecting further changes.
   beanFactory.freezeConfiguration(); //冻结配置，不希望修改

   // Instantiate all remaining (non-lazy-init) singletons.
   beanFactory.preInstantiateSingletons(); //！！**预初始化所有单实例**
}

preInstantiateSingletons函数如下，该函数是DefaultListableBeanFactory类的方法。注意，又是一个bean工厂

@Override
public void preInstantiateSingletons() throws BeansException {

	// 看到logger可以跳过了，哈哈，因为是一些日志记录，无关紧要
   if (logger.isTraceEnabled()) {

      logger.trace("Pre-instantiating singletons in " + this);
   }

   // Iterate over a copy to allow for init methods which in turn register new bean definitions.
   // While this may not be part of the regular factory bootstrap, it does otherwise work fine.
   List<String> beanNames = new ArrayList<>(this.beanDefinitionNames); // 获取到需要创建的所有bean的name

   // Trigger initialization of all non-lazy singleton beans...
   // 按照顺序创建bean
   for (String beanName : beanNames) {

   // 拿到bean的定义，该定义是从xml配置文件中读取到的 beanName即为bean中定义的id
      RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
      // 当bean不是抽象的且是单例的且不是懒加载的才创建
      if (!bd.isAbstract() && bd/.isSingleton() && !bd.isLazyInit()) {

         if (isFactoryBean(beanName)) {
