[!TIP]

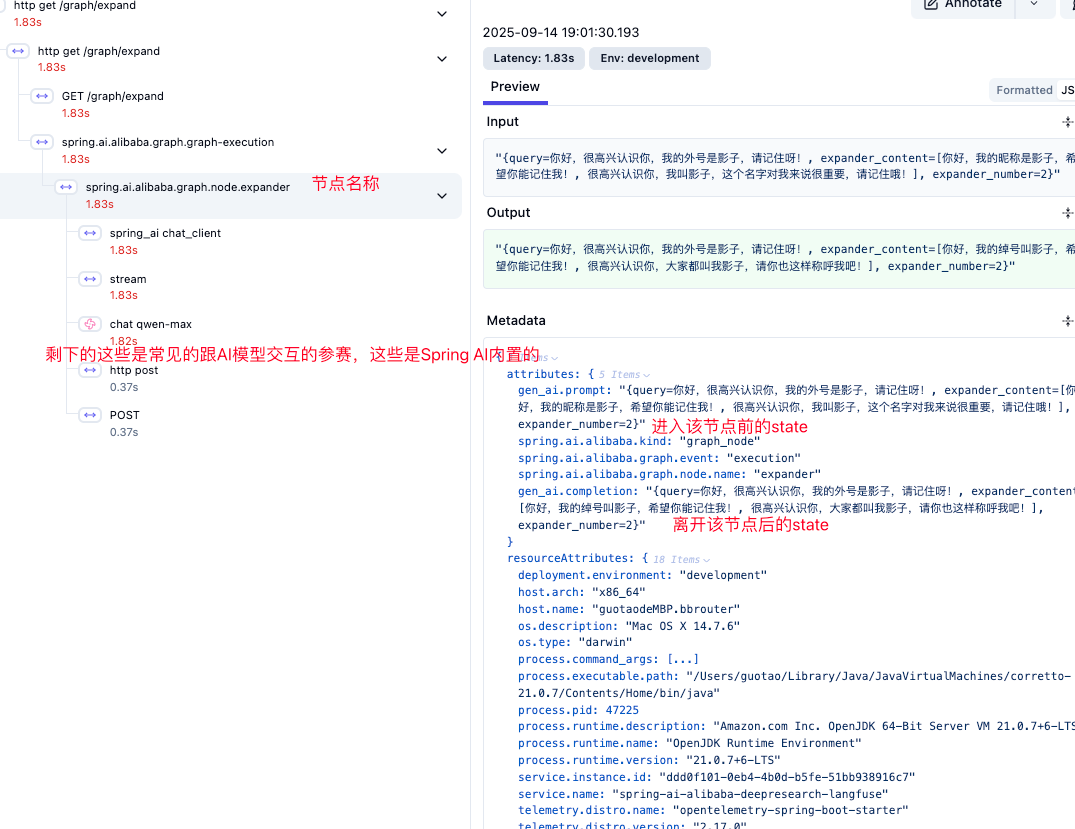

Graph 观测，可对每个节点的输入、输出、执行状态、异常等进行实时追踪和流式采集，可帮助开发者快速理解复杂链路数据流转，还可为性能分析、异常定位提供帮助

本期先带来快速上手教程（代码零入侵，即可观测 Graph 相关信息），后面会出文章讲解 Graph 观测的架构设计等

实战代码可见：https://github.com/GTyingzi/spring-ai-tutorial 的 graph 目录下的 observe-langfuse 模块

pom.xml

<properties>
    <!-- Spring AI -->
    <spring-ai.version>1.0.1</spring-ai.version>
    <!-- Spring Boot -->
    <spring-boot.version>3.4.5</spring-boot.version>
    <!-- Spring AI Alibaba -->
    <spring-ai-alibaba.version>1.0.0.3</spring-ai-alibaba.version>
</properties>

<dependencyManagement>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-dependencies</artifactId>
        <version>${spring-boot.version}</version>
        <type>pom</type>
        <scope>import</scope>
    </dependency>
    <dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-bom</artifactId>
        <version>${spring-ai.version}</version>
        <type>pom</type>
        <scope>import</scope>
    </dependency>
    <dependency>
        <groupId>com.alibaba.cloud.ai</groupId>
        <artifactId>spring-ai-alibaba-bom</artifactId>
        <version>${spring-ai-alibaba.version}</version>
        <type>pom</type>
        <scope>import</scope>
    </dependency>
    <dependencies>
        <dependency>
            <groupId>io.opentelemetry.instrumentation</groupId>
            <artifactId>opentelemetry-instrumentation-bom</artifactId>
            <version>2.17.0</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
    </dependencies>
</dependencyManagement>

<dependencies>

    <dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-autoconfigure-model-openai</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-autoconfigure-model-chat-client</artifactId>
    </dependency>

    <dependency>
        <groupId>com.alibaba.cloud.ai</groupId>
        <artifactId>spring-ai-alibaba-graph-core</artifactId>
        <version>${spring-ai-alibaba.version}</version>
    </dependency>

    <dependency>
        <groupId>com.alibaba.cloud.ai</groupId>
        <artifactId>spring-ai-alibaba-starter-graph-observation</artifactId>
        <version>${spring-ai-alibaba.version}</version>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>io.opentelemetry.instrumentation</groupId>
        <artifactId>opentelemetry-spring-boot-starter</artifactId>
    </dependency>
    <!-- Spring Boot Actuator for observability support -->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <!-- Micrometer Observation -> OpenTelemetry bridge -->
    <dependency>
        <groupId>io.micrometer</groupId>
        <artifactId>micrometer-tracing-bridge-otel</artifactId>
    </dependency>
    <!-- OpenTelemetry OTLP exporter for traces -->
    <dependency>
        <groupId>io.opentelemetry</groupId>
        <artifactId>opentelemetry-exporter-otlp</artifactId>
    </dependency>
</dependencies>

application.yml

server:
  port: 8080
spring:
  application:
    name: observe-langfuse
  profiles:
    # LangFuse可观测配置
    include: observability
  ai:
    openai:
      api-key: ${AIDASHSCOPEAPIKEY}
      base-url: https://dashscope.aliyuncs.com/compatible-mode
      chat:
        options:
          model: qwen-max

    alibaba:
      graph:
        observation:
          enabled: true

为了让配置文件更清晰，这里单独把观测配置抽离出来 spring.profiles.include = observability

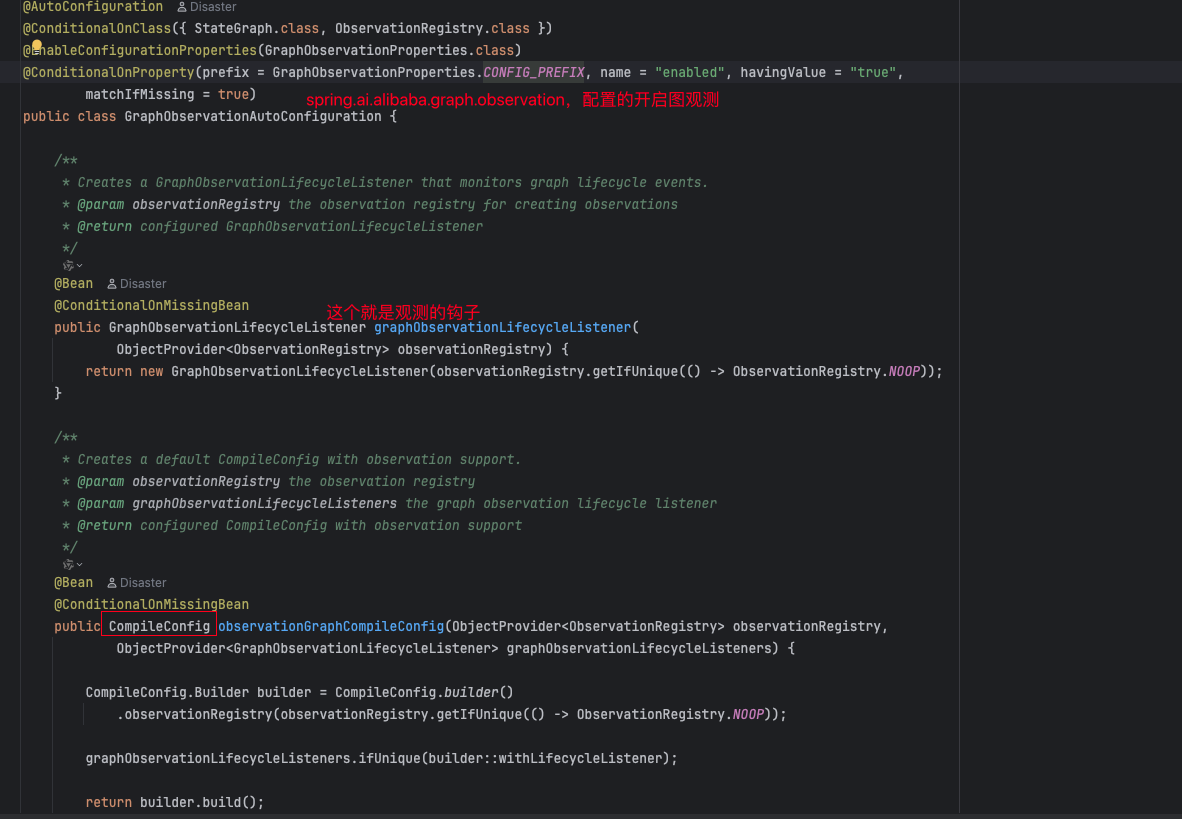

开启 graph 观测 spring.ai.alibaba.graph.observation = true

application-observability.yml 文件如下，在前文中已经介绍过 langfuse 如何配的了集成 Langfuse

# OpenTelemetry Observation configuration for Langfuse integration
management:
  endpoints:
    web:
      exposure:
        include: "*"
  endpoint:
    health:
      # health status check with detailed messages
      # show-details: always
      access:
  tracing:
    sampling:
      # trace information with every request
      probability: 1.0
  observations:
    annotations:
      enabled: true

# OpenTelemetry configuration
otel:
  service:
    name: spring-ai-alibaba-deepresearch-langfuse
  resource:
    attributes:
      deployment.environment: development
  # configure exporter
  traces:
    exporter: otlp
    sampler: alwayson
  metrics:
    exporter: otlp
  # logs exportation inhibited for langfuse currently cannot support
  logs:
    exporter: none
  exporter:
    otlp:
      # OpenTelemetry exporter endpoint configuration. For details, refer to the official Langfuse documentation: https://langfuse.com/docs/opentelemetry/get-started
      endpoint: "https://us.cloud.langfuse.com/api/public/otel" # 🇺🇸 US data region
      headers:
        Authorization: "Basic ${YOURBASE64ENCODEDCREDENTIALS}" # echo -n "pk-xxx:sk-xxx" | base64
      protocol: http/protobuf

config

package com.spring.ai.tutorial.graph.observe.config;

import com.alibaba.cloud.ai.graph.GraphRepresentation;
import com.alibaba.cloud.ai.graph.KeyStrategy;
import com.alibaba.cloud.ai.graph.KeyStrategyFactory;
import com.alibaba.cloud.ai.graph.StateGraph;
import com.alibaba.cloud.ai.graph.exception.GraphStateException;
import com.alibaba.cloud.ai.graph.state.strategy.ReplaceStrategy;
import com.spring.ai.tutorial.graph.observe.node.ExpanderNode;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.ai.chat.client.ChatClient;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.HashMap;

import static com.alibaba.cloud.ai.graph.action.AsyncNodeAction.nodeasync;

/**
 * @author yingzi
 * @since 2025/6/13
 */
@Configuration
public class GraphConfiguration {

    private static final Logger logger = LoggerFactory.getLogger(GraphConfiguration.class);

    @Bean
    public StateGraph simpleGraph(ChatClient.Builder chatClientBuilder) throws GraphStateException {
        KeyStrategyFactory keyStrategyFactory = () -> {
            HashMap<String, KeyStrategy> keyStrategyHashMap = new HashMap<>();

            // 用户输入
            keyStrategyHashMap.put("query", new ReplaceStrategy());
            keyStrategyHashMap.put("expandernumber", new ReplaceStrategy());
            keyStrategyHashMap.put("expandercontent", new ReplaceStrategy());
            return keyStrategyHashMap;
        };

        StateGraph stateGraph = new StateGraph(keyStrategyFactory)
                .addNode("expander", nodeasync(new ExpanderNode(chatClientBuilder)))
                .addEdge(StateGraph.START, "expander")
                .addEdge("expander", StateGraph.END);

        // 添加 PlantUML 打印
        GraphRepresentation representation = stateGraph.getGraph(GraphRepresentation.Type.PLANTUML,
                "expander flow");
        logger.info("\n=== expander UML Flow ===");
        logger.info(representation.content());
        logger.info("==================================\n");

        return stateGraph;
    }
}

node

ExpanderNode

PromptTemplate DEFAULTPROMPTTEMPLATE：扩展文本的提示词
ChatClient chatClient：调用 AI 模型的 client 端
Integer NUMBER：默认扩展为 3 条相似问题

最后将 AI 模型的响应内容返回给给到字段 expandercontent 中

package com.spring.ai.tutorial.graph.node;

import com.alibaba.cloud.ai.graph.NodeOutput;
import com.alibaba.cloud.ai.graph.OverAllState;
import com.alibaba.cloud.ai.graph.action.NodeAction;
import com.alibaba.cloud.ai.graph.streaming.StreamingChatGenerator;
import org.bsc.async.AsyncGenerator;
import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.chat.model.ChatResponse;
import org.springframework.ai.chat.prompt.PromptTemplate;
import reactor.core.publisher.Flux;

import java.util.Arrays;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class ExpanderNode implements NodeAction {

    private static final PromptTemplate DEFAULTPROMPTTEMPLATE = new PromptTemplate("You are an expert at information retrieval and search optimization.\nYour task is to generate {number} different versions of the given query.\n\nEach variant must cover different perspectives or aspects of the topic,\nwhile maintaining the core intent of the original query. The goal is to\nexpand the search space and improve the chances of finding relevant information.\n\nDo not explain your choices or add any other text.\nProvide the query variants separated by newlines.\n\nOriginal query: {query}\n\nQuery variants:\n");

    private final ChatClient chatClient;

    private final Integer NUMBER = 3;

    public ExpanderNode(ChatClient.Builder chatClientBuilder) {
        this.chatClient = chatClientBuilder.build();
    }

    @Override
    public Map<String, Object> apply(OverAllState state) throws Exception {
        String query = state.value("query", "");
        Integer expanderNumber = state.value("expandernumber", this.NUMBER);


        Flux<String> streamResult = this.chatClient.prompt().user((user) -> user.text(DEFAULTPROMPTTEMPLATE.getTemplate()).param("number", expanderNumber).param("query", query)).stream().content();
        String result = streamResult.reduce("", (acc, item) -> acc + item).block();
        List<String> queryVariants = Arrays.asList(result.split("\n"));

        HashMap<String, Object> resultMap = new HashMap<>();
        resultMap.put("expandercontent", queryVariants);
        return resultMap;
    }
}

controller

package com.spring.ai.tutorial.graph.observe.controller;

import com.alibaba.cloud.ai.graph.CompileConfig;
import com.alibaba.cloud.ai.graph.CompiledGraph;
import com.alibaba.cloud.ai.graph.OverAllState;
import com.alibaba.cloud.ai.graph.RunnableConfig;
import com.alibaba.cloud.ai.graph.StateGraph;
import com.alibaba.cloud.ai.graph.exception.GraphRunnerException;
import com.alibaba.cloud.ai.graph.exception.GraphStateException;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import java.util.HashMap;
import java.util.Map;
import java.util.Optional;

/**
 * @author yingzi
 * @since 2025/6/13
 */
@RestController
@RequestMapping("/graph")
public class SimpleGraphController {

    private static final Logger logger = LoggerFactory.getLogger(SimpleGraphController.class);

    private final CompiledGraph compiledGraph;

    public SimpleGraphController(@Qualifier("simpleGraph") StateGraph stateGraph, CompileConfig observationCompileConfig) throws GraphStateException {
        this.compiledGraph = stateGraph.compile(observationCompileConfig);
    }

    @GetMapping(value = "/expand")
    public Map<String, Object> expand(@RequestParam(value = "query", defaultValue = "你好，我的外号是影子，请记住呀！", required = false) String query,
                                                @RequestParam(value = "expandernumber", defaultValue = "3", required = false) Integer  expanderNumber,
                                                @RequestParam(value = "threadid", defaultValue = "yingzi", required = false) String threadId) throws GraphRunnerException {
        RunnableConfig runnableConfig = RunnableConfig.builder().threadId(threadId).build();
        Map<String, Object> objectMap = new HashMap<>();
        objectMap.put("query", query);
        objectMap.put("expandernumber", expanderNumber);
        Optional<OverAllState> invoke = this.compiledGraph.invoke(objectMap, runnableConfig);
        return invoke.map(OverAllState::data).orElse(new HashMap<>());
    }}
