附录一 nginx + frp + let‘s encrypt 搭建内网穿透环境

附录一 nginx + frp + let's encrypt 搭建内网穿透环境

搭建 frp

frp项目地址：https://github.com/fatedier/frp
frp地址：https://gofrp.org/

• 下载项目到本地并且上传到服务器

需要一个云服务器，这里买了一个腾讯云，由于我的腾讯云下载特别慢所以我下载后再上传

参考链接：https://www.linuxprobe.com/linux-securecrt-sftp.html

1. 安装 frp

# 安装 lrzsz
sudo yum install -y lrzsz
# 上传文件
rz
# 解压在 /opt目录下
tar xzvf frp_0.34.3_linux_amd64.tar.gz
# 重命名
mv frp_0.34.3_linux_amd64/ frp

2. 设置frp 开机启动（客户端类似）

参考链接：https://www.jianshu.com/p/f5527d73bca3

# 创建启动文件
sudo vim /etc/systemd/system/frps.service

# 编辑文件内容并保存
# ------文件内容开始-----
[Unit]
Description=jingwei-cloud frp service
After=network.target remote-fs.target nss-lookup.target

[Service]
Type=simple
ExecStart=/opt/frp/frps -c /opt/frp/frps.ini
KillSignal=SIGQUIT
TimeoutStopSec=5
KillMode=process
PrivateTmp=true
StandardOutput=syslog
StandardError=inherit

[Install]
WantedBy=multi-user.target
# 文件内容结束

#刷新服务列表：
systemctl daemon-reload

#设置开机自启
systemctl enable frps
#关闭开机自启
systemctl disable frps

#启动服务
systemctl start frps
#停止服务
systemctl stop frps
#查看服务状态
systemctl status frps

nginx 安装

参考链接： http://nginx.org/en/linux_packages.html#RHEL-CentOS

# 安装工具
sudo yum install yum-utils
# 新增文件
sudo vim /etc/yum.repos.d/nginx.repo
# -------文件内容----------
[nginx-stable]
name=nginx stable repo
baseurl=http://nginx.org/packages/centos/$releasever/$basearch/
gpgcheck=1
enabled=1
gpgkey=https://nginx.org/keys/nginx_signing.key
module_hotfixes=true

[nginx-mainline]
name=nginx mainline repo
baseurl=http://nginx.org/packages/mainline/centos/$releasever/$basearch/
gpgcheck=1
enabled=0
gpgkey=https://nginx.org/keys/nginx_signing.key
module_hotfixes=true
# -----------文件内容-------------

# 需要使用最新的nginx 执行下面命令
sudo yum-config-manager --enable nginx-mainline

# 安装 nginx
sudo yum install nginx

let’s encrypt 安装

参考链接：https://www.cnblogs.com/wzlinux/p/11188454.html
安装链接：https://certbot.eff.org/
参考链接：https://www.jianshu.com/p/122894787128

# 安装snap
sudo dnf install https://dl.fedoraproject.org/pub/epel/epel-release-latest-8.noarch.rpm
sudo dnf upgrade
sudo yum install snapd
# 开机启动
sudo systemctl enable --now snapd.socket
sudo ln -s /var/lib/snapd/snap /snap
# 确保最新snap
sudo snap install core; sudo snap refresh core

# 卸载之前安装过的
sudo yum remove certbot

# 安装 certbot
sudo snap install --classic certbot
sudo ln -s /snap/bin/certbot /usr/bin/certbot

# 生成证书(需要生成 泛域名证书)
sudo certbot certonly \
--server https://acme-v02.api.letsencrypt.org/directory \
 --manual --preferred-challenges dns -d *.jingwei-cloud.top

配置证书

server {
	listen [::]:443 ssl ipv6only=on; # managed by Certbot
  listen 443 ssl; # managed by Certbot
  ssl_certificate /etc/letsencrypt/live/jingwei-cloud.top/fullchain.pem; # managed by Certbot
  ssl_certificate_key /etc/letsencrypt/live/jingwei-cloud.top/privkey.pem; # managed by Certbot
  include /etc/letsencrypt/options-ssl-nginx.conf; # managed by Certbot
  ssl_dhparam /etc/letsencrypt/ssl-dhparams.pem; # managed by Certbot

  location / {
    # First attempt to serve request as file, then
    # as directory, then fall back to displaying a 404.
    proxy_pass http://127.0.0.1:7500;
    proxy_set_header    Host            $host:80;
    proxy_set_header    X-Real-IP       $remote_addr;
    proxy_set_header    X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_hide_header   X-Powered-By;
    #  try_files $uri $uri/ =404;
  }
}

错误处理

• 证书错误

参考：https://learnku.com/articles/16996/certbot-application-for-https-certificate-renewal-error-reporting-solution?order_by=vote_count&

# 下载插件
wget https://raw.githubusercontent.com/al-one/certbot-auth-dnspod/master/certbot-auth-dnspod.sh
chmod +x certbot-auth-dnspod.sh

# 配置 token
echo "your dnspod token" > /etc/dnspod_token

# 自动更新证书
# 更新脚本可以放在以下几个地方 /etc/crontab/ /etc/cron.*/* systemctl list-timers
# 新增 certbot.sh
vim /etc/cron.dalay/certbot.sh
# 内容
#!/bin/sh
certbot renew --manual-auth-hook /path/to/certbot-auth-dnspod.sh --post-hook "systemctl reload nginx"

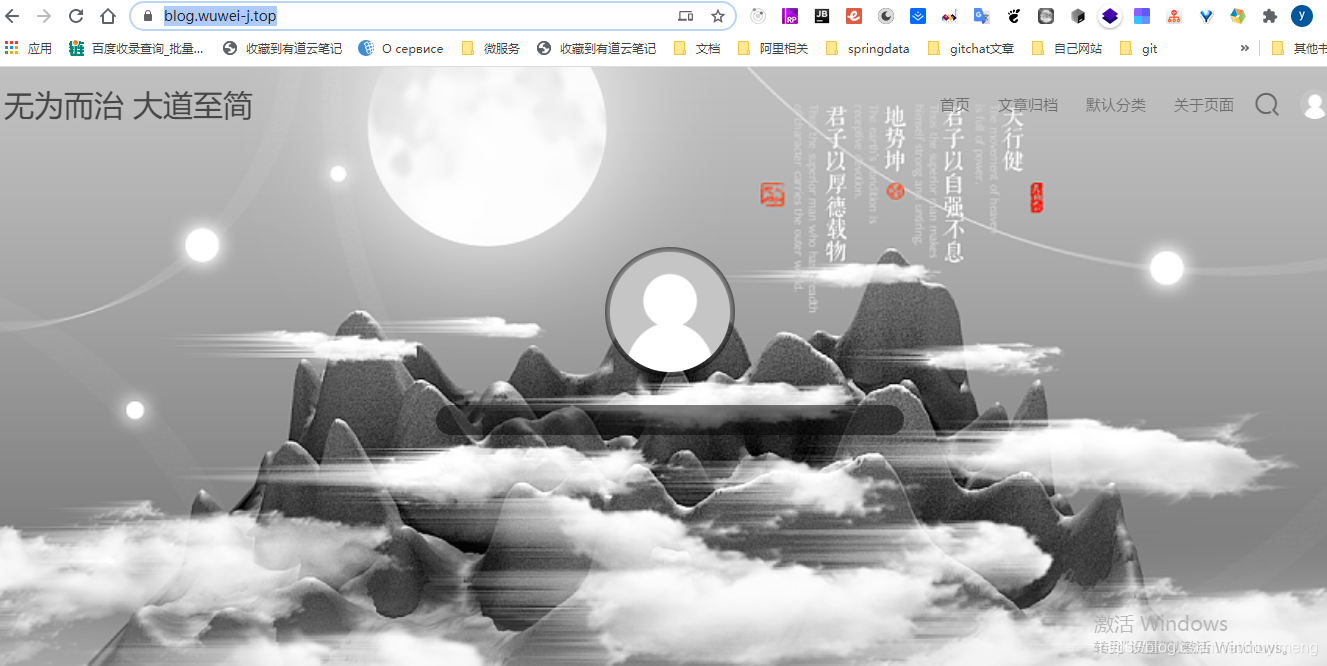

根据上面配置自己搭建的博客系统

自己博客地址： https://blog.wuwei-j.top
