一、Haproxy 实现四层负载

1、Haproxy L4 配置

[root@haproxy-lb1 ~]# /etc/haproxy/haproxy.cfg
global
    log                     127.0.0.1 local2
    chroot                  /var/lib/haproxy
    pidfile                 /var/run/haproxy.pid
    maxconn                 4000
    user                    haproxy
    group                   haproxy
    daemon

defaults
    mode                    http
    log                     global
    option                  dontlognull
    retries                 3
    maxconn                 3000
    contimeout              50000
    clitimeout              50000
    srvtimeout              50000

listen stats
    bind                    *:1314
    stats                   enable
    stats                   hide-version
    stats uri               /haproxystats
    stats realm             Haproxy\ stats
    stats auth              admin:admin
    stats admin             if TRUE

frontend web
    option                   httplog
    option                   http-server-close
    option forwardfor        except 127.0.0.0/8
    #option                  redispatch
    mode                     http
    bind                     *:80
    default_backend          httpservers

backend httpservers
    balance roundrobin
    server http1 192.168.152.10:80 check maxconn 2000
    server http2 192.168.152.20:80 check maxconn 2000
    server http3 192.168.152.30:80 check maxconn 2000

listen mysql
    bind *:3306
    mode tcp
    balance roundrobin
    server mysql1 192.168.152.40:3306 weight 1  check inter 1s rise 2 fall 2
    server mysql2 192.168.152.50:3306 weight 1  check inter 1s rise 2 fall 2

二、Haproxy + Keepalived 高可用负载均衡

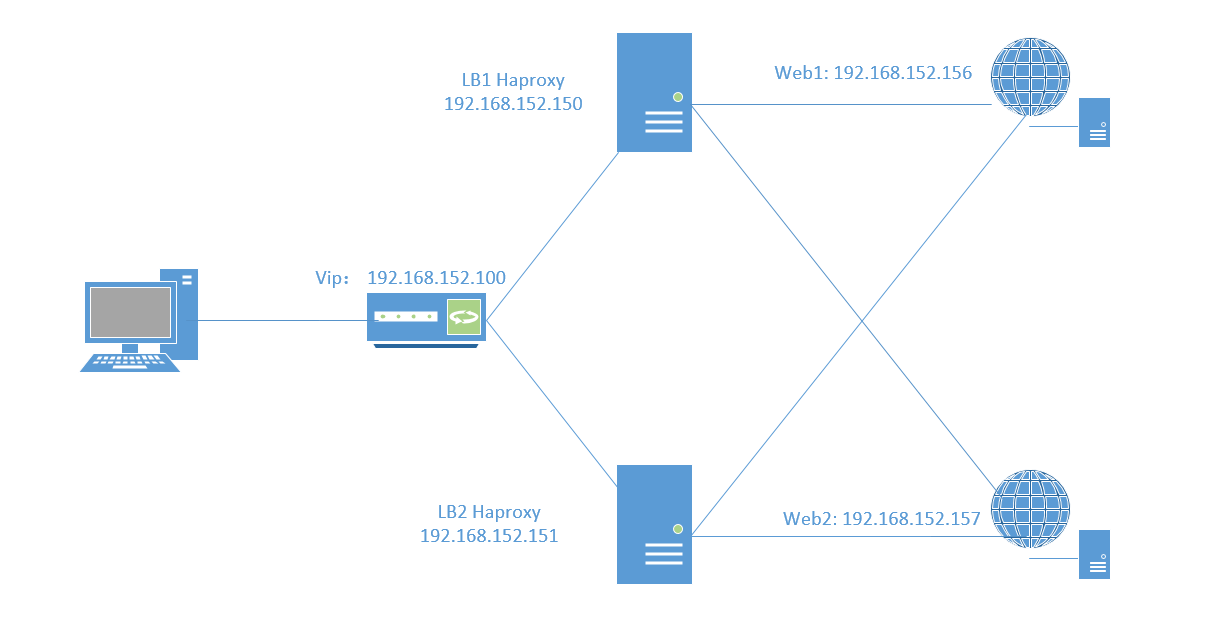

1、拓扑结构

2、环境配置（集群中所有主机）

• 配置 ：IP, hostname, hosts, firewalld, SELinux, ntp

[root@haproxy-lb1 ~]# cat /etc/hosts
192.168.152.150	haproxy-lb1.edenluo.com active
192.168.152.151	haproxy-lb2.edenluo.com backup
192.168.152.156	web1.edenluo.com
192.168.152.157	web2.edenluo.com

3、RS 配置

• 配置好网站服务器，测试所有RS

4、配置 Haproxy（主/备）

[root@haproxy-lb1 ~]# yum -y install haproxy
[root@haproxy-lb1 ~]# cp -rf /etc/haproxy/haproxy.cfg{,.bak}
[root@haproxy-lb1 ~]# sed -i -r '/^[ ]*#/d;/^$/d' /etc/haproxy/haproxy.cfg
[root@haproxy-lb1 ~]# vim /etc/haproxy/haproxy.cfg
global
    log                     127.0.0.1 local2
    chroot                  /var/lib/haproxy
    pidfile                 /var/run/haproxy.pid
    maxconn                 4000
    user                    haproxy
    group                   haproxy
    daemon

defaults
    mode                     http
    log                      global
    option                   dontlognull
    retries                  3
    maxconn                  3000
    contimeout               50000
    clitimeout               50000
    srvtimeout               50000

listen stats
    bind                    *:1314
    stats                   enable
    stats                    hide-version
    stats uri               /haproxystats
    stats realm             Haproxy\ stats
    stats auth              admin:admin
    stats admin             if TRUE

frontend web
    option                   httplog
    option                   http-server-close
    option forwardfor        except 127.0.0.0/8
    #option                  redispatch
    mode                     http
    bind                     *:80
    default_backend          httpservers

backend httpservers
    balance roundrobin
    server http1 192.168.152.156:80 check maxconn 2000
    server http2 192.168.152.157:80 check maxconn 2000

[root@haproxy-lb1 ~]# systemctl enable haproxy.service --now

5、测试调度器(主/备)

[root@haproxy-lb1 ~]# curl 192.168.152.150
web1
[root@haproxy-lb1 ~]# curl 192.168.152.150
web2
[root@haproxy-lb1 ~]# curl 192.168.152.150
web1
[root@haproxy-lb1 ~]# curl 192.168.152.150
web2

[root@haproxy-lb2 ~]# curl 192.168.152.151
web1
[root@haproxy-lb2 ~]# curl 192.168.152.151
web2
[root@haproxy-lb2 ~]# curl 192.168.152.151
web1
[root@haproxy-lb2 ~]# curl 192.168.152.151
web2

6、Keepalived 实现 HAproxy HA

注：主/备调度器均能够实现正常调度

1、主/备调度器安装软件

[root@haproxy-lb1 ~]# yum -y install keepalived

2、Keepalived 配置

1、Master

[root@haproxy-lb1 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File
