简单工具学会在Java中以编程方式将Excel转换为SVG

Spire.XLS for Java是专业的Java Excel API，使开发人员无需使用Microsoft Office或Microsoft Excel即可创建，管理，操作，转换和打印Excel工作表。

本文将演示如何在Java应用程序中使用Spire.XLS for Java将Excel转换为SVG流。下载Spire.XLS最新版

---

代码如下：

import com.spire.xls.*;

import java.io.FileOutputStream;
import java.util.List;
import java.util.Map;

public class ExceltoSVG {
    public static void main(String[] args) throws Exception {
        //Load the sample document
        Workbook workbook = new Workbook();
        workbook.loadFromFile("Sample.xlsx");
        int count = 1;

        //Get the page split info.
        List> pageInfoList = workbook.getSplitPageInfo();

        for (int i = 0; i < workbook.getWorksheets().getCount(); i++) { FileOutputStream stream; Worksheet sheet = workbook.getWorksheets().get(i); Map integerPageColRowMap = pageInfoList.get(i); for (Map.Entry entry : integerPageColRowMap.entrySet()) { PageColRow colRow = entry.getValue(); stream=new FileOutputStream("output/out" + (count++) + ".svg"); //Save to SVG sheet.toSVGStream(stream, colRow.StartRow, colRow.StartCol, colRow.EndRow, colRow.EndCol); stream.flush(); stream.close(); } } } }

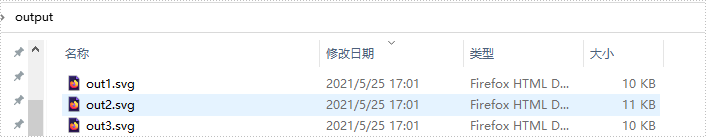

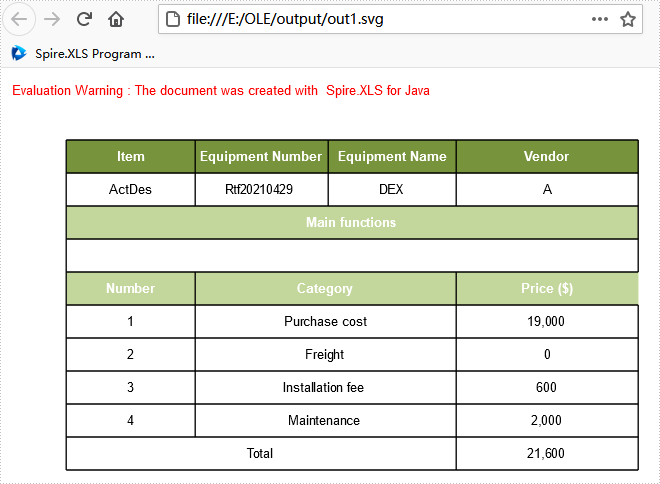

输出结果：



---
