uni-微信小程序使用lime-echart

lime-echart 在uni-h5、uni-app、微信小程序环境下使用，并进行分包，缩小了小程序主包大小。

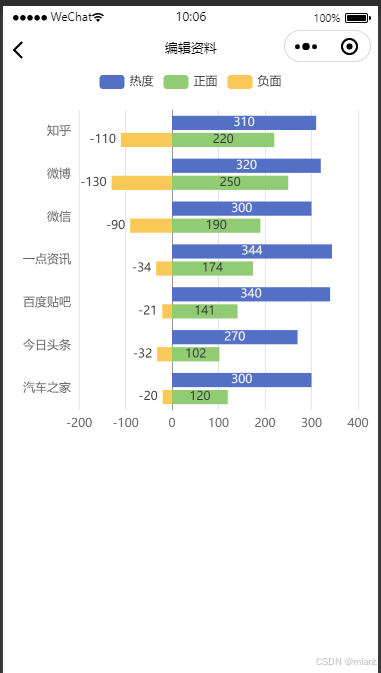

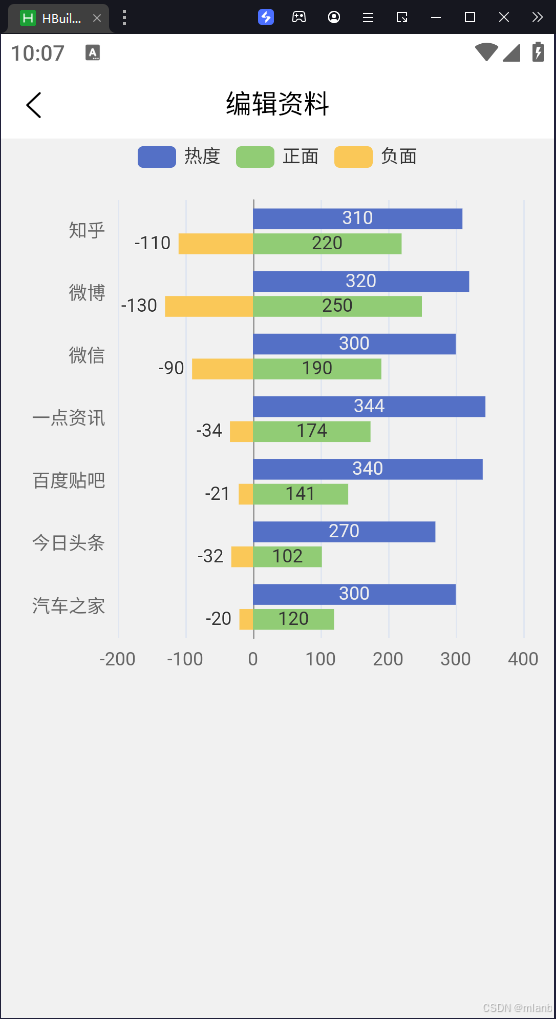

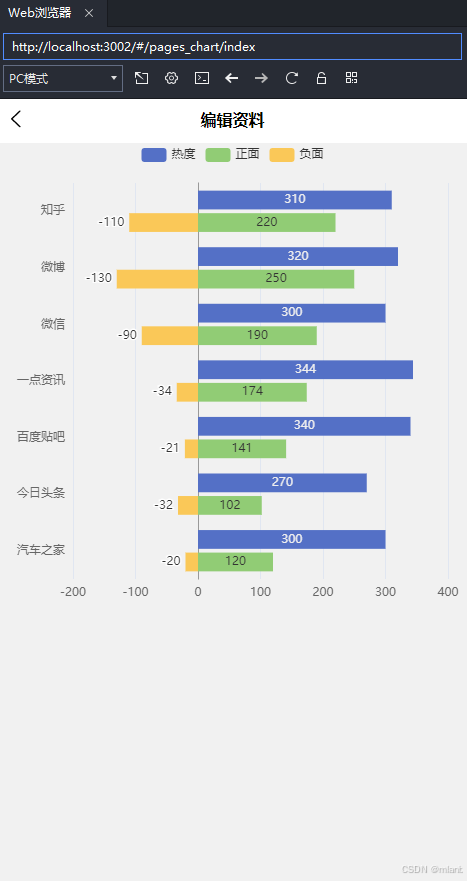

先上截图

代码引入

1.将下载好的l-chart插件拿出来

2.放到自己分包后的文件夹下

3.删除lime-echart => static => echarts.min.js

4.去echarts官网下载esm格式的js文件https://github.com/apache/echarts/blob/5.5.1/dist/echarts.esm.min.js

5.将下载的文件放入到自己的文件夹下

6.代码  src\pages_chart\index.vue

<template>
    <div>
        <view style="width:750rpx; height:750rpx">
            <LEchart ref="chartRef"></LEchart>
        </view>

    </div>
</template>

<script setup lang="ts" name='ssss'>
import { ref, onMounted } from 'vue';
import LEchart from "@/pages_chart/lime-echart/components/l-echart/l-echart.vue";
import * as echarts from '@/pages_chart/esm/echarts.min.js'

let chartRef = ref(null)


const init = async () => {
    const myChart = await chartRef.value.init(echarts)
    const option = {
        tooltip: {
            trigger: 'axis',
            axisPointer: {
                type: 'shadow'
            },
            confine: true
        },
        legend: {
            data: ['热度', '正面', '负面']
        },
        grid: {
            left: 20,
            right: 20,
            bottom: 15,
            top: 40,
            containLabel: true
        },
        xAxis: [
            {
                type: 'value',
                axisLine: {
                    lineStyle: {
                        color: '#999999'
                    }
                },
                axisLabel: {
                    color: '#666666'
                }
            }
        ],
        yAxis: [
            {
                type: 'category',
                axisTick: { show: false },
                data: ['汽车之家', '今日头条', '百度贴吧', '一点资讯', '微信', '微博', '知乎'],
                axisLine: {
                    lineStyle: {
                        color: '#999999'
                    }
                },
                axisLabel: {
                    color: '#666666'
                }
            }
        ],
        series: [
            {
                name: '热度',
                type: 'bar',
                label: {
                    normal: {
                        show: true,
                        position: 'inside'
                    }
                },
                data: [300, 270, 340, 344, 300, 320, 310],
            },
            {
                name: '正面',
                type: 'bar',
                stack: '总量',
                label: {
                    normal: {
                        show: true
                    }
                },
                data: [120, 102, 141, 174, 190, 250, 220]
            },
            {
                name: '负面',
                type: 'bar',
                stack: '总量',
                label: {
                    normal: {
                        show: true,
                        position: 'left'
                    }
                },
                data: [-20, -32, -21, -34, -90, -130, -110]
            }
        ]
    }
    myChart.setOption(option)
}

onMounted(() => {
    init()
});
</script>

<style scoped lang='scss'></style>

7.manifest文件下勾选8.运行成功

9.echarts官网 l-chart
