大纲
1.服务器的请求处理链
(1)Leader服务器的请求处理链
一.PrepRequestProcessor请求预处理器
二.ProposalRequestProcessor事务投票处理器
三.SyncRequestProcessor事务日志处理器
四.AckRequestProcessor投票反馈处理器
五.CommitProcessor事务提交处理器
六.ToBeAppliedRequestProcessor处理器
七.FinalRequestProcessor处理器
(2)Follower服务器的请求处理链
一.FollowerRequestProcessor请求转发处理器
二.SendAckRequestProcessor投票反馈处理器
2.服务端处理会话创建请求的流程
(1)请求接收
(2)会话创建
(3)请求预处理
(4)事务处理
(5)事务应用和响应
1.服务器的请求处理链
(1)Leader服务器的请求处理链
(2)Follower服务器的请求处理链
(1)Leader服务器的请求处理链
一.PrepRequestProcessor请求预处理器
二.ProposalRequestProcessor事务投票处理器
三.SyncRequestProcessor事务日志处理器
四.AckRequestProcessor投票反馈处理器
五.CommitProcessor事务提交处理器
六.ToBeAppliedRequestProcessor处理器
七.FinalRequestProcessor处理器
当客户端需要和zk服务端进行相互协调通信时，首先要通过Leader服务器建立该客户端与服务端的连接会话。当会话创建成功后，zk服务端就可以接收来自客户端的请求操作了。
Leader服务器是zk集群的核心，其主要工作是：
工作一：处理事务请求，保证集群事务处理的顺序性
工作二：集群内各服务器的调度者

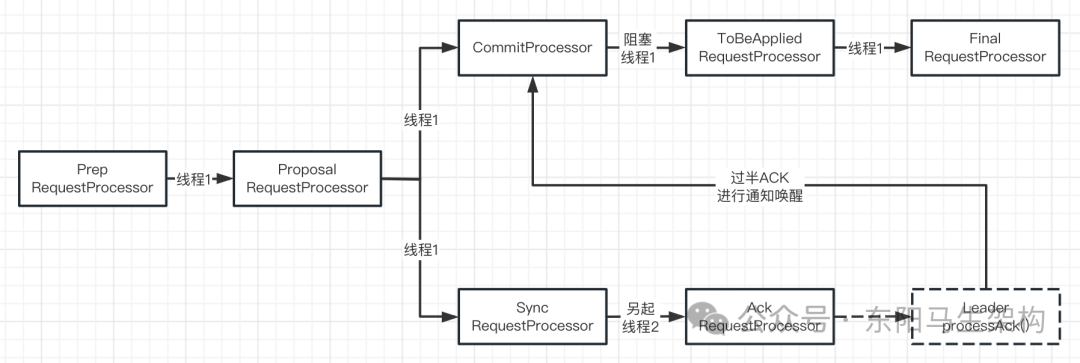

zk服务端会使用责任链模式来处理每一个客户端的请求。在服务端启动时，会进行请求处理链的初始化。Leader服务器的请求处理链如下图示，主要有7个请求处理器。
一.PrepRequestProcessor请求预处理器
zk中的事务请求就是会改变服务器状态的请求。事务请求包括创建节点、更新节点、删除节点、创建会话等请求。
PrepRequestProcessor是Leader服务器的请求预处理器(Prepare)，它能够识别出当前客户端请求是否是事务请求，它会对事务请求进行一系列的预处理操作。这些预处理包括：创建请求事务头事务体、会话检查、ACL检查等。
PrepRequestProcessor实现了RequestProcessor接口并继承了zk线程，而且还有一个RequestProcessor类型的nextProcessor属性字段，nextProcessor属性字段的作用是指向下一个请求处理器。
Leader服务器在开始处理请求时，会调用PrepRequestProcessor的processRequest()方法将请求添加到队列。请求预处理器的线程启动后会不断从submittedRequests队列取出请求，然后把请求交给PrepRequestProcessor的pRequest()方法进行预处理。在pRequest()方法中，会根据请求类型来判断请求是否是事务请求。如果是事务请求，就调用pRequest2Txn()方法对事务请求进行预处理。之后再将请求交给nextProcessor属性字段指向的处理器进行下一步处理。
PrepRequestProcessor处理器也是一个线程，它会先把请求添加到队列，然后由线程进行处理。
PrepRequestProcessor的nextProcessor属性指向的是ProposalRequestProcessor处理器。
public class QuorumPeer extends ZooKeeperThread implements QuorumStats.Provider {
...
protected Leader makeLeader(FileTxnSnapLog logFactory) throws IOException, X509Exception {
return new Leader(this, new LeaderZooKeeperServer(logFactory, this, this.zkDb));
}
...
}
public class LeaderZooKeeperServer extends QuorumZooKeeperServer {
CommitProcessor commitProcessor;
PrepRequestProcessor prepRequestProcessor;
...
//初始化请求处理链
@Override
protected void setupRequestProcessors() {
RequestProcessor finalProcessor = new FinalRequestProcessor(this);
RequestProcessor toBeAppliedProcessor = new Leader.ToBeAppliedRequestProcessor(finalProcessor, getLeader());
commitProcessor = new CommitProcessor(toBeAppliedProcessor, Long.toString(getServerId()), false, getZooKeeperServerListener());
commitProcessor.start();
ProposalRequestProcessor proposalProcessor = new ProposalRequestProcessor(this, commitProcessor);
proposalProcessor.initialize();
prepRequestProcessor = new PrepRequestProcessor(this, proposalProcessor);
prepRequestProcessor.start();//启动请求预处理器线程
firstProcessor = new LeaderRequestProcessor(this, prepRequestProcessor);
setupContainerManager();
}
...
}
public class PrepRequestProcessor extends ZooKeeperCriticalThread implements RequestProcessor {
RequestProcessor nextProcessor;
LinkedBlockingQueue<Request> submittedRequests = new LinkedBlockingQueue<Request>();
public void processRequest(Request request) {
//将请求添加到队列
submittedRequests.add(request);
}
...
@Override
public void run() {
while (true) {
Request request = submittedRequests.take();
...
pRequest(request);
}
}
protected void pRequest(Request request) throws RequestProcessorException {
request.setHdr(null);
request.setTxn(null);
switch (request.type) {
...
case OpCode.create:
CreateRequest createRequest = new CreateRequest();
pRequest2Txn(request.type, zks.getNextZxid(), request,createRequest, true);
break;
case OpCode.delete:
...
}
...
request.zxid = zks.getZxid();
//将请求交给下一个处理器来处理
nextProcessor.processRequest(request);
}
//下面这个方法专门用来对事务请求进行预处理
protected void pRequest2Txn(int type, long zxid, Request request, Record record, boolean deserialize) {
//设置请求的事务头事务体
request.setHdr(new TxnHeader(request.sessionId, request.cxid, zxid, Time.currentWallTime(), type));
...
}
...
}有两个入口会触发调用PrepRequestProcessor的processRequest()方法。
第一是Leader服务器监听到Learner转发给Leader的事务请求。也就是在不断运行的LearnerHandler线程中发现Learner给Leader发送请求时，会调用LeaderZooKeeperServer.submitLearnerRequest方法来触发。
第二是zk服务端监听到的来自客户端的事务请求。此时会先调用ZooKeeperServer的processPacket()方法处理Socket的读请求，然后再调用ZooKeeperServer的submitRequest()方法提交读请求，最后就会调用ZooKeeperServer的firstProcessor的processRequest()方法。firstProcessor的processRequest()方法执行完便进入PrepRequestProcessor。
//第一个入口
public class Leader {
...
void lead() throws IOException, InterruptedException {
...
cnxAcceptor = new LearnerCnxAcceptor();
cnxAcceptor.start();
...
}
class LearnerCnxAcceptor extends ZooKeeperCriticalThread {
...
@Override
public void run() {
while (!stop) {
Socket s = ss.accept();
s.setSoTimeout(self.tickTime * self.initLimit);
s.setTcpNoDelay(nodelay);
BufferedInputStream is = new BufferedInputStream(s.getInputStream());
LearnerHandler fh = new LearnerHandler(s, is, Leader.this);
fh.start();
...
}
...
}
}
...
}
public class LearnerHandler extends ZooKeeperThread {
...
@Override
public void run() {
...
while (true) {
...
case Leader.REQUEST:
...
//调用LeaderZooKeeperServer的submitLearnerRequest方法
leader.zk.submitLearnerRequest(si);
...
}
...
}
...
}
public class LeaderZooKeeperServer extends QuorumZooKeeperServer {
PrepRequestProcessor prepRequestProcessor;
...
@Override
protected void setupRequestProcessors() {
...
prepRequestProcessor = new PrepRequestProcessor(this, proposalProcessor);
prepRequestProcessor.start();
firstProcessor = new LeaderRequestProcessor(this, prepRequestProcessor);
...
}
public void submitLearnerRequest(Request request) {
prepRequestProcessor.processRequest(request);
}
...
}
//第二个入口
public class NIOServerCnxnFactory extends ServerCnxnFactory {
...
class SelectorThread extends AbstractSelectThread {
@Override
public void run() {
...
while (!stopped) {
select();
...
}
...
}
private void select() {
selector.select();
Set<SelectionKey> selected = selector.selectedKeys();
ArrayList<SelectionKey> selectedList = new ArrayList<SelectionKey>(selected);
Collections.shuffle(selectedList);
Iterator<SelectionKey> selectedKeys = selectedList.iterator();
while (!stopped && selectedKeys.hasNext()) {
SelectionKey key = selectedKeys.next();
selected.remove(key);
...
if (key.isReadable() || key.isWritable()) {
//服务端从客户端读数据(读取请求) + 服务端向客户端写数据(发送响应)
handleIO(key);
}
...
}
}
private void handleIO(SelectionKey key) {
IOWorkRequest workRequest = new IOWorkRequest(this, key);
NIOServerCnxn cnxn = (NIOServerCnxn) key.attachment();
cnxn.disableSelectable();
key.interestOps(0);
//激活连接：添加连接到连接过期队列
touchCnxn(cnxn);
//通过工作线程池来处理请求
workerPool.schedule(workRequest);
}
...
}
private class IOWorkRequest extends WorkerService.WorkRequest {
private final NIOServerCnxn cnxn;
public void doWork() throws InterruptedException {
...
if (key.isReadable() || key.isWritable()) {
cnxn.doIO(key);
...
}
}
...
}
}
public class WorkerService {
...
public void schedule(WorkRequest workRequest, long id) {
ScheduledWorkRequest scheduledWorkRequest = new ScheduledWorkRequest(workRequest);
int size = workers.size();
if (size > 0) {
int workerNum = ((int) (id % size) + size) % size;
ExecutorService worker = workers.get(workerNum);
worker.execute(scheduledWorkRequest);
} else {
scheduledWorkRequest.run();
}
}
private class ScheduledWorkRequest implements Runnable {
private final WorkRequest workRequest;
ScheduledWorkRequest(WorkRequest workRequest) {
this.workRequest = workRequest;
}
@Override
public void run() {
...
workRequest.doWork();
}
}
...
}
public class NIOServerCnxn extends ServerCnxn {
private final ZooKeeperServer zkServer;
void doIO(SelectionKey k) throws InterruptedException {
...
if (k.isReadable()) {
...
readPayload();
}
}
private void readPayload() throws IOException, InterruptedException {
...
readRequest();
}
private void readRequest() throws IOException {
//处理输入流
zkServer.processPacket(this, incomingBuffer);
}
...
}
public class ZooKeeperServer implements SessionExpirer, ServerStats.Provider {
...
public void processPacket(ServerCnxn cnxn, ByteBuffer incomingBuffer) throws IOException {
InputStream bais = new ByteBufferInputStream(incomingBuffer);
BinaryInputArchive bia = BinaryInputArchive.getArchive(bais);
RequestHeader h = new RequestHeader();
h.deserialize(bia, "header");
incomingBuffer = incomingBuffer.slice();
...
Request si = new Request(cnxn, cnxn.getSessionId(), h.getXid(), h.getType(), incomingBuffer, cnxn.getAuthInfo());
submitRequest(si);
...
}
public void submitRequest(Request si) {
...
//激活会话
touch(si.cnxn);
//firstProcessor.processRequest方法执行完便进入PrepRequestProcessor
firstProcessor.processRequest(si);
...
}
...
}二.ProposalRequestProcessor事务投票处理器
ProposalRequestProcessor处理器是Leader服务器的事务投票处理器。它是PrepRequestProcessor请求预处理器的下一个处理器，它的主要作用是对事务请求进行处理，包括创建提议、发起投票。
对于非事务请求：它会将请求直接交给CommitProcessor处理器处理，不再做其他处理。
对于事务请求：除了将请求交给CommitProcessor处理器外，还会创建请求对应的Proposal提议，并将Proposal提议发送给所有Follower来发起一次集群内的事务投票，同时还会将事务请求交给SyncRequestProcessor处理器来记录事务日志。
提议是指：当处理一个事务请求时，zk会先在服务端发起一次投票流程。该投票的主要作用是通知zk服务端的各机器处理事务请求，从而避免因某个机器出现问题而造成事务不一致的问题。
ProposalRequestProcessor事务投票处理器的三个子流程分别是：Commit流程、Proposal流程、Sync流程。
流程一：Commit流程
完成Proposal流程后，zk服务器上的数据还没有进行任何改变。完成Proposal流程只是说明zk服务端可以执行事务请求操作了，真正执行具体数据的变更需要在Commit流程中实现。Commit流程的主要作用就是完成请求的执行。该流程是由CommitProcessor处理器来实现的。
流程二：Proposal流程
处理事务请求时，zk要取得集群中过半机器的投票才能修改数据。Proposal流程的主要工作就是投票和统计投票结果。
流程三：Sync流程
Sync流程是由SyncRequestProcessor处理器来实现的。
ProposalRequestProcessor处理器不是一个线程，它的nextProcessor就是CommitProcessor处理器，它会调用SyncRequestProcessor处理器的processRequest()方法；
public class LeaderZooKeeperServer extends QuorumZooKeeperServer {
...
@Override
protected void setupRequestProcessors() {
RequestProcessor finalProcessor = new FinalRequestProcessor(this);
RequestProcessor toBeAppliedProcessor = new Leader.ToBeAppliedRequestProcessor(finalProcessor, getLeader());
commitProcessor = new CommitProcessor(toBeAppliedProcessor, Long.toString(getServerId()), false, getZooKeeperServerListener());
commitProcessor.start();
//构建ProposalRequestProcessor处理器，下一个处理器为CommitProcessor处理器
ProposalRequestProcessor proposalProcessor = new ProposalRequestProcessor(this, commitProcessor);
proposalProcessor.initialize();//初始化ProposalRequestProcessor处理器
prepRequestProcessor = new PrepRequestProcessor(this, proposalProcessor);
prepRequestProcessor.start();
firstProcessor = new LeaderRequestProcessor(this, prepRequestProcessor);
setupContainerManager();
}
...
}
//ProposalRequestProcessor的nextProcessor就是CommitProcessor
public class ProposalRequestProcessor implements RequestProcessor {
LeaderZooKeeperServer zks;
RequestProcessor nextProcessor;//nextProcessor其实就是CommitProcessor处理器
SyncRequestProcessor syncProcessor;//事务日志处理器，它的下一个处理器是AckRequestProcessor
public ProposalRequestProcessor(LeaderZooKeeperServer zks, RequestProcessor nextProcessor) {
this.zks = zks;
this.nextProcessor = nextProcessor;
AckRequestProcessor ackProcessor = new AckRequestProcessor(zks.getLeader());
//创建事务日志处理器，它的下一个处理器是AckRequestProcessor
syncProcessor = new SyncRequestProcessor(zks, ackProcessor);
}
//初始化ProposalRequestProcessor处理器
public void initialize() {
syncProcessor.start();//启动事务日志处理器的线程
}
public void processRequest(Request request) throws RequestProcessorException {
if (request instanceof LearnerSyncRequest) {
//处理Learner的数据同步请求
zks.getLeader().processSync((LearnerSyncRequest)request);
} else {
//Commit流程，nextProcessor其实就是CommitProcessor处理器
nextProcessor.processRequest(request);
if (request.getHdr() != null) {
//Proposal流程
zks.getLeader().propose(request);
//Sync流程，将请求添加到队列，然后由事务日志处理器线程去处理
syncProcessor.processRequest(request);
}
}
}
...
}
public class Leader {
final ConcurrentMap<Long, Proposal> outstandingProposals = new ConcurrentHashMap<Long, Proposal>();
...
public Proposal propose(Request request) throws XidRolloverException {
...
byte[] data = SerializeUtils.serializeRequest(request);
proposalStats.setLastBufferSize(data.length);
QuorumPacket pp = new QuorumPacket(Leader.PROPOSAL, request.zxid, data, null);
//生成Proposal提议
Proposal p = new Proposal();
p.packet = pp;
p.request = request;
synchronized(this) {
p.addQuorumVerifier(self.getQuorumVerifier());
if (request.getHdr().getType() == OpCode.reconfig) {
self.setLastSeenQuorumVerifier(request.qv, true);
}
if (self.getQuorumVerifier().getVersion()<self.getLastSeenQuorumVerifier().getVersion()) {
p.addQuorumVerifier(self.getLastSeenQuorumVerifier());
}
lastProposed = p.packet.getZxid();
//将发送的Proposal提议放入outstandingProposals队列中
outstandingProposals.put(lastProposed, p);
//发送Proposal提议，其实就是把Proposal提议交给LearnerHandler处理
sendPacket(pp);
}
return p;
}
void sendPacket(QuorumPacket qp) {
synchronized (forwardingFollowers) {
for (LearnerHandler f : forwardingFollowers) {
//LearnerHandler会将提议放入其发送队列里
f.queuePacket(qp);
}
}
}
...
}
public class LearnerHandler extends ZooKeeperThread {
final LinkedBlockingQueue<QuorumPacket> queuedPackets = new LinkedBlockingQueue<QuorumPacket>();
...
void queuePacket(QuorumPacket p) {
queuedPackets.add(p);
}
@Override
public void run() {
...
//启动一个线程去发送Packet，比如Proposal提议
startSendingPackets();
...
}
protected void startSendingPackets() {
if (!sendingThreadStarted) {
// Start sending packets
new Thread() {
public void run() {
Thread.currentThread().setName("Sender-" + sock.getRemoteSocketAddress());
sendPackets();
}
}.start();
sendingThreadStarted = true;
} else {
LOG.error("Attempting to start sending thread after it already started");
}
}
private void sendPackets() throws InterruptedException {
long traceMask = ZooTrace.SERVER_PACKET_TRACE_MASK;
while (true) {
QuorumPacket p;
p = queuedPackets.poll();
if (p == null) {
bufferedOutput.flush();
p = queuedPackets.take();
}
if (p == proposalOfDeath) {
break;
}
if (p.getType() == Leader.PING) {
traceMask = ZooTrace.SERVER_PING_TRACE_MASK;
}
if (p.getType() == Leader.PROPOSAL) {
syncLimitCheck.updateProposal(p.getZxid(), System.nanoTime());
}
if (LOG.isTraceEnabled()) {
ZooTrace.logQuorumPacket(LOG, traceMask, 'o', p);
}
oa.writeRecord(p, "packet");
}
}
...
}三.SyncRequestProcessor事务日志处理器
SyncRequestProcessor处理器是事务日志处理器。它的作用是将事务请求记录到事务日志文件中，同时触发zk进行数据快照。
SyncRequestProcessor处理器也是一个线程，它会先把请求添加到队列，然后由线程处理，它的nextProcessor是AckRequestProcessor处理器。
//SyncRequestProcessor事务日志处理器，它的下一个处理器是AckRequestProcessor
public class SyncRequestProcessor extends ZooKeeperCriticalThread implements RequestProcessor {
private final ZooKeeperServer zks;
private final LinkedBlockingQueue<Request> queuedRequests = new LinkedBlockingQueue<Request>();
private final RequestProcessor nextProcessor;//AckRequestProcessor处理器
private Thread snapInProcess = null;
volatile private boolean running;
private final LinkedList<Request> toFlush = new LinkedList<Request>();
private final Random r = new Random();
private static int snapCount = ZooKeeperServer.getSnapCount();
private final Request requestOfDeath = Request.requestOfDeath;
public SyncRequestProcessor(ZooKeeperServer zks, RequestProcessor nextProcessor) {
super("SyncThread:" + zks.getServerId(), zks.getZooKeeperServerListener());
this.zks = zks;
this.nextProcessor = nextProcessor;
running = true;
}
public void processRequest(Request request) {
//将请求添加到队列
queuedRequests.add(request);
}
@Override
public void run() {
try {
int logCount = 0;
int randRoll = r.nextInt(snapCount/2);
while (true) {
Request si = null;
if (toFlush.isEmpty()) {
si = queuedRequests.take();
} else {
si = queuedRequests.poll();
if (si == null) {
flush(toFlush);
continue;
}
}
if (si == requestOfDeath) {
break;
}
if (si != null) {
if (zks.getZKDatabase().append(si)) {
logCount++;
if (logCount > (snapCount / 2 + randRoll)) {
randRoll = r.nextInt(snapCount/2);
// roll the log
zks.getZKDatabase().rollLog();
// take a snapshot
if (snapInProcess != null && snapInProcess.isAlive()) {
LOG.warn("Too busy to snap, skipping");
} else {
snapInProcess = new ZooKeeperThread("Snapshot Thread") {
public void run() {
try {
zks.takeSnapshot();
} catch(Exception e) {
LOG.warn("Unexpected exception", e);
}
}
};
snapInProcess.start();
}
logCount = 0;
}
} else if (toFlush.isEmpty()) {
if (nextProcessor != null) {
nextProcessor.processRequest(si);
if (nextProcessor instanceof Flushable) {
((Flushable)nextProcessor).flush();
}
}
continue;
}
toFlush.add(si);
if (toFlush.size() > 1000) {
flush(toFlush);
}
}
}
} catch (Throwable t) {
handleException(this.getName(), t);
} finally{
running = false;
}
}
private void flush(LinkedList<Request> toFlush) throws IOException, RequestProcessorException {
if (toFlush.isEmpty()) {
return;
}
zks.getZKDatabase().commit();
while (!toFlush.isEmpty()) {
Request i = toFlush.remove();
if (nextProcessor != null) {
nextProcessor.processRequest(i);
}
}
if (nextProcessor != null && nextProcessor instanceof Flushable) {
((Flushable)nextProcessor).flush();
}
}
public void shutdown() {
queuedRequests.add(requestOfDeath);
if (running) {
this.join();
}
if (!toFlush.isEmpty()) {
flush(toFlush);
}
if (nextProcessor != null) {
nextProcessor.shutdown();
}
}
}四.AckRequestProcessor投票反馈处理器
SyncRequestProcessor的nextProcessor就是AckRequestProcessor，AckRequestProcessor是Leader特有的处理器。
它负责在SyncRequestProcessor处理器完成事务日志记录后，通过Leader的processAck()方法向Proposal提议添加来自Leader的ACK响应。也就是将Leader的SID添加到Proposal提议的投票收集器里，然后调用Leader的tryToCommit()方法检查提议是否已有过半ACK并尝试提交。
同理，如果Leader收到Follower对该Proposal提议请求返回的ACK响应，也会通过Leader的processAck()方法向提议添加来自Follower的ACK响应，也就是将Follower的SID添加到Proposal提议的投票收集器里，然后调用Leader的tryToCommit()方法检查提议是否已有过半ACK来尝试提交。
AckRequestProcessor处理器不是一个线程，它没有nextProcessor属性字段。
//SyncRequestProcessor的nextProcessor就是AckRequestProcessor
class AckRequestProcessor implements RequestProcessor {
Leader leader;
AckRequestProcessor(Leader leader) {
this.leader = leader;
}
//Forward the request as an ACK to the leader
public void processRequest(Request request) {
QuorumPeer self = leader.self;
if (self != null) {
//Leader也作为参与Proposal投票的一份子进行ACK响应
//将Leader的SID添加到Proposal提议的投票收集器里 + 检查Proposal提议的投票收集器是否有过半ACK才提交
leader.processAck(self.getId(), request.zxid, null);
} else {
LOG.error("Null QuorumPeer");
}
}
}
public class LearnerHandler extends ZooKeeperThread {
...
@Override
public void run() {
...
while (true) {
...
switch (qp.getType()) {
case Leader.ACK:
...
//如果Leader收到Follower对某Proposal提议请求返回的ACK响应
//那么就将Follower的SID添加到该Proposal提议的投票收集器里
leader.processAck(this.sid, qp.getZxid(), sock.getLocalSocketAddress());
break;
...
}
...
}
...
}
public class Leader {
final ConcurrentMap<Long, Proposal> outstandingProposals = new ConcurrentHashMap<Long, Proposal>();
...
public Proposal propose(Request request) throws XidRolloverException {
...
byte[] data = SerializeUtils.serializeRequest(request);
proposalStats.setLastBufferSize(data.length);
QuorumPacket pp = new QuorumPacket(Leader.PROPOSAL, request.zxid, data, null);
//生成Proposal提议
Proposal p = new Proposal();
p.packet = pp;
p.request = request;
synchronized(this) {
p.addQuorumVerifier(self.getQuorumVerifier());
if (request.getHdr().getType() == OpCode.reconfig) {
self.setLastSeenQuorumVerifier(request.qv, true);
}
if (self.getQuorumVerifier().getVersion()<self.getLastSeenQuorumVerifier().getVersion()) {
p.addQuorumVerifier(self.getLastSeenQuorumVerifier());
}
lastProposed = p.packet.getZxid();
//将发送的Proposal提议放入outstandingProposals队列中
outstandingProposals.put(lastProposed, p);
//发送Proposal提议，其实就是把Proposal提议交给LearnerHandler处理
sendPacket(pp);
}
return p;
}
void sendPacket(QuorumPacket qp) {
synchronized (forwardingFollowers) {
for (LearnerHandler f : forwardingFollowers) {
//LearnerHandler会将提议放入其发送队列里
f.queuePacket(qp);
}
}
}
synchronized public void processAck(long sid, long zxid, SocketAddress followerAddr) {
...
//检查请求的ZXID，需要比上次已提交的请求的ZXID也就是lastCommitted要大
if (lastCommitted >= zxid) {
if (LOG.isDebugEnabled()) {
LOG.debug("proposal has already been committed, pzxid: 0x{} zxid: 0x{}", Long.toHexString(lastCommitted), Long.toHexString(zxid));
}
// The proposal has already been committed
return;
}
Proposal p = outstandingProposals.get(zxid);
//将Leader的SID添加到Proposal提议的投票收集器里
p.addAck(sid);
//尝试提交，即检查Proposal提议的投票收集器中是否有过半ACK响应
boolean hasCommitted = tryToCommit(p, zxid, followerAddr);
...
}
synchronized public boolean tryToCommit(Proposal p, long zxid, SocketAddress followerAddr) {
//如果提议队列中存在该提议的前一个提议，说明该提议的前一个提议还没提交，那么就返回false
//zxid - 1是因为，只有事务请求才会生成zxid，那么前一个事务肯定就是zxid = 1
if (outstandingProposals.containsKey(zxid - 1)) return false;
//getting a quorum from all necessary configurations.
//Proposal提议的投票收集器是否已过半
if (!p.hasAllQuorums()) {
return false;
}
...
outstandingProposals.remove(zxid);
if (p.request != null) {
toBeApplied.add(p);
}
...
//一旦提议通过，马上就要在Leader中标记lastCommitted为最新的提交ZXID
commit(zxid);//给Follower广播commit消息
inform(p);//给Observer发送commit消息
...
//调用CommitProcessor处理器的commit方法提交请求
zk.commitProcessor.commit(p.request);//让Leader执行commit消息
//下面处理的是Learner发起的同步请求
if (pendingSyncs.containsKey(zxid)) {
for (LearnerSyncRequest r: pendingSyncs.remove(zxid)) {
sendSync(r);
}
}
return true;
}
//广播commit消息
public void commit(long zxid) {
synchronized(this) {
//标记lastCommitted为最新的提交ZXID
lastCommitted = zxid;
}
QuorumPacket qp = new QuorumPacket(Leader.COMMIT, zxid, null, null);
sendPacket(qp);
}
void sendPacket(QuorumPacket qp) {
synchronized (forwardingFollowers) {
for (LearnerHandler f : forwardingFollowers) {
//调用LearnerHandler的queuePacket方法添加Packet到发送队列
f.queuePacket(qp);
}
}
}
public void inform(Proposal proposal) {
QuorumPacket qp = new QuorumPacket(Leader.INFORM, proposal.request.zxid, proposal.packet.getData(), null);
sendObserverPacket(qp);
}
...
static public class Proposal extends SyncedLearnerTracker {
public QuorumPacket packet;
public Request request;
...
}
}
public class SyncedLearnerTracker {
protected ArrayList<QuorumVerifierAcksetPair> qvAcksetPairs = new ArrayList<QuorumVerifierAcksetPair>();
...
//添加到投票收集器
public boolean addAck(Long sid) {
boolean change = false;
for (QuorumVerifierAcksetPair qvAckset : qvAcksetPairs) {
if (qvAckset.getQuorumVerifier().getVotingMembers().containsKey(sid)) {
qvAckset.getAckset().add(sid);
change = true;
}
}
return change;
}
//判断投票收集器是否过半
public boolean hasAllQuorums() {
for (QuorumVerifierAcksetPair qvAckset : qvAcksetPairs) {
if (!qvAckset.getQuorumVerifier().containsQuorum(qvAckset.getAckset()))
return false;
}
return true;
}
...
}五.CommitProcessor事务提交处理器
ProposalRequestProcessor的nextProcessor就是CommitProcessor处理器，CommitProcessor就是事务提交处理器。
对于非事务请求，CommitProcessor会将其转交给nextProcessor处理。对于事务请求，CommitProcessor会阻塞等待Proposal提议可以被提交。
CommitProcessor有个LinkedBlockingQueue队列queuedRequests。当调用CommitProcessor的processRequest()方法时，请求会被添加到该队列。CommitProcessor线程会从queuedRequests队列中取出请求进行处理。此外还通过nextPending和committedRequests队列保证请求的顺序处理。
CommitProcessor处理器也是一个线程，它会先把请求添加到队列，然后由线程处理，它的nextProcessor是ToBeAppliedRequestProcessor.
public class CommitProcessor extends ZooKeeperCriticalThread implements RequestProcessor {
//请求队列
protected final LinkedBlockingQueue<Request> queuedRequests = new LinkedBlockingQueue<Request>();
protected final LinkedBlockingQueue<Request> committedRequests = new LinkedBlockingQueue<Request>();
//下一个要提交的请求
protected final AtomicReference<Request> nextPending = new AtomicReference<Request>();
//当前正在处理的请求数
protected AtomicInteger numRequestsProcessing = new AtomicInteger(0);
...
@Override
public void processRequest(Request request) {
if (stopped) {
return;
}
queuedRequests.add(request);
if (!isWaitingForCommit()) {
wakeup();//唤醒
}
}
private boolean isProcessingRequest() {
return numRequestsProcessing.get() != 0;
}
private boolean isWaitingForCommit() {
return nextPending.get() != null;
}
private boolean isProcessingCommit() {
return currentlyCommitting.get() != null;
}
synchronized private void wakeup() {
notifyAll();//唤醒阻塞的线程
}
@Override
public void run() {
Request request;
while (!stopped) {
synchronized(this) {
while (!stopped && ((queuedRequests.isEmpty() || isWaitingForCommit() || isProcessingCommit()) && (committedRequests.isEmpty() || isProcessingRequest()))) {
wait();//阻塞等待
}
}
while (!stopped && !isWaitingForCommit() && !isProcessingCommit() && (request = queuedRequests.poll()) != null) {
if (needCommit(request)) {//需要进行提交的事务请求
nextPending.set(request);//设置下一个要提交的请求
} else {//非事务请求转交给下一个处理器
sendToNextProcessor(request);
}
}
processCommitted();//处理提交
}
}
protected void processCommitted() {
Request request;
if (!stopped && !isProcessingRequest() && (committedRequests.peek() != null)) {
if ( !isWaitingForCommit() && !queuedRequests.isEmpty()) {
return;
}
request = committedRequests.poll();
Request pending = nextPending.get();
if (pending != null && pending.sessionId == request.sessionId && pending.cxid == request.cxid) {
pending.setHdr(request.getHdr());
pending.setTxn(request.getTxn());
pending.zxid = request.zxid;
currentlyCommitting.set(pending);
nextPending.set(null);
sendToNextProcessor(pending);
} else {
currentlyCommitting.set(request);
sendToNextProcessor(request);
}
}
}
public void commit(Request request) {
committedRequests.add(request);
if (!isProcessingCommit()) {//CommitProcessor处理器当前没有提交请求
wakeup();//CommitProcessor唤醒线程
}
}
private void sendToNextProcessor(Request request) {
numRequestsProcessing.incrementAndGet();
workerPool.schedule(new CommitWorkRequest(request), request.sessionId);
}
private class CommitWorkRequest extends WorkerService.WorkRequest {
private final Request request;
CommitWorkRequest(Request request) {
this.request = request;
}
...
public void doWork() throws RequestProcessorException {
try {
nextProcessor.processRequest(request);
} finally {
currentlyCommitting.compareAndSet(request, null);
if (numRequestsProcessing.decrementAndGet() == 0) {
if (!queuedRequests.isEmpty() || !committedRequests.isEmpty()) {
wakeup();
}
}
}
}
}
...
}如何理解保证事务请求的顺序处理：
顺序排队的事务请求在被ProposalRequestProcessor处理的过程中，首先会执行CommitProcessor的processRequest()方法将请求加入请求队列，所以请求队列queuedRequests里面的请求是按顺序排好的。然后会生成Proposal提议发送给Follower并收集ACK响应，最后当ACK响应过半时才调用CommitProcessor的commit()方法，此时可以进行提交的请求就会被添加到CommitProcessor的committedRequests队列中。
是否会因网络原因，导致CommitProcessor的committedRequests队列里的请求并不一定按顺序排好呢？
事务请求能保证顺序处理的根本原因是：
整个Proposal消息广播过程是基于FIFO特性的TCP协议来进行网络通信的，所以能够很容易保证消息广播过程中消息接收和发送的顺序性。也就是广播时是由一个主进程Leader去通过FIFO的TCP协议进行发送的，所以每个Follower接收到的Proposal和Commit请求都会按顺序进入队列。
客户端并发执行的事务请求到达Leader时一定会按顺序入队。然后Leader对事务请求进行广播时，也会按顺序进行广播。被单一Leader进行顺序广播的多个事务请求也会顺序到达某Follower。所以某Follower收到的多个Proposal提议也会按广播时的顺序进入队列，之后某Follower都会按广播时的顺序发送ACK响应给Leader。

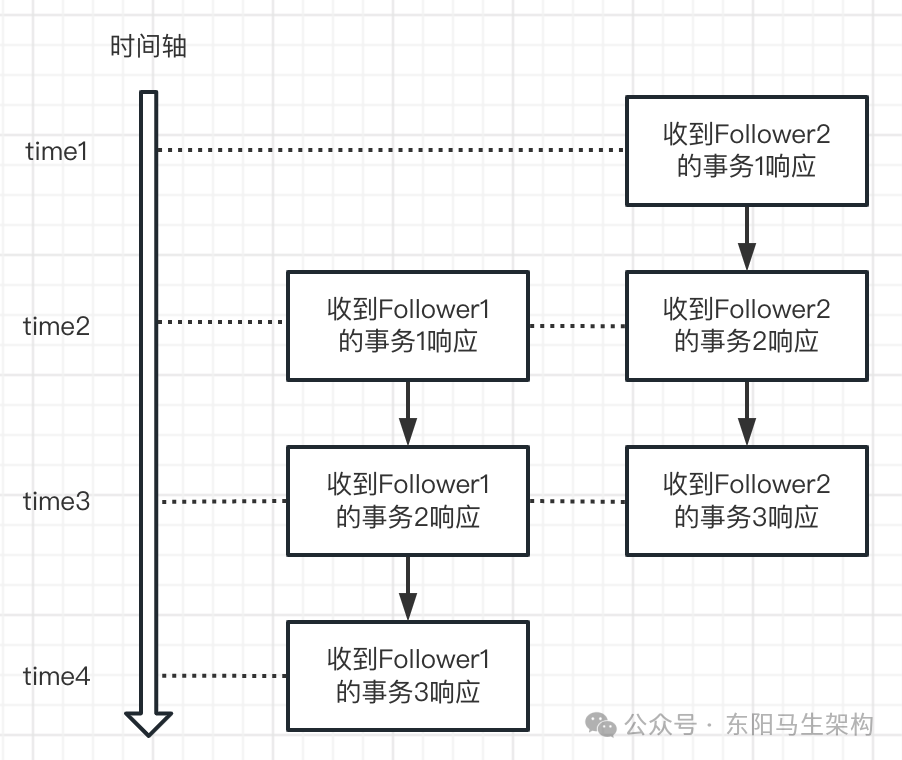

所以Leader收到某Follower的ACK响应都是按广播时的顺序收到的。即使Leader先收到Follower2响应的事务2，后收到Follower1的响应事务1，但最终统计过半选票时，Leader会发现事务1首先过半从而优先保证事务1的顺序。
当然，Leader的processAck()方法会先确保要被提交的请求ZXID比上次大。此外，Leader的tryToCommit()方法也会首先确保前一个事务提交了才能处理。以及Follower在接收到Proposal和Commit请求就是按顺序响应，即若Follower要提交的事务ID不是pendingTxns的头部元素，那么就退出程序。最后结合CommitProcessor里的queuedRequests + committedRequests + nextPending，于是便能保证事务请求的顺序处理。
public class Leader {
...
synchronized public void processAck(long sid, long zxid, SocketAddress followerAddr) {
...
//检查请求的ZXID，需要比上次已提交的请求的ZXID也就是lastCommitted要大
if (lastCommitted >= zxid) {
if (LOG.isDebugEnabled()) {
LOG.debug("proposal has already been committed, pzxid: 0x{} zxid: 0x{}", Long.toHexString(lastCommitted), Long.toHexString(zxid));
}
// The proposal has already been committed
return;
}
Proposal p = outstandingProposals.get(zxid);
//将Leader的SID添加到Proposal提议的投票收集器里
p.addAck(sid);
//尝试提交，即检查Proposal提议的投票收集器中是否有过半ACK响应
boolean hasCommitted = tryToCommit(p, zxid, followerAddr);
...
}
synchronized public boolean tryToCommit(Proposal p, long zxid, SocketAddress followerAddr) {
//如果提议队列中存在该提议的前一个提议，说明该提议的前一个提议还没提交，那么就返回false
//zxid - 1是因为，只有事务请求才会生成zxid，那么前一个事务肯定就是zxid = 1
if (outstandingProposals.containsKey(zxid - 1)) return false;
//getting a quorum from all necessary configurations.
//Proposal提议的投票收集器是否已过半
if (!p.hasAllQuorums()) {
return false;
}
...
zk.commitProcessor.commit(p.request);
...
}
...
}
public class Follower extends Learner{
...
void followLeader() throws InterruptedException {
...
while (this.isRunning()) {
readPacket(qp);
processPacket(qp);
}
...
}
protected void processPacket(QuorumPacket qp) throws Exception {
switch (qp.getType()) {
case Leader.PING:
ping(qp);
break;
case Leader.PROPOSAL:
//处理Leader发起的Proposal提议投票请求
TxnHeader hdr = new TxnHeader();
Record txn = SerializeUtils.deserializeTxn(qp.getData(), hdr);
lastQueued = hdr.getZxid();
...
fzk.logRequest(hdr, txn);
break;
case Leader.COMMIT:
//处理Leader发送过来的对Proposal提议进行提交的请求
fzk.commit(qp.getZxid());
break;
...
}
}
}
public class FollowerZooKeeperServer extends LearnerZooKeeperServer {
LinkedBlockingQueue<Request> pendingTxns = new LinkedBlockingQueue<Request>();
...
//将收到的投票请求放入队列pendingTxns
public void logRequest(TxnHeader hdr, Record txn) {
Request request = new Request(hdr.getClientId(), hdr.getCxid(), hdr.getType(), hdr, txn, hdr.getZxid());
if ((request.zxid & 0xffffffffL) != 0) {
pendingTxns.add(request);
}
syncProcessor.processRequest(request);
}
//When a COMMIT message is received, eventually this method is called,
//which matches up the zxid from the COMMIT with (hopefully) the head of
//the pendingTxns queue and hands it to the commitProcessor to commit.
//@param zxid - must correspond to the head of pendingTxns if it exists
public void commit(long zxid) {
if (pendingTxns.size() == 0) {
LOG.warn("Committing " + Long.toHexString(zxid) + " without seeing txn");
return;
}
long firstElementZxid = pendingTxns.element().zxid;
if (firstElementZxid != zxid) {
//如果Follower需要提交的事务ID不是pendingTxns的头部元素，就退出程序
LOG.error("Committing zxid 0x" + Long.toHexString(zxid) + " but next pending txn 0x" + Long.toHexString(firstElementZxid));
System.exit(12);
}
Request request = pendingTxns.remove();
commitProcessor.commit(request);
}
...
}六.ToBeAppliedRequestProcessor处理器
Leader中有一个toBeApplied队列，专门存储那些可以被提交的Proposal提议。ToBeAppliedRequestProcessor会把已被CommitProcessor处理过的请求，转交给下一个处理器处理，并把请求从Leader的toBeApplied队列中移除。
ToBeAppliedRequestProcessor处理器不是一个线程，它的next是FinalRequestProcessor处理器。
public class Leader {
private final ConcurrentLinkedQueue<Proposal> toBeApplied = new ConcurrentLinkedQueue<Proposal>();
...
static class ToBeAppliedRequestProcessor implements RequestProcessor {
private final RequestProcessor next;
private final Leader leader;
ToBeAppliedRequestProcessor(RequestProcessor next, Leader leader) {
this.leader = leader;
this.next = next;
}
...
public void processRequest(Request request) throws RequestProcessorException {
next.processRequest(request);
if (request.getHdr() != null) {
long zxid = request.getHdr().getZxid();
Iterator<Proposal> iter = leader.toBeApplied.iterator();
if (iter.hasNext()) {
Proposal p = iter.next();
if (p.request != null && p.request.zxid == zxid) {
iter.remove();
return;
}
}
}
}
...
}
...
}七.FinalRequestProcessor处理器
FinalRequestProcessor处理器用来处理返回客户端响应前的收尾工作，包括创建客户端的响应、将事务请求应用到内存数据库中。
FinalRequestProcessor处理器不是一个线程，它也没有nextProcessor属性字段。
public class FinalRequestProcessor implements RequestProcessor {
...
public void processRequest(Request request) {
...
ProcessTxnResult rc = null;
synchronized (zks.outstandingChanges) {
// Need to process local session requests
rc = zks.processTxn(request);
if (request.getHdr() != null) {
TxnHeader hdr = request.getHdr();
Record txn = request.getTxn();
long zxid = hdr.getZxid();
while (!zks.outstandingChanges.isEmpty() && zks.outstandingChanges.peek().zxid <= zxid) {
ChangeRecord cr = zks.outstandingChanges.remove();
if (zks.outstandingChangesForPath.get(cr.path) == cr) {
zks.outstandingChangesForPath.remove(cr.path);
}
}
}
// do not add non quorum packets to the queue.
if (request.isQuorum()) {
zks.getZKDatabase().addCommittedProposal(request);
}
}
...
//创建响应并发送响应给客户端
long lastZxid = zks.getZKDatabase().getDataTreeLastProcessedZxid();
ReplyHeader hdr = new ReplyHeader(request.cxid, lastZxid, err.intValue());
zks.serverStats().updateLatency(request.createTime);
cnxn.updateStatsForResponse(request.cxid, lastZxid, lastOp, request.createTime, Time.currentElapsedTime());
cnxn.sendResponse(hdr, rsp, "response");
if (request.type == OpCode.closeSession) {
cnxn.sendCloseSession();
}
}
...
}总结：
PrepRequestProcessor的nextProcessor就是ProposalRequestProcessor；
ProposalRequestProcessor的nextProcessor就是CommitProcessor；
CommitProcessor的nextProcessor就是ToBeAppliedRequestProcessor；
ToBeAppliedRequestProcessor的next是FinalRequestProcessor；
FinalRequestProcessor没有nextProcessor属性字段；
ProposalRequestProcessor会调用SyncRequestProcessor处理器的方法；
SyncRequestProcessor的nextProcessor就是AckRequestProcessor；
AckRequestProcessor没有nextProcessor属性字段；
PrepRequestProcessor处理器是一个线程；
ProposalRequestProcessor处理器不是一个线程；
CommitProcessor处理器是一个线程；
ToBeAppliedRequestProcessor处理器不是一个线程；
FinalRequestProcessor处理器不是一个线程；
SyncRequestProcessor处理器是一个线程；
AckRequestProcessor处理器不是一个线程；(2)Follower服务器的请求处理链
一.FollowerRequestProcessor请求转发处理器
二.SendAckRequestProcessor投票反馈处理器
Follower服务器的主要工作是：
一.处理非事务请求 + 转发事务请求给Leader服务器
二.参与事务请求的Proposal提议的投票
三.参与Leader选举投票

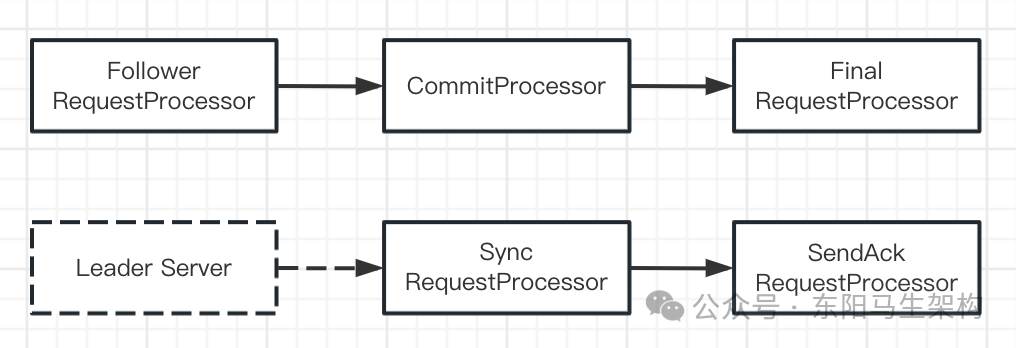

Follower服务器的请求处理链如下图示：
Leader服务器的第一个处理器是LeaderRequestProcessor，Follower服务器的第一个处理器是FollowerRequestProcessor。由于不需要处理事务请求的投票，所以Follower服务器没有ProposalRequestProcessor处理器。
一.FollowerRequestProcessor请求转发处理器
FollowerRequestProcessor主要工作是识别当前请求是否是事务请求。如果是事务请求，那么Follower就会将该事务请求转发给Leader服务器。FollowerRequestProcessor处理器会通过调用Learner的request()方法实现请求转发。Learner的request方法会往输出流leaderOs中写入请求数据来发给Leader。输出流leaderOs在Follower和Leader建立好连接时就已经初始化好了的。
public class QuorumPeer extends ZooKeeperThread implements QuorumStats.Provider {
...
protected Follower makeFollower(FileTxnSnapLog logFactory) throws IOException {
return new Follower(this, new FollowerZooKeeperServer(logFactory, this, this.zkDb));
}
...
}
public class FollowerZooKeeperServer extends LearnerZooKeeperServer {
...
@Override
protected void setupRequestProcessors() {
RequestProcessor finalProcessor = new FinalRequestProcessor(this);
commitProcessor = new CommitProcessor(finalProcessor, Long.toString(getServerId()), true, getZooKeeperServerListener());
commitProcessor.start();
firstProcessor = new FollowerRequestProcessor(this, commitProcessor);
((FollowerRequestProcessor) firstProcessor).start();
syncProcessor = new SyncRequestProcessor(this, new SendAckRequestProcessor((Learner)getFollower()));
syncProcessor.start();
}
public Follower getFollower(){
return self.follower;
}
...
}
public class FollowerRequestProcessor extends ZooKeeperCriticalThread implements RequestProcessor {
FollowerZooKeeperServer zks;
RequestProcessor nextProcessor;
LinkedBlockingQueue<Request> queuedRequests = new LinkedBlockingQueue<Request>();
boolean finished = false;
public FollowerRequestProcessor(FollowerZooKeeperServer zks, RequestProcessor nextProcessor) {
super("FollowerRequestProcessor:" + zks.getServerId(), zks.getZooKeeperServerListener());
this.zks = zks;
this.nextProcessor = nextProcessor;
}
@Override
public void run() {
while (!finished) {
Request request = queuedRequests.take();
if (request == Request.requestOfDeath) {
break;
}
nextProcessor.processRequest(request);
//如果是事务请求，则调用zks.getFollower().request(request)转发事务请求给Leader
switch (request.type) {
case OpCode.sync:
zks.pendingSyncs.add(request);
zks.getFollower().request(request);
break;
case OpCode.create:
case OpCode.create2:
case OpCode.createTTL:
case OpCode.createContainer:
case OpCode.delete:
case OpCode.deleteContainer:
case OpCode.setData:
case OpCode.reconfig:
case OpCode.setACL:
case OpCode.multi:
case OpCode.check:
zks.getFollower().request(request);
break;
case OpCode.createSession:
case OpCode.closeSession:
// Don't forward local sessions to the leader.
if (!request.isLocalSession()) {
zks.getFollower().request(request);
}
break;
}
}
}
public void processRequest(Request request) {
if (!finished) {
Request upgradeRequest = null;
upgradeRequest = zks.checkUpgradeSession(request);
if (upgradeRequest != null) {
queuedRequests.add(upgradeRequest);
}
queuedRequests.add(request);
}
}
...
}
public class Learner {
protected BufferedOutputStream bufferedOutput;
protected Socket sock;
protected InputArchive leaderIs;
protected OutputArchive leaderOs;
...
//send a request packet to the leader
//发送一个请求给Leader
void request(Request request) throws IOException {
ByteArrayOutputStream baos = new ByteArrayOutputStream();
DataOutputStream oa = new DataOutputStream(baos);
oa.writeLong(request.sessionId);
oa.writeInt(request.cxid);
oa.writeInt(request.type);
if (request.request != null) {
request.request.rewind();
int len = request.request.remaining();
byte b[] = new byte[len];
request.request.get(b);
request.request.rewind();
oa.write(b);
}
oa.close();
QuorumPacket qp = new QuorumPacket(Leader.REQUEST, -1, baos.toByteArray(), request.authInfo);
//发送请求，往输出流leaderOs写数据
writePacket(qp, true);
}
void writePacket(QuorumPacket pp, boolean flush) throws IOException {
synchronized (leaderOs) {
if (pp != null) {
leaderOs.writeRecord(pp, "packet");
}
if (flush) {
bufferedOutput.flush();
}
}
}
//和Leader建立连接时就已经初始化好输出流leaderOs了
protected void connectToLeader(InetSocketAddress addr, String hostname) throws IOException, InterruptedException, X509Exception {
this.sock = createSocket();
int initLimitTime = self.tickTime * self.initLimit;
int remainingInitLimitTime = initLimitTime;
long startNanoTime = nanoTime();
for (int tries = 0; tries < 5; tries++) {
remainingInitLimitTime = initLimitTime - (int)((nanoTime() - startNanoTime) / 1000000);
sockConnect(sock, addr, Math.min(self.tickTime * self.syncLimit, remainingInitLimitTime));
if (self.isSslQuorum()) {
((SSLSocket) sock).startHandshake();
}
sock.setTcpNoDelay(nodelay);
break;
}
Thread.sleep(1000);
self.authLearner.authenticate(sock, hostname);
//初始化好输入流leaderIs
leaderIs = BinaryInputArchive.getArchive(new BufferedInputStream(sock.getInputStream()));
bufferedOutput = new BufferedOutputStream(sock.getOutputStream());
//初始化好输出流leaderOs
leaderOs = BinaryOutputArchive.getArchive(bufferedOutput);
}
//创建BIO的scoekt
private Socket createSocket() throws X509Exception, IOException {
Socket sock;
if (self.isSslQuorum()) {
sock = self.getX509Util().createSSLSocket();
} else {
sock = new Socket();
}
sock.setSoTimeout(self.tickTime * self.initLimit);
return sock;
}
...
}二.SendAckRequestProcessor投票反馈处理器
Leader的请求处理链有个叫AckRequestProcessor的投票反馈处理器，主要负责在执行完SyncRequestProcessor处理器记录好事务日志后，向Proposal提议反馈来自Leader的ACK响应。
Follower的请求处理链也有个叫SendAckRequestProcessor的投票反馈处理器，主要负责在执行完SyncRequestProcessor处理器记录好事务日志后，通过发送消息给Leader来向Proposal提议反馈来自Follower的ACK响应。
Follower请求处理链的SyncRequestProcessor处理器会启动一个线程。SyncRequestProcessor处理器会先把请求添加到队列，然后由线程处理。SyncRequestProcessor的nextProcessor就是SendAckRequestProcessor请求处理器。SendAckRequestProcessor不是一个线程。
public class SendAckRequestProcessor implements RequestProcessor, Flushable {
Learner learner;
SendAckRequestProcessor(Learner peer) {
this.learner = peer;
}
public void processRequest(Request si) {
if (si.type != OpCode.sync) {
QuorumPacket qp = new QuorumPacket(Leader.ACK, si.getHdr().getZxid(), null, null);
learner.writePacket(qp, false);//向Leader发送ACK响应
...
}
}
...
}
public class Follower extends Learner {
...
void followLeader() throws InterruptedException {
...
QuorumServer leaderServer = findLeader();
connectToLeader(leaderServer.addr, leaderServer.hostname);
long newEpochZxid = registerWithLeader(Leader.FOLLOWERINFO);
syncWithLeader(newEpochZxid);
QuorumPacket qp = new QuorumPacket();
while (this.isRunning()) {
readPacket(qp);//读取Leader发过来的请求的输入流leaderIs
processPacket(qp);//处理Leader发过来的请求，其中就包括Proposal提议的投票请求
}
...
}
protected void processPacket(QuorumPacket qp) throws Exception{
switch (qp.getType()) {
case Leader.PING:
ping(qp);
break;
//对Leader发起的Proposal提议投票进行响应
case Leader.PROPOSAL:
TxnHeader hdr = new TxnHeader();
Record txn = SerializeUtils.deserializeTxn(qp.getData(), hdr);
...
//对Leader发起的Proposal提议投票进行响应
//此时请求便能进入SyncRequestProcessor处理器的队列里了
//SyncRequestProcessor线程处理完该请求，就会由SendAckRequestProcessor来发送ACK响应
fzk.logRequest(hdr, txn);
break;
...
}
}
...
}
public class FollowerZooKeeperServer extends LearnerZooKeeperServer {
...
@Override
protected void setupRequestProcessors() {
RequestProcessor finalProcessor = new FinalRequestProcessor(this);
commitProcessor = new CommitProcessor(finalProcessor, Long.toString(getServerId()), true, getZooKeeperServerListener());
commitProcessor.start();
firstProcessor = new FollowerRequestProcessor(this, commitProcessor);
((FollowerRequestProcessor) firstProcessor).start();
syncProcessor = new SyncRequestProcessor(this, new SendAckRequestProcessor((Learner)getFollower()));
syncProcessor.start();
}
public void logRequest(TxnHeader hdr, Record txn) {
Request request = new Request(hdr.getClientId(), hdr.getCxid(), hdr.getType(), hdr, txn, hdr.getZxid());
if ((request.zxid & 0xffffffffL) != 0) {
pendingTxns.add(request);
}
//调用SyncRequestProcessor的processRequest方法处理Proposal提议的投票响应
syncProcessor.processRequest(request);
}
...
}
public class Learner {
protected BufferedOutputStream bufferedOutput;
protected Socket sock;
protected InputArchive leaderIs;
protected OutputArchive leaderOs;
...
void readPacket(QuorumPacket pp) throws IOException {
synchronized (leaderIs) {
//读取Leader发送过来的请求的输入流
leaderIs.readRecord(pp, "packet");
}
}
void writePacket(QuorumPacket pp, boolean flush) throws IOException {
synchronized (leaderOs) {
if (pp != null) {
//将响应写入输出流，发送给Leader
leaderOs.writeRecord(pp, "packet");
}
if (flush) {
bufferedOutput.flush();
}
}
}
//和Leader建立连接时就已经初始化好输出流leaderOs了
protected void connectToLeader(InetSocketAddress addr, String hostname) throws IOException, InterruptedException, X509Exception {
this.sock = createSocket();
int initLimitTime = self.tickTime * self.initLimit;
int remainingInitLimitTime = initLimitTime;
long startNanoTime = nanoTime();
for (int tries = 0; tries < 5; tries++) {
remainingInitLimitTime = initLimitTime - (int)((nanoTime() - startNanoTime) / 1000000);
sockConnect(sock, addr, Math.min(self.tickTime * self.syncLimit, remainingInitLimitTime));
if (self.isSslQuorum()) {
((SSLSocket) sock).startHandshake();
}
sock.setTcpNoDelay(nodelay);
break;
}
Thread.sleep(1000);
self.authLearner.authenticate(sock, hostname);
//初始化好输入流leaderIs
leaderIs = BinaryInputArchive.getArchive(new BufferedInputStream(sock.getInputStream()));
bufferedOutput = new BufferedOutputStream(sock.getOutputStream());
//初始化好输出流leaderOs
leaderOs = BinaryOutputArchive.getArchive(bufferedOutput);
}
...
}
扫一扫
998
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
