【Harvest源码分析】GetFourZeroCrossingIntervals函数

背景

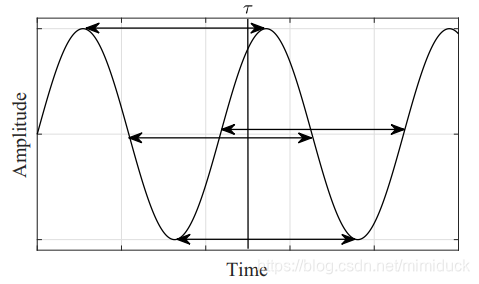

一个完整的正弦波存在如下性质，

波峰间隔，波谷间隔，向上过零间隔，向下过零间隔这四者的值理论上应该一致的。

那么该函数，顾名思义，就是取这四段值的

代码

数据结构

用来保存这四段值得结构 ZeroCrossings

typedef struct {
  double *negative_interval_locations; //向下过零x值
  double *negative_intervals;          //向下过零y值
  int number_of_negatives;             //向下过零个数
  double *positive_interval_locations; //向上过零x值
  double *positive_intervals;          //向上过零y值
  int number_of_positives;             //向上过零个数
  double *peak_interval_locations;     //峰值x值
  double *peak_intervals;              //峰值y值
  int number_of_peaks;                 //峰值个数
  double *dip_interval_locations;      //谷值x值
  double *dip_intervals;               //谷值y值
  int number_of_dips;                  //谷值个数
} ZeroCrossings;

初始化

  int maximum_number = y_length;
  zero_crossings->negative_interval_locations = new double[maximum_number];
  zero_crossings->positive_interval_locations = new double[maximum_number];
  zero_crossings->peak_interval_locations = new double[maximum_number];
  zero_crossings->dip_interval_locations = new double[maximum_number];
  zero_crossings->negative_intervals = new double[maximum_number];
  zero_crossings->positive_intervals = new double[maximum_number];
  zero_crossings->peak_intervals = new double[maximum_number];
  zero_crossings->dip_intervals = new double[maximum_number];

函数ZeroCrossingEngine

计算这四个值都是一个函数，ZeroCrossingEngine.

举个例子（向下过零）

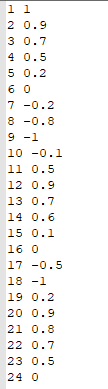

信号如下：

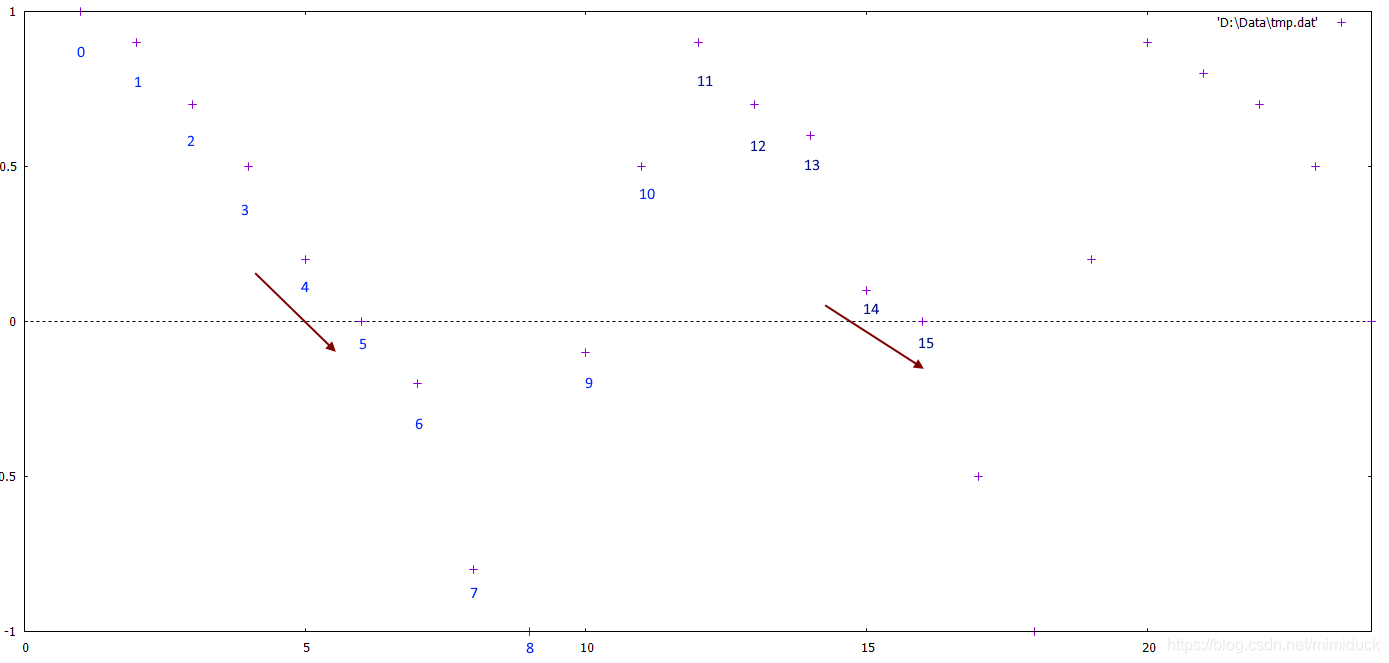

信号时域图如下：

红线部分为两次向下过零点

向下过零统计

for (int i = 0; i < y_length - 1; ++i)
    negative_going_points[i] =
      0.0 < filtered_signal[i] && filtered_signal[i + 1] <= 0.0 ? i + 1 : 0;
negative_going_points[y_length - 1] = 0;
// 实际值为 negative_going_points =
// [0, 0, 0, 0, 5, 0, 0, 0, 0, 0, 0, 0, 0, 15, 0, 0, 0, 0, 0, 0, 0, 0, 0]
//

  int *edges = new int[y_length]; // 这里长度实际用不了那么长
  int count = 0;
  for (int i = 0; i < y_length; ++i)
    if (negative_going_points[i] > 0)
      edges[count++] = negative_going_points[i];

// edges 值为
// edges = [5,15,0 .... 0 ]
  if (count < 2) {
    delete[] edges;
    delete[] negative_going_points;
    return 0;
  }

fine edges?

这个含义不是很理解，总体上是将整形的edge数组转成了double型的

  double *fine_edges = new double[count];
  for (int i = 0; i < count; ++i)
    fine_edges[i] = edges[i] - filtered_signal[edges[i] - 1] /
      (filtered_signal[edges[i]] - filtered_signal[edges[i] - 1]);
  // fine_edges = [5.0, 15.0]

输出intervals和locations

  for (int i = 0; i < count - 1; ++i) {
    intervals[i] = fs / (fine_edges[i + 1] - fine_edges[i]);
    interval_locations[i] = (fine_edges[i] + fine_edges[i + 1]) / 2.0 / fs;
  }

其他三种类型计算

向上过零计算就是把原信号反转，然后调用ZeroCrossingEngine计算

  for (int i = 0; i < y_length; ++i) filtered_signal[i] = -filtered_signal[i];
  zero_crossings->number_of_positives = ZeroCrossingEngine(filtered_signal,
      y_length, actual_fs, zero_crossings->positive_interval_locations,
      zero_crossings->positive_intervals);

峰值/谷值是通过计算连续两个点是差值，如果差值最小，则为峰值/谷值

  for (int i = 0; i < y_length - 1; ++i) filtered_signal[i] =
    filtered_signal[i] - filtered_signal[i + 1];
  zero_crossings->number_of_peaks = ZeroCrossingEngine(filtered_signal,
      y_length - 1, actual_fs, zero_crossings->peak_interval_locations,
      zero_crossings->peak_intervals);

  for (int i = 0; i < y_length - 1; ++i)
    filtered_signal[i] = -filtered_signal[i];
  zero_crossings->number_of_dips = ZeroCrossingEngine(filtered_signal,
      y_length - 1, actual_fs, zero_crossings->dip_interval_locations,
      zero_crossings->dip_intervals);
