Mybatis分页插件-PageHelper 如果你也在用Mybatis，建议尝试该分页插件，这个一定是最方便使用的分页插件。该插件目前支持Oracle,Mysql,MariaDB,SQLite,Hsqldb,PostgreSQL六种数据库分页。阅读详情

1：PageHelper是一个非常好用的插件，以至于很想知道它底层是怎么实现的。至于MyBatis插件概念原理网上有很多，我不太喜欢去写一些概念性的东西，我比较喜欢自己动手实现的那种，话不多说，我们开干

2：搭建SpringBoot+MyBatis+MySql项目，这个就不用多说了吧，网上有很多教程，岂不是有手就行？？？

3：编写我们的插件类

package com.example.demo.plugin;


import org.apache.ibatis.cache.CacheKey;
import org.apache.ibatis.executor.Executor;
import org.apache.ibatis.mapping.BoundSql;
import org.apache.ibatis.mapping.MappedStatement;
import org.apache.ibatis.plugin.*;
import org.apache.ibatis.session.ResultHandler;
import org.apache.ibatis.session.RowBounds;

import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.Properties;

@Intercepts(
        {
                @Signature(type = Executor.class,
                           method = "query",
                           args = {MappedStatement.class, Object.class, RowBounds.class, ResultHandler.class}),
                @Signature(type = Executor.class,
                           method = "query",
                           args = {MappedStatement.class, Object.class, RowBounds.class, ResultHandler.class,
                                   CacheKey.class, BoundSql.class}),
        }
)
public class MyPagePlugin implements Interceptor {

    @Override
    public Object intercept(Invocation invocation) throws Throwable {
        Object[] args = invocation.getArgs();
        MappedStatement ms = (MappedStatement) args[0];
        Object parameter = args[1];
        RowBounds rowBounds = (RowBounds) args[2];
        ResultHandler resultHandler = (ResultHandler) args[3];
        Executor executor = (Executor) invocation.getTarget();
        CacheKey cacheKey;
        BoundSql boundSql;
        //由于逻辑关系，只会进入一次
        if (args.length == 4) {
            //4 个参数时
            boundSql = ms.getBoundSql(parameter);
            cacheKey = executor.createCacheKey(ms, parameter, rowBounds, boundSql);
        } else {
            //6 个参数时
            cacheKey = (CacheKey) args[4];
            boundSql = (BoundSql) args[5];
        }

        == 其实在这之上的代码都是拷贝PageHelper源码来的，下面才是重头戏，上面都是获取一些必要的参数==
        /**
        * 下面4行代码暂时只需要知道是用来传参数的就行，分页不是需要
        * 二个参数嘛 一个是当前页，一个是数量
        */

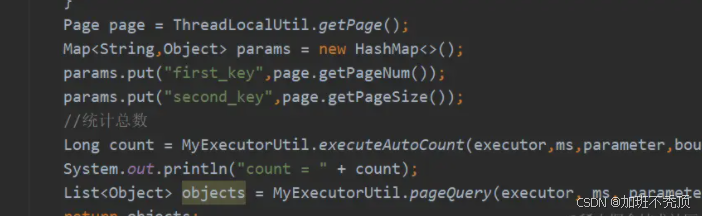

        Page page = ThreadLocalUtil.getPage();
        Map<String,Object> params = new HashMap<>();
        params.put("first_key",page.getPageNum());
        params.put("second_key",page.getPageSize());

        /**
        * 重点：获取数据库记录总数
        */
        //统计总数
        Long count = MyExecutorUtil.executeAutoCount(executor,ms,parameter,boundSql,rowBounds,resultHandler);

        /**
        * 重点：分页查询
        */
        List<Object> objects = MyExecutorUtil.pageQuery(executor, ms, parameter, rowBounds, resultHandler, boundSql, cacheKey, params);
        return objects;
    }

    @Override
    public Object plugin(Object target) {
        return Plugin.wrap(target, this);
    }

    @Override
    public void setProperties(Properties properties) {

    }
}

4：上面有二个核心方法

1：获取记录总数：MyExecutorUtil.executeAutoCount(executor,ms,parameter,boundSql,rowBounds,resultHandler);
2：分页查询：MyExecutorUtil.pageQuery(executor, ms, parameter, rowBounds, resultHandler, boundSql, cacheKey,params);

5：获取记录总数

1：MyBatis源码底层会封装好我们在配置文件中写的每一条SQL语句，封装到一个SqlSource对象中去，在我们执行SQL的时候，会获取到这条SQL，然后封装到BoundSql这个对象中，所以在这里，我们既然能拿到BoundSql,那么也就意味着我们能拿到我们需要执行的那条Sql了

2：获取到了我们的sql之后，怎么查询总记录数呢？？其实很简单，改Sql语句不就好了，Pagehelper底层也是这么做的，但是PageHelper底层比我这个版本的复杂太多了，但是我们无非就是将原先的SQL转换成 -> SELECT COUNT(0) FROM TABLE,就这样，但是我这个人比较懒，而且昨天看这个源码实现头疼，所以在这里直接写死了，但是问题不大哈

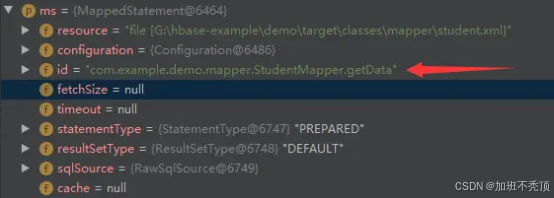

3：改好了Sql之后是不是就完成了呢？？当然不是，改好了SQL当然是要去执行它了，如果就这样执行，还是会执行原先的SQL，但是你要知道这个有个很关键的东西，就是MappedStatement的id，如果不改这个id的话，即使你的Sql能够执行成功，那么返回的记录总数是个NULL，这里我想可能是因为ResultSetHandle的关系，因为这个id对应的还是我们之前的sql，也就是select * from student,那么必然有一个resultType的属性，也就是实体类映射，但是我们现在的sql是select count(0) from student,那么就对应不上了，也就是数据库查询出来的列与实体类对应不上，所以我们需要改变这个id。

//改变MapperStatement id的方法
public static MappedStatement newCountMappedStatement(MappedStatement ms, String newMsId) {
MappedStatement.Builder builder = new MappedStatement.Builder(ms.getConfiguration(), newMsId, ms.getSqlSource(), ms.getSqlCommandType());
builder.resource(ms.getResource());
builder.fetchSize(ms.getFetchSize());
builder.statementType(ms.getStatementType());
builder.keyGenerator(ms.getKeyGenerator());
if (ms.getKeyProperties() != null && ms.getKeyProperties().length != 0) {
StringBuilder keyProperties = new StringBuilder();
for (String keyProperty : ms.getKeyProperties()) {
keyProperties.append(keyProperty).append(",");
}
keyProperties.delete(keyProperties.length() - 1, keyProperties.length());
builder.keyProperty(keyProperties.toString());
}
builder.timeout(ms.getTimeout());
builder.parameterMap(ms.getParameterMap());
//count查询返回值int
List resultMaps = new ArrayList();
ResultMap resultMap = new ResultMap.Builder(ms.getConfiguration(), ms.getId(), Long.class, EMPTY_RESULTMAPPING).build();
resultMaps.add(resultMap);
builder.resultMaps(resultMaps);
builder.resultSetType(ms.getResultSetType());
builder.cache(ms.getCache());
builder.flushCacheRequired(ms.isFlushCacheRequired());
builder.useCache(ms.isUseCache());
return builder.build();
}

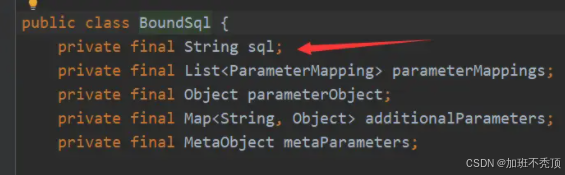

4：MyBatis的Sql是封装到BoundSql中去的，而原先的BoundSql中的Sql是我们配置文件中的，所以我们需要将select count(0) from student这条Sql语句封装到一个新的BoundSql中去

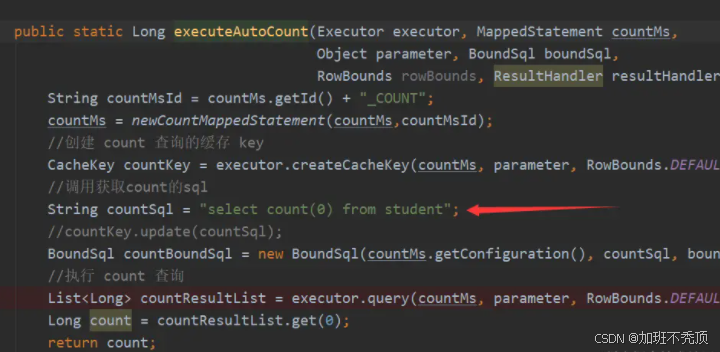

public static Long executeAutoCount(Executor executor, MappedStatement countMs,
                                       Object parameter, BoundSql boundSql,
                                       RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
       //改变MapperStatement中的ID属性
       String countMsId = countMs.getId() + "_COUNT";
       countMs = newCountMappedStatement(countMs,countMsId);
       //创建 count 查询的缓存 key
       CacheKey countKey = executor.createCacheKey(countMs, parameter, RowBounds.DEFAULT, boundSql);
       //调用获取count的sql
       String countSql = "select count(0) from student";
       //重新封装BoundSql对象
       BoundSql countBoundSql = new BoundSql(countMs.getConfiguration(), countSql, boundSql.getParameterMappings(), parameter);
       //执行 count 查询
       List<Long> countResultList = executor.query(countMs, parameter, RowBounds.DEFAULT, resultHandler, countKey, countBoundSql);
       Long count = countResultList.get(0);
       return count;
   }

5：最后调用executor.query方法就可以得到我们的记录总数了

6：分页查询记录数

1：其实分页查询与查询记录总数的原理是一样的
2：首先获取原先的BoundSql中的Sql，也就是我们在配置文件中的Sql，比如 select * from student
3：然后获取我们的分页参数，也就是前端传递过来的pageNum和pageSize二个参数
4：修改Sql，select * from student limit ?,?
5：这次我们就不用修改MapperStatement中的ID了，因为查询出来的都是studnet，所以映射不用修改
6：重新实例化一个BoundSql对象，将新的Sql传递给它
7：最后执行executor.query方法查询，得到结果

7：如何获取前端传递过来的参数？

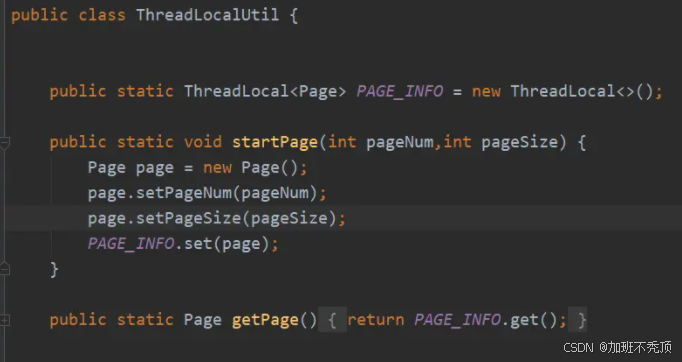

1：我这里使用的是ThreadLocal，

8：总结

1：首选我们需要获取到原先需要执行的sql
2：然后修改这条修改，分页查询无非就是总记录数，分页查询的记录数
3：分别执行这二条Sql，得到我们想要的结果

9：源码：就下面这5个类,其它的就是将SpringBoot+MyBatis+MySql日常配置就行了，然后再Controller记得传递一下参数

package com.example.demo.plugin;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;


@Configuration
@MapperScan({"com.example.demo.mapper"})
public class MapperConfig {


    @Bean
    public MyPagePlugin myPagePlugin() {
        return new MyPagePlugin();
    }
}

package com.example.demo.plugin;

import com.example.demo.entity.Student;
import org.apache.ibatis.cache.CacheKey;
import org.apache.ibatis.executor.Executor;
import org.apache.ibatis.mapping.*;
import org.apache.ibatis.session.Configuration;
import org.apache.ibatis.session.ResultHandler;
import org.apache.ibatis.session.RowBounds;

import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;

public class MyExecutorUtil {

    private static final List<ResultMapping> EMPTY_RESULTMAPPING = new ArrayList<ResultMapping>(0);

    public static  <E> List<E> pageQuery(Executor executor, MappedStatement ms, Object parameter,
                                         RowBounds rowBounds, ResultHandler resultHandler,
                                         BoundSql boundSql, CacheKey cacheKey,Map<String,Object> params) throws SQLException {

        executor.clearLocalCache();

        //生成分页的缓存 key
        CacheKey pageKey = cacheKey;
        //处理参数对象
        if(params.size() < 0 || params.size() > 2) {
            System.out.println("参数错误");
        }
        //获取sql
        String pageSql = getPageSql(params.size(),boundSql);
        List<ParameterMapping> mappingList = new ArrayList<>();
        mappingList.add(new ParameterMapping.Builder(ms.getConfiguration(), "first_key", Integer.class).build());
        mappingList.add(new ParameterMapping.Builder(ms.getConfiguration(), "second_key", Integer.class).build());
        //实例化新的BoundSql对象
        BoundSql pageBoundSql = new BoundSql(ms.getConfiguration(), pageSql, mappingList, params);
        //执行分页查询
        return executor.query(ms, params, RowBounds.DEFAULT, resultHandler, pageKey, pageBoundSql);
    }



    public static Long executeAutoCount(Executor executor, MappedStatement countMs,
                                        Object parameter, BoundSql boundSql,
                                        RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
        //改变MapperStatement中的ID属性
        String countMsId = countMs.getId() + "_COUNT";
        countMs = newCountMappedStatement(countMs,countMsId);
        //创建 count 查询的缓存 key
        CacheKey countKey = executor.createCacheKey(countMs, parameter, RowBounds.DEFAULT, boundSql);
        //调用获取count的sql
        String countSql = "select count(0) from student";
        //重新封装BoundSql对象
        BoundSql countBoundSql = new BoundSql(countMs.getConfiguration(), countSql, boundSql.getParameterMappings(), parameter);
        //执行 count 查询
        List<Long> countResultList = executor.query(countMs, parameter, RowBounds.DEFAULT, resultHandler, countKey, countBoundSql);
        Long count = countResultList.get(0);
        return count;
    }

    public static MappedStatement newCountMappedStatement(MappedStatement ms, String newMsId) {
        MappedStatement.Builder builder = new MappedStatement.Builder(ms.getConfiguration(), newMsId, ms.getSqlSource(), ms.getSqlCommandType());
        builder.resource(ms.getResource());
        builder.fetchSize(ms.getFetchSize());
        builder.statementType(ms.getStatementType());
        builder.keyGenerator(ms.getKeyGenerator());
        if (ms.getKeyProperties() != null && ms.getKeyProperties().length != 0) {
            StringBuilder keyProperties = new StringBuilder();
            for (String keyProperty : ms.getKeyProperties()) {
                keyProperties.append(keyProperty).append(",");
            }
            keyProperties.delete(keyProperties.length() - 1, keyProperties.length());
            builder.keyProperty(keyProperties.toString());
        }
        builder.timeout(ms.getTimeout());
        builder.parameterMap(ms.getParameterMap());
        //count查询返回值int
        List<ResultMap> resultMaps = new ArrayList<ResultMap>();
        ResultMap resultMap = new ResultMap.Builder(ms.getConfiguration(), ms.getId(), Long.class, EMPTY_RESULTMAPPING).build();
        resultMaps.add(resultMap);
        builder.resultMaps(resultMaps);
        builder.resultSetType(ms.getResultSetType());
        builder.cache(ms.getCache());
        builder.flushCacheRequired(ms.isFlushCacheRequired());
        builder.useCache(ms.isUseCache());
        return builder.build();
    }

    private static String getPageSql(int paramsLength,BoundSql boundSql){
        StringBuilder str = new StringBuilder();
        str.append(boundSql.getSql());
        if(paramsLength == 1) {
            str.append(" LIMIT ?");
        }else {
            str.append(" LIMIT ?,? ");
        }
        return str.toString();
    }
}

  package com.example.demo.plugin;

public class Page {

    private Integer pageNum;
    private Integer pageSize;

    public Integer getPageNum() {
        return pageNum;
    }

    public void setPageNum(Integer pageNum) {
        this.pageNum = pageNum;
    }

    public Integer getPageSize() {
        return pageSize;
    }

    public void setPageSize(Integer pageSize) {
        this.pageSize = pageSize;
    }
}

   package com.example.demo.plugin;


  public class ThreadLocalUtil {


      public static ThreadLocal<Page> PAGE_INFO = new ThreadLocal<>();

      public static void startPage(int pageNum,int pageSize) {
          Page page = new Page();
          page.setPageNum(pageNum);
          page.setPageSize(pageSize);
          PAGE_INFO.set(page);
      }

      public static Page getPage() {
          return PAGE_INFO.get();
      }

  }

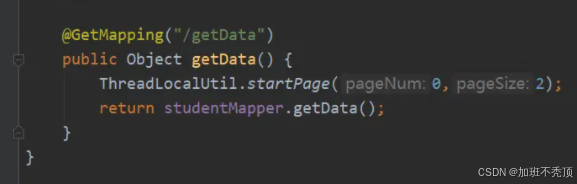

  @RestController
  public class StudnetController {



      @Autowired
      private StudentMapper studentMapper;

      @GetMapping("/getData")
      public Object getData() {
          ThreadLocalUtil.startPage(0,2);
          return studentMapper.getData();
      }
  }
