说明

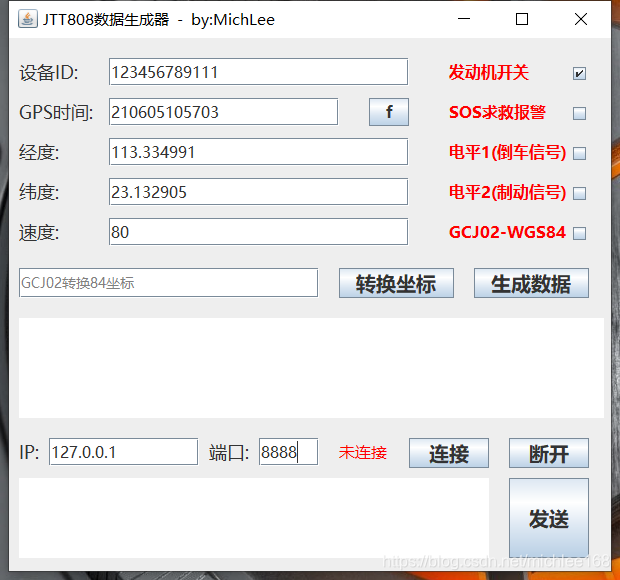

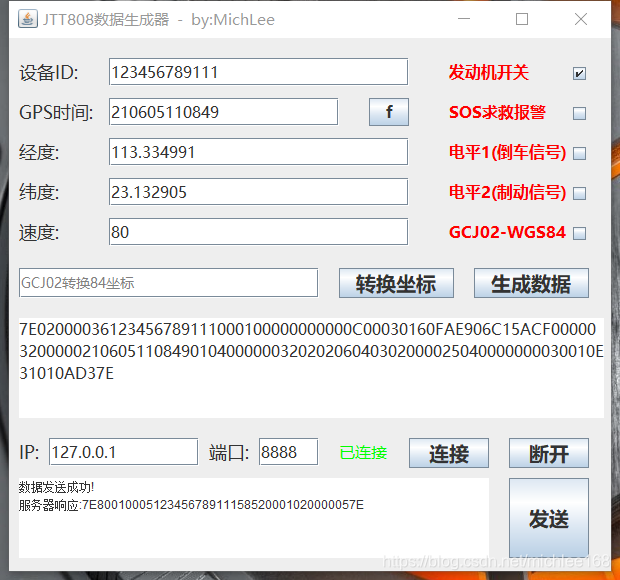

单JAVA文件，直接运行main方法即可。只做了JTT808的基础位置数据模拟，及Socket数据发送功能，开发测试的时候方便多了。需要模拟其他数据，请自行改源码添加，下文附送源码。
源码
import javax.swing.*;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.io.*;
import java.math.BigInteger;
import java.net.Socket;
import java.text.SimpleDateFormat;
import java.util.Date;
public class JTT808InfoCreateSend {
private static final SimpleDateFormat SDF = new SimpleDateFormat("yyMMddHHmmss");
public static double pi = 3.1415926535897932384626;
public static double x_pi = 3.14159265358979324 * 3000.0 / 180.0;
public static double a = 6378245.0;
public static double ee = 0.00669342162296594323;
private static final String REGX = "[0-9]{12}";
private static final String REGXD = "[0-9]{1,12}";
private static final String REGIP = "[0-9]{1,3}.[0-9]{1,3}.[0-9]{1,3}.[0-9]{1,3}";
private static int SERNUM = 0;
private static Socket SOCKET = null;
public static void getSocket(String ip,Integer port){
try {
SOCKET = new Socket(ip,port);
} catch (IOException e) {
e.printStackTrace();
}
}
/**
* SOCKET发送数据
* @param data 数据
* @param isHex 是否是16进制数据
*/
public static void sendInfo(String data, boolean isHex){
try {
OutputStream out = SOCKET.getOutputStream();
if (isHex){
byte[] bytes = hexStrToByteArray(data);
out.write(bytes);
out.flush();
}else {
out.write(data.getBytes());
out.flush();
}
} catch (IOException e) {
e.printStackTrace();
}
}
/** SOCKET接收数据 */
public static String getSocketInfo(){
String res = null;
try {
InputStream in = SOCKET.getInputStream();
byte[] b = new byte[8096];
int len = in.read(b);
//res = new String(b);
res = byte2Hex(b,len).toUpperCase();
} catch (IOException e) {
e.printStackTrace();
}
return res;
}
/** 判断连接是否断开 */
public static Boolean isServerClose(){
try{
SOCKET.sendUrgentData(0xFF);//发送1个字节的紧急数据，默认情况下，服务器端没有开启紧急数据处理，不影响正常通信
return false;
}catch(Exception se){
return true;
}
}
/** 将byte转为16进制 */
private static String byte2Hex(byte[] bytes) {
StringBuilder stringBuffer = new StringBuilder();
String temp = null;
for (int i = 0; i < bytes.length; i++) {
temp = Integer.toHexString(bytes[i] & 0xFF);
if (temp.length() == 1) {
// 1得到一位的进行补0操作
stringBuffer.append("0");
}
stringBuffer.append(temp);
}
return stringBuffer.toString();
}
/** 将byte转为16进制 */
private static String byte2Hex(byte[] bytes,int len) {
StringBuilder stringBuffer = new StringBuilder();
String temp = null;
for (int i = 0; i < len; i++) {
temp = Integer.toHexString(bytes[i] & 0xFF);
if (temp.length() == 1) {
// 1得到一位的进行补0操作
stringBuffer.append("0");
}
stringBuffer.append(temp);
}
return stringBuffer.toString();
}
/** 判空 */
public static boolean isEmpty(String str){
if (str == null || "".equals(str.trim())) return true;
return false;
}
/** 还原7D7E */
public static String reduction7D7E(String data){
StringBuilder buffer = new StringBuilder(data);
for (int i = 0; i < ((buffer.length() - 4) / 2) - 1; i++) {
String substring = buffer.substring(i * 2 + 2, i * 2 + 6);
if (substring.equals("7D01")) {
buffer.replace(i * 2 + 2, i * 2 + 6, "xx01");
} else if (substring.equals("7D02")) {
buffer.replace(i * 2 + 2, i * 2 + 6, "xx02");
}
}
return buffer.toString().replace("xx01", "7D").replace("xx02", "7e");
}
/** 转换7D7E */
public static String convert7D7E(String str){
StringBuilder res = new StringBuilder("7E");
int length = str.length();
String data = str.substring(2, length -2);
for (int i = 0; i < length-4; i+=2) {
String s = data.substring(i, i + 2);
if ("7E".equals(s)){
res.append("7D02");
}else if ("7D".equals(s)){
res.append("7D01");
}else {
res.append(s);
}
}
res.append("7E");
return res.toString();
}
public static String convert7D7E2(String data) {
StringBuilder buffer = new StringBuilder(data);
for (int i = 0; i < ((buffer.length() - 2) / 2) - 1; i++) {
String substring = buffer.substring(i * 2 + 2, i * 2 + 4);
if ("7D".equals(substring) || "7d".equals(substring)) {
buffer.replace(i * 2 + 2, i * 2 + 4, "x1");
} else if ("7E".equals(substring) || "7e".equals(substring)) {
buffer.replace(i * 2 + 2, i * 2 + 4, "x2");
}
}
return buffer.toString().replace("x1", "7D01").replace("x2", "7D02");
}
/**
* 计算返回给GPS的校验码
*/
public static String checkCode(String data) {
String str = data.substring(0, 2);
for (int i = 0; i < ((data.length() - 2) / 2); i++) {
str = hexXOR(str, data.substring(i * 2 + 2, i * 2 + 4));
}
String res = checkLengthTo2(str);
return res;
}
private static String hexXOR(String hex1, String hex2) {
BigInteger res = new BigInteger(hex1, 16).xor(new BigInteger(hex2, 16));
return res.toString(16).toUpperCase();
}
/** 十六进制转字节 */
public static byte[] hexStrToByteArray(String hex) {
int len = hex.length();
byte[] b = new byte[len / 2];
for (int i = 0; i < len; i += 2) {
// 两位一组，表示一个字节,把这样表示的16进制字符串，还原成一个字节
b[i / 2] = (byte) ((Character.digit(hex.charAt(i), 16) << 4) + Character
.digit(hex.charAt(i + 1), 16));
}
return b;
}
/**
* * 火星坐标系 (GCJ-02) to 84 * * @param lon * @param lat * @return
* */
public static double[] gcj02_To_Gps84(double lat, double lon) {
double[] gps = transform(lat, lon);
double lontitude = lon * 2 - gps[1];
double latitude = lat * 2 - gps[0];
return new double[] { latitude, lontitude };
}
/**
* 火星坐标系(GCJ-02)转GPS84字符串(lng,lat)
* */
public static String[] gcj02To84Str(String Gcj02Lng,String Gcj02Lat) {
double lon = Double.parseDouble(Gcj02Lng);
double lat = Double.parseDouble(Gcj02Lat);
double[] gps = transform(lat, lon);
double lng0 = lon * 2 - gps[1];
double lat0 = lat * 2 - gps[0];
return new String[] {""+lng0,""+lat0};
}
public static double[] transform(double lat, double lon) {
if (outOfChina(lat, lon)) {
return new double[] { lat, lon };
}
double dLat = transformLat(lon - 105.0, lat - 35.0);
double dLon = transformLon(lon - 105.0, lat - 35.0);
double radLat = lat / 180.0 * pi;
double magic = Math.sin(radLat);
magic = 1 - ee * magic * magic;
double sqrtMagic = Math.sqrt(magic);
dLat = (dLat * 180.0) / ((a * (1 - ee)) / (magic * sqrtMagic) * pi);
dLon = (dLon * 180.0) / (a / sqrtMagic * Math.cos(radLat) * pi);
double mgLat = lat + dLat;
double mgLon = lon + dLon;
return new double[] { mgLat, mgLon };
}
public static double transformLat(double x, double y) {
double ret = -100.0 + 2.0 * x + 3.0 * y + 0.2 * y * y + 0.1 * x * y
+ 0.2 * Math.sqrt(Math.abs(x));
ret += (20.0 * Math.sin(6.0 * x * pi) + 20.0 * Math.sin(2.0 * x * pi)) * 2.0 / 3.0;
ret += (20.0 * Math.sin(y * pi) + 40.0 * Math.sin(y / 3.0 * pi)) * 2.0 / 3.0;
ret += (160.0 * Math.sin(y / 12.0 * pi) + 320 * Math.sin(y * pi / 30.0)) * 2.0 / 3.0;
return ret;
}
public static double transformLon(double x, double y) {
double ret = 300.0 + x + 2.0 * y + 0.1 * x * x + 0.1 * x * y + 0.1
* Math.sqrt(Math.abs(x));
ret += (20.0 * Math.sin(6.0 * x * pi) + 20.0 * Math.sin(2.0 * x * pi)) * 2.0 / 3.0;
ret += (20.0 * Math.sin(x * pi) + 40.0 * Math.sin(x / 3.0 * pi)) * 2.0 / 3.0;
ret += (150.0 * Math.sin(x / 12.0 * pi) + 300.0 * Math.sin(x / 30.0
* pi)) * 2.0 / 3.0;
return ret;
}
/** 是否在国外 */
public static boolean outOfChina(double lat, double lon) {
if (lon < 72.004 || lon > 137.8347)
return true;
if (lat < 0.8293 || lat > 55.8271)
return true;
return false;
}
/** 是否在国外(重载) */
public static boolean outOfChina(String latStr, String lngStr) {
double lat = Double.parseDouble(latStr);
double lon = Double.parseDouble(lngStr);
if (lon < 72.004 || lon > 137.8347)
return true;
if (lat < 0.8293 || lat > 55.8271)
return true;
return false;
}
/** 十进制数转十六进制数 */
public static String intToHex(int n) {
StringBuffer s = new StringBuffer();
String a;
char[] b = {'0', '1', '2', '3', '4', '5', '6', '7', '8', '9', 'A', 'B', 'C', 'D', 'E', 'F'};
while (n != 0) {
s = s.append(b[n % 16]);
n = n / 16;
}
a = s.reverse().toString();
return a;
}
private static String checkLengthTo2(String s) {
if (s.length() == 1) {
s = "0" + s;
}
return s.toUpperCase();
}
private static String checkLengthTo4(String s) {
if (s.length() == 1) {
s = "000" + s;
} else if (s.length() == 2) {
s = "00" + s;
} else if (s.length() == 3) {
s = "0" + s;
}
return s;
}
/** 将字符串长度补足8位 */
private static String checkLengthTo8(String s) {
while (s.length() < 8) {
s = "0" + s;
}
return s;
}
/** 将字符串长度补足12位 */
private static String checkLengthTo12(String s) {
while (s.length() < 12) {
s = "0" + s;
}
return s;
}
public static String makeWGS84Info(String deviceId0, double lat84, double lng84, int speed0, String time0,
boolean sosCheck,boolean engine,boolean pin1C,boolean pin2C){
String deviceId = checkLengthTo12(deviceId0);
String lat = checkLengthTo8(intToHex((int)(lat84 * 1000000)));
String lng = checkLengthTo8(intToHex((int)(lng84 * 1000000)));
String speed = checkLengthTo4(intToHex((speed0 * 10)));
SERNUM++;
String seNum = checkLengthTo4(intToHex((SERNUM)));//流水号
String sosStr = "00000000";//SOS
if (sosCheck){
sosStr = "00000001";
}
String engStr = "000C0002";//发动机开关
if (engine){
engStr = "000C0003";
}
String pin = "00000000";//高电平
if (pin1C && pin2C){
pin ="00000030";
}
if (pin1C && !pin2C){//倒车
pin ="00000020";
}
if (!pin1C && pin2C){//制动
pin ="00000010";
}
String body = sosStr+engStr+lat+lng+"0000"+speed+"0000"+time0+"0104000000320202060403020000"+"2504"+pin+"30010E31010A";
String length = checkLengthTo4(intToHex(body.length()/2));
return "0200"+length+deviceId+seNum+body;
}
public static String makeGCJ02ToWGS84Info(String deviceId0, double latGcj02, double lngGcj02, int speed0, String time0,
boolean sosCheck,boolean engine,boolean pin1C,boolean pin2C){
double[] coos = gcj02_To_Gps84(latGcj02, lngGcj02);
double lat0 = coos[0];
double lng0 = coos[1];
String deviceId = checkLengthTo12(deviceId0);
String lat = checkLengthTo8(intToHex((int)(lat0 * 1000000)));
String lng = checkLengthTo8(intToHex((int)(lng0 * 1000000)));
String speed = checkLengthTo4(intToHex((speed0 * 10)));
SERNUM++;
String seNum = checkLengthTo4(intToHex((SERNUM)));//流水号
String sosStr = "00000000";//SOS
if (sosCheck){
sosStr = "00000001";
}
String engStr = "000C0002";//发动机开关
if (engine){
engStr = "000C0003";
}
String pin = "00000000";//高电平
if (pin1C && pin2C){
pin ="00000030";
}
if (pin1C && !pin2C){//倒车
pin ="00000020";
}
if (!pin1C && pin2C){//制动
pin ="00000010";
}
String body = sosStr+engStr+lat+lng+"0000"+speed+"0000"+time0+"0104000000320202060403020000"+"2504"+pin+"30010E31010A";
String length = checkLengthTo4(intToHex(body.length()/2));
return "0200"+length+deviceId+seNum+body;
}
/** 面板内容 */
private static void placeComponents(JPanel panel) {
/* 布局部分我们这边不多做介绍
* 这边设置布局为 null
*/
panel.setLayout(null);
// 设备ID标题
JLabel deviceLab = new JLabel("设备ID:");
/* 这个方法定义了组件的位置。
* setBounds(x, y, width, height)
* x 和 y 指定左上角的新位置，由 width 和 height 指定新的大小。
*/
deviceLab.setBounds(10,20,200,28);
deviceLab.setFont(new Font("微软雅黑", Font.PLAIN,18));
panel.add(deviceLab);
// 输入设备ID
final JTextField deviceStr = new JTextField(20);
deviceStr.setBounds(100,20,300,28);
deviceStr.setText("123456789111");
deviceStr.setFont(new Font("微软雅黑", Font.PLAIN,16));
panel.add(deviceStr);
// 发动机开关
JLabel engIneC = new JLabel("发动机开关");
engIneC.setBounds(440,20,140,28);
engIneC.setFont(new Font("微软雅黑", Font.BOLD,16));
engIneC.setForeground(Color.red);
panel.add(engIneC);
final JCheckBox engineBox = new JCheckBox();
engineBox.setBounds(560,20,30,30);
engineBox.setSize(30,30);
engineBox.setSelected(true);
panel.add(engineBox);
// GPS时间标题
JLabel gpsLab = new JLabel("GPS时间:");
gpsLab.setBounds(10,60,200,28);
gpsLab.setFont(new Font("微软雅黑", Font.PLAIN,18));
panel.add(gpsLab);
// 输入GPS时间
final JTextField gpsStr = new JTextField(20);
gpsStr.setBounds(100,60,230,28);
gpsStr.setText(SDF.format(new Date()));
gpsStr.setFont(new Font("微软雅黑", Font.PLAIN,16));
panel.add(gpsStr);
// 刷新
JButton fluButton = new JButton("f");
fluButton.setBounds(360, 60, 40, 28);
fluButton.setFont(new Font("微软雅黑", Font.BOLD,16));
fluButton.addActionListener(new ActionListener() {
public void actionPerformed(ActionEvent e) {
gpsStr.setText(SDF.format(new Date()));
}
});
panel.add(fluButton);
// SOS求救
JLabel sosC = new JLabel("SOS求救报警");
sosC.setBounds(440,60,140,28);
sosC.setFont(new Font("微软雅黑", Font.BOLD,16));
sosC.setForeground(Color.red);
panel.add(sosC);
final JCheckBox sosBox = new JCheckBox();
sosBox.setBounds(560,60,30,30);
sosBox.setSize(30,30);
panel.add(sosBox);
// 经度标题
JLabel lngLab = new JLabel("经度:");
lngLab.setBounds(10,100,200,28);
lngLab.setFont(new Font("微软雅黑", Font.PLAIN,18));
panel.add(lngLab);
// 输入经度
final JTextField lngStr = new JTextField(20);
lngStr.setBounds(100,100,300,28);
lngStr.setText("113.334991");
lngStr.setFont(new Font("微软雅黑", Font.PLAIN,16));
panel.add(lngStr);
// 电平1
JLabel pin1C = new JLabel("电平1(倒车信号)");
pin1C.setBounds(440,100,140,28);
pin1C.setFont(new Font("微软雅黑", Font.BOLD,16));
pin1C.setForeground(Color.red);
panel.add(pin1C);
final JCheckBox pin1Box = new JCheckBox();
pin1Box.setBounds(560,100,30,30);
pin1Box.setSize(30,30);
panel.add(pin1Box);
// 纬度标题
JLabel latLab = new JLabel("纬度:");
latLab.setBounds(10,140,200,28);
latLab.setFont(new Font("微软雅黑", Font.PLAIN,18));
panel.add(latLab);
// 输入纬度
final JTextField latStr = new JTextField(20);
latStr.setBounds(100,140,300,28);
latStr.setText("23.132905");
latStr.setFont(new Font("微软雅黑", Font.PLAIN,16));
panel.add(latStr);
// 电平2
JLabel pin2C = new JLabel("电平2(制动信号)");
pin2C.setBounds(440,140,140,28);
pin2C.setFont(new Font("微软雅黑", Font.BOLD,16));
pin2C.setForeground(Color.red);
panel.add(pin2C);
final JCheckBox pin2Box = new JCheckBox();
pin2Box.setBounds(560,140,30,30);
pin2Box.setSize(30,30);
panel.add(pin2Box);
// 速度标题
JLabel speedLab = new JLabel("速度:");
speedLab.setBounds(10,180,200,28);
speedLab.setFont(new Font("微软雅黑", Font.PLAIN,18));
panel.add(speedLab);
// 输入速度
final JTextField speedStr = new JTextField(20);
speedStr.setBounds(100,180,300,28);
speedStr.setText("80");
speedStr.setFont(new Font("微软雅黑", Font.PLAIN,16));
panel.add(speedStr);
// 是否是GCJ02坐标
JLabel coorCheck = new JLabel("GCJ02-WGS84");
coorCheck.setBounds(440,180,140,28);
coorCheck.setFont(new Font("微软雅黑", Font.BOLD,16));
coorCheck.setForeground(Color.red);
panel.add(coorCheck);
final JCheckBox coorbox = new JCheckBox();
coorbox.setBounds(560,180,30,30);
coorbox.setSize(30,30);
panel.add(coorbox);
/* 输出结果 */
final JTextArea resStr = new JTextArea();
resStr.setBounds(10,280,585,100);
resStr.setFont(new Font("微软雅黑", Font.PLAIN,16));
resStr.setLineWrap(true);//激活自动换行功能
resStr.setWrapStyleWord(true);//激活断行不断字功能
panel.add(resStr);
// GCJ02转换84坐标
final JTextField coo84 = new JTextField(20);
coo84.setBounds(10,230,300,30);
coo84.setText("GCJ02转换84坐标");
coo84.setFont(new Font("微软雅黑", Font.PLAIN,14));
coo84.setForeground(Color.GRAY);
panel.add(coo84);
// 转换坐标
JButton covButton = new JButton("转换坐标");
covButton.setBounds(330, 230, 115, 30);
covButton.setFont(new Font("微软雅黑", Font.BOLD,20));
covButton.addActionListener(new ActionListener() {
public void actionPerformed(ActionEvent e) {
resStr.setText("");
String lng = lngStr.getText();
if (isEmpty(lng)) {
JOptionPane.showMessageDialog(null, "经度不能为空", "错误", JOptionPane.ERROR_MESSAGE);
return;
}
String lat = latStr.getText();
if (isEmpty(lat)) {
JOptionPane.showMessageDialog(null, "纬度不能为空", "错误", JOptionPane.ERROR_MESSAGE);
return;
}
String[] arr = gcj02To84Str(lng, lat);
coo84.setText(arr[0]+","+arr[1]);
coo84.setForeground(Color.BLUE);
}
});
panel.add(covButton);
// 生成按钮
JButton createButton = new JButton("生成数据");
createButton.setBounds(465, 230, 115, 30);
createButton.setFont(new Font("微软雅黑", Font.BOLD,20));
createButton.addActionListener(new ActionListener() {
public void actionPerformed(ActionEvent e) {
coo84.setText("GCJ02转换84坐标");
coo84.setForeground(Color.GRAY);
boolean gcj = coorbox.isSelected();
boolean engine = engineBox.isSelected();
boolean sosC = sosBox.isSelected();
boolean pin1C = pin1Box.isSelected();
boolean pin2C = pin2Box.isSelected();
String deviceId = deviceStr.getText();
if (isEmpty(deviceId)) {
JOptionPane.showMessageDialog(null, "设备ID不能为空", "错误", JOptionPane.ERROR_MESSAGE);
return;
}
if (!deviceId.matches(REGXD)) {
JOptionPane.showMessageDialog(null, "设备ID不能超过12位", "错误", JOptionPane.ERROR_MESSAGE);
return;
}
String gpsTime = gpsStr.getText();
if (isEmpty(gpsTime)) {
JOptionPane.showMessageDialog(null, "GPS时间不能为空", "错误", JOptionPane.ERROR_MESSAGE);
return;
}
if (!gpsTime.matches(REGX)) {
JOptionPane.showMessageDialog(null, "GPS时间格式错误", "错误", JOptionPane.ERROR_MESSAGE);
return;
}
String lng = lngStr.getText();
if (isEmpty(lng)) {
JOptionPane.showMessageDialog(null, "经度不能为空", "错误", JOptionPane.ERROR_MESSAGE);
return;
}
String lat = latStr.getText();
if (isEmpty(lat)) {
JOptionPane.showMessageDialog(null, "纬度不能为空", "错误", JOptionPane.ERROR_MESSAGE);
return;
}
String speed = speedStr.getText();
if (isEmpty(speed)) {
JOptionPane.showMessageDialog(null, "速度不能为空", "错误", JOptionPane.ERROR_MESSAGE);
return;
}
String info = "";
if (gcj){
info = makeGCJ02ToWGS84Info(deviceId,Double.parseDouble(lat),Double.parseDouble(lng),Integer.parseInt(speed),
gpsTime,sosC,engine,pin1C,pin2C);
}else {
info = makeWGS84Info(deviceId,Double.parseDouble(lat),Double.parseDouble(lng),Integer.parseInt(speed),
gpsTime,sosC,engine,pin1C,pin2C);
}
String code = checkCode(info);
//String res = convert7D7E("7E" + info + code + "7E");
String res = convert7D7E2("7E" + info + code + "7E");
resStr.setText(res);
//确认对话框
//JOptionPane.showConfirmDialog(null, "111", "222", JOptionPane.YES_NO_OPTION);
}
});
panel.add(createButton);
// IP标题
JLabel ip = new JLabel("IP:");
ip.setBounds(10,400,30,28);
ip.setFont(new Font("微软雅黑", Font.PLAIN,18));
panel.add(ip);
// 输入IP
final JTextField ipInfo = new JTextField(20);
ipInfo.setBounds(40,400,150,28);
ipInfo.setText("127.0.0.1");
ipInfo.setFont(new Font("微软雅黑", Font.PLAIN,16));
panel.add(ipInfo);
// 端口标题
JLabel port = new JLabel("端口:");
port.setBounds(200,400,40,28);
port.setFont(new Font("微软雅黑", Font.PLAIN,18));
panel.add(port);
// 输入端口
final JTextField portInfo = new JTextField(20);
portInfo.setBounds(250,400,60,28);
portInfo.setText("8888");
portInfo.setFont(new Font("微软雅黑", Font.PLAIN,16));
panel.add(portInfo);
// 连接状态
final JLabel conStatus = new JLabel("未连接");
conStatus.setBounds(330,400,60,28);
conStatus.setFont(new Font("微软雅黑", Font.PLAIN,16));
conStatus.setForeground(Color.red);
panel.add(conStatus);
// 连接按钮
JButton connButton = new JButton("连接");
connButton.setBounds(400, 400, 80, 30);
connButton.setFont(new Font("微软雅黑", Font.BOLD,20));
connButton.addActionListener(new ActionListener() {
public void actionPerformed(ActionEvent e) {
String ipStr = ipInfo.getText();
if (isEmpty(ipStr)) {
JOptionPane.showMessageDialog(null, "IP不能为空", "错误", JOptionPane.ERROR_MESSAGE);
return;
}
if (!ipStr.matches(REGIP)) {
JOptionPane.showMessageDialog(null, "IP格式错误", "错误", JOptionPane.ERROR_MESSAGE);
return;
}
String portStr = portInfo.getText();
if (isEmpty(portStr)) {
JOptionPane.showMessageDialog(null, "端口不能为空", "错误", JOptionPane.ERROR_MESSAGE);
return;
}
getSocket(ipStr,Integer.parseInt(portStr));
if (SOCKET != null){
conStatus.setText("已连接");
conStatus.setForeground(Color.GREEN);
System.out.println(SOCKET);
}
}
});
panel.add(connButton);
// 断开按钮
JButton desButton = new JButton("断开");
desButton.setBounds(500, 400, 80, 30);
desButton.setFont(new Font("微软雅黑", Font.BOLD,20));
desButton.addActionListener(new ActionListener() {
public void actionPerformed(ActionEvent e) {
try {
SOCKET.close();
} catch (IOException ioException) {
ioException.printStackTrace();
}
SOCKET = null;
conStatus.setText("未连接");
conStatus.setForeground(Color.RED);
}
});
panel.add(desButton);
/* 发送结果 */
final JTextArea sendStr = new JTextArea();
sendStr.setBounds(10,440,470,80);
sendStr.setLineWrap(true);//激活自动换行功能
sendStr.setWrapStyleWord(true);//激活断行不断字功能
panel.add(sendStr);
// 发送按钮
JButton senButton = new JButton("发送");
senButton.setBounds(500, 440, 80, 80);
senButton.setFont(new Font("微软雅黑", Font.BOLD,20));
senButton.addActionListener(new ActionListener() {
public void actionPerformed(ActionEvent e) {
if (SOCKET == null || isServerClose()) {
SOCKET = null;
conStatus.setText("未连接");
conStatus.setForeground(Color.RED);
return;
}
String msg = resStr.getText();
if (SOCKET != null && !isEmpty(msg)){
sendInfo(msg,true);
sendStr.setText("数据发送成功!"+"\n");
//sendStr.append(msg+"\n");
String res = getSocketInfo();
if (!isEmpty(res)){
sendStr.append("服务器响应:");
sendStr.append(res+"\n");
}
}
}
});
panel.add(senButton);
}
/** 创建 JFrame 实例 */
public static void createJFrame(){
// 创建 JFrame 实例
JFrame frame = new JFrame("JTT808数据生成器 - by:MichLee");
// Setting the width and height of frame
frame.setSize(620, 580);
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
frame.setLocationRelativeTo(null);//在屏幕中居中显示
/* 创建面板，这个类似于 HTML 的 div 标签
* 我们可以创建多个面板并在 JFrame 中指定位置
* 面板中我们可以添加文本字段，按钮及其他组件。
*/
JPanel panel = new JPanel();
// 添加面板
frame.add(panel);
/*
* 调用用户定义的方法并添加组件到面板
*/
placeComponents(panel);
// 设置界面可见
frame.setVisible(true);
}
public static void main(String[] args) {
createJFrame();
}
}
EXE执行文件
说明：EXE执行文件是把JAVA打包，再用exe4j转换的执行文件。运行环境需要电脑配置了JDK环境，如果没有JDK环境，把JDK的JRE目录复制到EXE文件同目录也可以运行。
下载地址: https://mich.lanzoui.com/iNSQVpt6npi
扫一扫
1369
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
