wifi模块的sta和ap模式调试

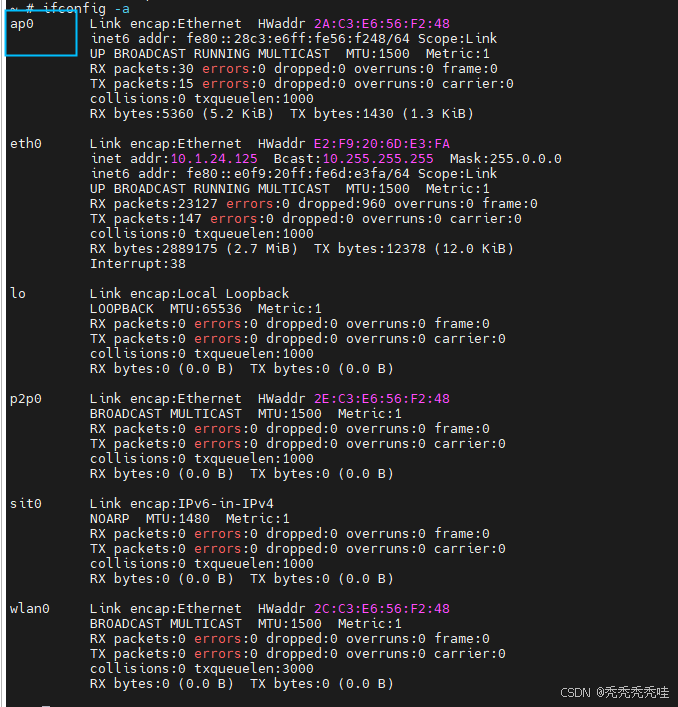

1、ap模式

• 2.4g

/etc/hostapd.conf

interface=ap0
driver=nl80211
ctrl_interface=/var/run/hostapd

ssid=TestAP
hw_mode=b
channel=11

wpa=2
wpa_key_mgmt=WPA-PSK
wpa_passphrase=12345678

wpa_pairwise=CCMP
rsn_pairwise=CCMP

• 5g

/etc/hostapd.conf

interface=ap0
driver=nl80211
ctrl_interface=/var/run/hostapd

ssid=TestAP
hw_mode=a
channel=36

wpa=2
wpa_key_mgmt=WPA-PSK
wpa_passphrase=12345678

wpa_pairwise=CCMP
rsn_pairwise=CCMP

mkdir /var/run/hostapd -p

hostapd /etc/hostapd.conf -B

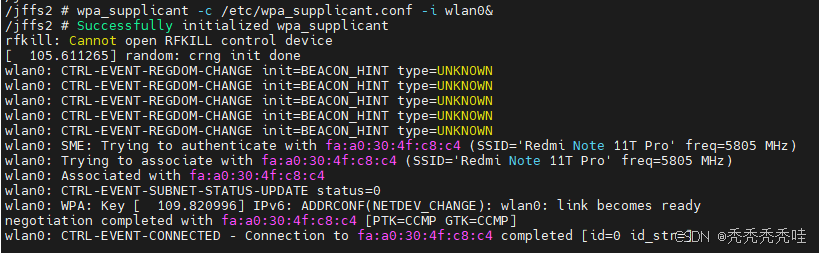

2、sta模式

/etc/wpa_supplicant.conf

ctrl_interface=/var/run/wpa_supplicant
ap_scan=1
network={
        ssid="Redmi Note 11T Pro"
        psk="123456789"
}

mkdir -p /var/run/wpa_supplicant

wpa_supplicant -c /etc/wpa_supplicant.conf -i wlan0

3、dhcpd

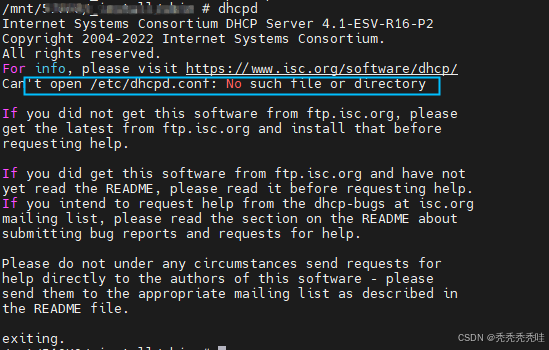

3.1出现Can’t open /etc/dhcpd.conf: No such file or directory

cp dhcpd.conf.example /etc/dhcpd.conf

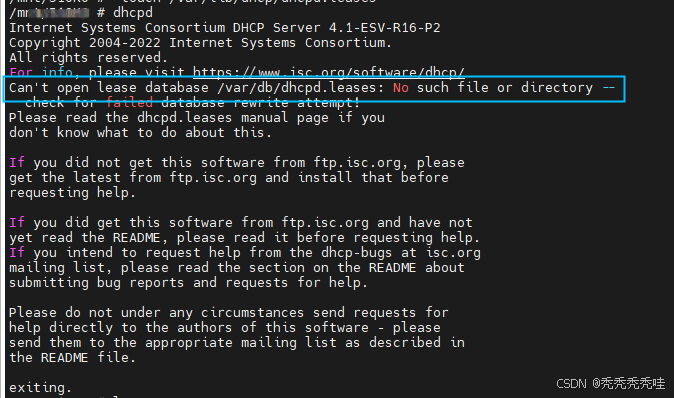

3.2 出现Can’t open lease database /var/db/dhcpd.leases: No such file or directory –

解决方法：

mkdir -p /var/db
touch /var/db/dhcpd.leases

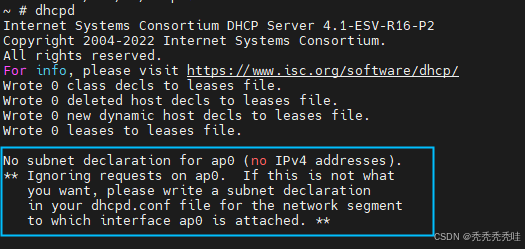

3.3 No subnet declaration for ap0 (no IPv4 addresses)

修改下dhcpd.conf

subnet 10.254.239.0 netmask 255.255.255.224 {
  option domain-name-servers 10.254.239.1;
  range 10.254.239.10 10.254.239.20;
  option routers 10.254.239.1;
}

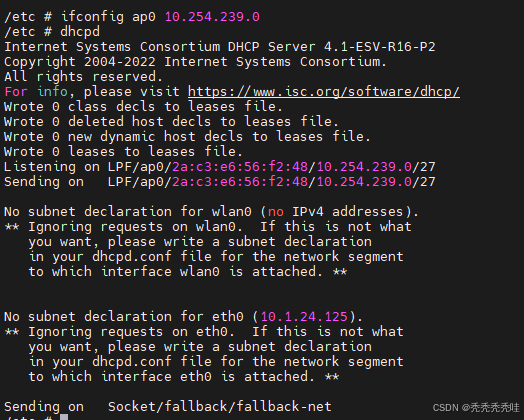

ifconfig ap0 10.254.239.1
dhcpd ap0

4、 实现DHCP自动获取IP地址

https://www.cnblogs.com/lidabo/p/5081528.html

从busybox的examples/udhcp/下copy simple.script文件到开发板/usr/share/udhcpc/下，并重命名为default.script

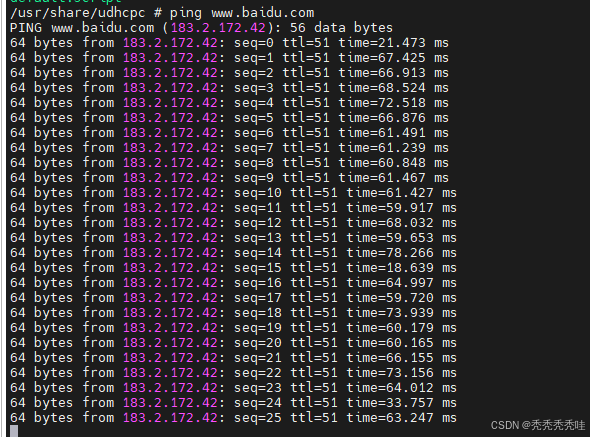

成访问外网：

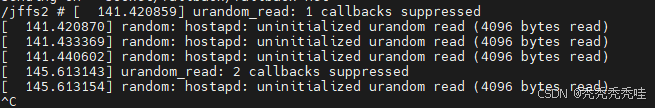

5、出现刚开始ap连接不上的情况

使用urandom产生随机数

cat /proc/sys/kernel/random/entropy_avail#查看是否有足够的熵来用于产生随机数
mv /dev/random /dev/random.orig
ln -s /dev/urandom /dev/random

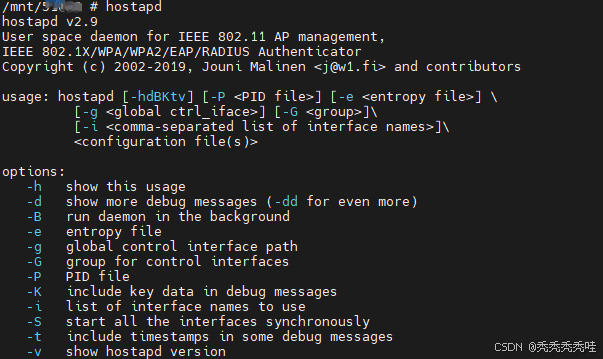

6、执行hostapd

出现问题:
error while loading shared libraries: libnl-3.so.200: cannot open shared object file: No such file or directory
./hostapd: error while loading shared libraries: libnl-genl-3.so.200: cannot open shared object file: No such file or directory
./hostapd: error while loading shared libraries: libssl.so.1.1: cannot open shared object file: No such file or directory
./hostapd: error while loading shared libraries: libcrypto.so.1.1: cannot open shared object file: No such file or directory

cp libnl-3.so.200 /lib
cp libnl-genl-3.so.200 /lib
cp libssl.so.1.1 /lib
cp libcrypto.so.1.1 /lib
cp hostapd /bin/
