1.临时设定

1.1 ifconfig命令

1.1.1 安装命令

在rhel7中，ifconfig需要自己安装才可以使用，我们可以查看自己是否已经安装：

[root@server ~]# rpm -qf /sbin/ifconfig
net-tools-2.0-0.17.20131004git.el7.x86_64

如果没有查询出来，使用yum进行安装：

[root@server ~]# yum whatprovides */ifconfig
Loaded plugins: langpacks
rhel7/filelists_db                                       | 3.0 MB     00:00
net-tools-2.0-0.17.20131004git.el7.x86_64 : Basic networking tools
Repo        : rhel7
Matched from:
Filename    : /sbin/ifconfig # ficonfig命令包含在这个软件包中

[root@server ~]# yum install net-tools -y # 安装软件包

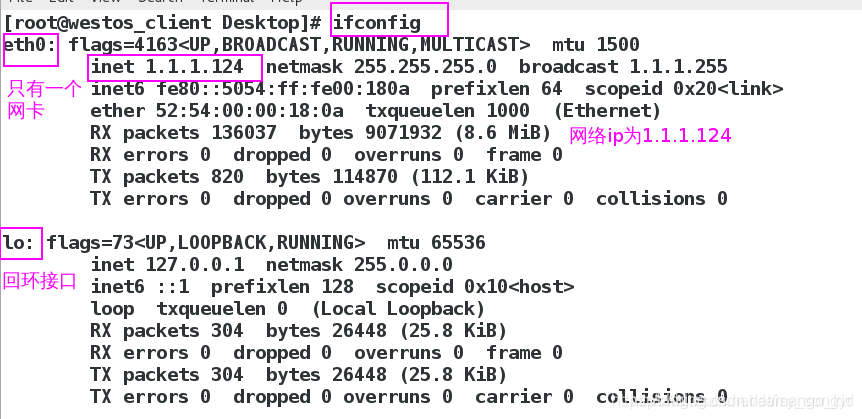

1.1.2 查看网卡设备

[root@server ~]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 172.25.5.10  netmask 255.255.255.0  broadcast 172.25.5.255
        inet6 fe80::5054:ff:fe00:50a  prefixlen 64  scopeid 0x20<link>
        ether 52:54:00:00:05:0a  txqueuelen 1000  (Ethernet)
        RX packets 413  bytes 3144511 (2.9 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 308  bytes 32690 (31.9 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        ether 52:54:00:d3:36:54  txqueuelen 1000  (Ethernet)
        RX packets 41  bytes 5284 (5.1 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth2: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        ether 52:54:00:e1:dc:0e  txqueuelen 1000  (Ethernet)
        RX packets 41  bytes 5284 (5.1 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 0  (Local Loopback)
        RX packets 30  bytes 1948 (1.9 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 30  bytes 1948 (1.9 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
