【无标题】ensp实验

1. 配置R1

首先配置接口IP地址，然后启用RIP并宣告直连网段及环回地址。

<Huawei> system-view
[Huawei] sysname R1
[R1] interface GigabitEthernet 0/0/1
[R1-GigabitEthernet0/0/1] ip address 192.168.1.1 255.255.255.0
[R1-GigabitEthernet0/0/1] quit
[R1] interface GigabitEthernet 0/0/2
[R1-GigabitEthernet0/0/2] ip address 12.1.1.1 255.255.255.0
[R1-GigabitEthernet0/0/2] quit
[R1] interface LoopBack 0
[R1-LoopBack0] ip address 1.1.1.1 255.255.255.255
[R1-LoopBack0] quit
[R1] rip 1
[R1-rip-1] version 2
[R1-rip-1] network 192.168.1.0
[R1-rip-1] network 12.0.0.0
[R1-rip-1] network 1.0.0.0
[R1-rip-1] quit

2. 配置R2

配置与R1和R3相连的接口，然后启用RIP宣告直连网段及环回地址。

<Huawei> system-view
[Huawei] sysname R2
[R2] interface GigabitEthernet 0/0/2
[R2-GigabitEthernet0/0/2] ip address 12.1.1.2 255.255.255.0
[R2-GigabitEthernet0/0/2] quit
[R2] interface GigabitEthernet 0/0/3
[R2-GigabitEthernet0/0/3] ip address 23.1.1.2 255.255.255.0
[R2-GigabitEthernet0/0/3] quit
[R2] interface LoopBack 0
[R2-LoopBack0] ip address 2.2.2.2 255.255.255.255
[R2-LoopBack0] quit
[R2] rip 1
[R2-rip-1] version 2
[R2-rip-1] network 12.0.0.0
[R2-rip-1] network 23.0.0.0
[R2-rip-1] network 2.0.0.0
[R2-rip-1] quit

3. 配置R3

配置接口IP地址，然后启用RIP并宣告直连网段及环回地址。

<Huawei> system-view
[Huawei] sysname R3
[R3] interface GigabitEthernet 0/0/1
[R3-GigabitEthernet0/0/1] ip address 192.168.3.1 255.255.255.0
[R3-GigabitEthernet0/0/1] quit
[R3] interface GigabitEthernet 0/0/3
[R3-GigabitEthernet0/0/3] ip address 23.1.1.3 255.255.255.0
[R3-GigabitEthernet0/0/3] quit
[R3] interface LoopBack 0
[R3-LoopBack0] ip address 3.3.3.3 255.255.255.255
[R3-LoopBack0] quit
[R3] rip 1
[R3-rip-1] version 2
[R3-rip-1] network 192.168.2.0
[R3-rip-1] network 23.0.0.0
[R3-rip-1] network 3.0.0.0
[R3-rip-1] quit

4. 配置PC和交换机

交换机L1和L2：无需特殊配置。

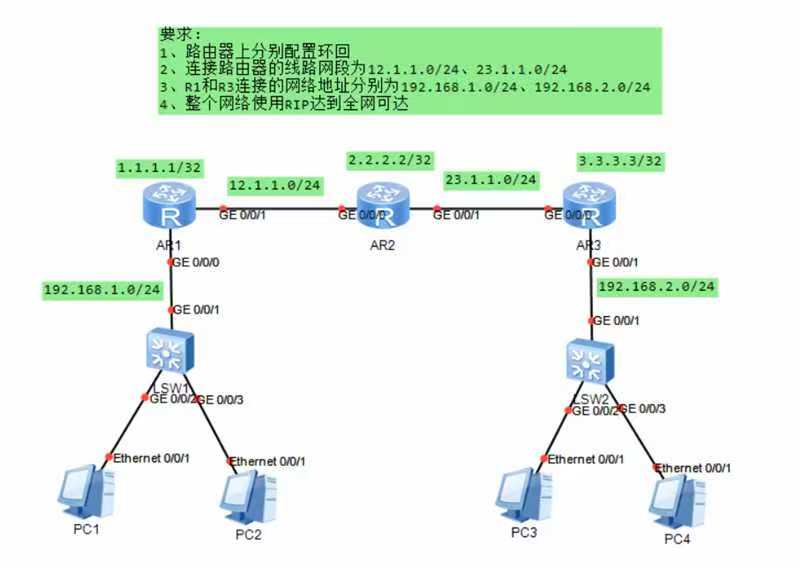

PC配置：根据上图的规划，为每台PC配置静态IP地址、子网掩码和网关。网关就是与其直连的路由器接口的IP地址。
