CentOS7 部署Ceph分布式存储（使用ceph块设备挂载）

1.基础环境配置

主机名	IP地址	节点
ceph-node1	192.168.100.10	osd/mon
ceph-node2	192.168.100.20	osd
ceph-node3	192.168.100.30	osd
ceph-client	192.168.100.40	客户端

(1)创建四台虚拟机，节点为192.168.100.10（20,30,40）。前三台服务器节点上（10,20,30）各添加1块50GB的STAT类型硬盘sdb，更改主机名，此处以ceph-node1节点为例

[root@localhost ~]# hostnamectl set-hostname ceph-node1
[root@localhost ~]# bash
[root@ceph-node1 ~]#

(2)修改四台虚拟机的/etc/hosts文件，修改主机名地址映射关系，此处以ceph-node1为例

[root@ceph-node1 ~]# cat /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.100.10 ceph-node1
192.168.100.20 ceph-node2
192.168.100.30 ceph-node3
192.168.100.40 ceph-client

(3)在所有Ceph节点上使用FTP配置本地yum源

ceph-node1节点配置

[root@ceph-node1 ~]# mkdir /opt/centos
[root@ceph-node1 ~]# mount CentOS-7-x86_64-DVD-1804.iso /opt/centos
[root@ceph-node1 ~]# mv /etc/yum.repos.d/* /media/
[root@ceph-node1 ~]# vi /etc/yum.repos.d/local.repo
[centos]
name=centos
baseurl=file:///opt/centos
gpgcheck=0
enabled=1

在ceph-node1节点上安装并配置vdftpd服务

[root@ceph-node1 ~]# yum install -y vsftpd
[root@ceph-node1 ~]# vi /etc/vsftpd/vsftpd.conf
//将anon_root=/opt/添加在vsftpd.conf的第1行
[root@ceph-node1 ~]# systemctl restart vsftpd
[root@ceph-node1 ~]# systemctl stop firewalld
[root@ceph-node1 ~]# systemctl disable firewalld
[root@ceph-node1 ~]# setenforce 0

ceph-node2、ceph-node3和ceph-client主机配置相同：

[root@ceph-node2 ~]# mv /etc/yum.repos.d/* /media/
[root@ceph-node2 ~]# vi /etc/yum.repos.d/local.repo
[centos]
name=centos
baseurl=ftp://192.168.100.10/centos
gpgcheck=0
enabled=1

2.安装和配置Ceph

(1)在ceph-node1上安装ceph-deploy，并用ceph-deploy创建一个Ceph集群

[root@ceph-node1 ~]# yum install ceph-deploy -y
[root@ceph-node1 ~]# mkdir /etc/ceph
[root@ceph-node1 ~]# cd /etc/ceph
[root@ceph-node1 ceph]#ceph-deploy new ceph-node1

(2)在ceph-node1上创建新集群成功后，可以看到生成的集群配置文件和密钥文件

[root@ceph-node1 ceph]# ll
total 12
-rw-r--r--. 1 root root    234 Aug 16 17:46 ceph.conf
-rw-r--r--. 1 root root   2985 Aug 16 17:46 ceph.log
-rw-------. 1 root root     73 Aug 16 17:46 ceph.mon.keyring

(3)在ceph-node1上使用ceph-deploy工具在所有Ceph节点上安装Ceph二进制软件包（期间有提示输入yes即可）

[root@ceph-node1 ceph]# ceph-deploy install ceph-node1 ceph-node2 ceph-node3 ceph-client
[root@ceph-node1 ceph]# ceph -v
ceph version 0.94.5 (9764da52395923e0b32908d83a9f7304401fee43)

(4)在ceph-node1上创建Ceph monitor

[root@ceph-node1 ceph]# ceph-deploy --overwrite-conf mon create-initial

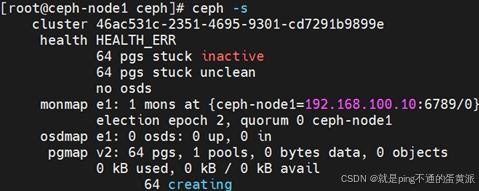

(5)Monitor创建成功后，检查集群状态

此时Ceph集群处于不健康状态

3.创建OSD

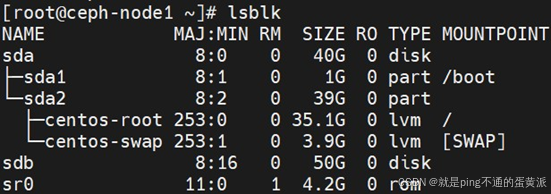

(1)列出ceph-node1上所有的可用硬盘

[root@ceph-node1 ceph]# ceph-deploy disk list ceph-node1

(2)使用(parted) mklabel msdos命令将硬盘转换为MBR后创建共享硬盘（注意：3个节点都要执行如下操作），以ceph-node1主机为例

[root@ceph-node1 ceph]# parted /dev/sdb
GNU Parted 3.1
Using /dev/sdb
Welcome to GNU Parted! Type 'help' to view a list of commands.
(parted) mklabel msdos
(parted) p
Model: ATA VMware Virtual S (scsi)
Disk /dev/sdb: 53.7GB
Sector size (logical/physical): 512B/512B
Partition Table: msdos
Disk Flags:

Number  Start  End  Size  Type  File system  Flags

(parted) mklabel
New disk label type? gpt
Warning: The existing disk label on /dev/sdb will be destroyed and all data on this disk will be lost. Do you want to continue?
Yes/No? yes
(parted) p
Model: ATA VMware Virtual S (scsi)
Disk /dev/sdb: 53.7GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Disk Flags:

Number  Start  End  Size  File system  Name  Flags

(parted) mkpart
Partition name?  []?
File system type?  [ext2]?
Start? 0%
End? 100%
(parted) p
Model: ATA VMware Virtual S (scsi)
Disk /dev/sdb: 53.7GB
Sector size (logical/physical): 512B/512B
Partition Table: gpt
Disk Flags:

Number  Start   End     Size    File system  Name  Flags
 1      1049kB  53.7GB  53.7GB

(parted) q
Information: You may need to update /etc/fstab.

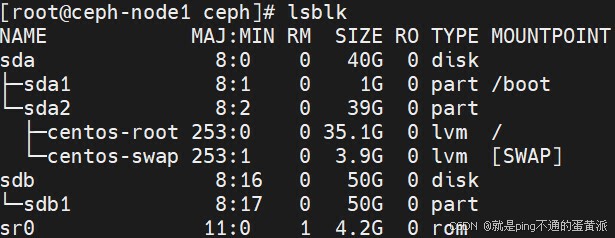

查看分区情况

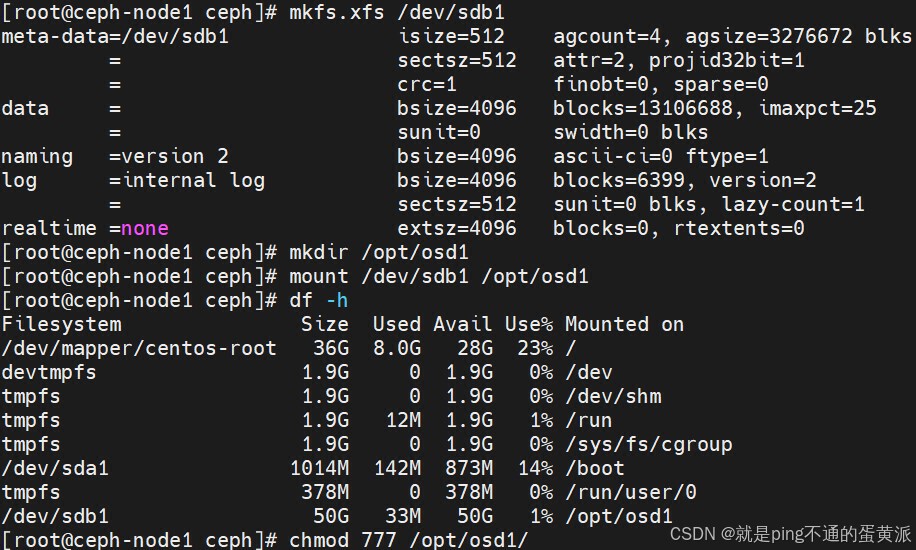

使用命令对分区进行格式化

ceph-node1配置

ceph-node2配置和ceph-node3配置

[root@ceph-node2 ~]# mkfs.xfs /dev/sdb1
[root@ceph-node2 ~]# mkdir /opt/osd2
[root@ceph-node2 ~]# mount /dev/sdb1 /opt/osd2
[root@ceph-node2 ~]# chmod 777 /opt/osd2

[root@ceph-node3 ~]# mkfs.xfs /dev/sdb1
[root@ceph-node3 ~]# mkdir /opt/osd3
[root@ceph-node3 ~]# mount /dev/sdb1 /opt/osd3
[root@ceph-node3 ~]# chmod 777 /opt/osd3

(3)在node1节点使用ceph-deploy工具创建OSD节点

[root@ceph-node1 ceph]# ceph-deploy osd prepare ceph-node1:/opt/osd1 ceph-node2:/opt/osd2 ceph-node3:/opt/osd3

(4)先关闭ceph-node2和ceph-node3节点的防火墙，再在node1节点使用ceph-deploy工具激活OSD节点

[root@ceph-node2 ~]# systemctl stop firewalld
[root@ceph-node2 ~]# systemctl disable firewalld
[root@ceph-node3 ~]# systemctl stop firewalld
[root@ceph-node3 ~]# systemctl disable firewalld

[root@ceph-node1 ceph]# ceph-deploy osd activate ceph-node1:/opt/osd1 ceph-node2:/opt/osd2 ceph-node3:/opt/osd3

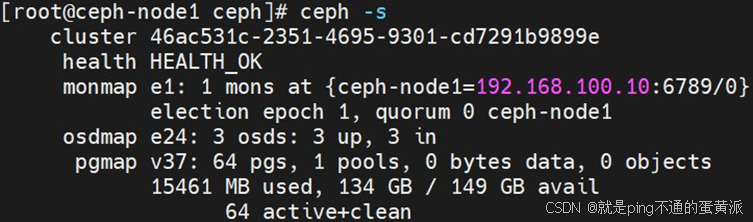

(5)检查Ceph集群的状态

此时集群处于HEALTH_OK状态

(6)开放权限给其他节点，进行灾备处理

[root@ceph-node1 ceph]# ceph-deploy admin ceph-node{1,2,3}
[root@ceph-node1 ceph]# chmod +r /etc/ceph/ceph.client.admin.keyring

4.创建ceph块设备并挂载

(1)用ceph-deploy工具把Ceph配置文件和ceph.client.admin.keyring复制到ceph-client

[root@ceph-node1 ceph]# sudo chmod +r /etc/ceph/ceph.client.admin.keyring
[root@ceph-node1 ceph]# ceph-deploy admin ceph-client

(2)在ceph-client节点上创建块设备并挂载

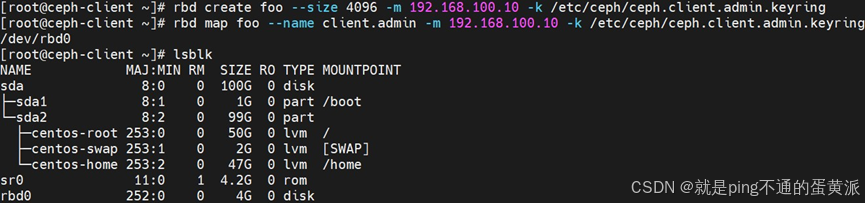

使用rbd create命令创建一个块设备image，然后用rbd map命令把image映射为块设备

对映射出来的/dev/rbd0格式化并挂载

[root@ceph-client ~]# mkfs.ext4 /dev/rbd0
[root@ceph-client ~]# mount /dev/rbd0 /mnt/

(3)调整块设备的大小

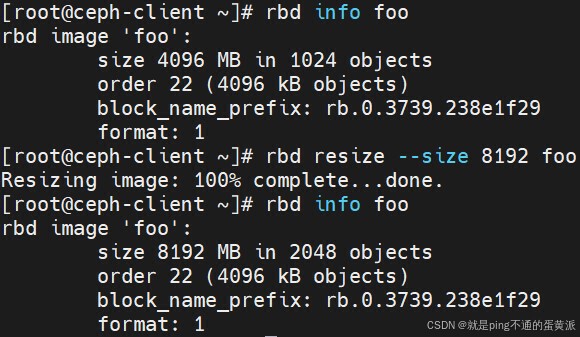

使用—size选项调整块设备映像的最大尺寸

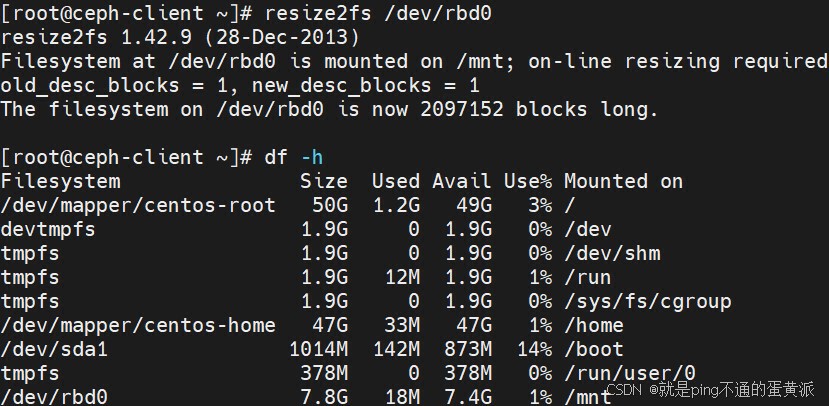

使用resize2fs命令调整文件系统的大小

5.删除块设备

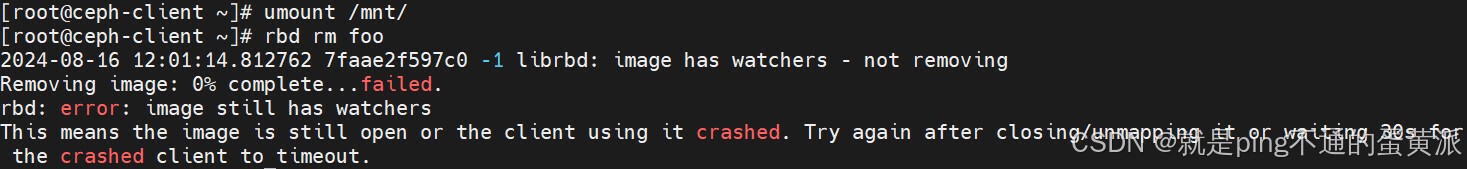

问题：使用rdb rm命令删除块设备失败

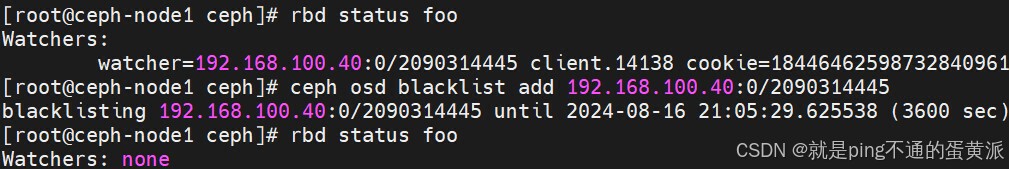

解决：在ceph-node1上查看rbd残留的watch信息，并将其添加到osd的黑名单后，再在ceph-client上删除
