HCIA RIP动态路由实验

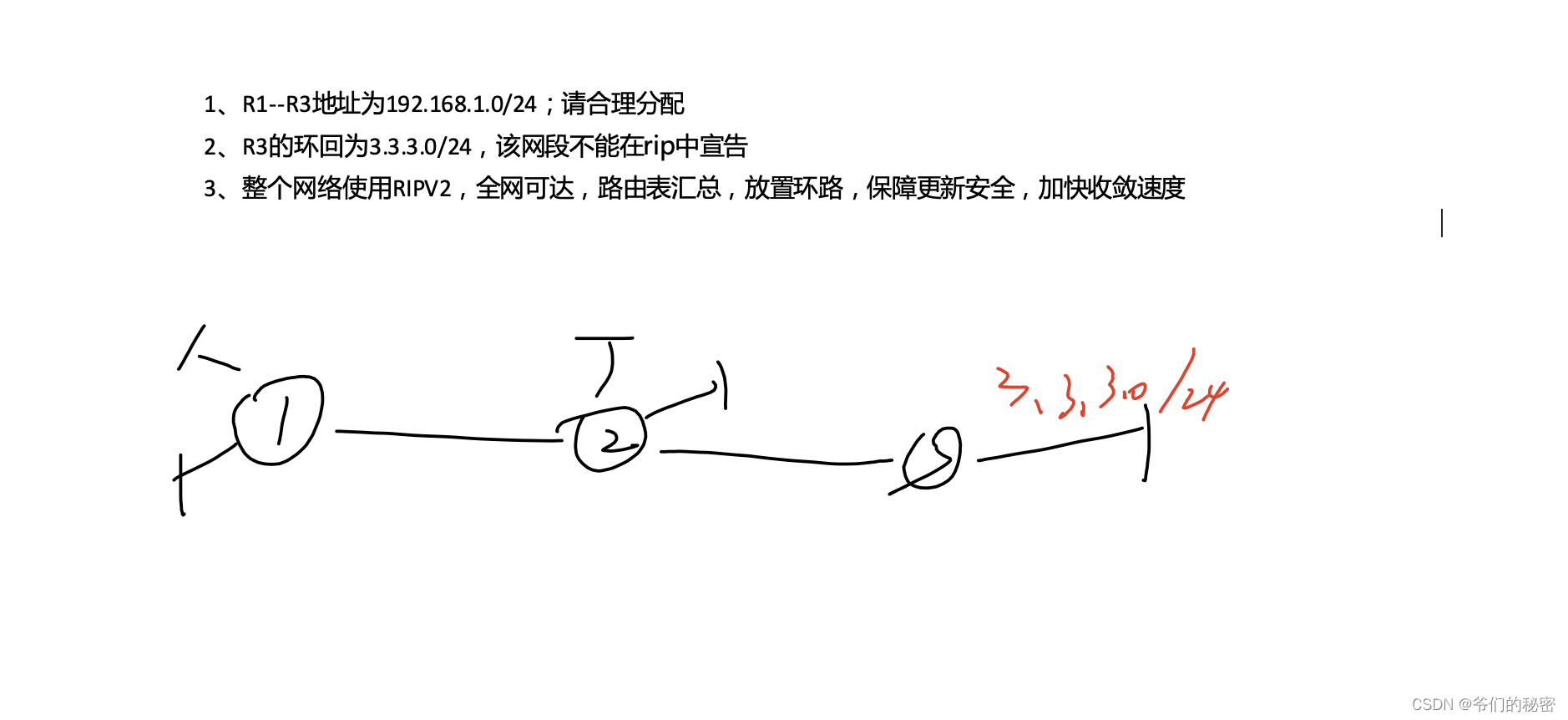

要求：

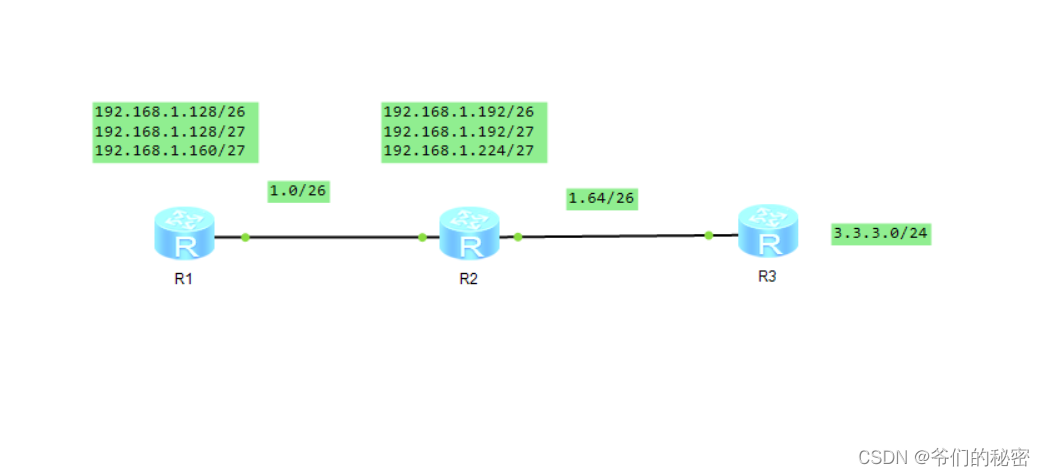

 构建拓补图

给各个接口配置IP地址

R1：

[r1]int g0/0/0

[r1-GigabitEthernet0/0/0]ip address 192.168.1.1 26

[r1]int lo0

[r1-LoopBack0]ip address 192.168.1.129 27

[r1-LoopBack0]q

[r1]int lo1

[r1-LoopBack1]ip address 192.168.1.161 27

R2：

[r2]int g0/0/0

[r2-GigabitEthernet0/0/0]ip address 192.168.1.2 26

[r2-GigabitEthernet0/0/0]int g0/0/1

[r2-GigabitEthernet0/0/1]ip address 192.168.1.65 26

[r2-GigabitEthernet0/0/1]q

[r2]int lo0

[r2-LoopBack0]ip address 192.168.1.193 27

[r2-LoopBack0]q

[r2]int lo1

[r2-LoopBack1]ip address 192.168.1.225 27

[r2-LoopBack1]q

R3：

[r3]int lo0

[r3-LoopBack0]ip address 3.3.3.1 24

[r3-LoopBack0]q

[r3]int g0/0/0

[r3-GigabitEthernet0/0/0]ip address 192.168.1.66 26

配置RIP：

R1：

[r1]rip

[r1-rip-1]version 2

[r1-rip-1]network 192.168.1.0

R2：

[r2]rip

[r2-rip-1]version 2

[r2-rip-1]network 192.168.1.0

R3：

[r3]rip

[r3-rip-1]version 2

[r3-rip-1]network 192.168.1.0

R3配置缺省路由

[r3]rip

[r3-rip-1]default-route originate

验证

通过R1ping 3.3.3.1

以及其他IP来验证全网可达

ensp配置错误

 ，这几天正在解决
