HCIA综合实验

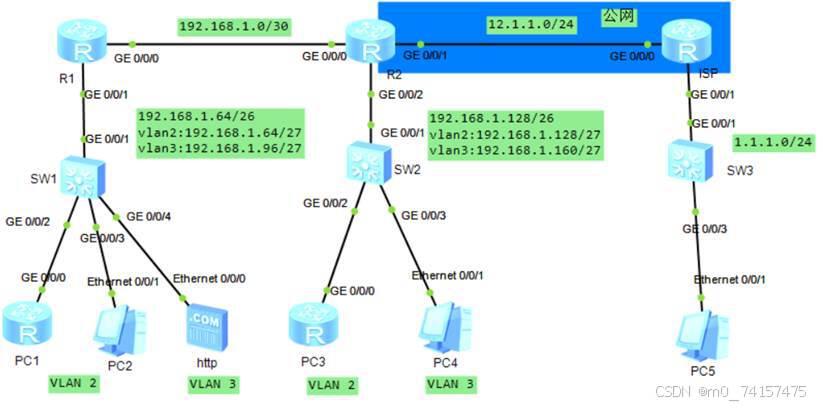

• 实验拓扑

• 实验需求

1、ISP路由器只配置IP地址，再不做任何配置；

2、内部网络基于192.168.1.0/24进行规划；

3、R1-R2之间启动ospf协议，

4、PC1-PC4自动获取IP地址；DHCP

5、PC1不能Telnet，其他内网pc都可以Telnet；

6、PC1-PC4可以访问PC5，R2的公网接口只有一个公网IP：12.1.1.1；

7、ISP路由Telnet 12.1.1.1 ，最终成功登录到R1上；

三、实验步骤

1、交换机配置

[SW1]vlan 2

[SW1-vlan2]vlan 3

[SW1]int g0/0/2

[SW1-GigabitEthernet0/0/2]port link-type access

[SW1-GigabitEthernet0/0/2]port default vlan 2

[SW1]int g0/0/3

[SW1-GigabitEthernet0/0/3]port link-type access

[SW1-GigabitEthernet0/0/3]port default vlan 2

[SW1]int g0/0/4

[SW1-GigabitEthernet0/0/4]port link-type access

[SW1-GigabitEthernet0/0/4]port default vlan 3

[SW1]int g0/0/1

[SW1-GigabitEthernet0/0/1]port link-type trunk

[SW1-GigabitEthernet0/0/1]port trunk allow-pass vlan 2 3

[SW2]vlan 2

[SW2-vlan2]vlan 3

[SW2]int g0/0/2

[SW2-GigabitEthernet0/0/2]port link-type access

[SW2-GigabitEthernet0/0/2]port default vlan 2

[SW2]int g0/0/3

[SW2-GigabitEthernet0/0/3]port link-type access

[SW2-GigabitEthernet0/0/3]port default vlan 3

[SW2-GigabitEthernet0/0/3]quit

[SW2]int g0/0/1

[SW2-GigabitEthernet0/0/1]port link-type trunk

[SW2-GigabitEthernet0/0/1]port trunk allow-pass vlan 2 3

2、路由器配置

[R1]int g0/0/0

[R1-GigabitEthernet0/0/0]ip add 192.168.1.1 30

[R1]int g0/0/1.1

[R1-GigabitEthernet0/0/1.1]ip add 192.168.1.65 27

[R1-GigabitEthernet0/0/1.1]dot1q termination vid 2

[R1-GigabitEthernet0/0/1.1]arp broadcast enable

[R1]int g0/0/1.2

[R1-GigabitEthernet0/0/1.2]ip add 192.168.1.97 27

[R1-GigabitEthernet0/0/1.2]dot1q termination vid 3

[R1-GigabitEthernet0/0/1.2]arp broadcast enable

[R2]int g0/0/0

[R2-GigabitEthernet0/0/0]ip add 192.168.1.2 30

[R2]int g0/0/1

[R2-GigabitEthernet0/0/1]ip add 12.1.1.1 24

[R2]int g0/0/2.1

[R2-GigabitEthernet0/0/2.1]ip add 192.168.1.129 27

[R2-GigabitEthernet0/0/2.1]dot1q termination vid 2

[R2-GigabitEthernet0/0/2.1]arp broadcast enable

[R2]int g0/0/2.2

[R2-GigabitEthernet0/0/2.2]ip add 192.168.1.161 27

[R2-GigabitEthernet0/0/2.2]dot1q termination vid 3

[R2-GigabitEthernet0/0/2.2]arp broadcast enable

[ISP]int g0/0/0

[ISP-GigabitEthernet0/0/0]ip add 12.1.1.2 24

[ISP]int g0/0/1

[ISP-GigabitEthernet0/0/1]ip add 1.1.1.1 24

1. 配置DHCP协议

步骤一：

[R1]dhcp enable

[R1]ip pool v2

[R1-ip-pool-v2]network 192.168.1.64 mask 255.255.255.224

[R1-ip-pool-v2]gateway-list 192.168.1.65

[R1-ip-pool-v2]dns-list 114.114.114.114 8.8.8.8

[R1]int g0/0/1.1

[R1-GigabitEthernet0/0/1.1]dhcp select global

[R1]ip pool v3

[R1-ip-pool-v3]network 192.168.1.96 mask 255.255.255.224

[R1-ip-pool-v3]gateway-list 192.168.1.97

[R1-ip-pool-v3]dns-list 114.114.114.114 8.8.8.8

[R1-ip-pool-v3]quit

[R1]int g0/0/1.2

[R1-GigabitEthernet0/0/1.2]dhcp select global

[R2]dhcp enable

[R2]ip pool v2

[R2-ip-pool-v2]network 192.168.1.128 mask 255.255.255.224

[R2-ip-pool-v2]dns-list 114.114.114.114 8.8.8.8

[R2-ip-pool-v3]gateway-list 192.168.1.161

[R2]int g0/0/2.1

[R2-GigabitEthernet0/0/2.1]dhcp select global

[R2]ip pool v3

[R2-ip-pool-v3]gateway-list 192.168.1.161

[R2-ip-pool-v3]network 192.168.1.160 mask 255.255.255.224

[R2-ip-pool-v3]dns-list 114.114.114.114 8.8.8.8

[R2]int g0/0/2.2

[R2-GigabitEthernet0/0/2.2]dhcp select global

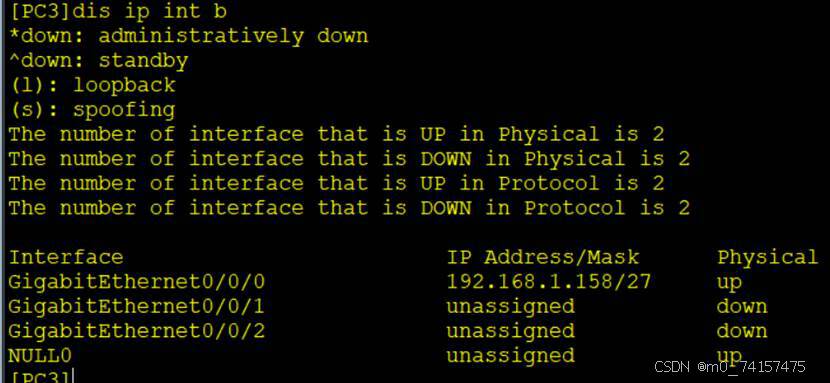

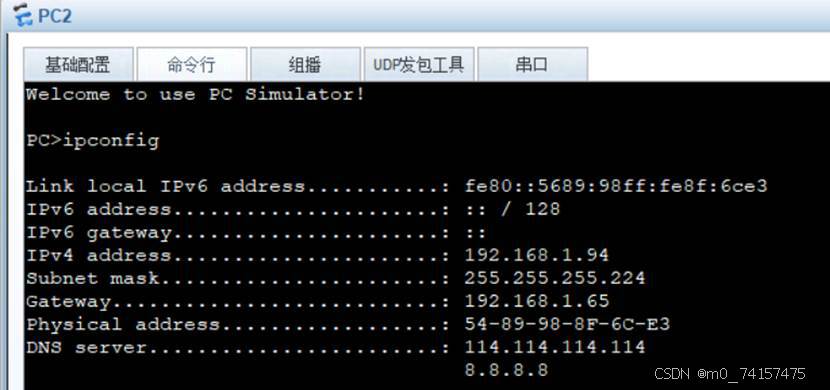

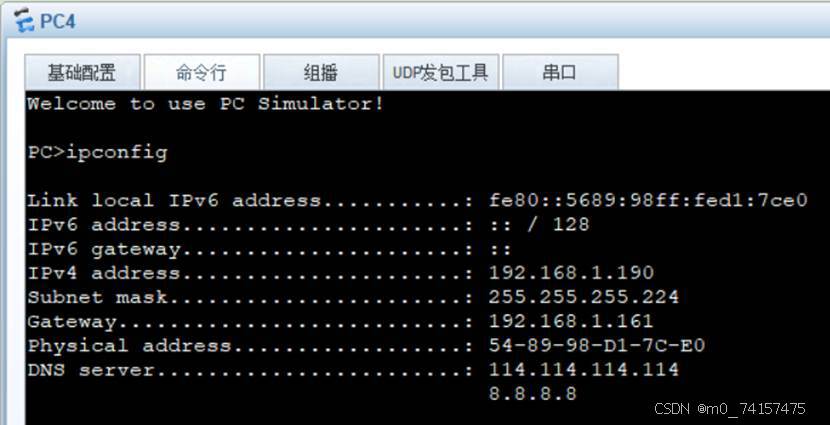

测试：能否自动获得IP地址

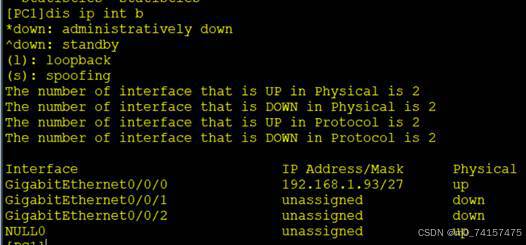

步骤二、设置路由器，使PC1、PC3都能自动获取IP

[PC1]dhcp enable

[PC1]int g0/0/0

[PC1-GigabitEthernet0/0/0]ip address dhcp-alloc  //命令用来配置接口通过DHCP协议获取IP地址

[PC3]dhcp enable

[PC3]int g0/0/0

[PC3-GigabitEthernet0/0/0]ip address dhcp-alloc

4、配置ospf协议，实现PC1-PC4之间互通

[R1]ospf 1 router-id 1.1.1.1

[R1-ospf-1]area 0

[R1-ospf-1-area-0.0.0.0]network 192.168.1.1 0.0.0.0

[R1-ospf-1]area 1

[R1-ospf-1-area-0.0.0.1]network 192.168.1.65 0.0.0.0

[R1-ospf-1-area-0.0.0.1]network 192.168.1.97 0.0.0.0

[R2]ospf 1 router-id 2.2.2.2

[R2-ospf-1]area 0

[R2-ospf-1-area-0.0.0.0]network 192.168.1.2 0.0.0.0

[R2-ospf-1]area 2

[R2-ospf-1-area-0.0.0.2]network 192.168.1.129 0.0.0.0

[R2-ospf-1-area-0.0.0.2]network 192.168.1.161 0.0.0.0

[R2-ospf-1]default-route-advertise always

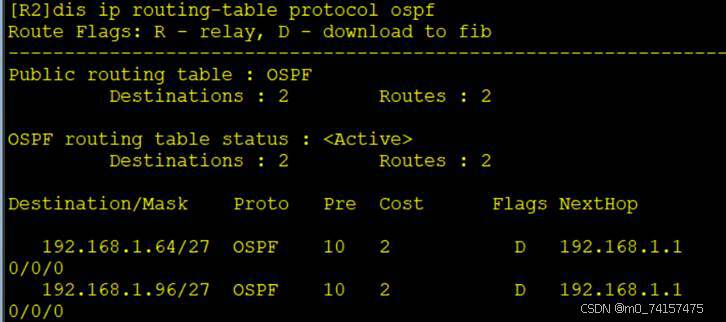

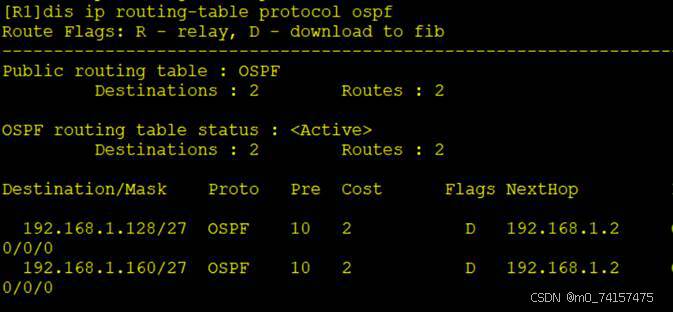

测试：PC2 ping PC4

5、配置Telnet服务

[R1]aaa

[R1-aaa]local-user wangdaye privilege level 15 password cipher wdy12345

[R1-aaa]local-user wangdaye service-type telnet

[R1]user-interface vty 0 4

[R1-ui-vty0-4]authentication-mode aaa

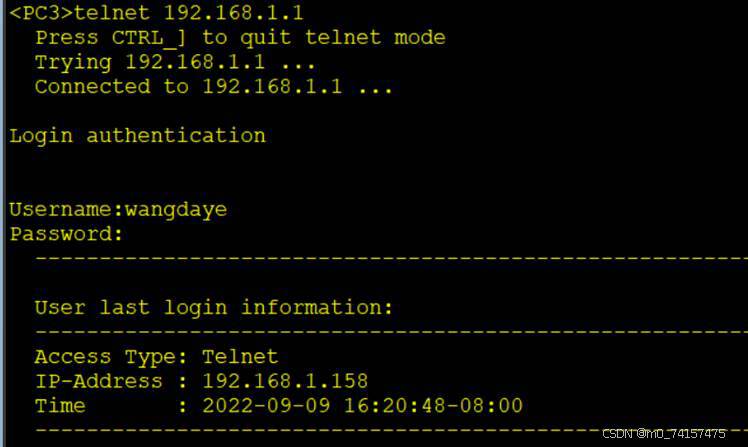

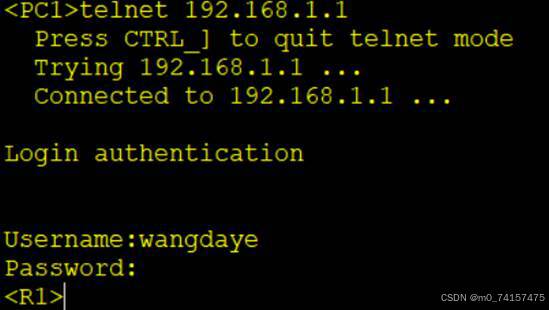

测试：

6、配置ACL，实现PC1不能Telnet，其他内网pc都可以Telnet；

[R1]acl 3000

[R1-acl-adv-3000]rule deny tcp source 192.168.1.93 0 destination 192.168.1.1 0.0.0.0 destination-port eq 23

[R1-acl-adv-3000]rule deny tcp source 192.168.1.93 0 destination 192.168.1.65 0.0.0.0 destination-port eq 23

将ACL下发到相应的接口下

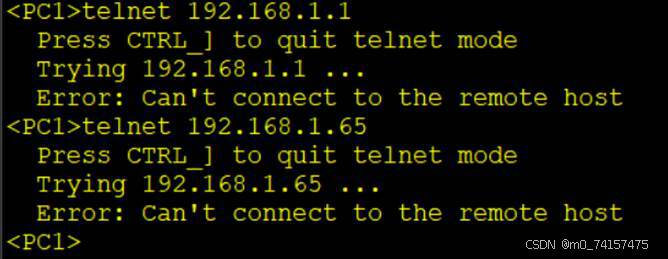

测试

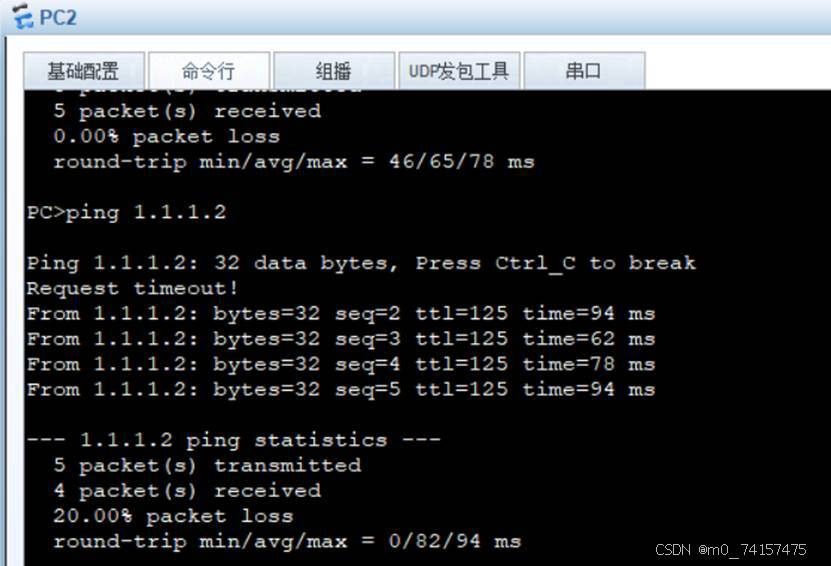

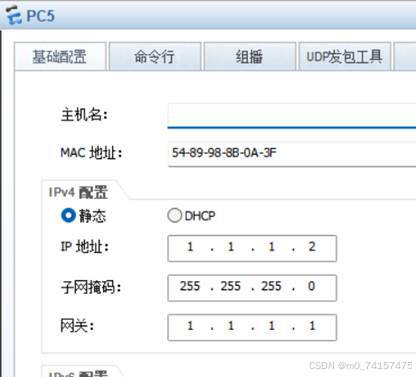

1. 配置Easy ip ，实现PC1-PC4可以访问PC5，全网互通

[R2]acl 2000

[R2-acl-basic-2000]rule permit source 192.168.1.0 0.0.0.255

[R2]int g0/0/1(公网口)

[R2-GigabitEthernet0/0/1]nat outbound 2000

配置缺省路由（网络出口设备）

[R2]ip route-static 0.0.0.0 0 12.1.1.2

[ISP]ip route-static 0.0.0.0 0 12.1.1.1

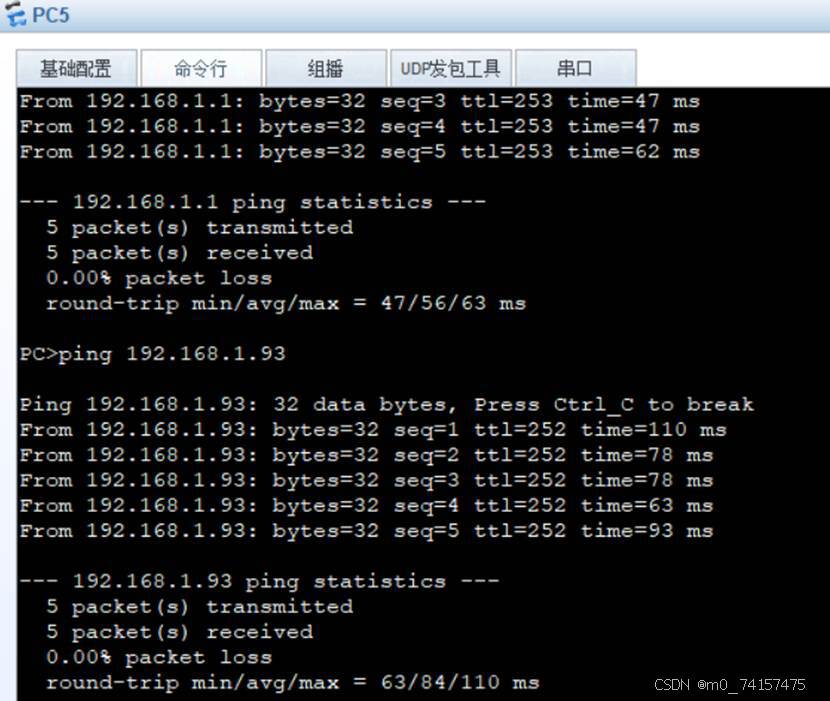

1. 配置NAT server，实现ISP路由Telnet 12.1.1.1 ，最终成功登录到R1上

（1）在 R2 的公网接口上配置 NAT SERVER，映射端口23

[R2-GigabitEthernet0/0/1]nat server protocol tcp global current-interface 23 inside 192.168.1.1 23

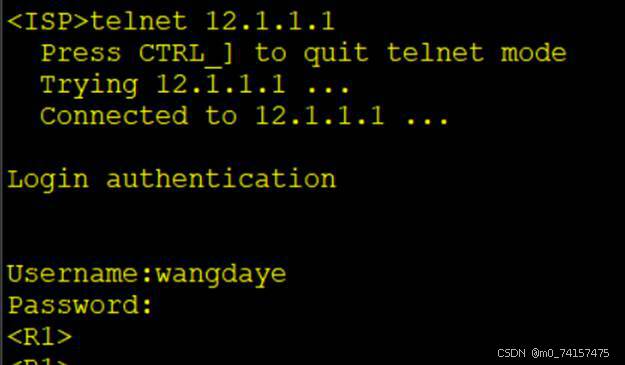

（2）在 ISP上测试是否能够通过 R1 的公网地址访问 Telnet 的Telnet服务
