在画位势高度的时候发现等压截取会出现缺测,参考官网案例,修正了下,再次记录下代码。
geop_plane = wrf_user_interp_level( gmph,p,850.,False)/9.8
guess = 1 ; use zonal means
is_cyclic = True ; cyclic [global]
nscan = 1500 ; usually much less than this
eps = 1.e-2 ; variable dependent
relc = 0.6 ; relaxation coefficient
opt = 0 ; not used
poisson_grid_fill( geop_plane, is_cyclic, guess, nscan, eps, relc, opt)

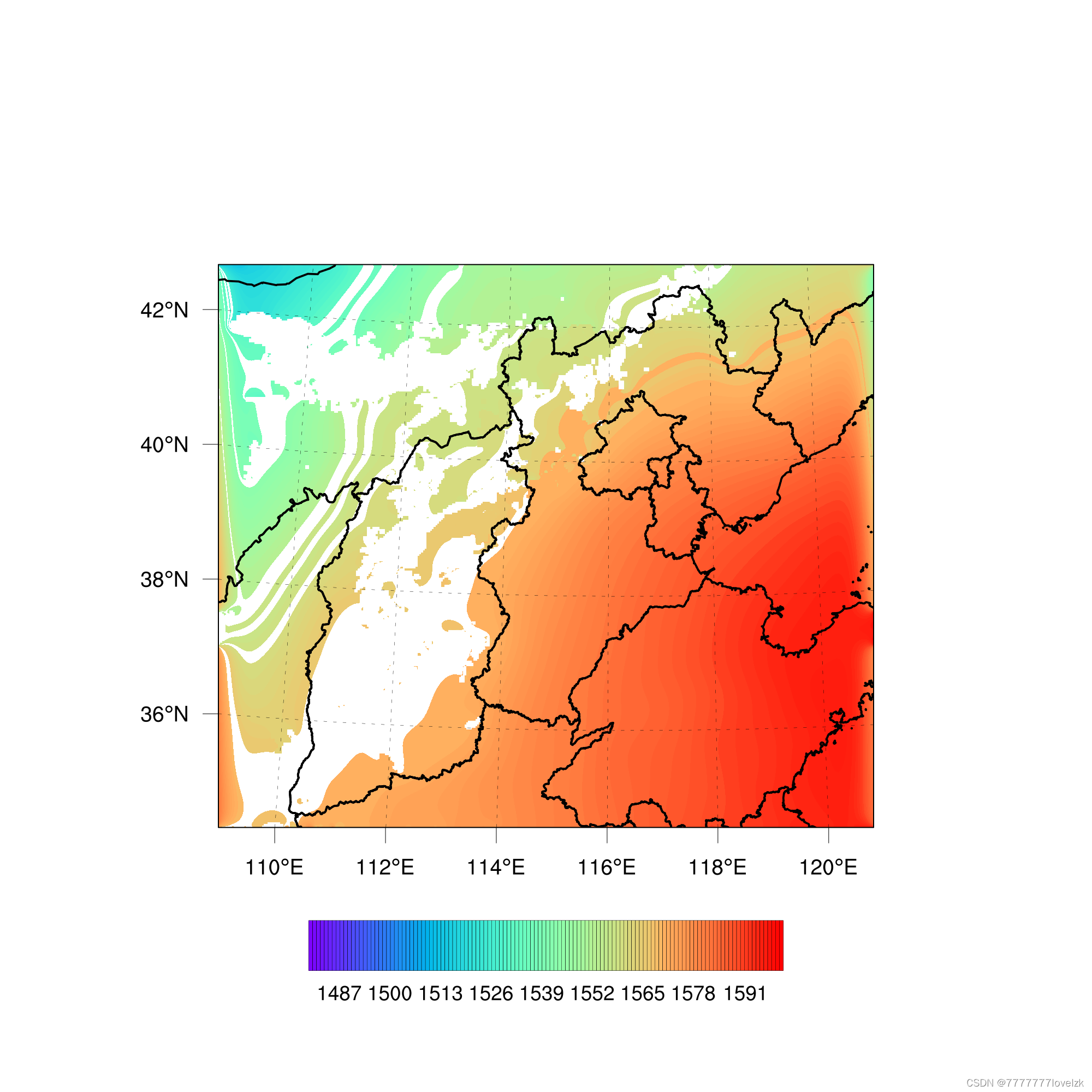

原结果:

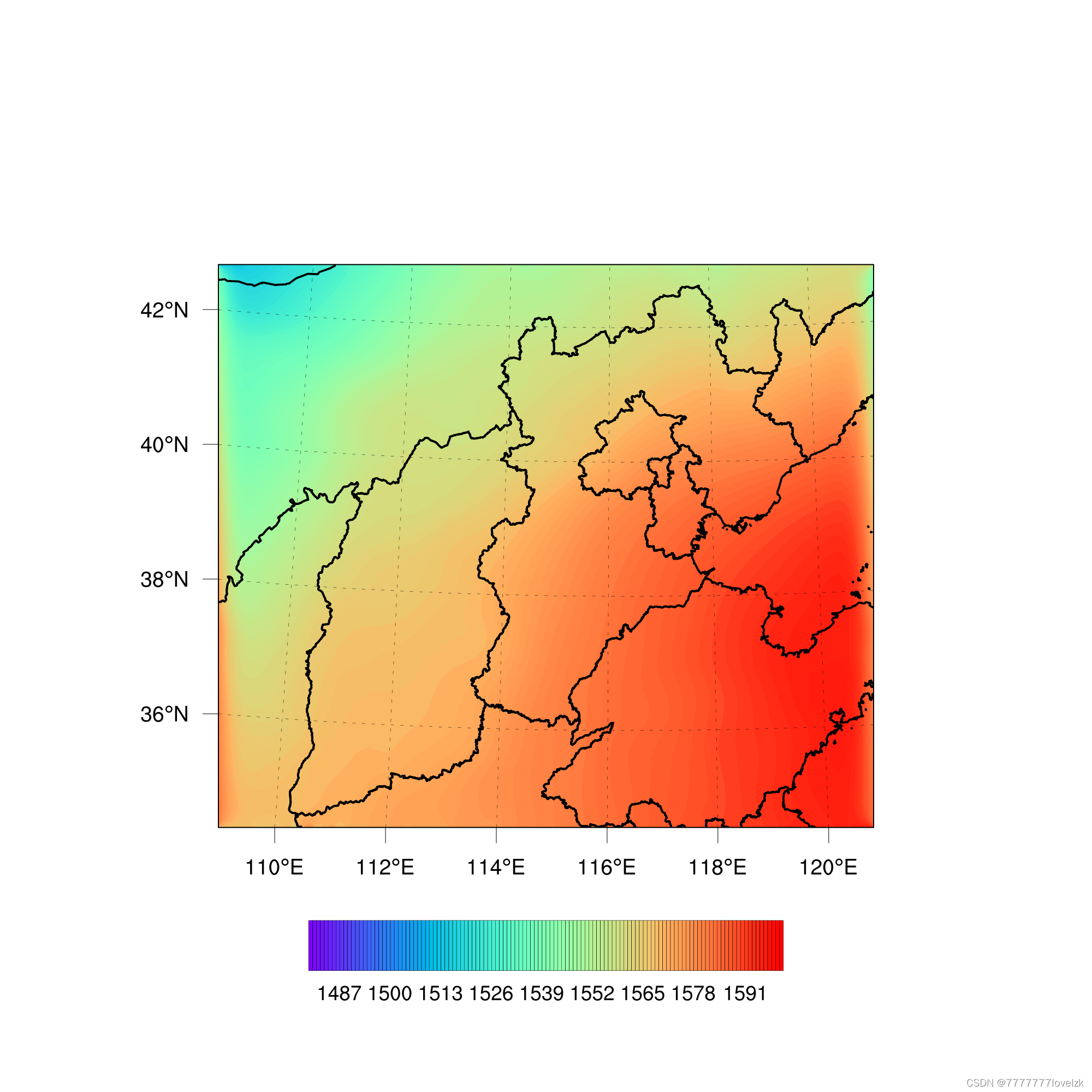

填平修正后:
