NCU FPGA实验——关于调休的波形显示

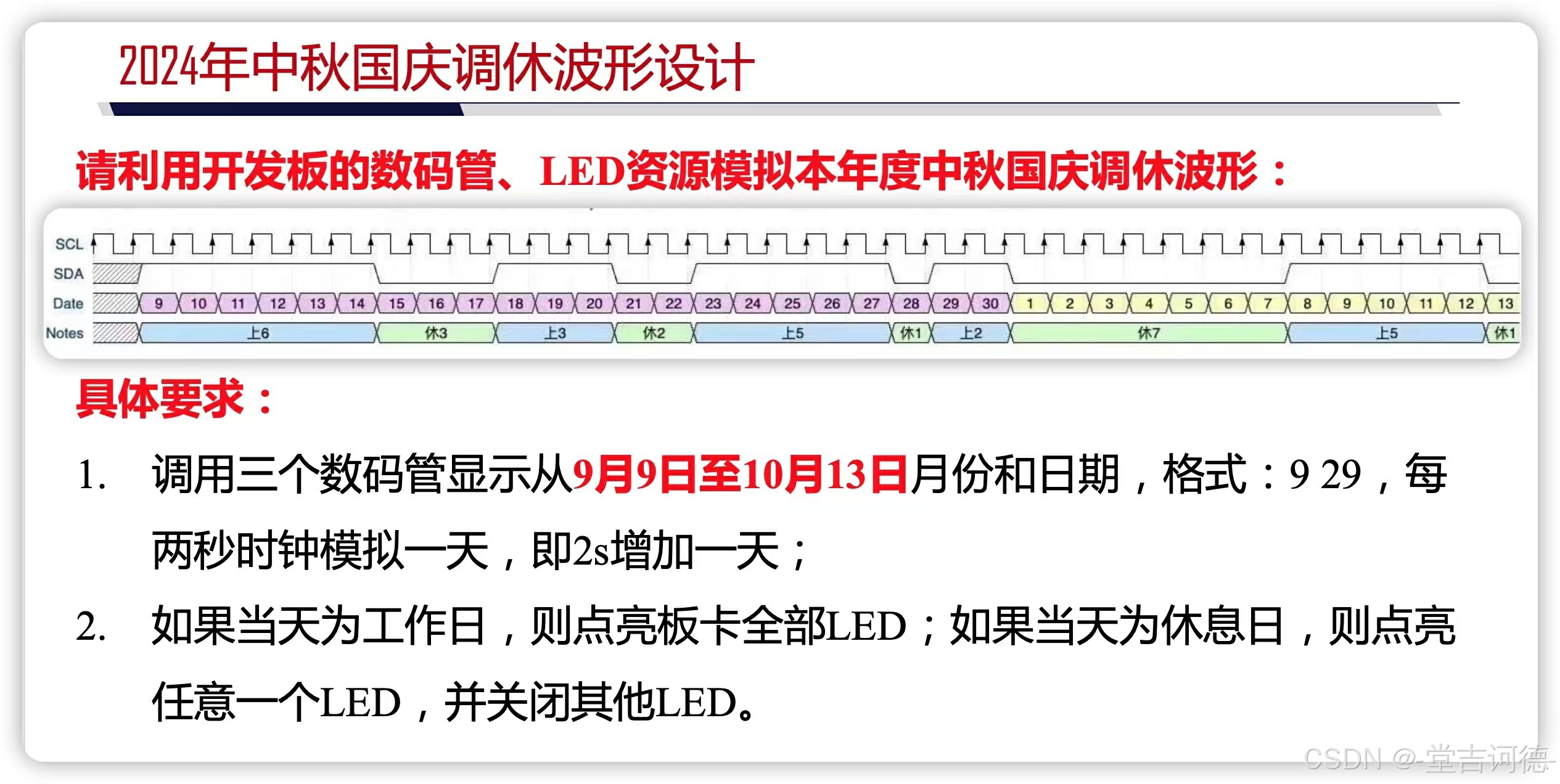

一、要求

二、Verilog代码实现

module date_display(
    input             rst,      // 异步置位-低电平起效
    input             en,       // 使能
    input             clk,

    output reg [6:0] SG0,       // 数码管
    output reg [6:0] SG1,
    output reg [6:0] SG2,
    output reg [6:0] SG3,
    output reg [6:0] SG4,
    output reg [6:0] cnt_count,
    output reg [9:0] led
);

// 日期
wire [3:0] sw1;                // 十位
wire [3:0] gw1;                // 个位
// 月份
wire [3:0] sw2;                // 十位
wire [3:0] gw2;                // 个位
wire [34:0] date;              // 1为上班，0为休息
reg [5:0] index;               // 修改为 reg 类型并适当调整位宽

assign date = 35'b01111100000001101111100111000111111;
assign sw1 = cnt_count % 100 / 10;
assign gw1 = cnt_count % 10;
assign sw2 = mouth / 10;
assign gw2 = mouth % 10;

reg [30:0] cnt;
reg [7:0] mouth;
reg clk1;

// 分频器
always @(posedge clk) begin
    cnt <= cnt + 1;
    if (cnt > 99999999) begin
        clk1 <= 1'b1;
        cnt <= 0;
    end else
        clk1 <= 1'b0;
end

// 计数
always @(negedge clk1 or negedge rst) begin
    if (!rst) begin
        mouth <= 7'd9;
        cnt_count <= 7'd9;
        index <= 0; // 初始化 index
    end else if (en) begin
        if (cnt_count < 7'd30) begin // 当日期小于30时，加一计数
            cnt_count <= cnt_count + 7'd1;
            if (index < 34) begin
                index <= index + 1; // 在这里更新 index
            end else begin
                index <= 0;
            end

           if (mouth == 7'd10 && cnt_count == 7'd13) begin // 当计数到10月13日时，复位
                mouth <= 7'd9;
                cnt_count <= 7'd9;
                index <= 0;
            end
            end else if (mouth == 7'd9 && cnt_count == 7'd30) begin // 当计数到9月30日时，变为10月1日
                cnt_count <= 7'd1;
                mouth <= 7'd10;
        end
    end
end

// 数码管显示
always @(posedge clk1 or negedge rst) begin
    if (!rst) begin
        SG0 <= 7'b0010000;
        SG1 <= 7'b1000000;
        SG2 <= 7'b0010000;
        SG3 <= 7'b1000000;
    end else begin
        // 显示个十位数字
        case (gw1)
            0: SG0 <= 7'b1000000; 1: SG0 <= 7'b1111001;
            2: SG0 <= 7'b0100100; 3: SG0 <= 7'b0110000;
            4: SG0 <= 7'b0011001; 5: SG0 <= 7'b0010010;
            6: SG0 <= 7'b0000010; 7: SG0 <= 7'b1111000;
            8: SG0 <= 7'b0000000; 9: SG0 <= 7'b0010000;
            default: SG0 <= 7'b1111111;
        endcase
        case (sw1)
            0: SG1 <= 7'b1000000; 1: SG1 <= 7'b1111001;
            2: SG1 <= 7'b0100100; 3: SG1 <= 7'b0110000;
            default: SG1 <= 7'b1111111; // 添加 default 情况以防止未定义行为
        endcase
        case (gw2)
            0: SG2 <= 7'b1000000; 9: SG2 <= 7'b0010000;
            default: SG2 <= 7'b1111111;
        endcase
        case (sw2)
            0: SG3 <= 7'b1000000; 1: SG3 <= 7'b1111001;
            default: SG3 <= 7'b1111111;
        endcase
		       SG4 <= 7'b1111111;
    end
end

// 日期判定
always @(*) begin
    led = date[index] ? 10'b1111111111 : 10'b0000000001; // 使用 index 进行日期判定
end

endmodule
