swing中几种布局器（稍微记录下）

一自带的流式layout布局器

import javax.swing.JFrame;
import javax.swing.JPanel;
import java.awt.FlowLayout;

public class Demonstration extends JFrame {
    public Demonstration() {
        setTitle("ColorLabel 示例");
        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        setSize(300, 200);
        setLayout(new FlowLayout());

        JPanel panel = new JPanel(new FlowLayout());
        panel.add(new ColorLabel("红色标签", Color.RED));
        panel.add(new ColorLabel("绿色标签", Color.GREEN));
        panel.add(new ColorLabel("蓝色标签", Color.BLUE));
        panel.add(new ColorLabel("黄色标签", Color.YELLOW));

        add(panel);
    }

    public static void main(String[] args) {
        SwingUtilities.invokeLater(() -> {
            Demonstration demo = new Demonstration();
            demo.setVisible(true);
        });
    }
}

或

JPanel panel = new JPanel(new FlowLayout());

LayoutManager flowLayout= new FlowLayout();

frame.setLayout(flowLayout);

或直接frame.set（new FlowLayout()),根据横向内容多少往下挤

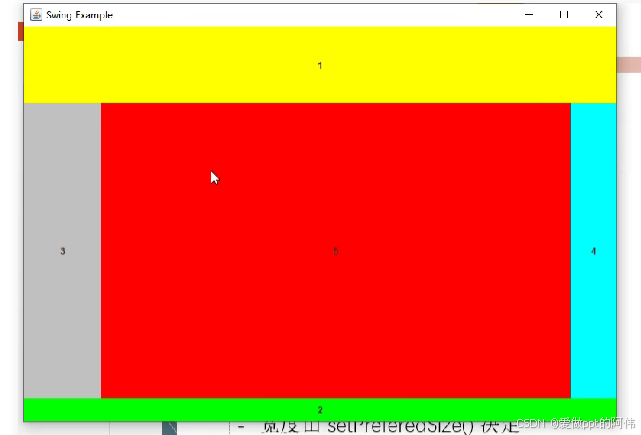

二borderlayout

由

中，东南西北，构成能够分别设定宽度

import java.awt.BorderLayout;
import java.awt.Container;
import javax.swing.JButton;
import javax.swing.JFrame;
public class BorderLayoutDemo {
	public static void main(String[] args) {
		JFrame frame=new JFrame("边界布局"); //创建一个窗口
		frame.setSize(300,200);//设置窗口的大小
		frame.setLayout(new BorderLayout(10,10));//设置为边界布局管理器
		Container contentPane=frame.getContentPane();//获取窗口的内容窗格
		//创建五个按钮分别添加到窗口的北、南、西、东和中部
		contentPane.add(new JButton("北部"),BorderLayout.NORTH);
		contentPane.add(new JButton("南部"),BorderLayout.SOUTH);
		contentPane.add(new JButton("西部"),BorderLayout.WEST);
		contentPane.add(new JButton("东部"),BorderLayout.EAST);
		contentPane.add(new JButton("中部"),BorderLayout.CENTER);
		frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
		frame.setVisible(true);
	}
}

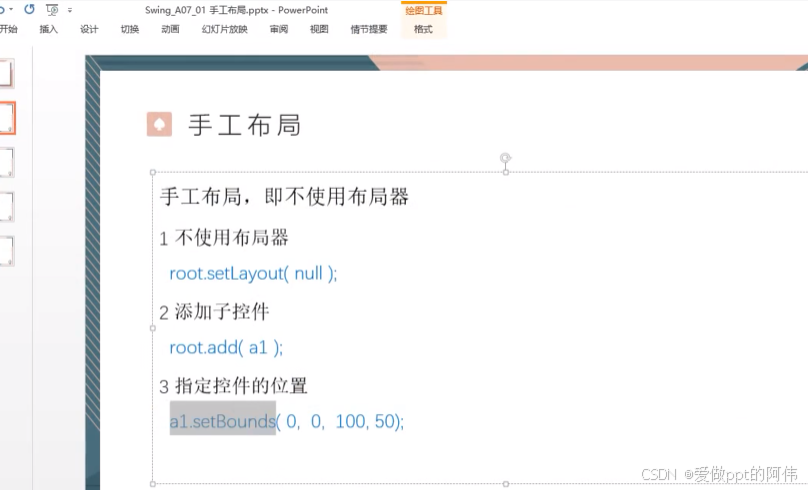

如何自定义手工布局

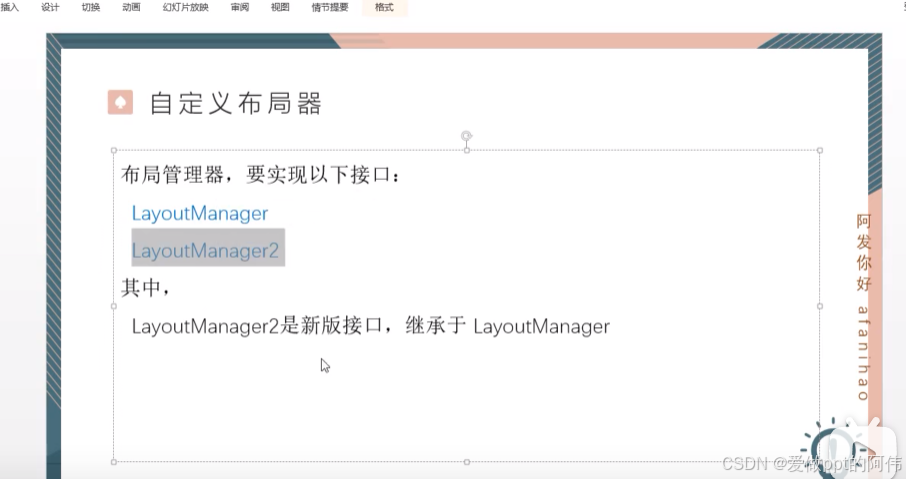

自定义布局器
