该文详细介绍了对微聊应用的多方面测试，包括注册、登录、会话窗口和朋友圈的自动化功能测试，以及界面、兼容性、性能和安全性的评估。测试结果显示，微聊在大部分场景下表现良好，但在高并发和部分设备上存在性能和界面适配问题。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

👑作者主页：Java冰激凌

概述：

本次测试旨在评估微聊的功能，包括用户界面、消息传递、安全性等方面。测试环境为Windows 10操作系统，使用Google Chrome浏览器进行测试。

测试方法：

本次测试采用黑盒测试方法，即不考虑系统内部的实现细节，只关注用户在使用过程中是否能够顺利完成任务。测试人员通过模拟真实用户的操作，对聊天室的各项功能进行了测试。

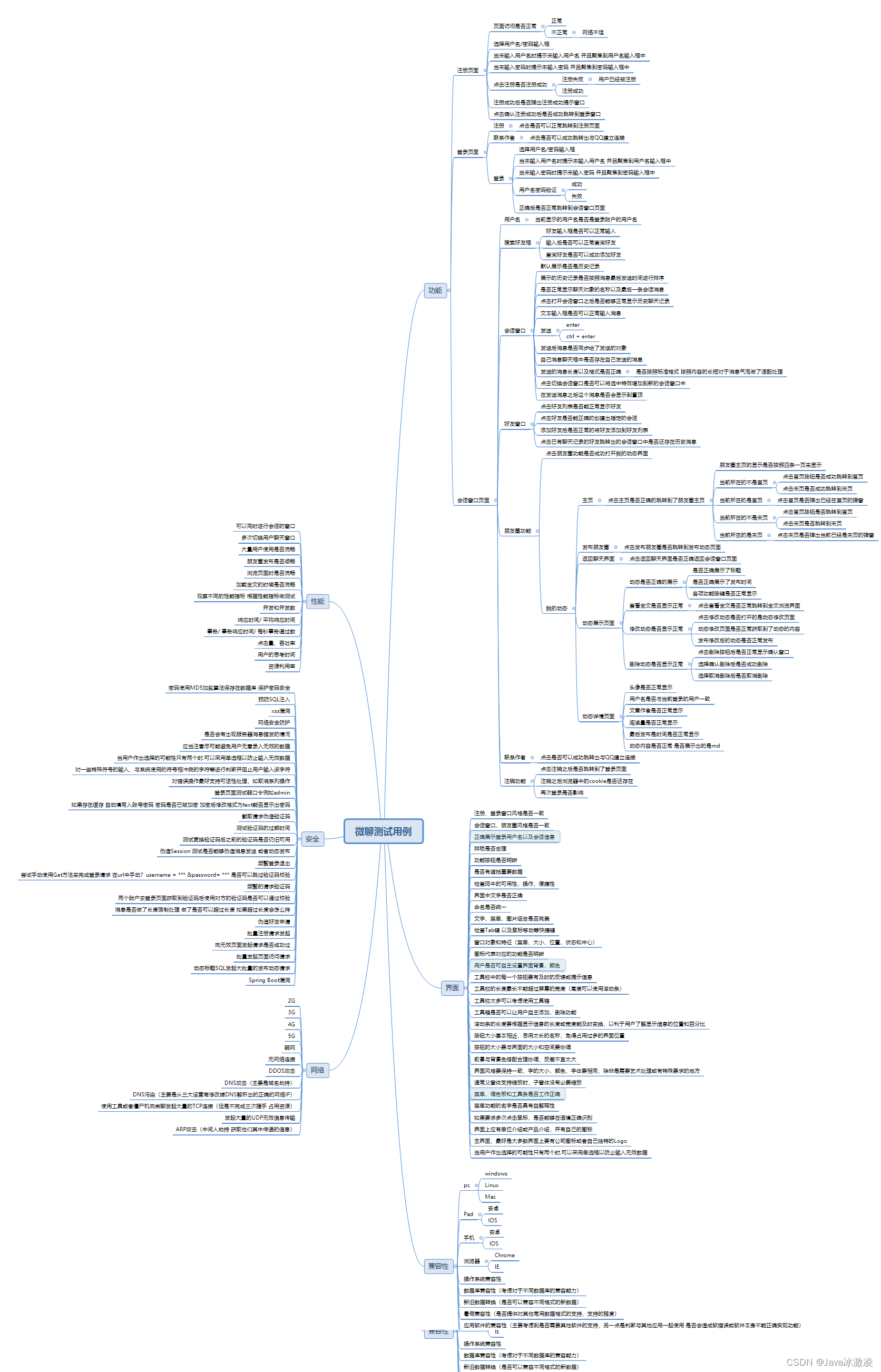

微聊测试用例

微聊测试用例已上传致Gitee平台点击链接查看点击跳转

功能测试

自动化测试

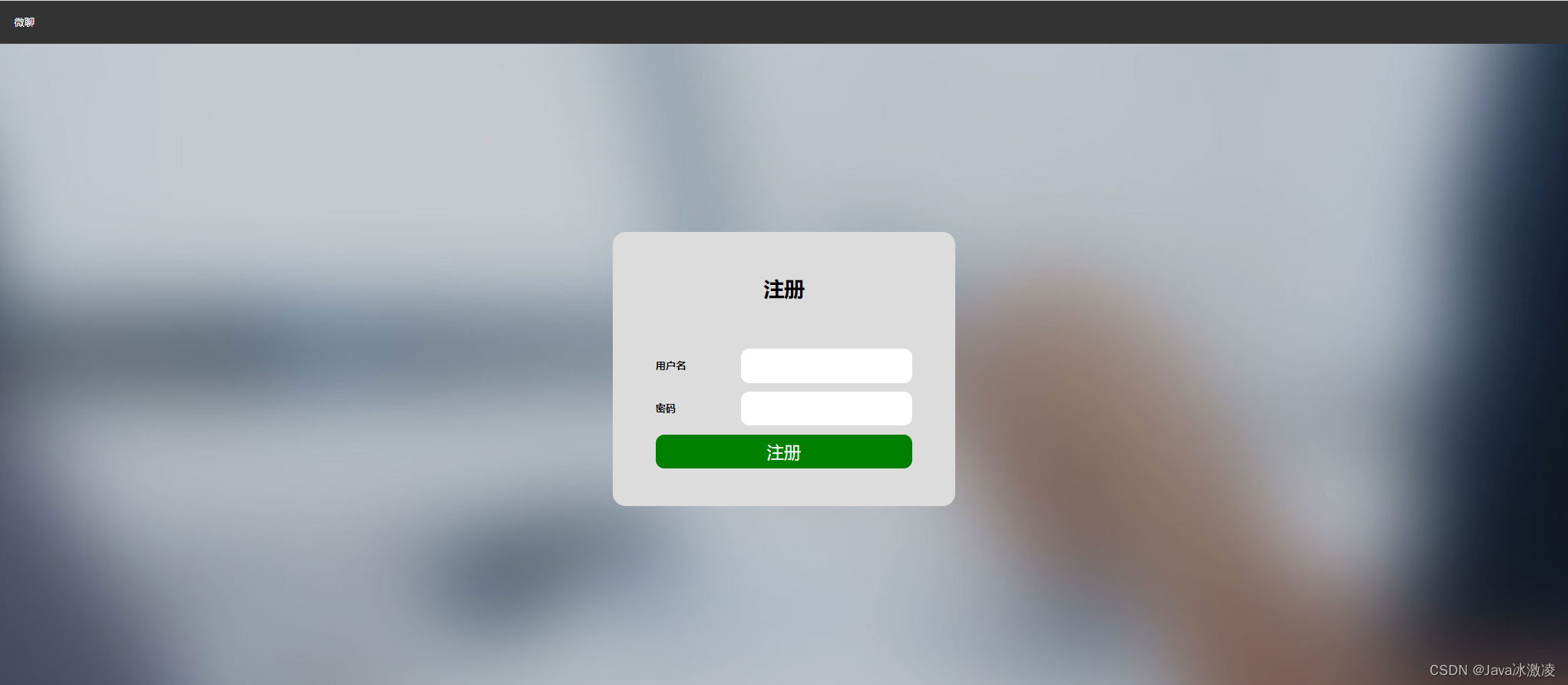

注册页面

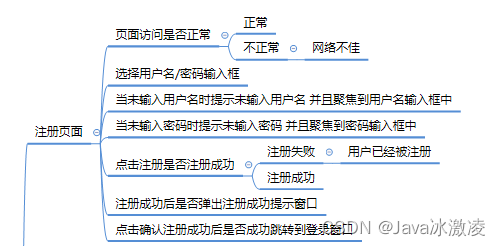

测试用例：
在这里插入图片描述
自动化测试代码：

@TestMethodOrder(MethodOrderer.OrderAnnotation.class)//设置优先级需要的
public class RegisterTest {
    private static WebDriver webDriver;

    @BeforeAll
    public static void Genter(){
        ChromeOptions options = new ChromeOptions();
        options.addArguments("--remote-allow-origins=*");
        webDriver = new ChromeDriver(options);
        webDriver.get("http://192.144.216.100:1120/register.html");
    }

    /**
     * 校验当前页面title是否正确
     */
    @Test
    @Order(1)
    public void title() throws InterruptedException {
        Assertions.assertEquals("注册",webDriver.getTitle());
    }

    /**
     * 注册用户 注册成功后是否成功跳转到登录页面
     * @throws InterruptedException
     */
    @Test
    @Order(2)
    public void input() throws InterruptedException {
        sleep(500);
        WebElement username = webDriver.findElement(By.cssSelector("#username"));
        WebElement password = webDriver.findElement(By.cssSelector("#password"));
        username.sendKeys("小1");
        password.sendKeys("123");
        webDriver.findElement(By.cssSelector("#submit")).click();
        sleep(500);
        Alert alert = webDriver.switchTo().alert();//确认弹窗
        alert.accept();//点击确认按钮
        Assertions.assertEquals("登录页面",webDriver.getTitle());
        webDriver.close();
    }
}

测试结果：在注册功能测试中响应较快体验良好暂未发现错误

登录页面

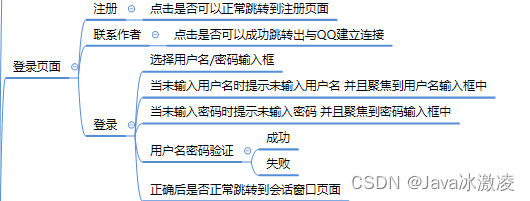

测试用例：
在这里插入图片描述
自动化测试代码：

/**
 * @Author: 冰激凌
 * @Date: 2023-07-13 21:13
 **/
@TestMethodOrder(MethodOrderer.OrderAnnotation.class)//设置优先级需要的
public class LoginTest {
    private WebDriver webDriver;

    @BeforeEach
    public void Genter(){
        webDriver = new ChromeDriver();
        webDriver.get("http://192.144.216.100:1120/login.html");
    }

    @AfterEach
    public void close(){
        webDriver.quit();
    }

    /**
     * 测试点击注册是否可以跳转到注册页面
     */
    @Test
    @Order(1)
    public void reg() throws InterruptedException {
        webDriver.findElement(By.cssSelector("body > div.nav > a:nth-child(4)")).click();
        //获取并切换到当前的窗口
        webDriver.switchTo().window(webDriver.getWindowHandle());
        sleep(500);
        Assertions.assertEquals("注册",webDriver.getTitle());
    }

    /**
     * 测试点击联系作者是否可以跳转到联系作者
     */
    @Test
    @Order(2)
    public void connection() throws InterruptedException {
//        webDriver.navigate().back();//后退
        webDriver.findElement(By.cssSelector("body > div.nav > a:nth-child(5)")).click();
    }

    public static Stream<Arguments> Generator () {
        return Stream.of(Arguments.arguments("冰激凌","010822"));
    }

    @Order(3)
    @ParameterizedTest
    @MethodSource("Generator")
    public void login(String username,String password) throws InterruptedException {
//        webDriver.navigate().back();//后退
//        sleep(1000);
        WebElement usernameInput = webDriver.findElement(By.cssSelector("#username"));
        WebElement passwordInput = webDriver.findElement(By.cssSelector("#password"));
        usernameInput.sendKeys(username);
        passwordInput.sendKeys(password);
        webDriver.findElement(By.cssSelector("#submit")).click();
        sleep(1000);
//        webDriver.switchTo().window(webDriver.getWindowHandle());
        Assertions.assertEquals("微聊",webDriver.getTitle());
    }

    /**
     * 输入错误的账号密码测试
     */
    @Order(4)
    @ParameterizedTest
    @MethodSource("Generator")
    public void loginError(String username,String password) throws InterruptedException {
//        sleep(1000);
//        webDriver.findElement(By.cssSelector("body > div.client-container > div.toolbar > span.tool-button > a > img")).click();
        WebElement usernameInput = webDriver.findElement(By.cssSelector("#username"));
        WebElement passwordInput = webDriver.findElement(By.cssSelector("#password"));
        usernameInput.sendKeys(username);
        passwordInput.sendKeys(password + 1);
        webDriver.findElement(By.cssSelector("#submit")).click();
        sleep(1000);
        Alert alert = webDriver.switchTo().alert();
        Assertions.assertNotNull(alert);
    }
}

测试结果：在测试登录功能中测试了多项指标整体体验效果较好在高并发的情况下服务器出现了少量的卡顿导致响应不及时但并不影响用户体验

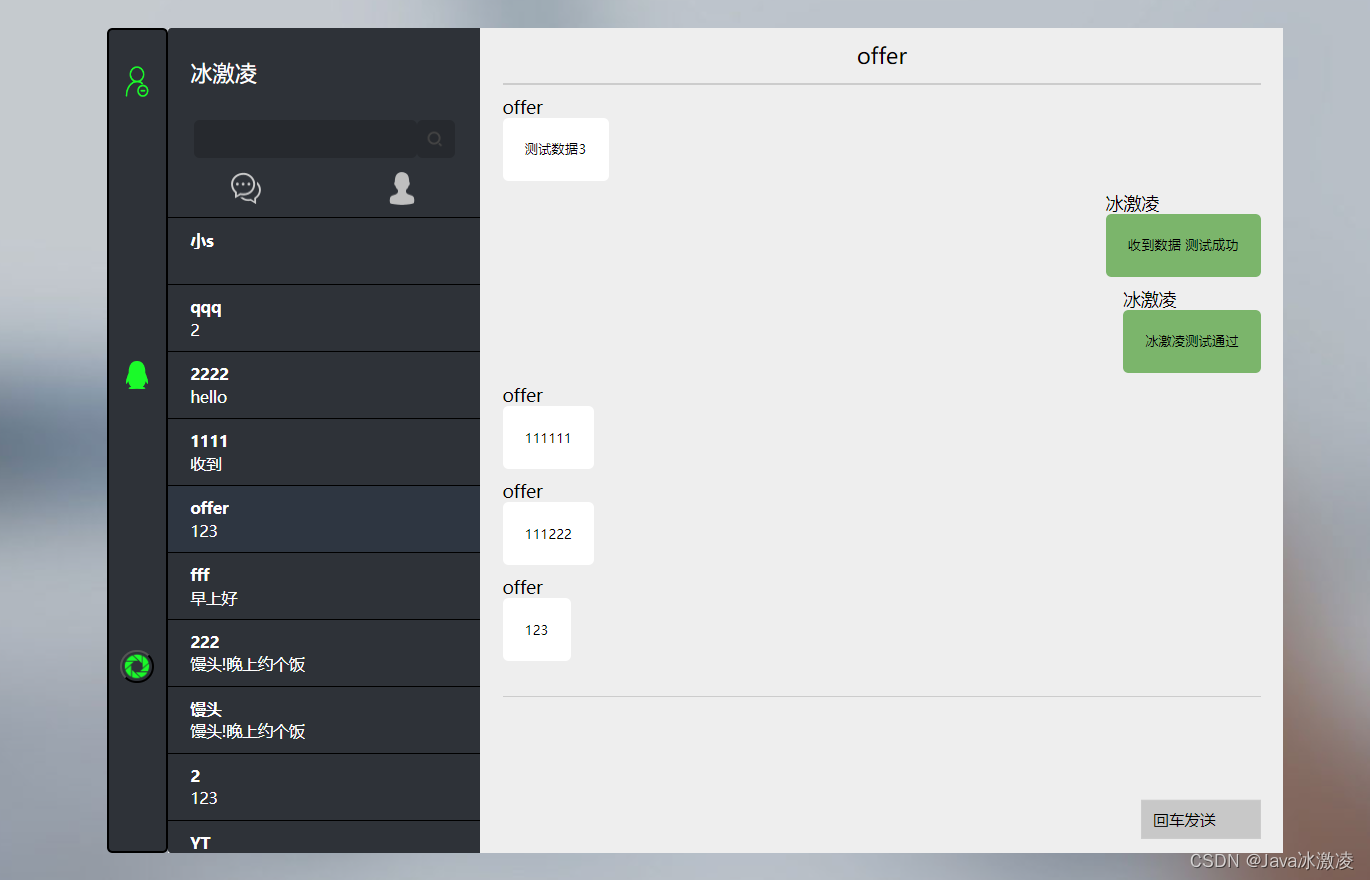

会话窗口

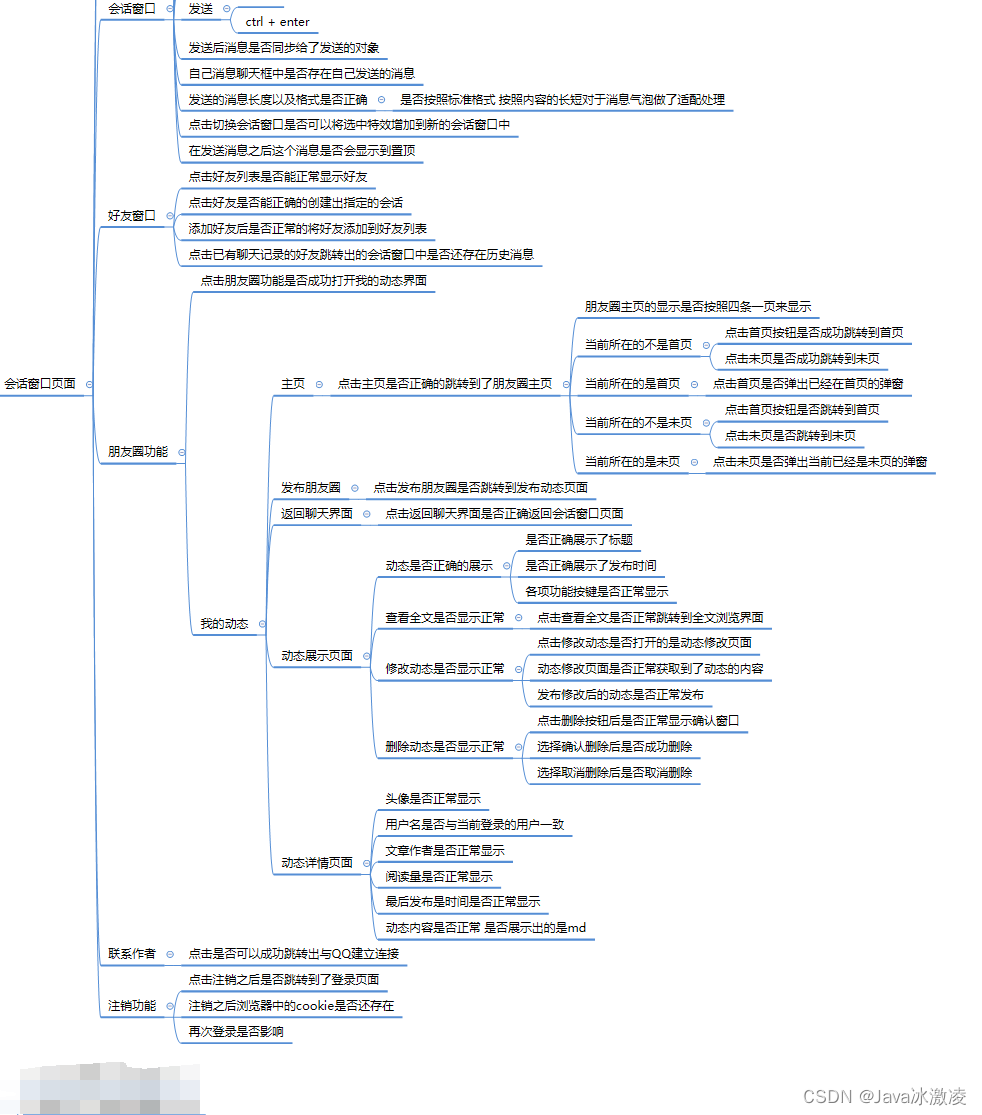

测试用例
在这里插入图片描述
自动化测试代码：

/**
 * @Author: 冰激凌
 * @Date: 2023-07-13 22:32
 **/
@TestMethodOrder(MethodOrderer.OrderAnnotation.class)//设置优先级需要的
public class ClientTest {
    private WebDriver webDriver;

    @BeforeEach
    public void Genter(){
        webDriver = new ChromeDriver();
        webDriver.get("http://192.144.216.100:1120/login.html");
    }

    @AfterEach
    public void close(){
        webDriver.quit();
    }

    public static Stream<Arguments> Generator () {
        return Stream.of(Arguments.arguments("冰激凌","010822"));
    }

    /**
     * 当前用户名是否正确
     * @param username
     * @param password
     * @throws InterruptedException
     */
    @ParameterizedTest
    @MethodSource("Generator")
    public void isUsername(String username,String password) throws InterruptedException {
        WebElement usernameInput = webDriver.findElement(By.cssSelector("#username"));
        WebElement passwordInput = webDriver.findElement(By.cssSelector("#password"));
        usernameInput.sendKeys(username);
        passwordInput.sendKeys(password);
        webDriver.findElement(By.cssSelector("#submit")).click();
        sleep(1000);
        WebElement element = webDriver.findElement(By.cssSelector("body > div.client-container > div.main > div.left > div.user"));
        String innerhtml = element.getAttribute("innerHTML");
        Assertions.assertEquals(username,innerhtml);
    }

    /**
     * 测试登录后发送消息以及添加好友功能
     * @param username
     * @param password
     * @throws InterruptedException
     */
    @ParameterizedTest
    @MethodSource("Generator")
    public void client(String username,String password) throws InterruptedException {
        webDriver.manage().window().maximize();//页面放大
        WebElement usernameInput = webDriver.findElement(By.cssSelector("#username"));
        WebElement passwordInput = webDriver.findElement(By.cssSelector("#password"));
        usernameInput.sendKeys(username);
        passwordInput.sendKeys(password);
        webDriver.findElement(By.cssSelector("#submit")).click();
        sleep(500);
        webDriver.findElement(By.xpath("//*[@id=\"session-list\"]/li[7]")).click();
        sleep(100);
        //获取到当前会话中的所有消息
        List<WebElement> webElements = webDriver.findElements(By.cssSelector("body > div.client-container > div.main > div.right > div.message-show div"));
        //获取到消息的个数
        int count = webElements.size();
        //选中输入框
        WebElement input = webDriver.findElement(By.cssSelector("body > div.client-container > div.main > div.right > textarea"));
        //在输入框输入消息
        input.sendKeys("馒头!晚上约个饭");
        sleep(100);
        //发送
        input.sendKeys(Keys.ENTER);
        sleep(500);
        //再次获取所有的消息个数
        List<WebElement> webElements1 = webDriver.findElements(By.cssSelector("body > div.client-container > div.main > div.right > div.message-show div"));
        //获取到消息的个数
        int count1 = webElements1.size();
        //如果count + 1 == count 则代表发送成功
        Assertions.assertNotEquals(count,count1);
        webDriver.findElement(By.cssSelector("body > div.client-container > div.main > div.left > div.search > input")).sendKeys("小s");
        webDriver.findElement(By.cssSelector("body > div.client-container > div.main > div.left > div.search > button")).click();
        sleep(500);
        Alert alert = webDriver.switchTo().alert();//确认弹窗
        alert.accept();//点击确认按钮
        sleep(500);
        webDriver.findElement(By.cssSelector("body > div.client-container > div.main > div.left > div.tab > div.tab-friend")).click();
        List<WebElement> webElements2 = webDriver.findElements(By.cssSelector("#friend-list li"));
        boolean flg = false;
        WebElement friend = null;
        for(WebElement element : webElements2){
            if(element.getAttribute("friend-id").equals("47")){
                flg = true;
                friend = element;
                break;
            }
        }
        Assertions.assertEquals(true,flg);
        friend.click();

    }
}

测试结果：在测试会话界面测试中功能使用非常简单基本功能已经完善在快速处理消息响应下提要较优在测试添加好友功能时的处理比较特殊使用的强制添加好友措施不是非常合理希望后序继续完善

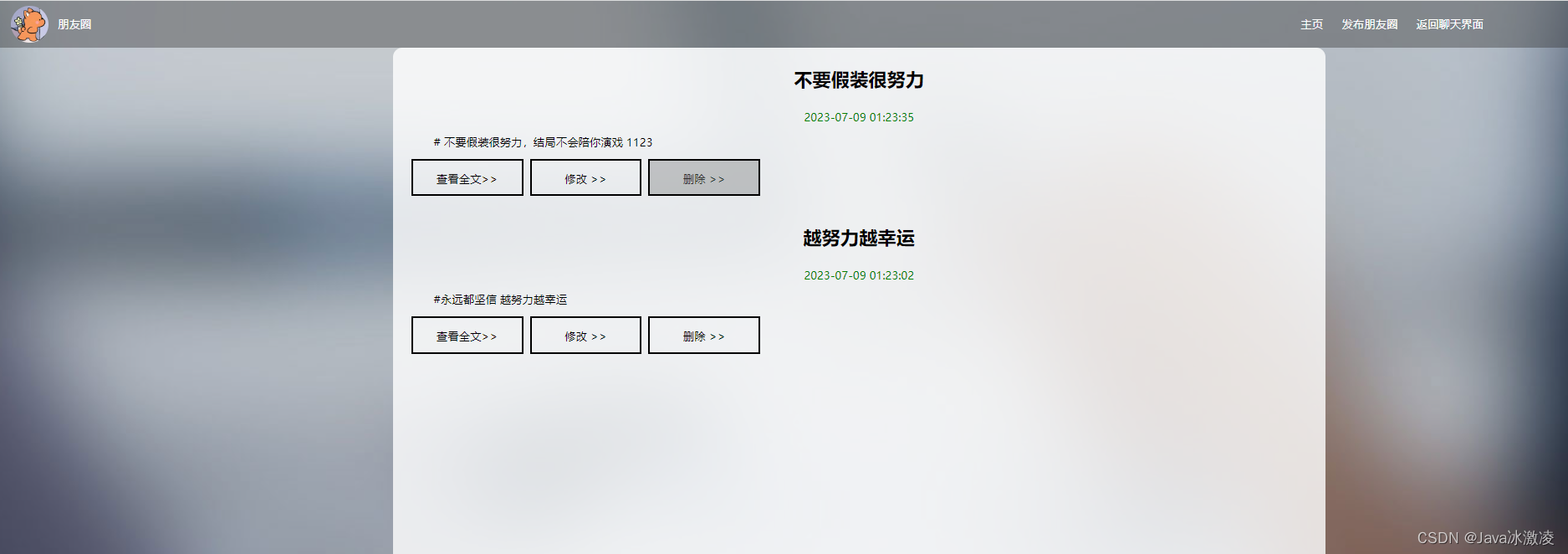

朋友圈界面

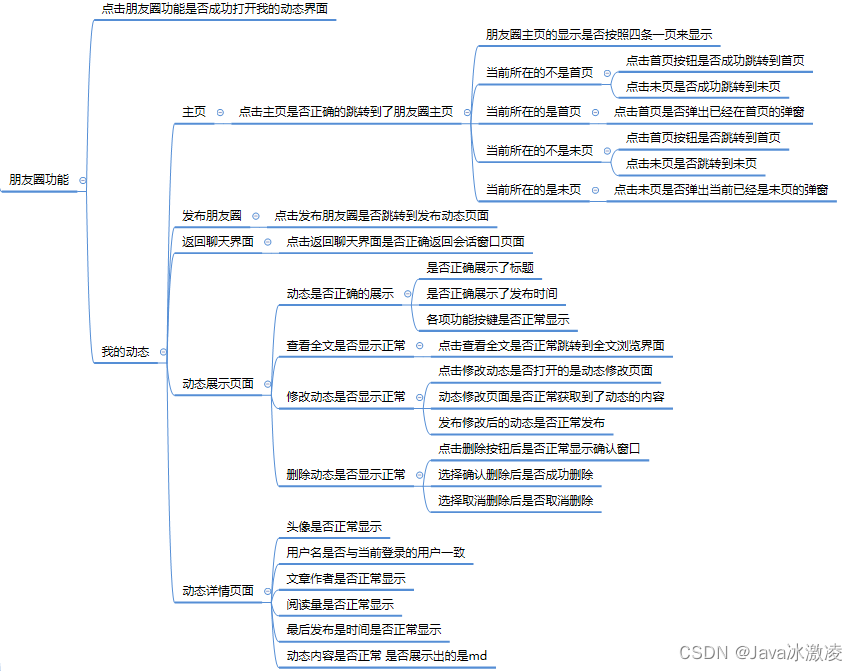

测试用例：
在这里插入图片描述
自动化测试代码：

/**
 * @Author: 冰激凌
 * @Date: 2023-07-14 11:21
 **/
@TestMethodOrder(MethodOrderer.OrderAnnotation.class)//设置优先级需要的
public class BlogListTest {
    private WebDriver webDriver;
    @BeforeEach
    public void Genter(){
        webDriver = new ChromeDriver();
        webDriver.get("http://192.144.216.100:1120/login.html");
    }

    @AfterEach
    public void close(){
        webDriver.quit();
    }

    public static Stream<Arguments> Generator () {
        return Stream.of(Arguments.arguments("冰激凌","010822"));
    }

    /**
     * 验证进入朋友圈主页
     * @param username
     * @param password
     * @throws InterruptedException
     */
    @Order(1)
    @ParameterizedTest
    @MethodSource("Generator")
    public void blog(String username,String password) throws InterruptedException {
        webDriver.manage().window().maximize();//页面放大
        WebElement usernameInput = webDriver.findElement(By.cssSelector("#username"));
        WebElement passwordInput = webDriver.findElement(By.cssSelector("#password"));
        usernameInput.sendKeys(username);
        passwordInput.sendKeys(password);
        webDriver.findElement(By.cssSelector("#submit")).click();
        sleep(100);
        webDriver.findElement(By.cssSelector("body > div.client-container > div.toolbar > span.circle-of-friends > button > img")).click();
        sleep(100);
        Assertions.assertEquals("我的朋友圈",webDriver.getTitle());
        webDriver.findElement(By.cssSelector("body > div.nav > a:nth-child(4)")).click();
        sleep(100);
        Assertions.assertEquals("朋友圈列表",webDriver.getTitle());
        webDriver.navigate().back();//后退
        sleep(100);
        webDriver.findElement(By.cssSelector("body > div.nav > a:nth-child(5)")).click();
        sleep(100);
        Assertions.assertEquals("朋友圈编辑",webDriver.getTitle());
        webDriver.navigate().back();//后退
        sleep(100);
        webDriver.findElement(By.cssSelector("body > div.nav > a:nth-child(6)")).click();
        sleep(100);
        Assertions.assertEquals("微聊",webDriver.getTitle());
    }

    /**
     * 验证当前登入的用户名是否正确
     * @param username
     * @param password
     * @throws InterruptedException
     */
    @Order(2)
    @ParameterizedTest
    @MethodSource("Generator")
    public void blog_list(String username,String password) throws InterruptedException {
        webDriver.manage().window().maximize();//页面放大
        WebElement usernameInput = webDriver.findElement(By.cssSelector("#username"));
        WebElement passwordInput = webDriver.findElement(By.cssSelector("#password"));
        usernameInput.sendKeys(username);
        passwordInput.sendKeys(password);
        webDriver.findElement(By.cssSelector("#submit")).click();
        sleep(100);
        webDriver.findElement(By.cssSelector("body > div.client-container > div.toolbar > span.circle-of-friends > button > img")).click();
        sleep(500);
        String blogTitle = webDriver.findElement(By.cssSelector("#artlist > div:nth-child(1) > div.title")).getAttribute("innerHTML");
        webDriver.findElement(By.cssSelector("#artlist > div:nth-child(1) > a:nth-child(4)")).click();
        String curBlogTitle = webDriver.findElement(By.cssSelector("#title")).getAttribute("innerHTML");
        Assertions.assertEquals(blogTitle,curBlogTitle);
    }

    /**
     * 验证修改动态内容
     * @param username
     * @param password
     * @throws InterruptedException
     */
    @Order(3)
    @ParameterizedTest
    @MethodSource("Generator")
    public void blog_list1(String username,String password) throws InterruptedException {
        webDriver.manage().window().maximize();//页面放大
        WebElement usernameInput = webDriver.findElement(By.cssSelector("#username"));
        WebElement passwordInput = webDriver.findElement(By.cssSelector("#password"));
        usernameInput.sendKeys(username);
        passwordInput.sendKeys(password);
        webDriver.findElement(By.cssSelector("#submit")).click();
        sleep(100);
        webDriver.findElement(By.cssSelector("body > div.client-container > div.toolbar > span.circle-of-friends > button > img")).click();
        sleep(300);
        String blogTitle = webDriver.findElement(By.cssSelector("#artlist > div:nth-child(1) > div.desc")).getAttribute("innerHTML");
        webDriver.findElement(By.cssSelector("#artlist > div:nth-child(1) > a:nth-child(5)")).click();
        sleep(1000);
        String curBlogTitle = webDriver.findElement(By.cssSelector("#editorDiv > div.CodeMirror.cm-s-default.CodeMirror-wrap > div.CodeMirror-scroll > div.CodeMirror-sizer > div > div > div > div.CodeMirror-code > div > pre > span > span")).getAttribute("innerHTML");
        Assertions.assertEquals(blogTitle,curBlogTitle);
    }

    /**
     * 验证发布文章 删除文章等
     * @param username
     * @param password
     * @throws InterruptedException
     */
    @Order(4)
    @ParameterizedTest
    @MethodSource("Generator")
    public void blog_list2(String username,String password) throws InterruptedException {
        webDriver.manage().window().maximize();//页面放大
        WebElement usernameInput = webDriver.findElement(By.cssSelector("#username"));
        WebElement passwordInput = webDriver.findElement(By.cssSelector("#password"));
        usernameInput.sendKeys(username);
        passwordInput.sendKeys(password);
        webDriver.findElement(By.cssSelector("#submit")).click();
        sleep(100);
        webDriver.findElement(By.cssSelector("body > div.client-container > div.toolbar > span.circle-of-friends > button > img")).click();
        sleep(300);
        webDriver.findElement(By.cssSelector("body > div.nav > a:nth-child(5)")).click();
        sleep(800);
        webDriver.findElement(By.cssSelector("#title")).sendKeys("自动化测试");
        WebElement element = webDriver.findElement(By.cssSelector("#editorDiv > div.CodeMirror.cm-s-default.CodeMirror-wrap > div.CodeMirror-scroll"));
        webDriver.findElement(By.cssSelector("body > div.blog-edit-container > div.title > button")).click();
        sleep(200);
        Alert alert = webDriver.switchTo().alert();//确认弹窗
        alert.accept();//点击确认按钮
        sleep(200);
        String title = webDriver.findElement(By.cssSelector("#artlist > div:nth-child(1) > div.title")).getAttribute("innerHTML");
        Assertions.assertEquals("自动化测试",title);
        //测试删除
        String time = webDriver.findElement(By.cssSelector("#artlist > div:nth-child(1) > div.date")).getAttribute("innerHTML");
        sleep(100);
        webDriver.findElement(By.cssSelector("#artlist > div:nth-child(1) > a:nth-child(6)")).click();
        webDriver.switchTo().alert().accept();//确认
        sleep(100);
        webDriver.switchTo().alert().accept();//确认
        sleep(100);
        String curTime = webDriver.findElement(By.cssSelector("#artlist > div:nth-child(1) > div.date")).getAttribute("innerHTML");
        sleep(200);
        Assertions.assertNotEquals(time,curTime);
    }
}
