数据结构 C语言描述 第三章 栈 队列 链表

于 2024-06-11 10:54:23 发布
阅读量146 收藏
点赞数 2
分类专栏： 进阶 数据结构 文章标签： 数据结构 c语言 链表
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.youkuaiyun.com/m0_69844818/article/details/139593144
版权

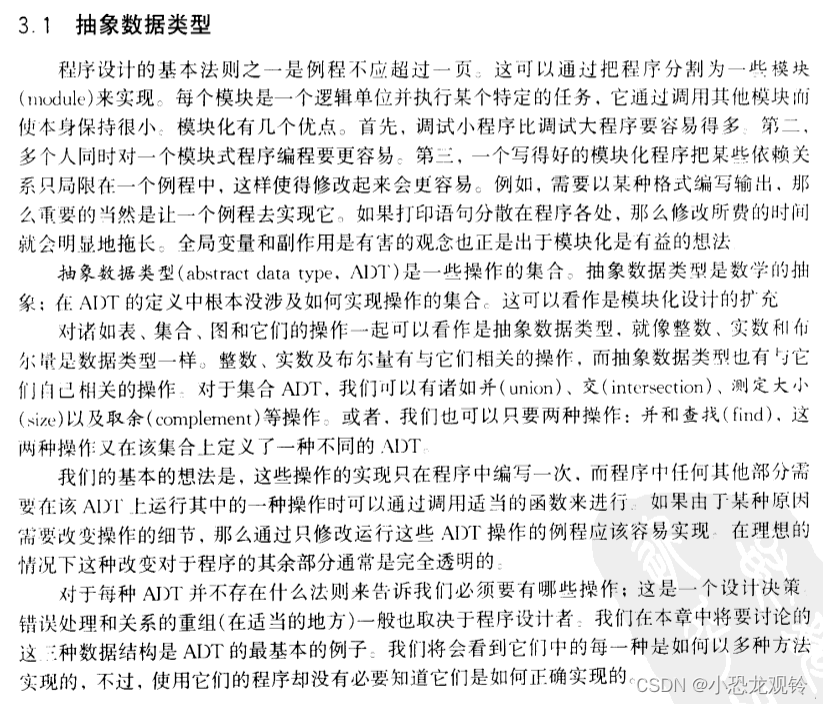

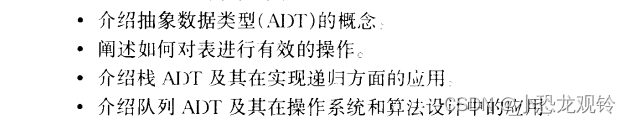

使用ADT描述一个抽象数据类型

只规定了使用和声明 不说明实现方式

将大小为0的表为空表(empty list)

表数据称 前一位为前驱 下一位为后继

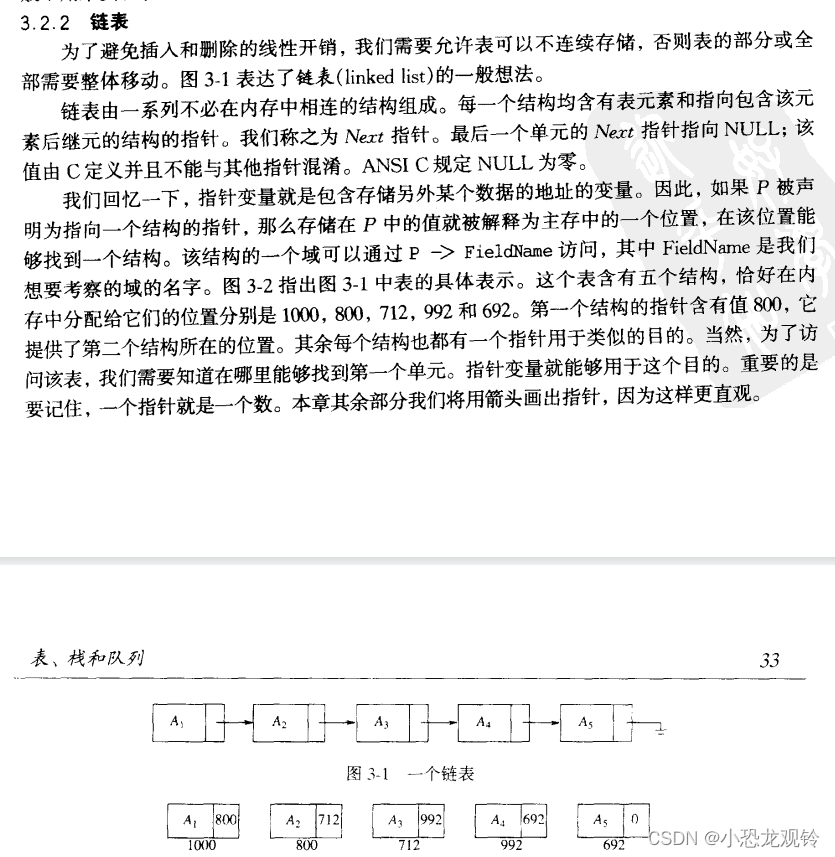

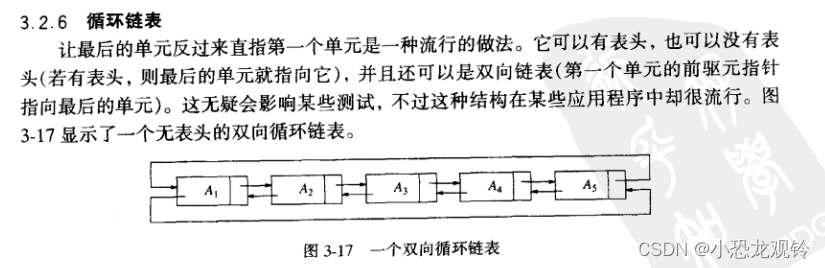

链表

逻辑概念 分块存储 一个表结构中的 存储着下一个链表的内存地址

ADT 分为两块 逻辑方式 和实现方式

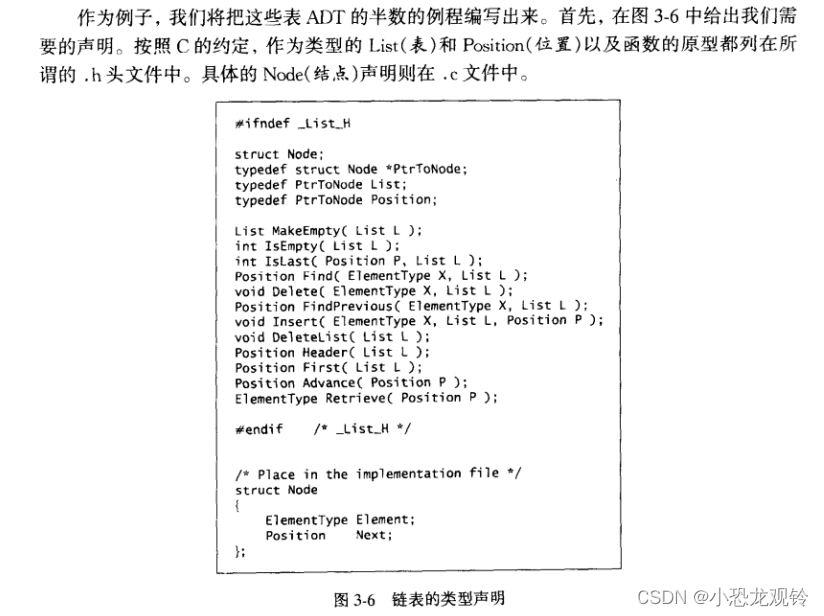

链表头文件声明

#pragma once
#include <iostream>


struct Node;
typedef struct Node* PtrToNode;
typedef PtrToNode List;
typedef PtrToNode Position;
typedef int ElemenType;

List MakeEmpty(List L);
int IsEmpty(List L);
int IsLast(Position P, List L);
Position Find(ElemenType X, List L);
void Delete(ElemenType X, List);
Position FindPrevious(ElemenType X, List L);
void Insert(ElemenType X, List L, Position);
void DeleteList(List L);
Position Header(List L);
Position First(List L);

struct Node
{
    ElemenType Element;
    Position Next;
};

#include "linkList.h"

List MakeEmpty(List L)
{
    return List();
}

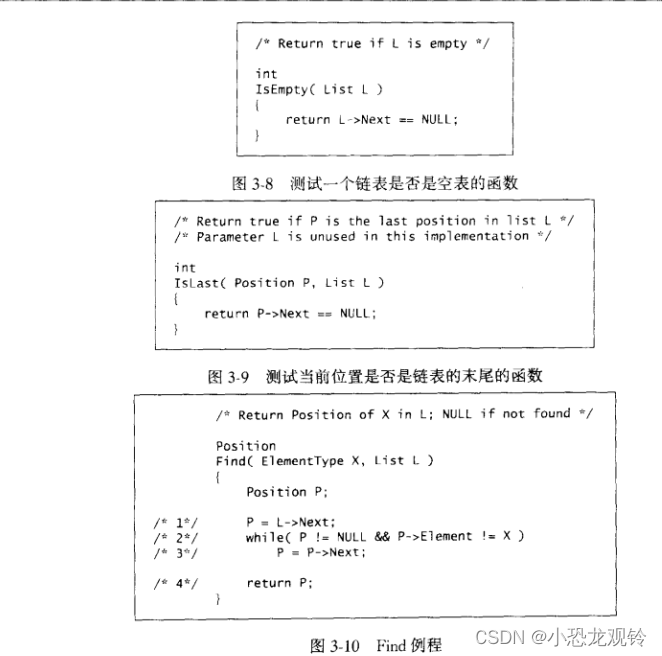

int IsEmpty(List L)
{
    return L->Next == NULL; //判断Next 是否等于NULL判断是否为空
}

int IsLast(Position P, List L)
{
    return P->Next ==NULL; //判断是否为最后一个
}

Position Find(ElemenType X, List L) //返回存储X的List
{
    Position P;
    P = L->Next;
    while (P !=NULL && P->Element != X)
    {
        P = P->Next;
    }
    return P;
}

void Delete(ElemenType X, List L) //删除链表
{
    Position P, TmpCell;
    P = FindPrevious(X, L);
    if (!IsLast(P, L)) {
        TmpCell = P->Next;
        P->Next = TmpCell->Next;
        free(TmpCell);
    }

}

Position FindPrevious(ElemenType X, List L) //获取前一个链表
{
    Position P;
    P = L;
    while (P->Next != NULL && P->Next->Element != X)
    {
        P = P->Next;
    }
    return P;
}

void Insert(ElemenType X, List L, Position P)
{
    Position TmpCell;
    TmpCell = (Position)malloc(sizeof(struct Node));
    if (TmpCell == NULL) {
        printf("out Of space");
        return;
    }
    TmpCell->Element = X;
    TmpCell->Next = P -> Next;
    P->Next = NULL;
}

void DeleteList(List L)
{
}

Position Header(List L)
{
    return Position();
}

Position First(List L)
{
    return Position();
}

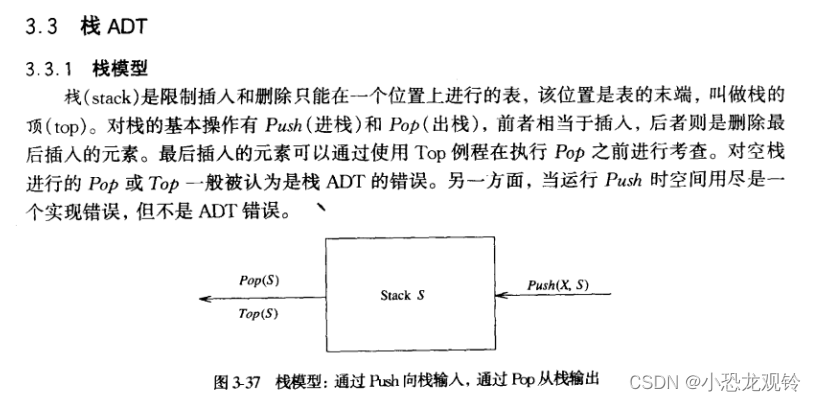

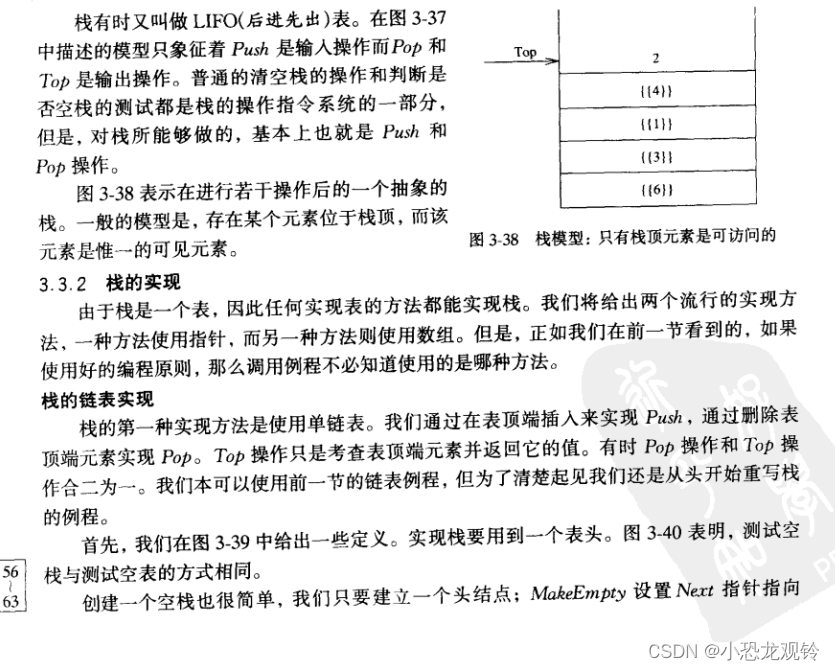

栈

栈

链表实现

#pragma once
#include <iostream>

struct Node;
typedef struct Node* PtrToNode;
typedef PtrToNode Stack;

int IsEmpty(Stack S);
Stack CreateStack(void);
void DisposeStack(Stack S);
void MakeEmpty(Stack S);
void Push(int X, Stack S);
int Top(Stack S);
void Pop(Stack S);

struct Node
{
    int Element;
    PtrToNode Next;
};
#include "MyStack.h"

int IsEmpty(Stack S)
{
    return S->Next == NULL;
}

Stack CreateStack(void)
{
    Stack S = (Stack)malloc(sizeof(struct Node));
    if (S == NULL)
    {
        printf("Stack Failed to initialize memory");
        return NULL;
    }
    S->Next = NULL;
    return S;
}

void DisposeStack(Stack S)
{
    if (S->Next==NULL)
    {
        printf("%d", S->Element);
        return;
    }
    Stack P = S;
    DisposeStack(S->Next);
    printf("%d", P->Element);

    return;
}

void MakeEmpty(Stack S)
{
    S->Next = NULL;
    return;
}

void Push(int X, Stack S)
{
    Stack P = S;
    while (P->Next!= NULL)
    {
        P = P->Next;
    }
    Stack tmp = CreateStack();
    tmp->Element = X;
    P->Next = tmp;
    return;
}

int Top(Stack S)
{
    Stack P = S;

    while (P->Next!=NULL)
    {
        P = P->Next;
    }
    return P->Element;
}

void Pop(Stack S)
{
    Stack P = S;

    while (P->Next->Next != NULL)
    {
        P = P->Next;
    }
    free(P->Next);
    P->Next = NULL;
    return;
}

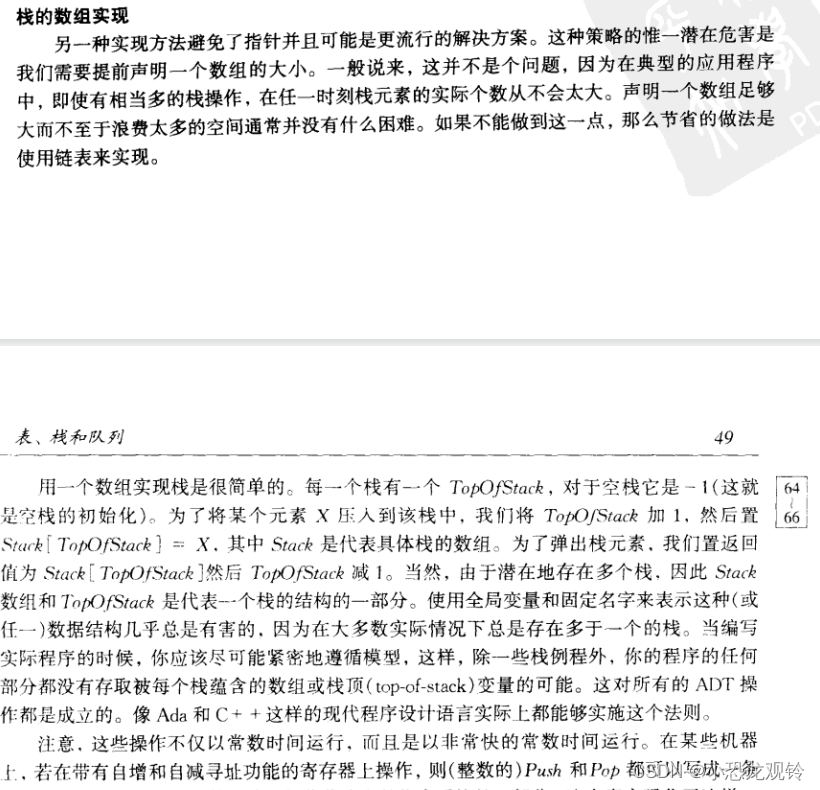

数组表示

#pragma once

#include <iostream>
struct StackRecord;
typedef struct StackRecord *Stack;
int IsEmpty(Stack S);
int IsFull(Stack S);
Stack CreateStack(int MaxElements);
void DisposeStack(Stack S);
void MakeEmpty(Stack S);
void Push(int X, Stack S);
int Top(Stack S);
void Pop(Stack S);
int TopAndPop(Stack S);

struct StackRecord {
    int Capacity;
    int TopOfStack;
    int* Array;
};



#include "MyStackArray.h"

int IsEmpty(Stack S)
{
    return S->TopOfStack == -1;
}

int IsFull(Stack S)
{
    return S->TopOfStack == S->Capacity;
}

Stack CreateStack(int MaxElements)
{
    Stack s;
    if (5 < MaxElements) {
        printf("stack size is too small. \n");
        return NULL;
    };
    s = (Stack)malloc(sizeof(Stack));
    if (s == NULL) {
        printf("Out of space! \n");
        return NULL;
    }
    s->Array = (int*)malloc(sizeof(int) * 20);
    if (s->Array == NULL)
    {
        printf("Out of space! \n");
        return NULL;
    }
    return s;
}

void DisposeStack(Stack S)
{

}

void MakeEmpty(Stack S)
{
    S->TopOfStack = -1;
}

void Push(int X, Stack S)
{
    if (IsFull(S))
    {
        printf("full stack!");
    }
    else {
        S->Array[++S->TopOfStack] = X;
    }
}

int Top(Stack S)
{
    return 0;
}

void Pop(Stack S)
{
    if (IsEmpty(S))
    {
        printf("empty stack\n");
    }
    else {
        S->TopOfStack--;
    }
}

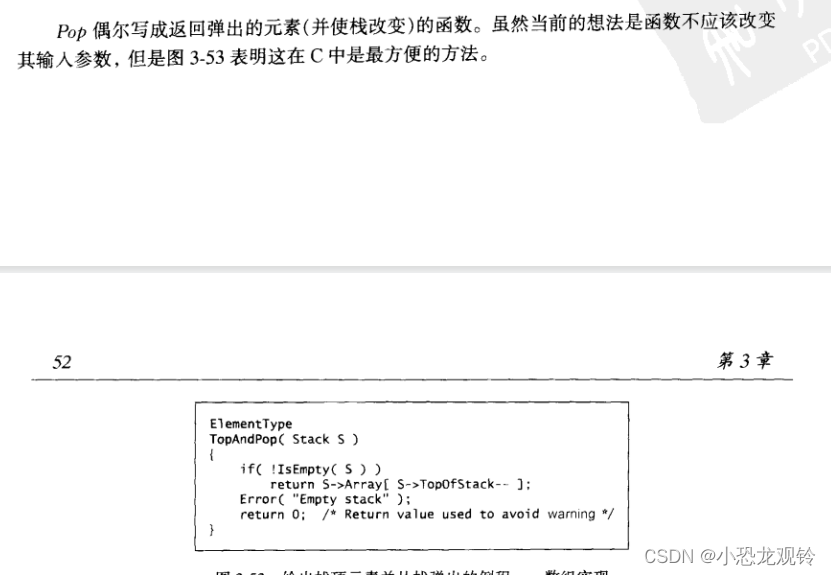

int TopAndPop(Stack S)
{
    return 0;
}

迷宫算法

// DataStructure.cpp : 此文件包含 "main" 函数。程序执行将在此处开始并结束。
//

#include "MyStackArray.h"
bool MazeExit(int* currentPos, Stack RecordStack);


char maze[21][21] = {
    "11111111111111111111",
    "10100000000001110001",
    "10111110111111000101",
    "10100000100000010101",
    "10111010111111010101",
    "10001010100001010101",
    "10101011111101010101",
    "10101000000101010101",
    "10101111111111010101",
    "10101000000000010101",
    "10101111111111010101",
    "10100000000000010101",
    "10111111111111010101",
    "10100000000001010101",
    "10111111111111010101",
    "10100000000001010101",
    "10111111111111010101",
    "10100000000001010101",
    "10111111111111110103",
    "11111111111111111111"
};

bool IsSame(int* x1, int* x2) {
    if (x1[0] == x2[0] && x1[1] == x2[1])
    {
        return true;
    }
    return false;
}


bool MazeExit(int* currentPos, Stack RecordStack) {
    if (maze[currentPos[0]][currentPos[1]] == '3')
    {
        HANDLE hConsole = GetStdHandle(STD_OUTPUT_HANDLE);
        for (int i = 0; i < 21; i++)
        {
            for (int j = 0; j < 21; j++) {
                if (maze[i][j] == '5')
                {
                    SetConsoleTextAttribute(hConsole, FOREGROUND_RED);
                    std::cout << maze[i][j];
                    SetConsoleTextAttribute(hConsole, FOREGROUND_RED | FOREGROUND_GREEN | FOREGROUND_BLUE);
                }
                else
                {
                    std::cout << maze[i][j];
                }
            }
            std::cout << "\n";
        }
        return true;
    }
    if (maze[currentPos[0] - 1][currentPos[1]] == '0' || maze[currentPos[0] - 1][currentPos[1]] == '3') //上
    {
        int destinationArray[2] = { currentPos[0],currentPos[1] };
        destinationArray[0] -= 1;
        Push(destinationArray, RecordStack);

    }
    if (maze[currentPos[0]][currentPos[1] + 1] == '0' || maze[currentPos[0]][currentPos[1] + 1] == '3')  //右
    {
        int destinationArray[2] = { currentPos[0],currentPos[1] };
        destinationArray[1] += 1;
        Push(destinationArray, RecordStack);
    }
    //std::cout << (maze[currentPos[0]][currentPos[1] - 1] == '3') << std::endl;
    if (maze[currentPos[0] + 1][currentPos[1]] == '0'|| maze[currentPos[0] + 1][currentPos[1]] == '3') //下
    {
        int destinationArray[2] = { currentPos[0],currentPos[1] };
        destinationArray[0] += 1;
        Push(destinationArray, RecordStack);

    }
    if (maze[currentPos[0]][currentPos[1] - 1] == '0' || maze[currentPos[0]][currentPos[1] - 1] == '3')  //左
    {
        int destinationArray[2] = { currentPos[0],currentPos[1] };

        destinationArray[1] -= 1;

        Push(destinationArray, RecordStack);
    }
    maze[currentPos[0]][currentPos[1]] = '5';

    while (!IsEmpty(RecordStack))
    {
        int* temp = Pop(RecordStack);
        for (int i = 0; i < 21; i++)
        {
            for (int j = 0; j < 21; j++)
            {
                std::cout << maze[i][j];
            }
            printf("\n");
        }
        std::cout << "X:" << temp[0] << "\t" << "Y:" << temp[1] << std::endl;
        if (MazeExit(temp, RecordStack)) {
            break;
        };
    }


    /*return true;*/



}



int main()
{
    Stack s = CreateStack(30);
    int currentPos[2] = { 1,1 };
    MazeExit(currentPos, s);
}

#pragma once

#include <iostream>
#include <algorithm>
#include <windows.h>

struct StackRecord;
typedef struct StackRecord *Stack;
int IsEmpty(Stack S);
int IsFull(Stack S);
Stack CreateStack(int MaxElements);
void DisposeStack(Stack S);
void MakeEmpty(Stack S);
void Push(int* X, Stack S);
int* Top(Stack S);
int* Pop(Stack S);
int TopAndPop(Stack S);

struct StackRecord {
    int Capacity;
    int TopOfStack;
    int** Array;
};





#include "MyStackArray.h"

int IsEmpty(Stack S)
{
    return S->TopOfStack == -1;
}

int IsFull(Stack S)
{
    return S->TopOfStack == S->Capacity;
}

Stack CreateStack(int MaxElements)
{
    Stack s;
    s = (Stack)malloc(sizeof(Stack));
    if (s == NULL) {
        printf("Out of space! \n");
        return NULL;
    }
    s->Array = (int**)malloc(sizeof(int*) * 20);
    if (s->Array == NULL)
    {
        printf("Out of space! \n");
        return NULL;
    }
    MakeEmpty(s);
    return s;
}

void DisposeStack(Stack S)
{

}

void MakeEmpty(Stack S)
{
    S->TopOfStack = -1;
}

void Push(int* X, Stack S)
{
    if (IsFull(S))
    {
        printf("full stack!");
    }
    else {
        S->Array[++S->TopOfStack] = X;
    }
}

int* Top(Stack S)
{
    return S->Array[S->TopOfStack];
}


int* Pop(Stack S)
{
    if (IsEmpty(S))
    {
        printf("empty stack\n");
    }
    else {
        int* temp = S->Array[S->TopOfStack];
        S->TopOfStack--;
        return temp;
    }
}

int TopAndPop(Stack S)
{
    return 0;
}
