Springboot整合MyBatis

1. 创建Springboot项目

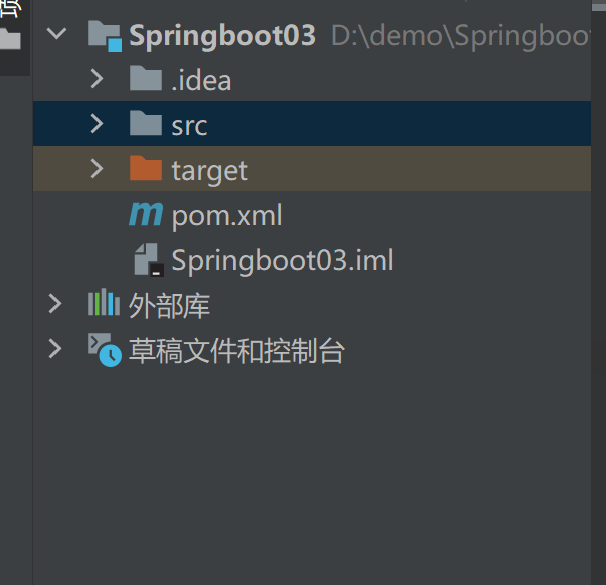

打开idea创建Springboot项目

2. 导入相关的依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.0.4</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com</groupId>
    <artifactId>Springboot03</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>Springboot03</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>17</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>3.0.0</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>com.mysql</groupId>
            <artifactId>mysql-connector-j</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.2.16</version>
        </dependency>

        <!--thymeleaf-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>

    </dependencies>
    <!--在build中配置resources,来防止我们资源导出失败的问题-->
    <build>
        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                    <include>**/*.yaml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                    <include>**/*.yaml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>
</project>

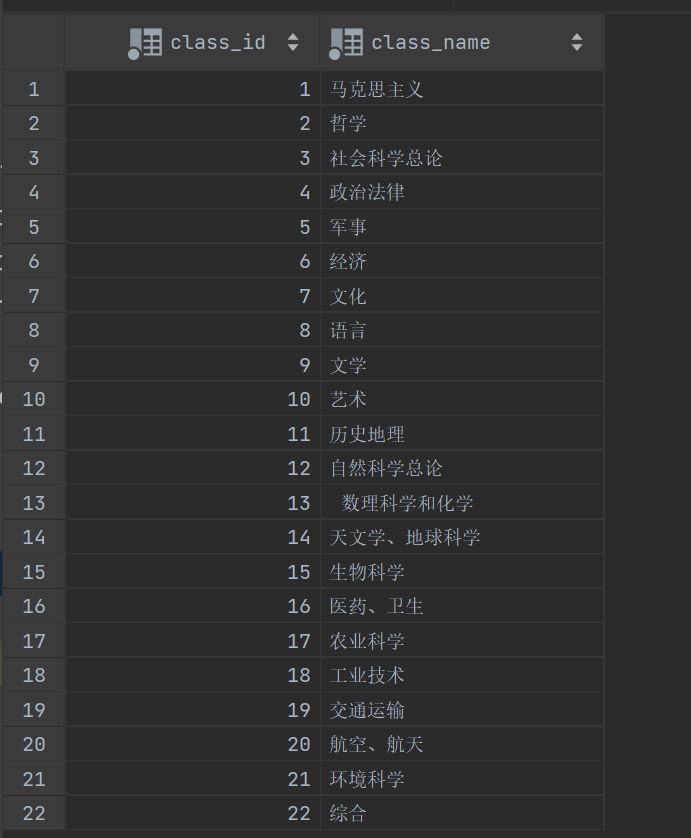

3. 创建数据库和对应的表

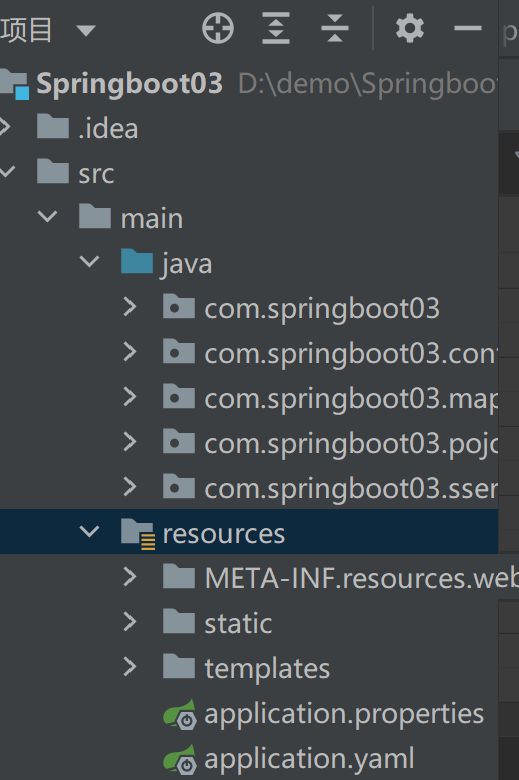

4. 项目创建相应的包（pojo、mapper、service、contriller）

5. 编写yaml文件（连接数据库相关的数据）

spring:
  datasource:
    username: root
    password: root
    #?serverTimezone=UTC解决时区的报错
    url: jdbc:mysql://localhost:3306/book?serverTimezone=UTC&useUnicode=true&characterEncoding=utf-8
    driver-class-name: com.mysql.cj.jdbc.Driver
    type: com.alibaba.druid.pool.DruidDataSource

    #Spring Boot 默认是不注入这些属性值的，需要自己绑定
    #druid 数据源专有配置
    initialSize: 5
    minIdle: 5
    maxActive: 20
    maxWait: 60000
    timeBetweenEvictionRunsMillis: 60000
    minEvictableIdleTimeMillis: 300000
    validationQuery: SELECT 1 FROM DUAL
    testWhileIdle: true
    testOnBorrow: false
    testOnReturn: false
    poolPreparedStatements: true

6.编写实体类、接口、xml文件(注解)

a、实体类book

package com.springboot03.pojo;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class book {
    private int class_id;
    private String class_name;
}

b、mapper接口

package com.springboot03.mapper;

import com.springboot03.pojo.book;
import org.apache.ibatis.annotations.*;

import java.util.List;

@Mapper
public interface bookMapper {
    //查询所有class_info信息
    @Select("select * from class_info")
    List<book> getAll();

    //根据id查询class_info
    @Select("select * from class_info where id=#{id}")
    List<book> getClassInfoById(int id);

    //插入一条记录
    @Insert("insert into class_info value(#{book.class_id},#{book.class_name})")
    void insertClaas_info(book book);

    //删除记录
    @Delete("delete class_info where id=#{id}")
    void deleteClass_info(int id);

    //修改信息
    @Update("UPDATE class_info SET class_name=${book.class_name} where id =${id}")
    void updateClass_info(book book);
}

c、service接口和实现类

package com.springboot03.sservice;

import com.springboot03.pojo.book;

import java.util.List;

public interface bookService {
    List<book> getAll();
    List<book> getClassInfoById(int id);
    void insertClaas_info(book book);
    void deleteClass_info(int id);
    void updateClass_info(book book);
}

package com.springboot03.sservice;

import com.springboot03.mapper.bookMapper;
import com.springboot03.pojo.book;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class bookServiceImpl implements bookService{
    @Autowired
    private bookMapper bookMapper;
    @Override
    public List<book> getAll() {
        return bookMapper.getAll();
    }

    @Override
    public List<book> getClassInfoById(int id) {
        return bookMapper.getClassInfoById(id);
    }

    @Override
    public void insertClaas_info(book book) {
        bookMapper.insertClaas_info(book);
    }

    @Override
    public void deleteClass_info(int id) {
            bookMapper.deleteClass_info(id);
    }

    @Override
    public void updateClass_info(book book) {
        bookMapper.updateClass_info(book);
    }
}

d、controller接口和实现类

package com.springboot03.controller;

import com.springboot03.pojo.book;
import org.apache.ibatis.annotations.Delete;
import org.apache.ibatis.annotations.Insert;
import org.apache.ibatis.annotations.Select;
import org.apache.ibatis.annotations.Update;

import java.util.List;

public interface bookController {
    List<book> getAll();
    //根据id查询class_info
    List<book> getClassInfoById(int id);

    //插入一条记录
    void insertClaas_info(book book);

    //删除记录
    void deleteClass_info(int id);

    //修改信息
    void updateClass_info(book book);
}

package com.springboot03.controller;

import com.springboot03.pojo.book;
import com.springboot03.sservice.bookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

@RestController
public class bookControllerImpl implements bookController{
    @Autowired
    private bookService bookService;
    @Override
    @GetMapping("getAll")
    public List<book> getAll() {
        return bookService.getAll();
    }

    @Override
    @GetMapping("getById")
    public List<book> getClassInfoById(int id) {
        return bookService.getClassInfoById(id);
    }

    @Override
    @GetMapping("insert")
    public void insertClaas_info(book book) {
        bookService.insertClaas_info(book);
    }

    @Override
    @GetMapping("delete")
    public void deleteClass_info(int id) {
        bookService.deleteClass_info(id);
    }

    @Override
    @GetMapping("update")
    public void updateClass_info(book book) {
        bookService.updateClass_info(book);
    }
}

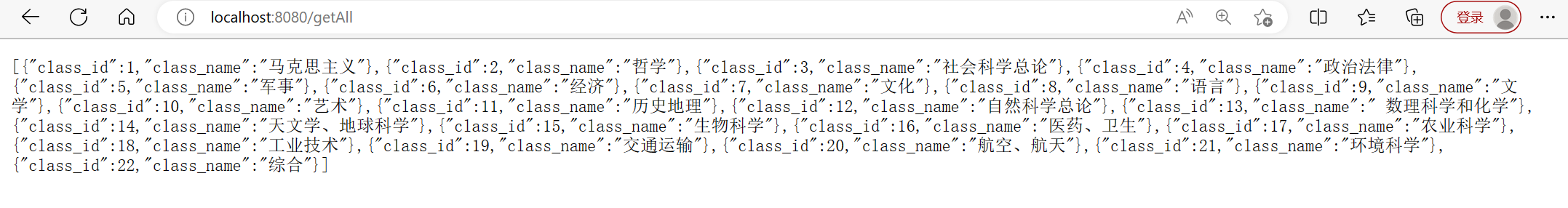

7.运行项目

总结

• 在导入相关依赖时，一定不能导错的包，不然项目跑不了。

• 在创建包的时候，注意创建的包和主类在一个级别下，不然会找不到创建的包，注入不了相应的Mapper、pojo、service等。

• 上述使用注解来整合，也可以使用MXL来整合，创建相应的xml文件，在yaml文件中读取xml.

mybatis:
  mapper-locations:加文件路径
