kubernetes Pod、Service详细操作（四）

Pod详细介绍

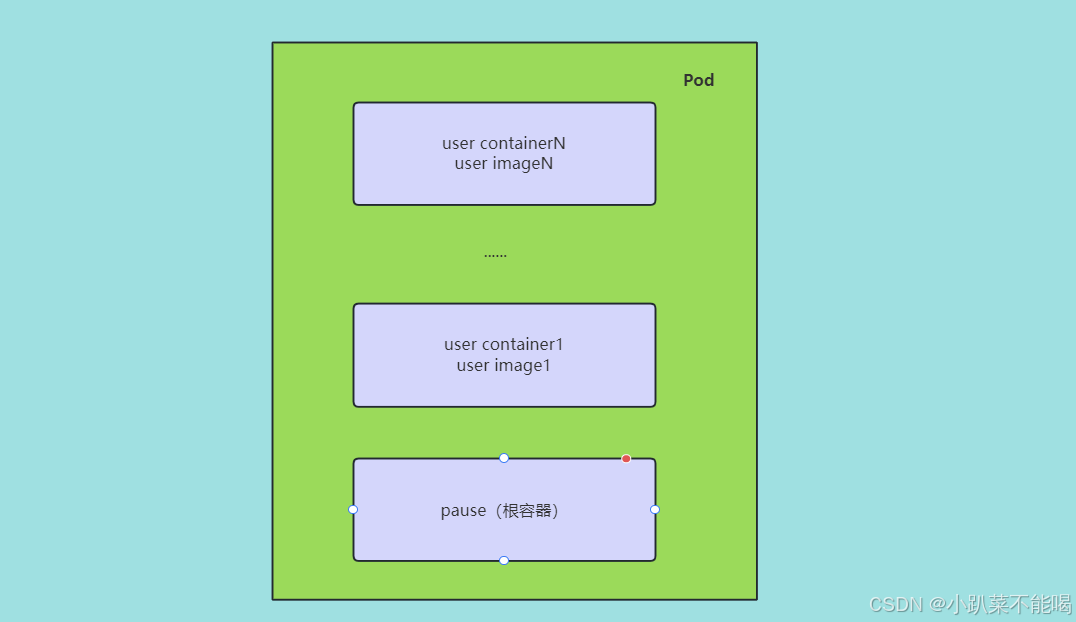

每个Pod中都可以包含一个或者多个容器，这些容器可以分为两类

• 用户程序所在的容器，数量可多可少

• Pause容器，这是每个Pod都会有的一个根容器

根容器的作用

• 可以以它为依据，评估整个Pod的健康状态

• 可以在根容器上设置IP地址，其它容器都以此（Pod IP），以实现Pod内部的网路通信

pod定义配置

apiVersion: v1     #必选，版本号，例如v1
kind: Pod       　 #必选，资源类型，例如 Pod
metadata:       　 #必选，元数据
  name: string     #必选，Pod名称
  namespace: string  #Pod所属的命名空间,默认为"default"
  labels:       　　  #自定义标签列表
    - name: string      　
spec:  #必选，Pod中容器的详细定义
  containers:  #必选，Pod中容器列表
  - name: string   #必选，容器名称
    image: string  #必选，容器的镜像名称
    imagePullPolicy: [ Always|Never|IfNotPresent ]  #获取镜像的策略
    command: [string]   #容器的启动命令列表，如不指定，使用打包时使用的启动命令
    args: [string]      #容器的启动命令参数列表
    workingDir: string  #容器的工作目录
    volumeMounts:       #挂载到容器内部的存储卷配置
    - name: string      #引用pod定义的共享存储卷的名称，需用volumes[]部分定义的的卷名
      mountPath: string #存储卷在容器内mount的绝对路径，应少于512字符
      readOnly: boolean #是否为只读模式
    ports: #需要暴露的端口库号列表
    - name: string        #端口的名称
      containerPort: int  #容器需要监听的端口号
      hostPort: int       #容器所在主机需要监听的端口号，默认与Container相同
      protocol: string    #端口协议，支持TCP和UDP，默认TCP
    env:   #容器运行前需设置的环境变量列表
    - name: string  #环境变量名称
      value: string #环境变量的值
    resources: #资源限制和请求的设置
      limits:  #资源限制的设置
        cpu: string     #Cpu的限制，单位为core数，将用于docker run --cpu-shares参数
        memory: string  #内存限制，单位可以为Mib/Gib，将用于docker run --memory参数
      requests: #资源请求的设置
        cpu: string    #Cpu请求，容器启动的初始可用数量
        memory: string #内存请求,容器启动的初始可用数量
    lifecycle: #生命周期钩子
        postStart: #容器启动后立即执行此钩子,如果执行失败,会根据重启策略进行重启
        preStop: #容器终止前执行此钩子,无论结果如何,容器都会终止
    livenessProbe:  #对Pod内各容器健康检查的设置，当探测无响应几次后将自动重启该容器
      exec:       　 #对Pod容器内检查方式设置为exec方式
        command: [string]  #exec方式需要制定的命令或脚本
      httpGet:       #对Pod内个容器健康检查方法设置为HttpGet，需要制定Path、port
        path: string
        port: number
        host: string
        scheme: string
        HttpHeaders:
        - name: string
          value: string
      tcpSocket:     #对Pod内个容器健康检查方式设置为tcpSocket方式
         port: number
       initialDelaySeconds: 0       #容器启动完成后首次探测的时间，单位为秒
       timeoutSeconds: 0    　　    #对容器健康检查探测等待响应的超时时间，单位秒，默认1秒
       periodSeconds: 0     　　    #对容器监控检查的定期探测时间设置，单位秒，默认10秒一次
       successThreshold: 0
       failureThreshold: 0
       securityContext:
         privileged: false
  restartPolicy: [Always | Never | OnFailure]  #Pod的重启策略
  nodeName: <string> #设置NodeName表示将该Pod调度到指定到名称的node节点上
  nodeSelector: obeject #设置NodeSelector表示将该Pod调度到包含这个label的node上
  imagePullSecrets: #Pull镜像时使用的secret名称，以key：secretkey格式指定
  - name: string
  hostNetwork: false   #是否使用主机网络模式，默认为false，如果设置为true，表示使用宿主机网络
  volumes:   #在该pod上定义共享存储卷列表
  - name: string    #共享存储卷名称 （volumes类型有很多种）
    emptyDir: {}       #类型为emtyDir的存储卷，与Pod同生命周期的一个临时目录。为空值
    hostPath: string   #类型为hostPath的存储卷，表示挂载Pod所在宿主机的目录
      path: string      　　        #Pod所在宿主机的目录，将被用于同期中mount的目录
    secret:       　　　#类型为secret的存储卷，挂载集群与定义的secret对象到容器内部
      scretname: string
      items:
      - key: string
        path: string
    configMap:         #类型为configMap的存储卷，挂载预定义的configMap对象到容器内部
      name: string
      items:
      - key: string
        path: string

可以通过kubectl explain 查看配置项

• kubectl explain 资源类型    #查看某种资源可以配置的一级属性
• kubectl explain 资源类型.属性  #查看属性的子属性

[root@ecs-601-0003 ~]# kubectl explain pod
KIND:     Pod
VERSION:  v1

DESCRIPTION:
     Pod is a collection of containers that can run on a host. This resource is
     created by clients and scheduled onto hosts.

FIELDS:
   apiVersion   <string>
     APIVersion defines the versioned schema of this representation of an
     object. Servers should convert recognized schemas to the latest internal
     value, and may reject unrecognized values. More info:
     https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources

   kind <string>
     Kind is a string value representing the REST resource this object
     represents. Servers may infer this from the endpoint the client submits
     requests to. Cannot be updated. In CamelCase. More info:
     https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds

   metadata     <Object>
     Standard object's metadata. More info:
     https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#metadata

   spec <Object>
     Specification of the desired behavior of the pod. More info:
     https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#spec-and-status

   status       <Object>
     Most recently observed status of the pod. This data may not be up to date.
     Populated by the system. Read-only. More info:
     https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#spec-and-status

[root@ecs-601-0003 ~]# kubectl explain pod.metadata
KIND:     Pod
VERSION:  v1

RESOURCE: metadata <Object>

DESCRIPTION:
     Standard object's metadata. More info:
     https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#metadata

     ObjectMeta is metadata that all persisted resources must have, which
     includes all objects users must create.

FIELDS:
   annotations  <map[string]string>
     Annotations is an unstructured key value map stored with a resource that
     may be set by external tools to store and retrieve arbitrary metadata. They
     are not queryable and should be preserved when modifying objects. More
     info: http://kubernetes.io/docs/user-guide/annotations

   clusterName  <string>
     The name of the cluster which the object belongs to. This is used to
     distinguish resources with same name and namespace in different clusters.
     This field is not set anywhere right now and apiserver is going to ignore
     it if set in create or update request.

   creationTimestamp    <string>
     CreationTimestamp is a timestamp representing the server time when this
     object was created. It is not guaranteed to be set in happens-before order
     across separate operations. Clients may not set this value. It is
     represented in RFC3339 form and is in UTC. Populated by the system.
     Read-only. Null for lists. More info:
     https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#metadata

   deletionGracePeriodSeconds   <integer>
     Number of seconds allowed for this object to gracefully terminate before it
     will be removed from the system. Only set when deletionTimestamp is also
     set. May only be shortened. Read-only.

   deletionTimestamp    <string>
     DeletionTimestamp is RFC 3339 date and time at which this resource will be
     deleted. This field is set by the server when a graceful deletion is
     requested by the user, and is not directly settable by a client. The
     resource is expected to be deleted (no longer visible from resource lists,
     and not reachable by name) after the time in this field, once the
     finalizers list is empty. As long as the finalizers list contains items,
     deletion is blocked. Once the deletionTimestamp is set, this value may not
     be unset or be set further into the future, although it may be shortened or
     the resource may be deleted prior to this time. For example, a user may
     request that a pod is deleted in 30 seconds. The Kubelet will react by
     sending a graceful termination signal to the containers in the pod. After
     that 30 seconds, the Kubelet will send a hard termination signal (SIGKILL)
     to the container and after cleanup, remove the pod from the API. In the
     presence of network partitions, this object may still exist after this
     timestamp, until an administrator or automated process can determine the
     resource is fully terminated. If not set, graceful deletion of the object
     has not been requested. Populated by the system when a graceful deletion is
     requested. Read-only. More info:
     https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#metadata

   finalizers   <[]string>
     Must be empty before the object is deleted from the registry. Each entry is
     an identifier for the responsible component that will remove the entry from
     the list. If the deletionTimestamp of the object is non-nil, entries in
     this list can only be removed. Finalizers may be processed and removed in
     any order. Order is NOT enforced because it introduces significant risk of
     stuck finalizers. finalizers is a shared field, any actor with permission
     can reorder it. If the finalizer list is processed in order, then this can
     lead to a situation in which the component responsible for the first
     finalizer in the list is waiting for a signal (field value, external
     system, or other) produced by a component responsible for a finalizer later
     in the list, resulting in a deadlock. Without enforced ordering finalizers
     are free to order amongst themselves and are not vulnerable to ordering
     changes in the list.

   generateName <string>
     GenerateName is an optional prefix, used by the server, to generate a
     unique name ONLY IF the Name field has not been provided. If this field is
     used, the name returned to the client will be different than the name
     passed. This value will also be combined with a unique suffix. The provided
     value has the same validation rules as the Name field, and may be truncated
     by the length of the suffix required to make the value unique on the
     server. If this field is specified and the generated name exists, the
     server will NOT return a 409 - instead, it will either return 201 Created
     or 500 with Reason ServerTimeout indicating a unique name could not be
     found in the time allotted, and the client should retry (optionally after
     the time indicated in the Retry-After header). Applied only if Name is not
     specified. More info:
     https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#idempotency

   generation   <integer>
     A sequence number representing a specific generation of the desired state.
     Populated by the system. Read-only.

   labels       <map[string]string>
     Map of string keys and values that can be used to organize and categorize
     (scope and select) objects. May match selectors of replication controllers
     and services. More info: http://kubernetes.io/docs/user-guide/labels

   managedFields        <[]Object>
     ManagedFields maps workflow-id and version to the set of fields that are
     managed by that workflow. This is mostly for internal housekeeping, and
     users typically shouldn't need to set or understand this field. A workflow
     can be the user's name, a controller's name, or the name of a specific
     apply path like "ci-cd". The set of fields is always in the version that
     the workflow used when modifying the object.

   name <string>
     Name must be unique within a namespace. Is required when creating
     resources, although some resources may allow a client to request the
     generation of an appropriate name automatically. Name is primarily intended
     for creation idempotence and configuration definition. Cannot be updated.
     More info: http://kubernetes.io/docs/user-guide/identifiers#names

   namespace    <string>
     Namespace defines the space within each name must be unique. An empty
     namespace is equivalent to the "default" namespace, but "default" is the
     canonical representation. Not all objects are required to be scoped to a
     namespace - the value of this field for those objects will be empty. Must
     be a DNS_LABEL. Cannot be updated. More info:
     http://kubernetes.io/docs/user-guide/namespaces

   ownerReferences      <[]Object>
     List of objects depended by this object. If ALL objects in the list have
     been deleted, this object will be garbage collected. If this object is
     managed by a controller, then an entry in this list will point to this
     controller, with the controller field set to true. There cannot be more
     than one managing controller.

   resourceVersion      <string>
     An opaque value that represents the internal version of this object that
     can be used by clients to determine when objects have changed. May be used
     for optimistic concurrency, change detection, and the watch operation on a
     resource or set of resour
