15个Matplotlib图的汇编，在数据分析和可视化中最有用。此列表允许您使用Python的Matplotlib和Seaborn库选择要显示的可视化对象。
常用matplotlib绘图设置：
# !pip install brewer2mpl
import numpy as np
import pandas as pd
import matplotlib as mpl
import matplotlib.pyplot as plt
import seaborn as sns
import warnings; warnings.filterwarnings(action='once')
large = 22; med = 16; small = 12
params = {'axes.titlesize': large,
'legend.fontsize': med,
'figure.figsize': (16, 10),
'axes.labelsize': med,
'axes.titlesize': med,
'xtick.labelsize': med,
'ytick.labelsize': med,
'figure.titlesize': large}
plt.rcParams.update(params)
plt.style.use('seaborn-whitegrid')
sns.set\_style("white")
%matplotlib inline
# Version
print(mpl.\_\_version\_\_) #> 3.0.0
print(sns.\_\_version\_\_) #> 0.9.0
1. 散点图

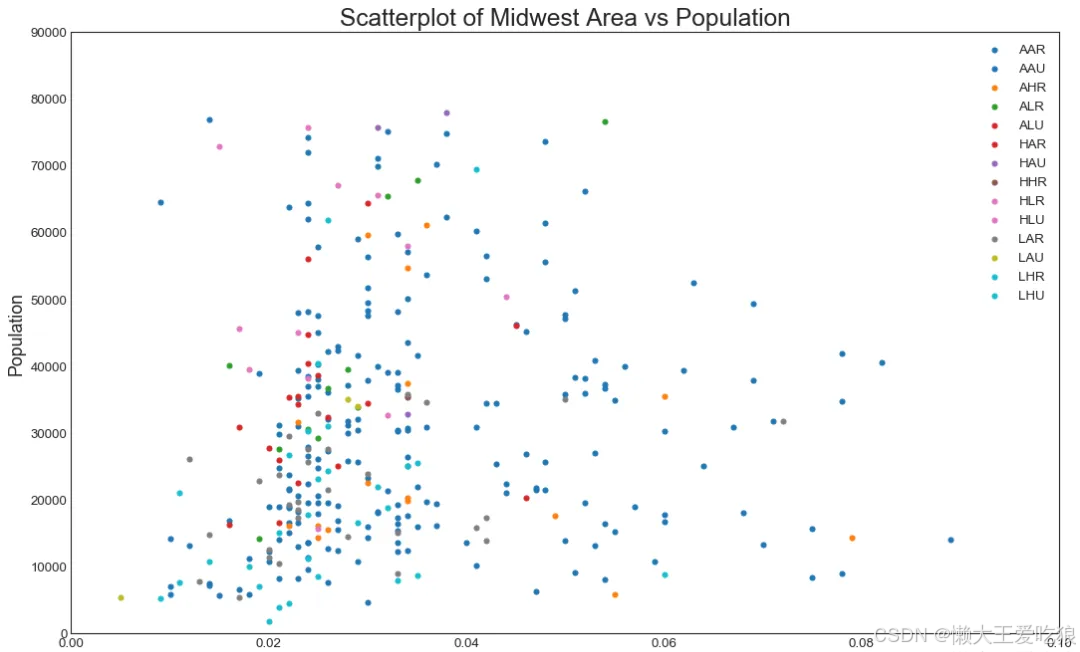

Scatteplot是用于研究两个变量之间关系的经典和基本图。如果数据中有多个组，则可能需要以不同颜色可视化每个组。在Matplotlib，你可以方便地使用。
# Import dataset
midwest = pd.read\_csv("https://raw.githubusercontent.com/selva86/datasets/master/midwest\_filter.csv")
# Prepare Data
# Create as many colors as there are unique midwest\['category'\]
categories = np.unique(midwest\['category'\])
colors = \[plt.cm.tab10(i/float(len(categories)-1)) for i in range(len(categories))\]
# Draw Plot for Each Category
plt.figure(figsize=(16, 10), dpi= 80, facecolor='w', edgecolor='k')
for i, category in enumerate(categories):
plt.scatter('area', 'poptotal',
data=midwest.loc\[midwest.category==category, :\],
s=20, c=colors\[i\], label=str(category))
# Decorations
plt.gca().set(xlim=(0.0, 0.1), ylim=(0, 90000),
xlabel='Area', ylabel='Population')
plt.xticks(fontsize=12); plt.yticks(fontsize=12)
plt.title("Scatterplot of Midwest Area vs Population", fontsize=22)
plt.legend(fontsize=12)
plt.show()
2. 带边界的气泡图

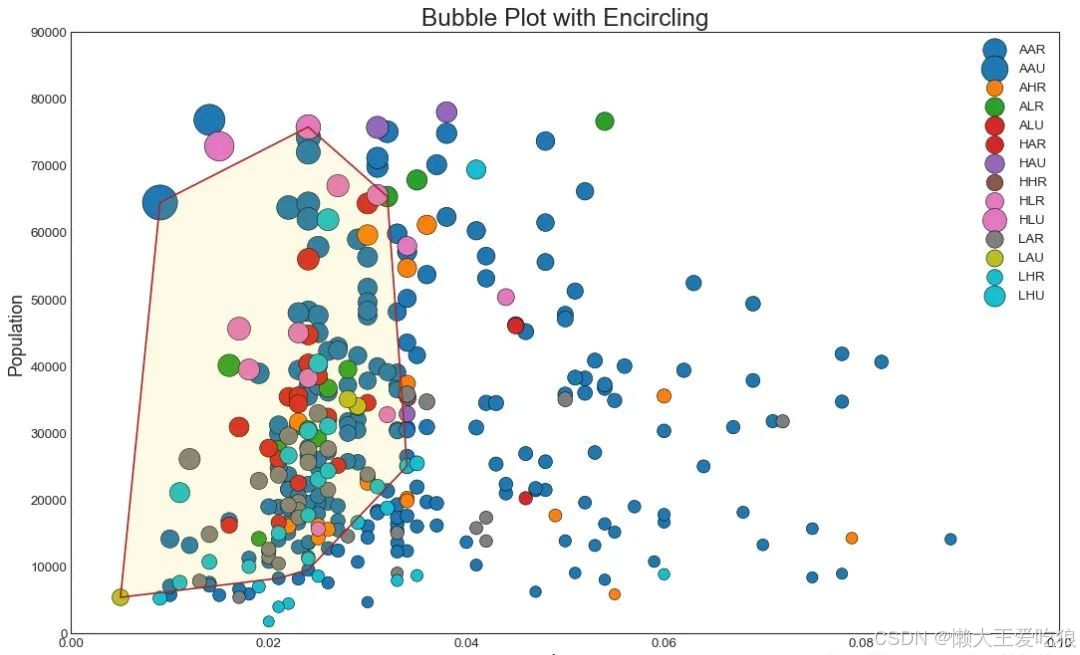

有时，您希望在边界内显示一组点以强调其重要性。在此示例中，您将从应该被环绕的数据帧中获取记录，并将其传递给下面的代码中描述的记录。encircle()
from matplotlib import patches
from scipy.spatial import ConvexHull
import warnings; warnings.simplefilter('ignore')
sns.set\_style("white")
# Step 1: Prepare Data
midwest = pd.read\_csv("https://raw.githubusercontent.com/selva86/datasets/master/midwest\_filter.csv")
# As many colors as there are unique midwest\['category'\]
categories = np.unique(midwest\['category'\])
colors = \[plt.cm.tab10(i/float(len(categories)\-1)) for i in range(len(categories))\]
# Step 2: Draw Scatterplot with unique color for each category
fig = plt.figure(figsize=(16, 10), dpi= 80, facecolor='w', edgecolor='k')
for i, category in enumerate(categories):
plt.scatter('area', 'poptotal', data=midwest.loc\[midwest.category==category, :\], s='dot\_size', c=colors\[i\], label=str(category), edgecolors='black', linewidths=.5)
# Step 3: Encircling
# https://stackoverflow.com/questions/44575681/how-do-i-encircle-different-data-sets-in-scatter-plot
def encircle(x,y, ax=None, \*\*kw):
if not ax: ax=plt.gca()
p = np.c\_\[x,y\]
hull = ConvexHull(p)
poly = plt.Polygon(p\[hull.vertices,:\], \*\*kw)
ax.add\_patch(poly)
# Select data to be encircled
midwest\_encircle\_data = midwest.loc\[midwest.state=='IN', :\]
# Draw polygon surrounding vertices
encircle(midwest\_encircle\_data.area, midwest\_encircle\_data.poptotal, ec="k", fc="gold", alpha=0.1)
encircle(midwest\_encircle\_data.area, midwest\_encircle\_data.poptotal, ec="firebrick", fc="none", linewidth=1.5)
# Step 4: Decorations
plt.gca().set(xlim=(0.0, 0.1), ylim=(0, 90000),
xlabel='Area', ylabel='Population')
plt.xticks(fontsize=12); plt.yticks(fontsize=12)
plt.title("Bubble Plot with Encircling", fontsize=22)
plt.legend(fontsize=12)
plt.show()
3. 带线性回归最佳拟合线的散点图

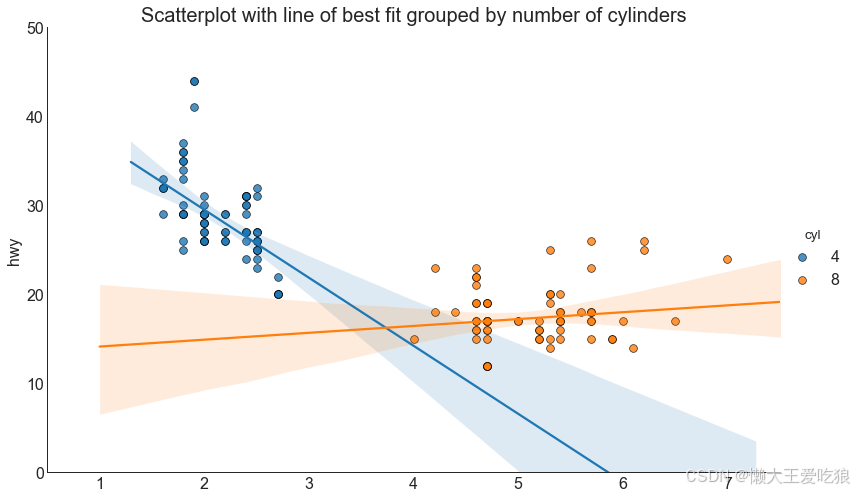

如果你想了解两个变量如何相互改变，那么最合适的线就是要走的路。下图显示了数据中各组之间最佳拟合线的差异。要禁用分组并仅为整个数据集绘制一条最佳拟合线，请从下面的调用中删除该参数。
# Import Data
df = pd.read\_csv("https://raw.githubusercontent.com/selva86/datasets/master/mpg\_ggplot2.csv")
df\_select = df.loc\[df.cyl.isin(\[4,8\]), :\]
# Plot
sns.set\_style("white")
gridobj = sns.lmplot(x="displ", y="hwy", hue="cyl", data=df\_select,
height=7, aspect=1.6, robust=True, palette='tab10',
scatter\_kws=dict(s=60, linewidths=.7, edgecolors='black'))
# Decorations
gridobj.set(xlim=(0.5, 7.5), ylim=(0, 50))
plt.title("Scatterplot with line of best fit grouped by number of cylinders", fontsize=20)
每个回归线都在自己的列中

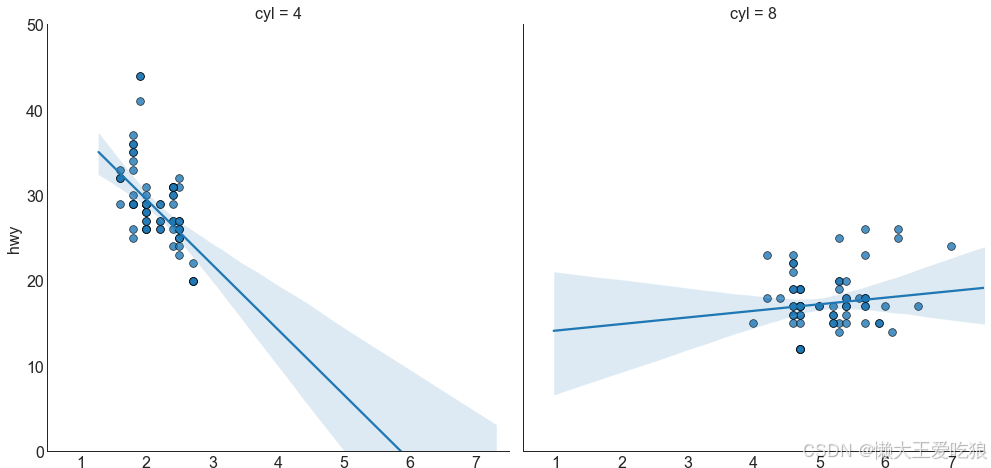

或者，您可以在其自己的列中显示每个组的最佳拟合线。你可以通过在里面设置参数来实现这一点。
# Import Data
df = pd.read\_csv("https://raw.githubusercontent.com/selva86/datasets/master/mpg\_ggplot2.csv")
df\_select = df.loc\[df.cyl.isin(\[4,8\]), :\]
# Each line in its own column
sns.set\_style("white")
gridobj = sns.lmplot(x="displ", y="hwy",
data=df\_select,
height=7,
robust=True,
palette='Set1',
col="cyl",
scatter\_kws=dict(s=60, linewidths=.7, edgecolors='black'))
# Decorations
gridobj.set(xlim=(0.5, 7.5), ylim=(0, 50))
plt.show()
4. 抖动图

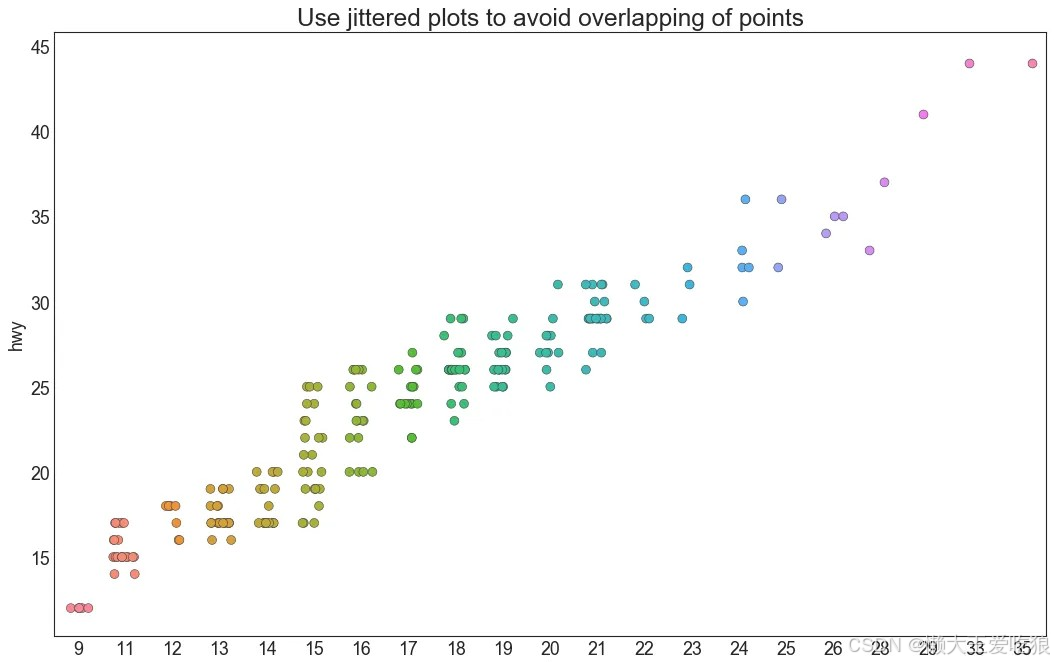

通常，多个数据点具有完全相同的X和Y值。结果，多个点相互绘制并隐藏。为避免这种情况，请稍微抖动点，以便您可以直观地看到它们。这很方便使用
# Import Data
df = pd.read\_csv("https://raw.githubusercontent.com/selva86/datasets/master/mpg\_ggplot2.csv")
# Draw Stripplot
fig, ax = plt.subplots(figsize=(16,10), dpi= 80)
sns.stripplot(df.cty, df.hwy, jitter=0.25, size=8, ax=ax, linewidth=.5)
# Decorations
plt.title('Use jittered plots to avoid overlapping of points', fontsize=22)
plt.show()
5. 计数图

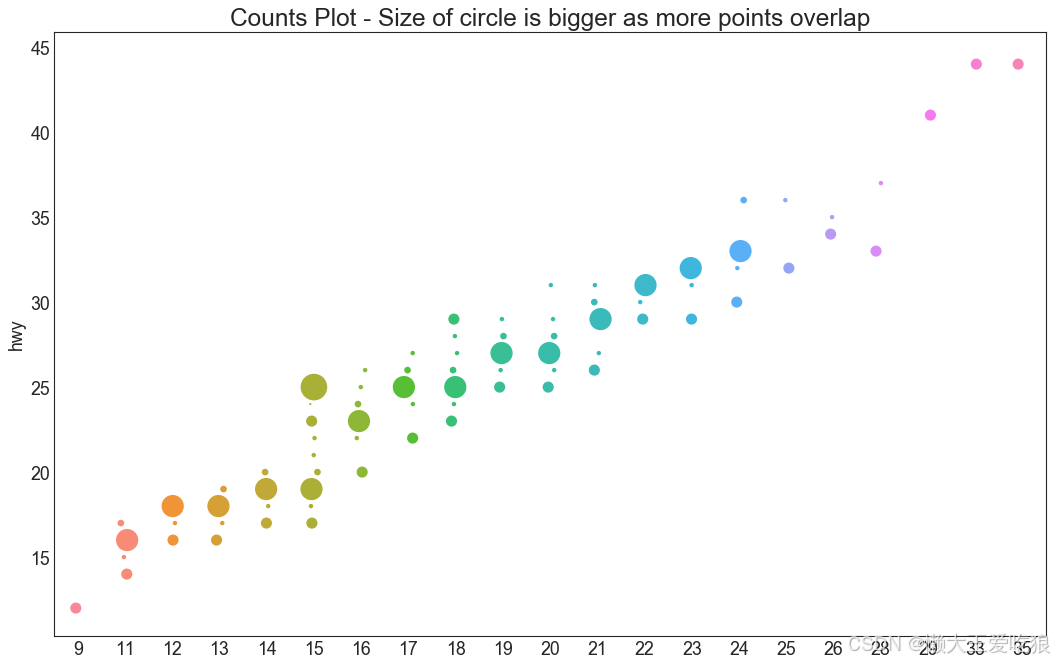

避免点重叠问题的另一个选择是增加点的大小，这取决于该点中有多少点。因此，点的大小越大，周围的点的集中度就越大。
# Import Data
df = pd.read\_csv("https://raw.githubusercontent.com/selva86/datasets/master/mpg\_ggplot2.csv")
df\_counts = df.groupby(\['hwy', 'cty'\]).size().reset\_index(name='counts')
# Draw Stripplot
fig, ax = plt.subplots(figsize=(16,10), dpi= 80)
sns.stripplot(df\_counts.cty, df\_counts.hwy, size=df\_counts.counts\*2, ax=ax)
# Decorations
plt.title('Counts Plot - Size of circle is bigger as more points overlap', fontsize=22)
plt.show()
6. 边缘直方图

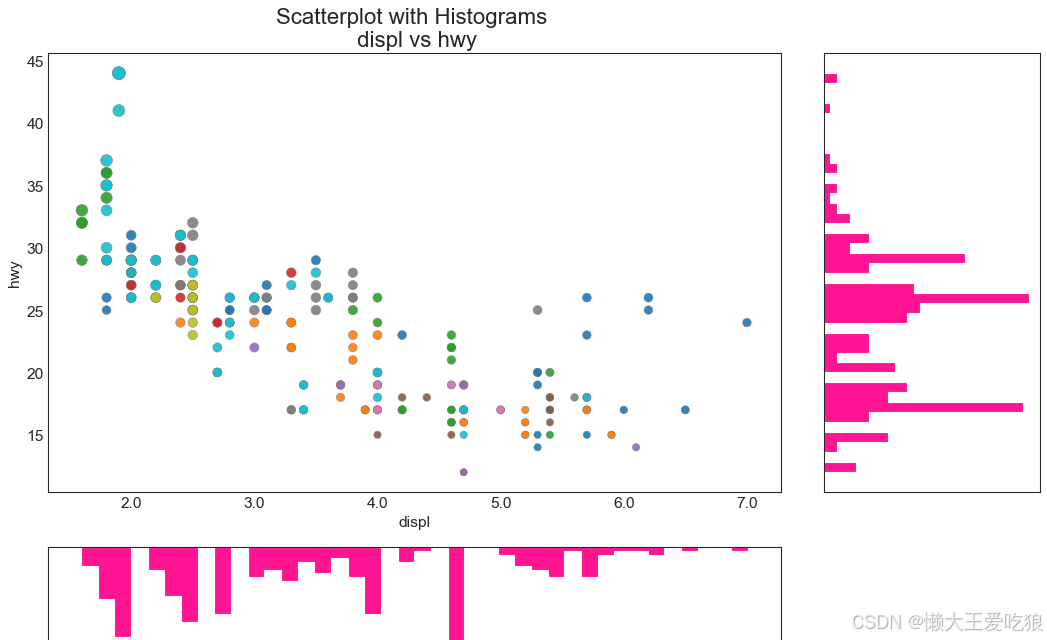

边缘直方图具有沿X和Y轴变量的直方图。这用于可视化X和Y之间的关系以及单独的X和Y的单变量分布。该图如果经常用于探索性数据分析（EDA）。
# Import Data
df = pd.read\_csv("https://raw.githubusercontent.com/selva86/datasets/master/mpg\_ggplot2.csv")
# Create Fig and gridspec
fig = plt.figure(figsize=(16, 10), dpi= 80)
grid = plt.GridSpec(4, 4, hspace=0.5, wspace=0.2)
# Define the axes
ax\_main = fig.add\_subplot(grid\[:-1, :-1\])
ax\_right = fig.add\_subplot(grid\[:-1, -1\], xticklabels=\[\], yticklabels=\[\])
ax\_bottom = fig.add\_subplot(grid\[-1, 0:-1\], xticklabels=\[\], yticklabels=\[\])
# Scatterplot on main ax
ax\_main.scatter('displ', 'hwy', s=df.cty\*4, c=df.manufacturer.astype('category').cat.codes, alpha=.9, data=df, cmap="tab10", edgecolors='gray', linewidths=.5)
# histogram on the right
ax\_bottom.hist(df.displ, 40, histtype='stepfilled', orientation='vertical', color='deeppink')
ax\_bottom.invert\_yaxis()
# histogram in the bottom
ax\_right.hist(df.hwy, 40, histtype='stepfilled', orientation='horizontal', color='deeppink')
# Decorations
ax\_main.set(title='Scatterplot with Histograms
displ vs hwy', xlabel='displ', ylabel='hwy')
ax\_main.title.set\_fontsize(20)
for item in (\[ax\_main.xaxis.label, ax\_main.yaxis.label\] + ax\_main.get\_xticklabels() + ax\_main.get\_yticklabels()):
item.set\_fontsize(14)
xlabels = ax\_main.get\_xticks().tolist()
ax\_main.set\_xticklabels(xlabels)
plt.show()
7.边缘箱形图

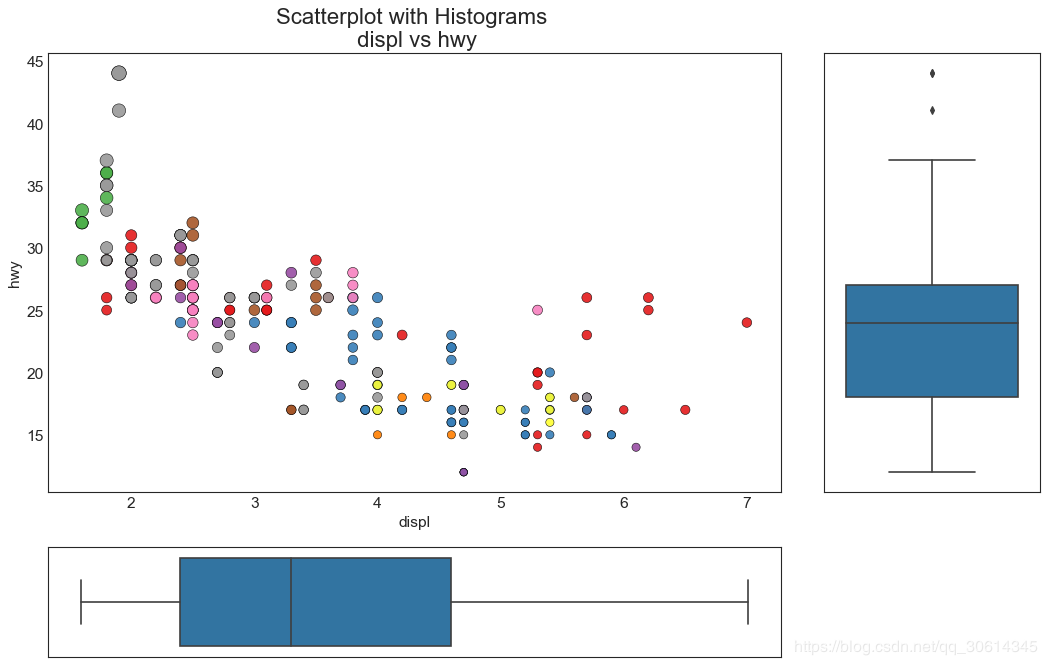

边缘箱图与边缘直方图具有相似的用途。然而，箱线图有助于精确定位X和Y的中位数，第25和第75百分位数。
# Import Data
df = pd.read\_csv("https://raw.githubusercontent.com/selva86/datasets/master/mpg\_ggplot2.csv")
# Create Fig and gridspec
fig = plt.figure(figsize=(16, 10), dpi= 80)
grid = plt.GridSpec(4, 4, hspace=0.5, wspace=0.2)
# Define the axes
ax\_main = fig.add\_subplot(grid\[:-1, :-1\])
ax\_right = fig.add\_subplot(grid\[:-1, -1\], xticklabels=\[\], yticklabels=\[\])
ax\_bottom = fig.add\_subplot(grid\[-1, 0:-1\], xticklabels=\[\], yticklabels=\[\])
# Scatterplot on main ax
ax\_main.scatter('displ', 'hwy', s=df.cty\*5, c=df.manufacturer.astype('category').cat.codes, alpha=.9, data=df, cmap="Set1", edgecolors='black', linewidths=.5)
# Add a graph in each part
sns.boxplot(df.hwy, ax=ax\_right, orient="v")
sns.boxplot(df.displ, ax=ax\_bottom, orient="h")
# Decorations ------------------
# Remove x axis name for the boxplot
ax\_bottom.set(xlabel='')
ax\_right.set(ylabel='')
# Main Title, Xlabel and YLabel
ax\_main.set(title='Scatterplot with Histograms
displ vs hwy', xlabel='displ', ylabel='hwy')
# Set font size of different components
ax\_main.title.set\_fontsize(20)
for item in (\[ax\_main.xaxis.label, ax\_main.yaxis.label\] + ax\_main.get\_xticklabels() + ax\_main.get\_yticklabels()):
item.set\_fontsize(14)
plt.show()
8. 相关图

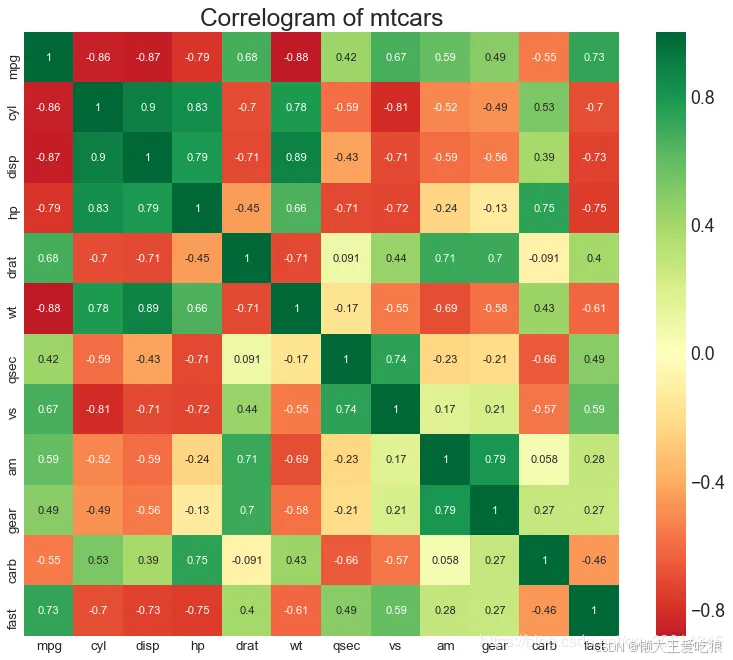

Correlogram用于直观地查看给定数据帧（或2D数组）中所有可能的数值变量对之间的相关度量。
# Import Dataset
df = pd.read\_csv("https://github.com/selva86/datasets/raw/master/mtcars.csv")
# Plot
plt.figure(figsize=(12,10), dpi= 80)
sns.heatmap(df.corr(), xticklabels=df.corr().columns, yticklabels=df.corr().columns, cmap='RdYlGn', center=0, annot=True)
# Decorations
plt.title('Correlogram of mtcars', fontsize=22)
plt.xticks(fontsize=12)
plt.yticks(fontsize=12)
plt.show()
9. 矩阵图

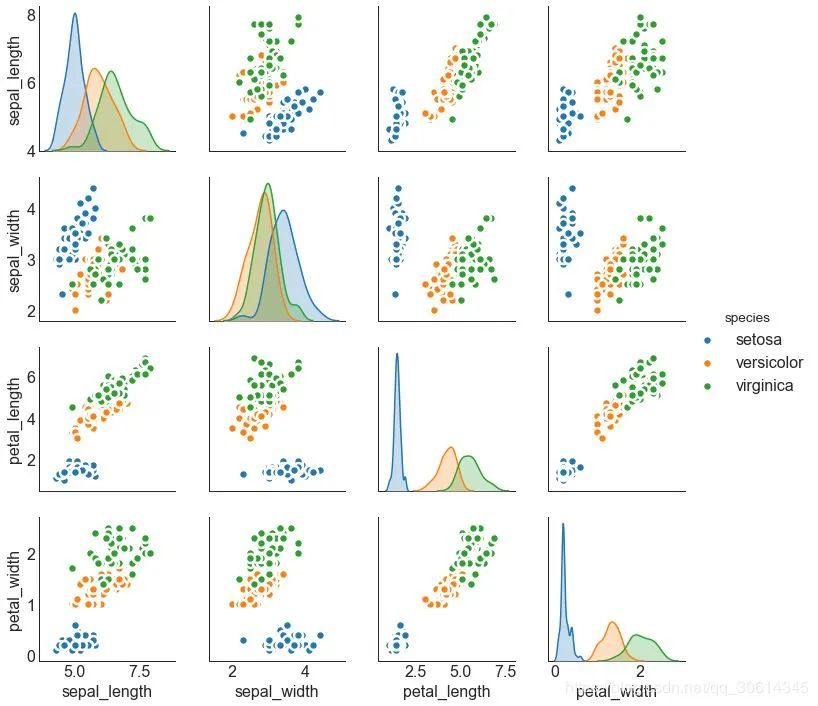

成对图是探索性分析中的最爱，以理解所有可能的数字变量对之间的关系。它是双变量分析的必备工具。
# Load Dataset
df = sns.load\_dataset('iris')
# Plot
plt.figure(figsize=(10,8), dpi= 80)
sns.pairplot(df, kind="scatter", hue="species", plot\_kws=dict(s=80, edgecolor="white", linewidth=2.5))
plt.show()
# Load Dataset
df = sns.load\_dataset('iris')
# Plot
plt.figure(figsize=(10,8), dpi= 80)
sns.pairplot(df, kind="reg", hue="species")
plt.show()
10. 发散型条形图
如果您想根据单个指标查看项目的变化情况，并可视化此差异的顺序和数量，那么发散条是一个很好的工具。它有助于快速区分数据中组的性能，并且非常直观，并且可以立即传达这一点。
# Prepare Data
df = pd.read\_csv("https://github.com/selva86/datasets/raw/master/mtcars.csv")
x = df.loc\[:, \['mpg'\]\]
df\['mpg\_z'\] = (x - x.mean())/x.std()
df\['colors'\] = \['red' if x < 0 else 'green' for x in df\['mpg\_z'\]\]
df.sort\_values('mpg\_z', inplace=True)
df.reset\_index(inplace=True)
# Draw plot
plt.figure(figsize=(14,10), dpi= 80)
plt.hlines(y=df.index, xmin=0, xmax=df.mpg\_z, color=df.colors, alpha=0.4, linewidth=5)
# Decorations
plt.gca().set(ylabel='$Model$', xlabel='$Mileage$')
plt.yticks(df.index, df.cars, fontsize=12)
plt.title('Diverging Bars of Car Mileage', fontdict={'size':20})
plt.grid(linestyle='--', alpha=0.5)
plt.show()
11. 发散型文本
分散的文本类似于发散条，如果你想以一种漂亮和可呈现的方式显示图表中每个项目的价值，它更喜欢。
# Prepare Data
df = pd.read\_csv("https://github.com/selva86/datasets/raw/master/mtcars.csv")
x = df.loc\[:, \['mpg'\]\]
df\['mpg\_z'\] = (x - x.mean())/x.std()
df\['colors'\] = \['red' if x < 0 else 'green' for x in df\['mpg\_z'\]\]
df.sort\_values('mpg\_z', inplace=True)
df.reset\_index(inplace=True)
# Draw plot
plt.figure(figsize=(14,14), dpi= 80)
plt.hlines(y=df.index, xmin=0, xmax=df.mpg\_z)
for x, y, tex in zip(df.mpg\_z, df.index, df.mpg\_z):
t = plt.text(x, y, round(tex, 2), horizontalalignment='right' if x < 0 else 'left',
verticalalignment='center', fontdict={'color':'red' if x < 0 else 'green', 'size':14})
# Decorations
plt.yticks(df.index, df.cars, fontsize=12)
plt.title('Diverging Text Bars of Car Mileage', fontdict={'size':20})
plt.grid(linestyle='--', alpha=0.5)
plt.xlim(\-2.5, 2.5)
plt.show()

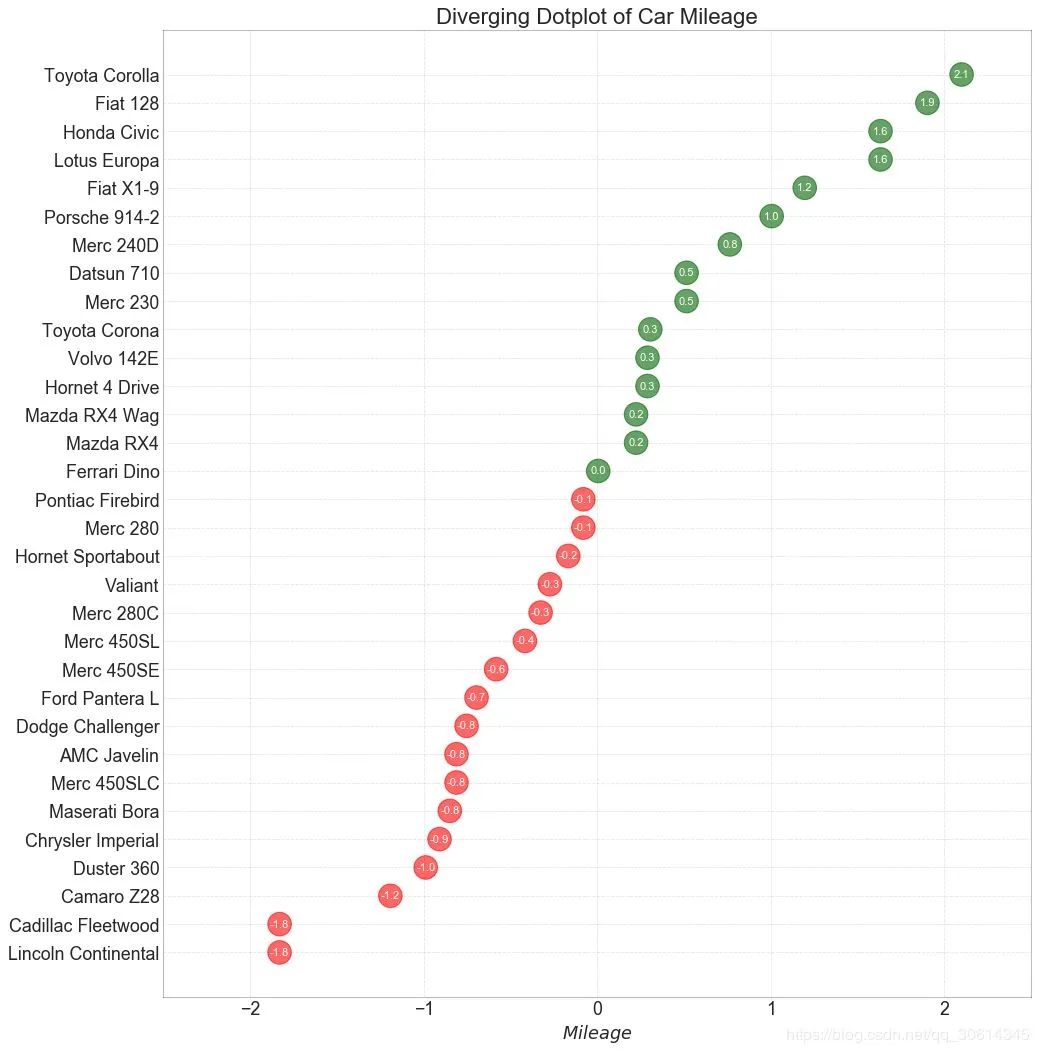

12. 发散型包点图
发散点图也类似于发散条。然而，与发散条相比，条的不存在减少了组之间的对比度和差异。
# Prepare Data
df = pd.read\_csv("https://github.com/selva86/datasets/raw/master/mtcars.csv")
x = df.loc\[:, \['mpg'\]\]
df\['mpg\_z'\] = (x - x.mean())/x.std()
df\['colors'\] = \['red' if x < 0 else 'darkgreen' for x in df\['mpg\_z'\]\]
df.sort\_values('mpg\_z', inplace=True)
df.reset\_index(inplace=True)
# Draw plot
plt.figure(figsize=(14,16), dpi= 80)
plt.scatter(df.mpg\_z, df.index, s=450, alpha=.6, color=df.colors)
for x, y, tex in zip(df.mpg\_z, df.index, df.mpg\_z):
t = plt.text(x, y, round(tex, 1), horizontalalignment='center',
verticalalignment='center', fontdict={'color':'white'})
# Decorations
# Lighten borders
plt.gca().spines\["top"\].set\_alpha(.3)
plt.gca().spines\["bottom"\].set\_alpha(.3)
plt.gca().spines\["right"\].set\_alpha(.3)
plt.gca().spines\["left"\].set\_alpha(.3)
plt.yticks(df.index, df.cars)
plt.title('Diverging Dotplot of Car Mileage', fontdict={'size':20})
plt.xlabel('$Mileage$')
plt.grid(linestyle='--', alpha=0.5)
plt.xlim(\-2.5, 2.5)
plt.show()
13. 带标记的发散型棒棒糖图
带标记的棒棒糖通过强调您想要引起注意的任何重要数据点并在图表中适当地给出推理，提供了一种可视化分歧的灵活方式。
# Prepare Data
df = pd.read\_csv("https://github.com/selva86/datasets/raw/master/mtcars.csv")
x = df.loc\[:, \['mpg'\]\]
df\['mpg\_z'\] = (x - x.mean())/x.std()
df\['colors'\] = 'black'
# color fiat differently
df.loc\[df.cars == 'Fiat X1-9', 'colors'\] = 'darkorange'
df.sort\_values('mpg\_z', inplace=True)
df.reset\_index(inplace=True)
# Draw plot
import matplotlib.patches as patches
plt.figure(figsize=(14,16), dpi= 80)
plt.hlines(y=df.index, xmin=0, xmax=df.mpg\_z, color=df.colors, alpha=0.4, linewidth=1)
plt.scatter(df.mpg\_z, df.index, color=df.colors, s=\[600 if x == 'Fiat X1-9' else 300 for x in df.cars\], alpha=0.6)
plt.yticks(df.index, df.cars)
plt.xticks(fontsize=12)
# Annotate
plt.annotate('Mercedes Models', xy=(0.0, 11.0), xytext=(1.0, 11), xycoords='data',
fontsize=15, ha='center', va='center',
bbox=dict(boxstyle='square', fc='firebrick'),
arrowprops=dict(arrowstyle='-\[, widthB=2.0, lengthB=1.5', lw=2.0, color='steelblue'), color='white')
# Add Patches
p1 = patches.Rectangle((\-2.0, \-1), width=.3, height=3, alpha=.2, facecolor='red')
p2 = patches.Rectangle((1.5, 27), width=.8, height=5, alpha=.2, facecolor='green')
plt.gca().add\_patch(p1)
plt.gca().add\_patch(p2)
# Decorate
plt.title('Diverging Bars of Car Mileage', fontdict={'size':20})
plt.grid(linestyle='--', alpha=0.5)
plt.show()

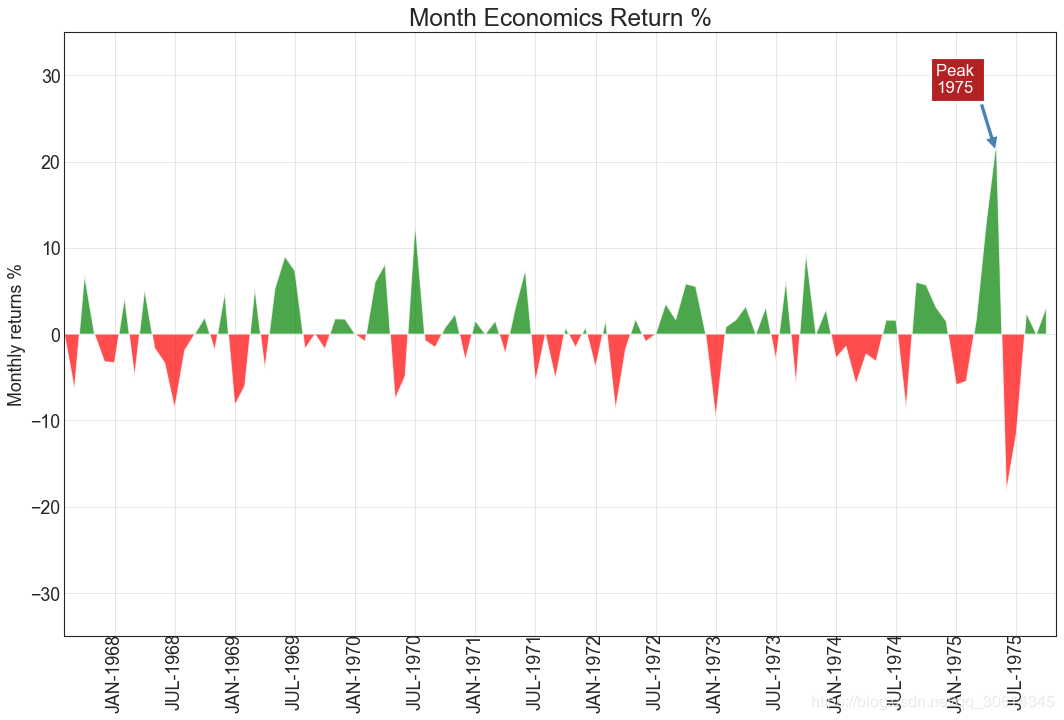

14.面积图
通过对轴和线之间的区域进行着色，区域图不仅强调峰值和低谷，而且还强调高点和低点的持续时间。高点持续时间越长，线下面积越大。
import numpy as np
import pandas as pd
# Prepare Data
df = pd.read\_csv("https://github.com/selva86/datasets/raw/master/economics.csv", parse\_dates=\['date'\]).head(100)
x = np.arange(df.shape\[0\])
y\_returns = (df.psavert.diff().fillna(0)/df.psavert.shift(1)).fillna(0) \* 100
# Plot
plt.figure(figsize=(16,10), dpi= 80)
plt.fill\_between(x\[1:\], y\_returns\[1:\], 0, where=y\_returns\[1:\] >= 0, facecolor='green', interpolate=True, alpha=0.7)
plt.fill\_between(x\[1:\], y\_returns\[1:\], 0, where=y\_returns\[1:\] <= 0, facecolor='red', interpolate=True, alpha=0.7)
# Annotate
plt.annotate('Peak
1975', xy=(94.0, 21.0), xytext=(88.0, 28),
bbox=dict(boxstyle='square', fc='firebrick'),
arrowprops=dict(facecolor='steelblue', shrink=0.05), fontsize=15, color='white')
# Decorations
xtickvals = \[str(m)\[:3\].upper()+"-"+str(y) for y,m in zip(df.date.dt.year, df.date.dt.month\_name())\]
plt.gca().set\_xticks(x\[::6\])
plt.gca().set\_xticklabels(xtickvals\[::6\], rotation=90, fontdict={'horizontalalignment': 'center', 'verticalalignment': 'center\_baseline'})
plt.ylim(\-35,35)
plt.xlim(1,100)
plt.title("Month Economics Return %", fontsize=22)
plt.ylabel('Monthly returns %')
plt.grid(alpha=0.5)
plt.show()

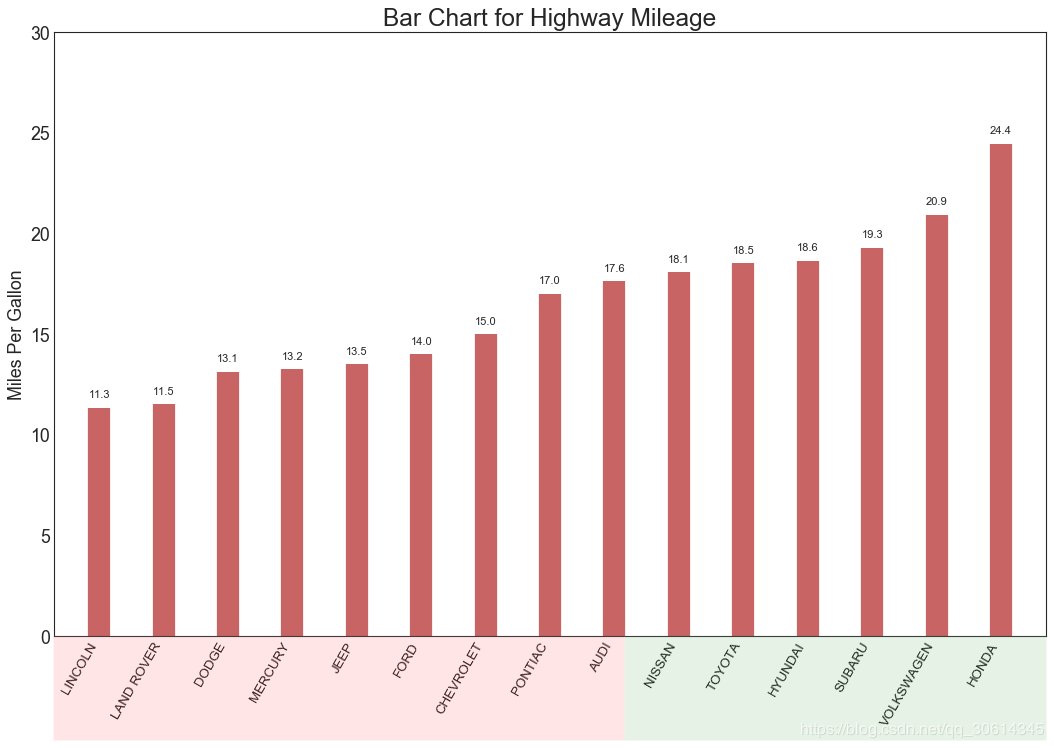

15. 有序条形图
有序条形图有效地传达了项目的排名顺序。但是，在图表上方添加度量标准的值，用户可以从图表本身获取精确信息。
# Prepare Data
df\_raw = pd.read\_csv("https://github.com/selva86/datasets/raw/master/mpg\_ggplot2.csv")
df = df\_raw\[\['cty', 'manufacturer'\]\].groupby('manufacturer').apply(lambda x: x.mean())
df.sort\_values('cty', inplace=True)
df.reset\_index(inplace=True)
# Draw plot
import matplotlib.patches as patches
fig, ax = plt.subplots(figsize=(16,10), facecolor='white', dpi= 80)
ax.vlines(x=df.index, ymin=0, ymax=df.cty, color='firebrick', alpha=0.7, linewidth=20)
# Annotate Text
for i, cty in enumerate(df.cty):
ax.text(i, cty+0.5, round(cty, 1), horizontalalignment='center')
# Title, Label, Ticks and Ylim
ax.set\_title('Bar Chart for Highway Mileage', fontdict={'size':22})
ax.set(ylabel='Miles Per Gallon', ylim=(0, 30))
plt.xticks(df.index, df.manufacturer.str.upper(), rotation=60, horizontalalignment='right', fontsize=12)
# Add patches to color the X axis labels
p1 = patches.Rectangle((.57, \-0.005), width=.33, height=.13, alpha=.1, facecolor='green', transform=fig.transFigure)
p2 = patches.Rectangle((.124, \-0.005), width=.446, height=.13, alpha=.1, facecolor='red', transform=fig.transFigure)
fig.add\_artist(p1)
fig.add\_artist(p2)
plt.show()
作为一个IT的过来人，我自己整理了一些python学习资料，希望对你们有帮助。
编程资料、学习路线图、源代码、软件安装包等！
① Python所有方向的学习路线图，清楚各个方向要学什么东西
② 100多节Python课程视频，涵盖必备基础、爬虫和数据分析
③ 100多个Python实战案例，学习不再是只会理论
④ 华为出品独家Python漫画教程，手机也能学习
朋友们如果需要可以微扫描下方二维码都可以免费获取【保证100%免费】。
如有侵权，请联系删除。
扫一扫
489
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
