cocos shader 初探之马赛克

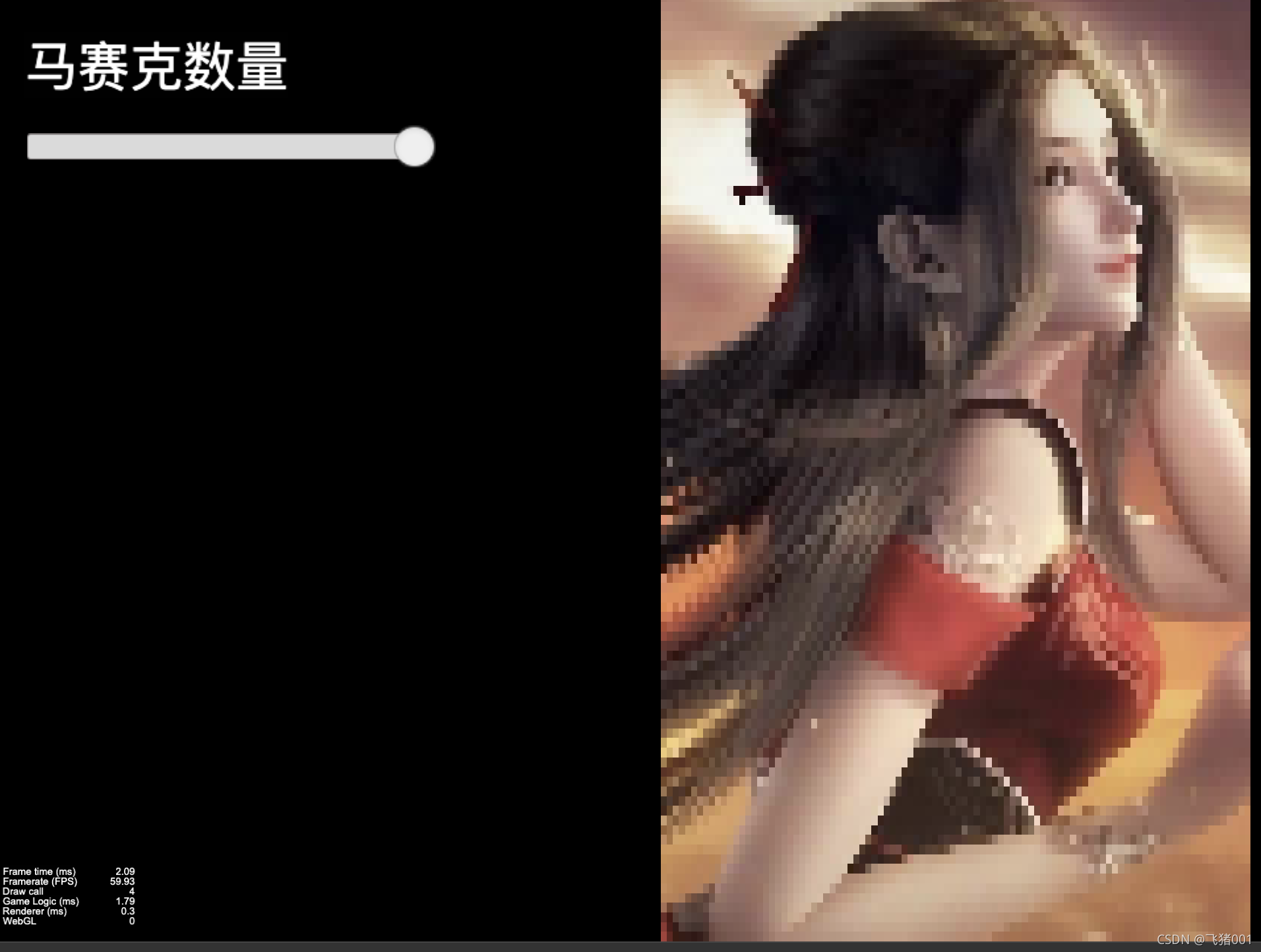

1.效果

2.原理

        将一张图片分割成n*n个格子，将得到的uv判断出所在的格子，将uv坐标偏移到格子的中间。

3.代码

// Copyright (c) 2017-2018 Xiamen Yaji Software Co., Ltd.

CCEffect %{
  techniques:
  - passes:
    - vert: vs
      frag: fs
      blendState:
        targets:
        - blend: true
      rasterizerState:
        cullMode: none
      properties:
        texture: { value: white }
        alphaThreshold: { value: 0.5 }
        mosaic_factor: {
          value: 10,
          editor: {
            tooltip: '马赛克数量系数'
          }
        }
}%


CCProgram vs %{
  precision highp float;

  #include <cc-global>
  #include <cc-local>

  in vec3 a_position;
  in vec4 a_color;
  out vec4 v_color;

  #if USE_TEXTURE
  in vec2 a_uv0;
  out vec2 v_uv0;
  #endif

  void main () {
    vec4 pos = vec4(a_position, 1);

    #if CC_USE_MODEL
    pos = cc_matViewProj * cc_matWorld * pos;
    #else
    pos = cc_matViewProj * pos;
    #endif

    #if USE_TEXTURE
    v_uv0 = a_uv0;
    #endif

    v_color = a_color;

    gl_Position = pos;
  }
}%


CCProgram fs %{
  precision highp float;

  #include <alpha-test>
  #include <texture>

  in vec4 v_color;

  #if USE_TEXTURE
  in vec2 v_uv0;
  uniform sampler2D texture;
  #endif


  uniform Constant{
    float mosaic_factor;
  };

  /**
  * 得到马赛克的uv坐标
  */
  vec2 getMosaicUV(vec2 uv) {
    float mosaic = 1.0 / mosaic_factor;
    if(mosaic<=0.0){
      mosaic = 1.0;
    }
    //计算新的uv
    uv.x = floor(uv.x / mosaic)*mosaic + mosaic *0.5;
    uv.y = floor(uv.y / mosaic)*mosaic + mosaic *0.5;

    return uv;
  }

  void main () {
    vec4 o = vec4(1, 1, 1, 1);


    vec2 mosaic_uv = getMosaicUV(v_uv0);
    #if USE_TEXTURE
      CCTexture(texture, mosaic_uv, o);
    #endif

    o *= v_color;

    ALPHA_TEST(o);

    gl_FragColor = o;
  }
}%
