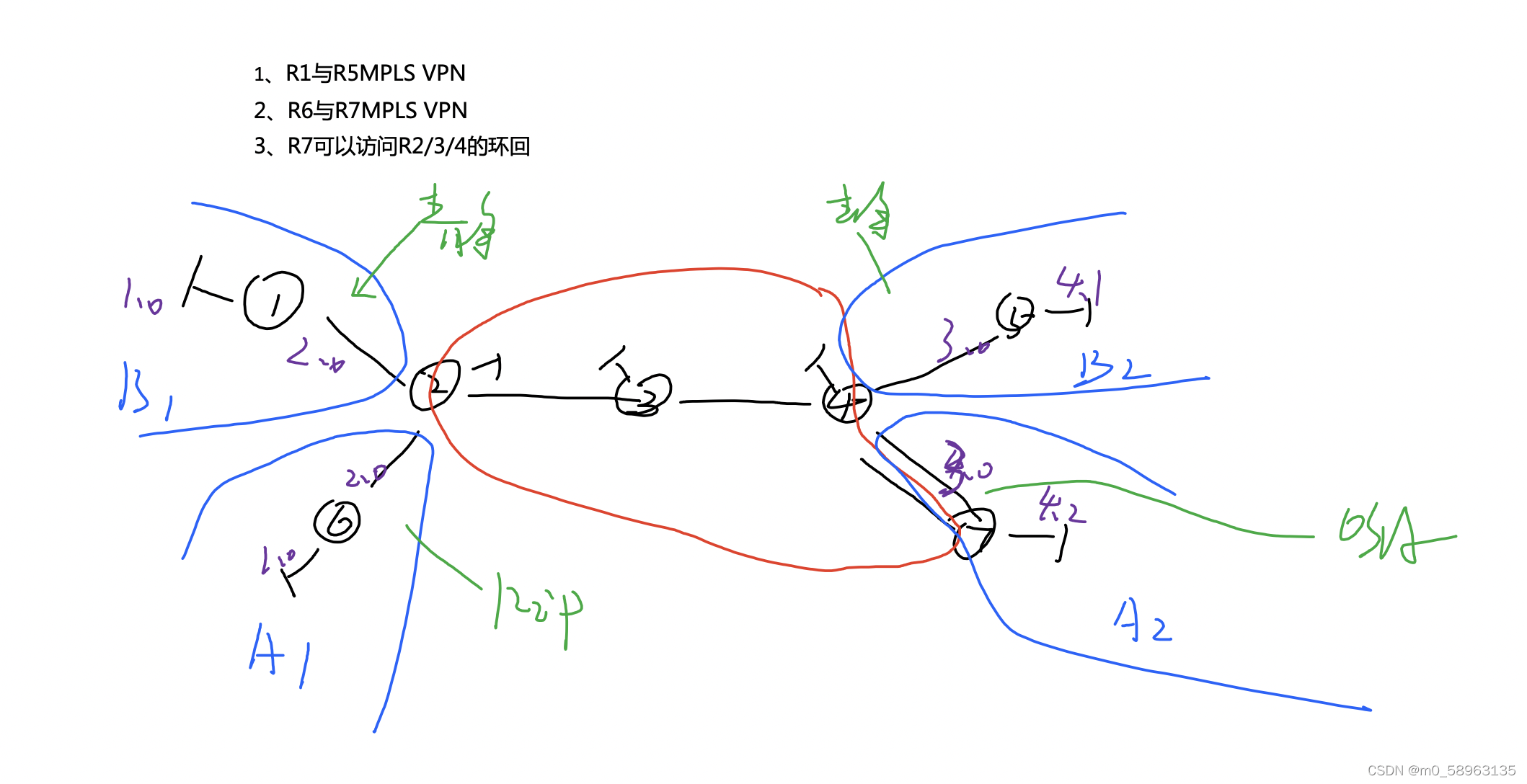

标签交换实验

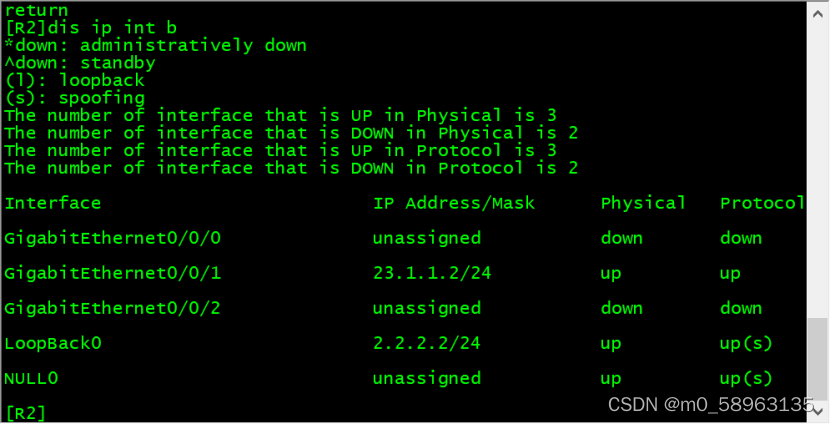

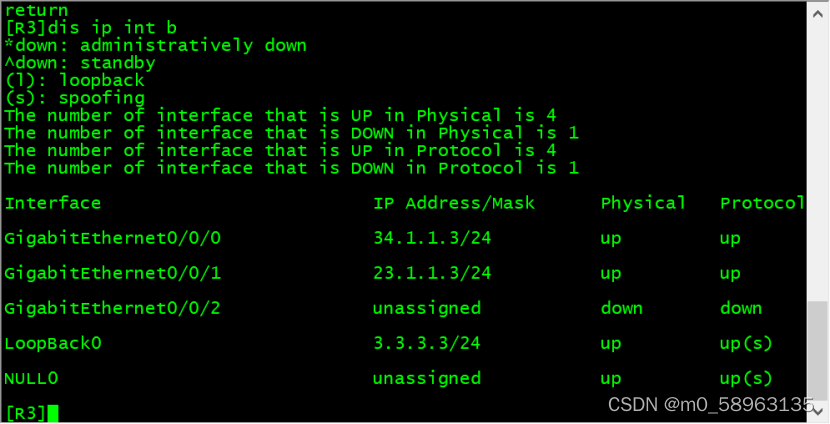

1. 先配公网IP

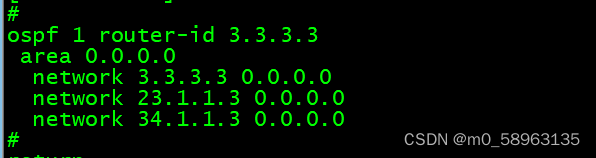

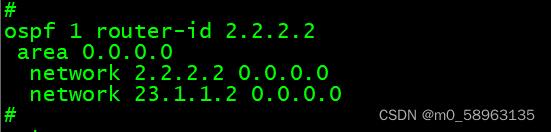

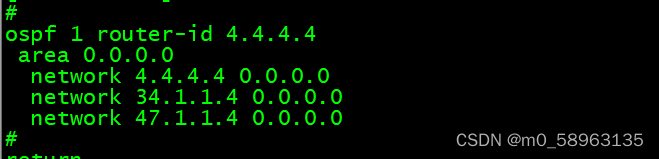

用ospf将公网打通





4调成沉默接口

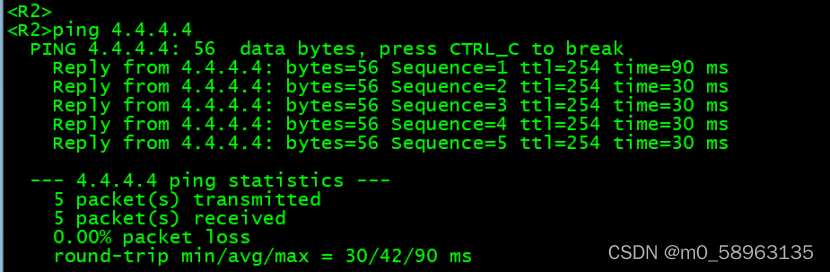

测试公网连通性

7的缺省指向4

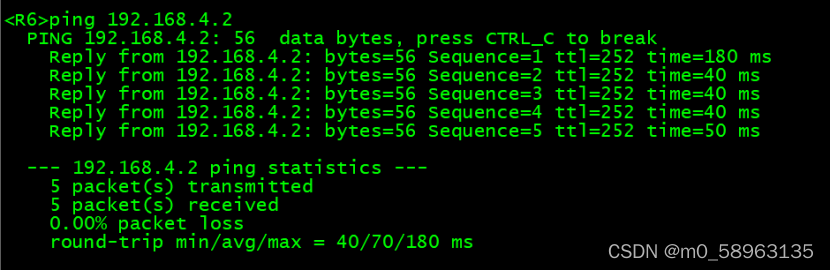

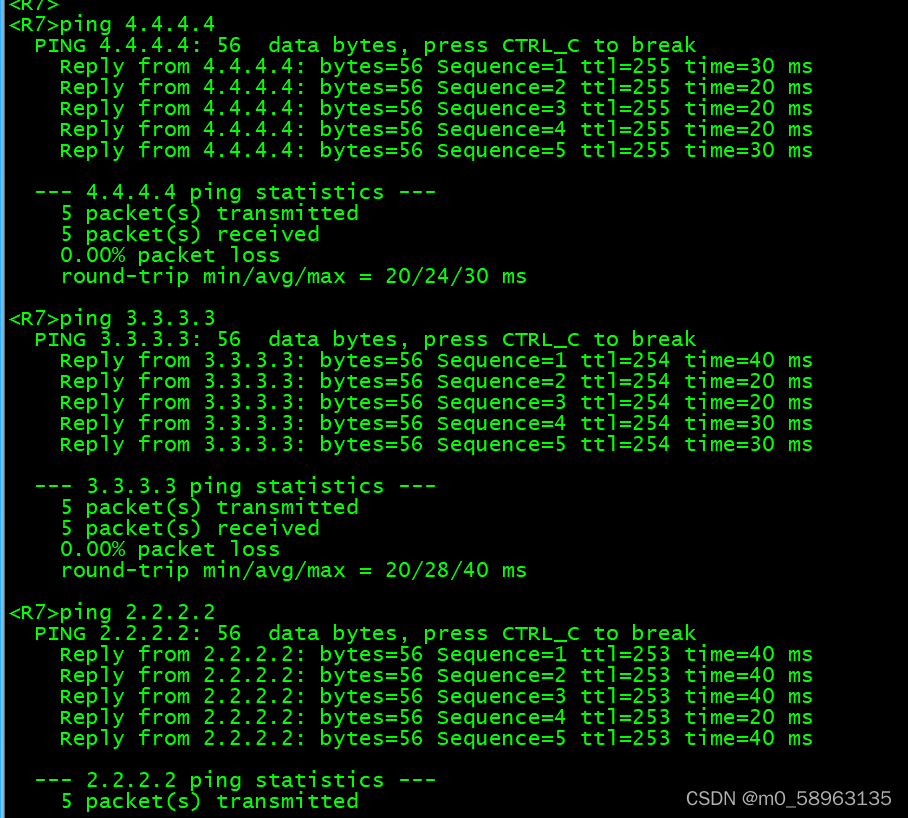

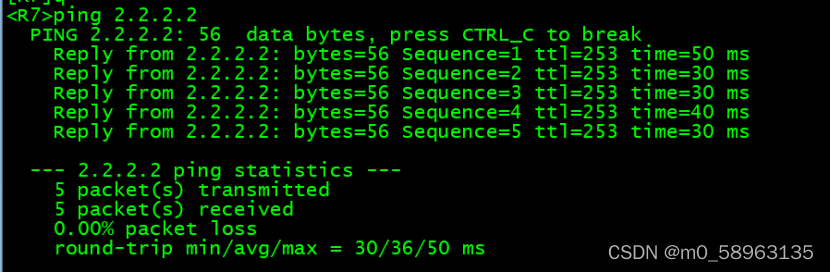

测试连通性

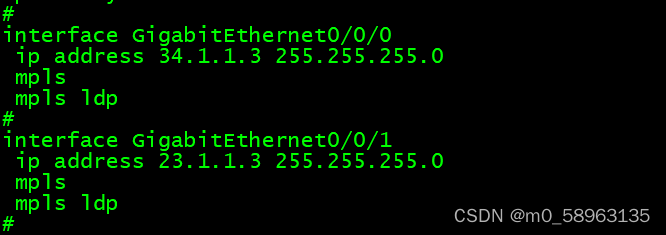

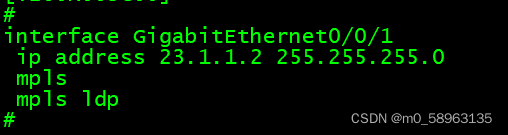

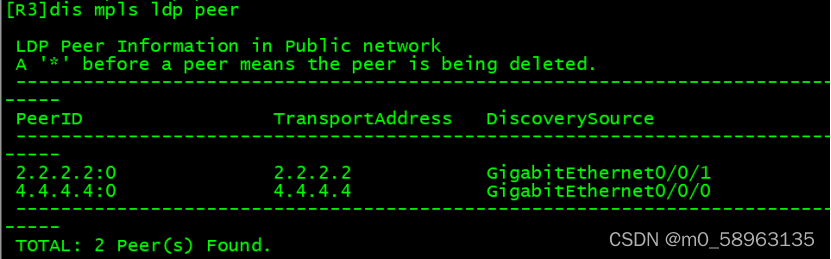

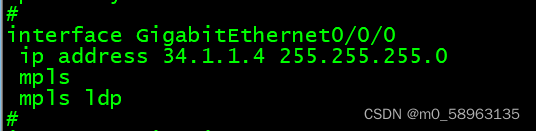

1. 搭建mpls环境

R2

R3

R4

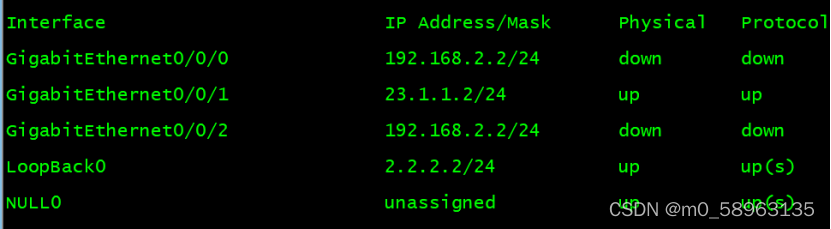

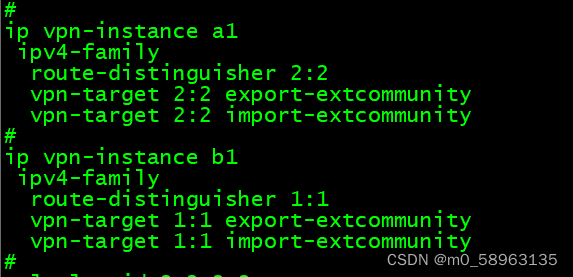

在2上做VRF空间

绑定接口

#

interface GigabitEthernet0/0/0

 ip binding vpn-instance b1

 ip address 192.168.2.2 255.255.255.0

#

#

interface GigabitEthernet0/0/2

 ip binding vpn-instance a1

 ip address 192.168.2.2 255.255.255.0

#

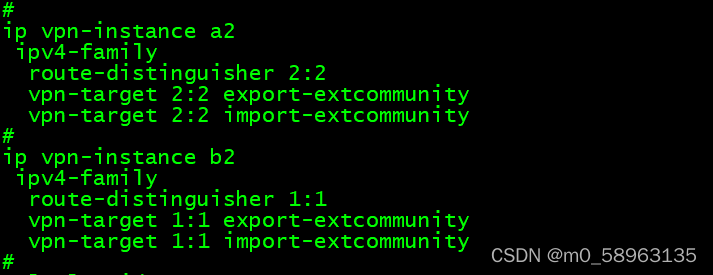

在4上做VRF空间

绑定接口

#

interface GigabitEthernet0/0/1

 ip binding vpn-instance a2

 ip address 192.168.3.1 255.255.255.0

#

interface GigabitEthernet0/0/2

 ip binding vpn-instance b2

 ip address 192.168.3.1 255.255.255.0

#

在mpls上启动bgp

[R2]bgp 1

[R2-bgp]router-id 2.2.2.2

[R2-bgp]peer 4.4.4.4 as-number 1

[R2-bgp]peer 4.4.4.4 connect-interface LoopBack 0

[R2-bgp]ipv4-family vpnv4

[R2-bgp-af-vpnv4]peer 4.4.4.4 enable

[R4]bgp 1

[R4-bgp]router-id 4.4.4.4

[R4-bgp]peer 2.2.2.2 as-number 1

[R4-bgp]peer 2.2.2.2 connect-interface LoopBack 0

[R4-bgp]ipv4-family vpnv4

[R4-bgp-af-vpnv4]peer 2.2.2.2 enable

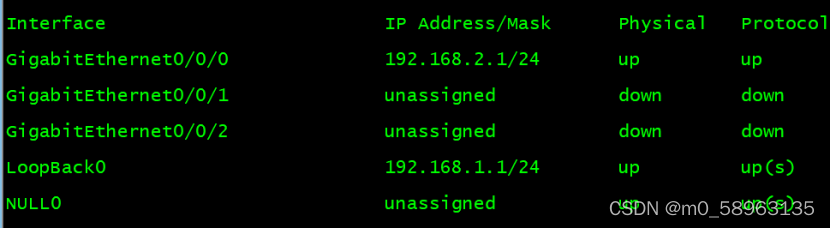

给R1配IP

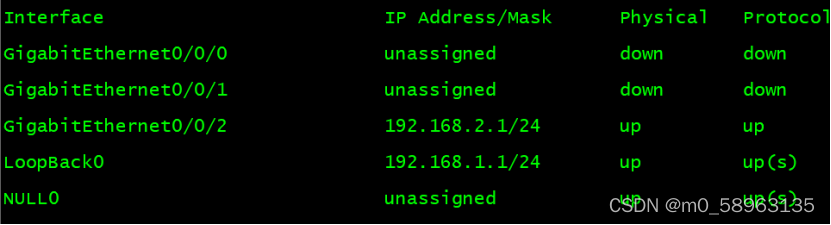

给R6配IP

给R5配IP

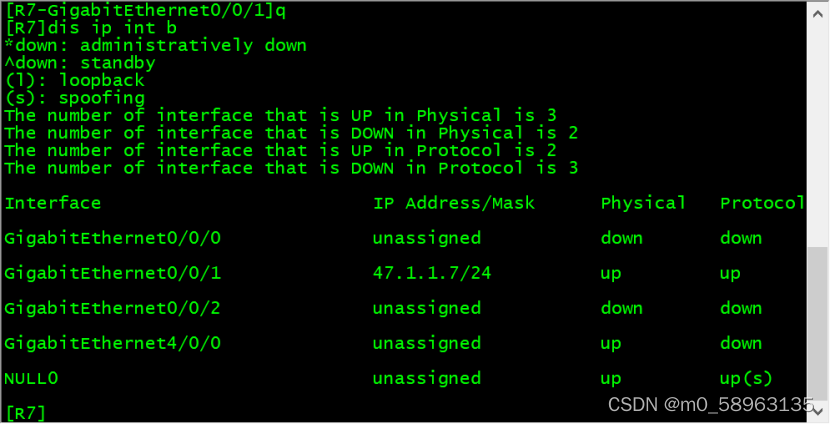

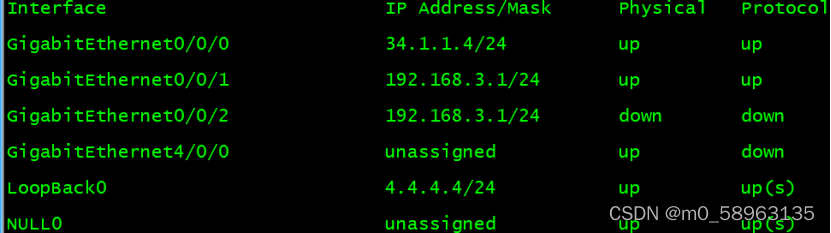

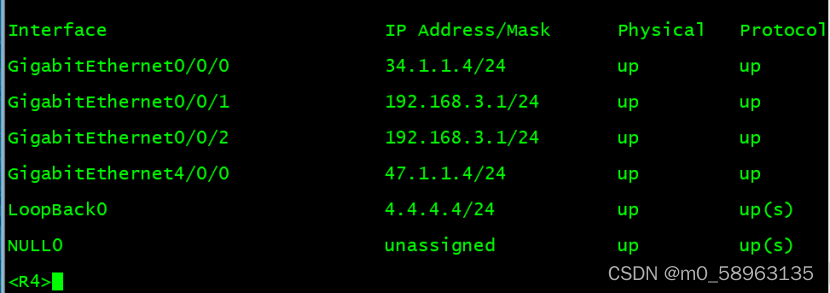

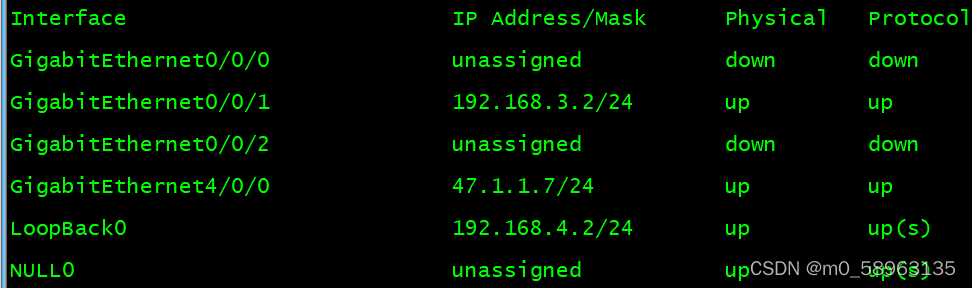

给R7配IP

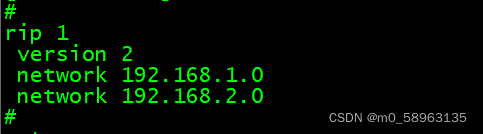

给R2，6间写rip

R6

R2

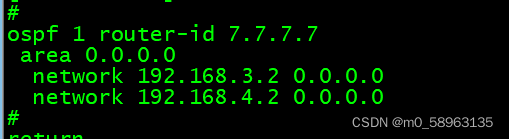

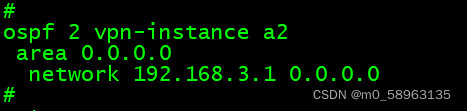

给R4，7间写ospf

R7

R4

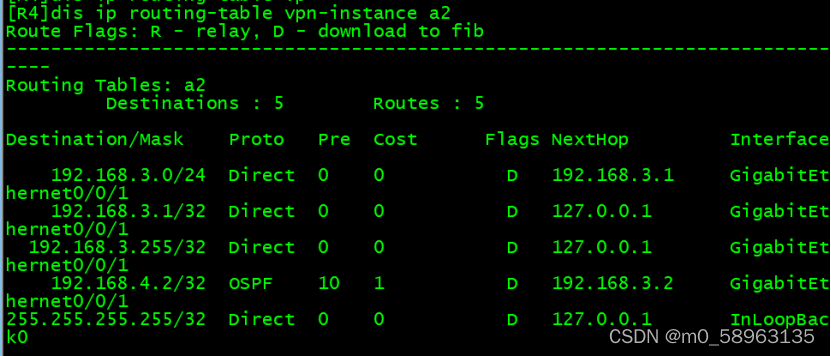

R4学到了7环回

在R2上进行双向重发布

#

rip 1 vpn-instance a1

 version 2

 network 192.168.2.0

 import-route bgp

#

#

 ipv4-family vpn-instance a1

  import-route rip 1

#

在R4上进行双向重发布

#

ospf 2 vpn-instance a2

 import-route bgp

 area 0.0.0.0

  network 192.168.3.1 0.0.0.0

#

#

 ipv4-family vpn-instance a2

  import-route ospf 2

#

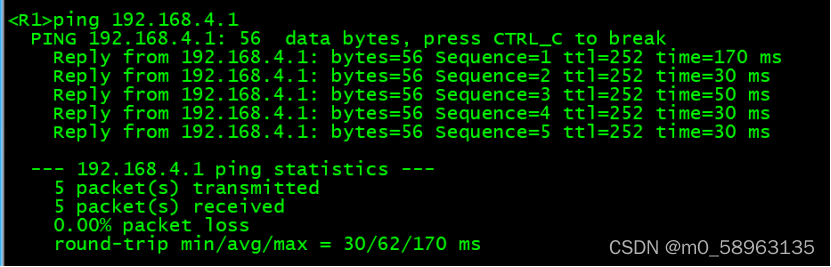

写静态路由

R1

[R1]ip route-static 192.168.3.0 24 192.168.2.2

[R1]ip route-static 192.168.4.0 24 192.168.2.2

R2

[R2]ip route-static vpn-instance b1 192.168.1.0 24 192.168.2.1

#

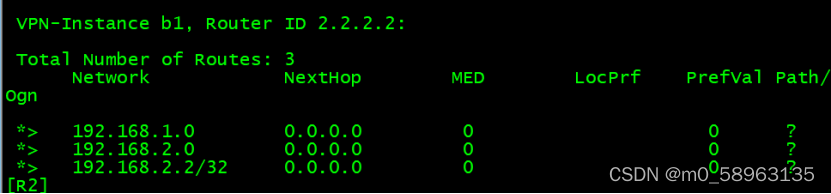

 ipv4-family vpn-instance b1

  import-route direct

  import-route static

#

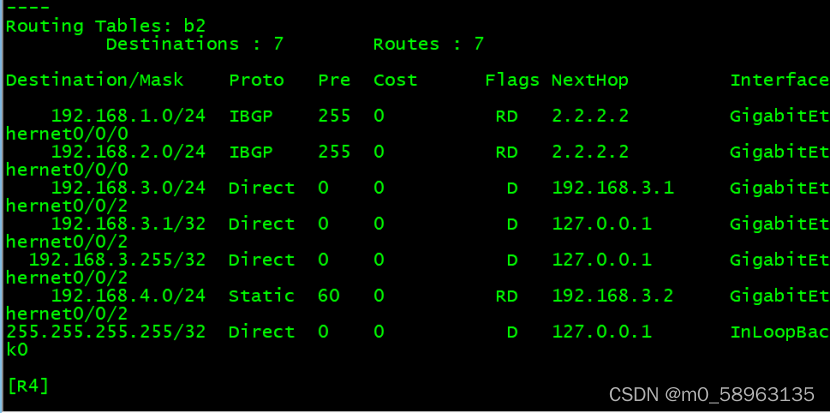

R4

[R4]ip route-static vpn-instance b2 192.168.4.0 24 192.168.3.2

#

 ipv4-family vpn-instance b2

  import-route direct

  import-route static

#

R5

[R5]ip route-static 192.168.1.0 24 192.168.3.1

[R5]ip route-static 192.168.2.0 24 192.168.3.1
