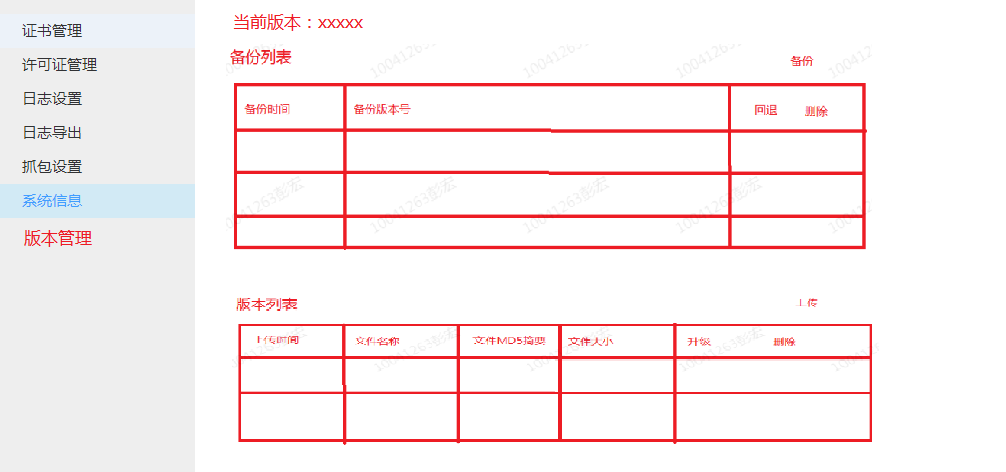

本文档详细介绍了CAG版本管理功能，包括上传新版本、查看当前版本、系统空间检查、版本列表及操作（删除、升级）。升级前需备份，过程中显示进度，成功或失败有明确提示。同时，支持版本回退、删除和备份操作，确保系统稳定和数据安全。系统自动管理历史版本，超出限制时自动清理。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

<template>
  <div class="verinfo">
    <h4>{{ $t("version_management.version") }}：{{verInfo.version}}</h4>
    <div class="btn_wrap">
    <!-- 备份列表 -->
      <span class="backup_title">{{ $t("version_management.backuplist") }}</span>
      <div class="backup_btn">
        <el-button
          type="primary"
          size="small"
          class="toBackUp"
          @click="toOpenDialog(null,$event)"
        >
          {{ $t("common.backup") }}
        </el-button>
      </div>
    </div>
    <div class="backuplist">
      <el-table :data="backupList" border v-loading="loading">
        <!-- 备份时间 -->
        <el-table-column
          prop="backup_tm"
          :label="$t('version_management.backup_tm')"
        ></el-table-column>
        <!-- 备份版本号 -->
        <el-table-column
          prop="backup_ver"
          :label="$t('version_management.backup_ver')"
        ></el-table-column>
        <!-- 操作 -->
        <el-table-column
          :label="$t('common.operation')"
          width="206px"
          align="center"
        >
          <template slot-scope="scope">
            <!-- 回退 -->
            <el-tooltip
              placement="top"
              effect="light"
              :content="$t('common.rollback')"
              class="toRollback"
            >
              <i
                class="iconfont icon-go-back blue"
                @click="toOpenDialog(scope.row, $event)"
              ></i>
            </el-tooltip>
            <!-- 删除 -->
            <el-tooltip
              placement="top"
              effect="light"
              :content="$t('common.delete')"
            >
              <i
                class="iconfont icon-delete red"
                @click="toDeleteBackUpConfirm(scope.row)"
              ></i>
            </el-tooltip>
          </template>
        </el-table-column>
      </el-table>
    </div>
    <div class="btn_wrap">
    <!-- 版本列表 -->
      <span class="backup_title">{{ $t("version_management.versionlist") }}</span>
      <div class="backup_btn">
        <el-button
          type="primary"
          size="small"
          @click="toUploadForm"
        >
          {{ $t("common.upload") }}
        </el-button>
      </div>
    </div>
    <div class="versionlist">
      <el-table :data="versionList" border v-loading="loading">
        <!-- 上传时间 -->
        <el-table-column
          prop="upload_tm"
          :label="$t('version_management.upload_tm')"
        ></el-table-column>
        <!-- 文件名称 -->
        <el-table-column
          prop="file_name"
          :label="$t('version_management.file_name')"
        ></el-table-column>
        <!-- 文件MDS摘要 -->
        <el-table-column
          prop="file_md5"
          :label="$t('version_management.file_md5')"
        ></el-table-column>
        <!-- 文件大小 -->
        <el-table-column
          prop="file_size"
          :label="$t('version_management.file_size')"
        ></el-table-column>
        <el-table-column
          :label="$t('common.operation')"
          width="206px"
          align="center"
        >
          <template slot-scope="scope">
            <!-- 升级 -->
            <el-tooltip
              placement="top"
              effect="light"
              class="toUpgrade"
              :content="$t('common.upgrade')"
            >
              <i
                class="iconfont icon-update blue"
                @click="toOpenDialog(scope.row, $event)"
              ></i>
            </el-tooltip>
            <!-- 删除 -->
            <el-tooltip
              placement="top"
              effect="light"
              :content="$t('common.delete')"
            >
              <i
                class="iconfont icon-delete red"
                @click="toDeleteVerConfirm(scope.row)"
              ></i>
            </el-tooltip>
          </template>
        </el-table-column>
      </el-table>
    </div>
    <!-- 升级备份退回弹出框 -->
      <el-dialog
        :visible.sync="toOpenVisible"
        :title="upTitle"
        width="20%"
        :close-on-click-modal="false"
        :close-on-press-escape="false"
        action=""
        :key="updateKey"
        @closed="closeDialog"
      >
      <div class="upTitle" v-if="upGradeTip">{{upTip}}</div>
      <el-progress :percentage="percentage" v-show="upGradeProgress"></el-progress>
      <div class="successOrErrorTip" v-if="successOrError">
       <i :class="[isSuccess?'el-icon-success':'el-icon-warning',isSuccess?'iconGreen':'iconRed']"></i>
       <span class="upTitle">{{resTip}}</span>
      </div>
        <span slot="footer" class="dialog-footer">
          <el-button @click="toOpenVisible = false" size="small" v-if="upGradeTip">{{
            $t("common.cancel")
          }}</el-button>
          <el-button type="primary" @click="dotoExecute" size="small" v-if="upGradeTip">{{
            $t("common.confirm")
          }}</el-button>
        </span>
      </el-dialog>
      <!-- 上传版本弹框 -->
      <el-dialog
  :title="upTitle"
  :visible.sync="uploadVisible"
   :close-on-click-modal="false"
  :close-on-press-escape="false"
  @closed="closeUploadDialog"
  :key="updateKey+'upload'"
  width="25%">
  <div class="upload" v-show="isupload">
    <el-input
    class="filename"
    v-model="filename"
    :readonly="true">
     <i slot="suffix" class="el-input__icon el-icon-success iconGreen" v-if="successIcon"></i>
     <i slot="suffix" class="el-input__icon el-icon-warning iconRed" v-if="errIcon"></i>
    </el-input>
  <el-upload
  name="file"
  ref="upload"
  :on-change="handleChange"
  ::limit="1"
  :show-file-list="false"
  :auto-upload="false"
  :action="'/api/srtn-cag-manage/v1/sys/ver/upload/'+devId + '/upload/'"
  :before-upload="beforeUpload"
>
  <el-button slot="trigger" size="mini" v-if="cancleBtn">{{
            $t("version_management.selectfile")
          }}</el-button>
</el-upload>
  <el-button size="mini" @click="cancelUpload" v-if="!cancleBtn">{{
            $t("version_management.cancelUpload")
          }}</el-button>
  <el-button type="text" v-if="isErrorBtn" @click="clear()">{{
            $t("common.delete")
          }}</el-button>
  </div>
 <div class="uploadtip">
   <span class="title">{{isExcceedTip}}</span>
   <el-progress :percentage="percentage" v-show="upGradeProgress"></el-progress>
 </div>
  <span slot="footer" class="dialog-footer">
    <el-button @click="uploadVisible = false" v-if="isShow">{{
            $t("common.cancel")
          }}</el-button>
    <el-button type="primary" @click="submitUpload" v-if="isShow" > {{
            $t("common.confirm")
          }}</el-button>
  </span>
  <div class="successOrErrorTip" v-if="successOrError">
       <i :class="[isSuccess?'el-icon-success':'el-icon-warning',isSuccess?'iconGreen':'iconRed']"></i>
       <span class="upTitle">{{resTip}}</span>
      </div>
</el-dialog>
  </div>
</template>

<script>
import HTTP from "@/api/httpService";
import CommonUtils from "@/utils/common";
export default {
  data() {
    return {
      devId: "",
      devName: "",
      row: [],
      backupList: [],
      versionList: [],
      loading: false, //  表格加载
      verInfo: {}, // 版本信息
      toOpenVisible: false,
      upTitle: "",
      upTip: "",
      upGradeTip: true, // 是否显示确定的tip
      upGradeProgress: false,
      percentage: 0,
      updateKey: 0, // 强制刷新标志
      successOrError: false,
      resTip: "",
      total_space: "",
      isSuccess: false,
      sign: null, // 升级回退备份标志
      uploadVisible: false,
      filename: "", //上传文件名字
      remain_space: null,
      total_space: null,
      isExcceedTip: "",
      isShow: true,
      cancleBtn: true, //取消上传按钮
      isErrorBtn: false, //失败时展示删除按钮
      actionUrl: "",
      upFile: new FormData(),
      successIcon: false, // 图标
      errIcon: false,
      isupload: true
    };
  },
  methods: {
    // 初始化
    initInfo() {
      this.getDevId();
      this.getVerInfo();
      this.getBackUpList();
      this.getVersionList();
    },
    getDevId() {
      let devId = sessionStorage.getItem("devId");
      let devName = sessionStorage.getItem("devName");
      if (devId) {
        this.devId = devId;
        this.devName = devName;
      }
    },
    // 获取版本信息
    getVerInfo() {
      HTTP.request("getApi", {
        method: "get",
        urlParam: { pathParam: this.devId + "/verinfo/" },
        // urlParam: { pathParam: "verinfo/" },
        complete: res => {
          if (res.code == 0) {
            this.verInfo = res.version_info;
          } else {
            this.$message.error(res.msg);
            console.log("QUERY FAILED!BECAUSE => " + res.msg);
          }
        },
        error: data => {
          this.$message.error(this.$t("tip_msg.network_error"));
          console.log("QUERY FAILED!BECAUSE => " + data);
        }
      });
    },
    // 查询备份列表版本列表
    getVersionList() {
      this.loading = true;
      HTTP.request("getApi", {
        method: "get",
        urlParam: { pathParam: this.devId + "/versionlist/" },
        // urlParam: { pathParam: "versionlist/" },
        complete: res => {
          this.loading = false;
          if (res.code == 0) {
            this.versionList = res.ver_group;
          } else {
            this.$message.error(res.msg);
            console.log("QUERY FAILED!BECAUSE => " + res.msg);
          }
        },
        error: data => {
          this.loading = false;
          this.$message.error(this.$t("tip_msg.network_error"));
          console.log("QUERY FAILED!BECAUSE => " + data);
        }
      });
    },
    getBackUpList() {
      this.loading = true;
      HTTP.request("getApi", {
        method: "get",
        urlParam: { pathParam: this.devId + "/backuplist/" },
        // urlParam: { pathParam: "backuplist/" },
        complete: res => {
          this.loading = false;
          if (res.code == 0) {
            this.backupList = res.backup_group;
          } else {
            this.$message.error(res.msg);
            console.log("QUERY FAILED!BECAUSE => " + res.msg);
          }
        },
        error: data => {
          this.loading = false;
          this.$message.error(this.$t("tip_msg.network_error"));
          console.log("QUERY FAILED!BECAUSE => " + data);
        }
      });
    },
    // 删除备份
    toDeleteBackUpConfirm(row) {
      this.$confirm(
        this.$t("version_management.del_backup_tip"),
        this.$t("version_management.del_backup_title"),
        {
          confirmButtonText: this.$t("common.confirm"),
          cancelButtonText: this.$t("common.cancel"),
          type: "warning",
          beforeClose: (action, instance, done) => {
            if (action == "confirm") {
              instance.confirmButtonLoading = true;
              this.doDeleteBackUp(row, instance, done);
            } else {
              done();
            }
          }
        }
      )
        .then(() => {})
        .catch(() => {});
    },
    doDeleteBackUp(row, instance, done) {
      HTTP.request("getApi", {
        method: "post",
        urlParam: { pathParam: this.devId + "/delbackup/" },
        // urlParam: { pathParam: "delbackup/" },
        data: {
          backup_tm: row.backup_tm.toString(),
          backup_ver: row.backup_ver.toString()
        },
        complete: res => {
          if (res.code == 0) {
            this.$message({
              type: "success",
              message: res.msg
            });
            done();
            this.getBackUpList();
          } else {
            this.$message.error(res.msg);
          }
          instance.confirmButtonLoading = false;
        },
        error: data => {
          this.$message.error(this.$t("tip_msg.network_error"));
          console.log("QUERY FAILED!BECAUSE => " + data);
          instance.confirmButtonLoading = false;
        }
      });
    },
    // 删除版本
    toDeleteVerConfirm(row) {
      this.$confirm(
        this.$t("version_management.del_ver_tip"),
        this.$t("version_management.del_ver_title"),
        {
          confirmButtonText: this.$t("common.confirm"),
          cancelButtonText: this.$t("common.cancel"),
          type: "warning",
          beforeClose: (action, instance, done) => {
            if (action == "confirm") {
              instance.confirmButtonLoading = true;
              this.doDeleteVer(row, instance, done);
            } else {
              done();
            }
          }
        }
      )
        .then(() => {})
        .catch(() => {});
    },
    doDeleteVer(row, instance, done) {
      let param = {
        file_name: row.file_name.toString(),
        upload_tm: row.upload_tm.toString()
      };
      HTTP.request("getApi", {
        method: "post",
        urlParam: { pathParam: this.devId + "/delverfile/" },
        // urlParam: { pathParam: "delverfile/" },
        data: param,
        complete: res => {
          if (res.code == 0) {
            this.$message({
              type: "success",
              message: res.msg
            });
            done();
            this.getBackUpList();
          } else {
            this.$message.error(res.msg);
          }
          instance.confirmButtonLoading = false;
        },
        error: data => {
          this.$message.error(this.$t("tip_msg.network_error"));
          console.log("QUERY FAILED!BECAUSE => " + data);
          instance.confirmButtonLoading = false;
        }
      });
    },
    // 升级，备份，回退弹框
    toOpenDialog(row, event) {
      this.updateKey += 1;
      let className = event.currentTarget.getAttribute("class");
      this.toOpenVisible = true;
      // 备份
      if (className.indexOf("toBackUp") > -1) {
        this.upTitle = this.$t("version_management.ver_backup");
        this.upTip = this.$t("version_management.ver_toBackUp_tip");
        this.sign = 1;
      } else if (className.indexOf("toRollback") > -1) {
        // 回退
        this.upTitle = this.$t("version_management.ver_rollback");
        this.upTip = this.$t("version_management.ver_toRollback_tip");
        this.sign = 2;
      } else if (className.indexOf("toUpgrade") > -1) {
        // 升级
        this.upTitle = this.$t("version_management.ver_toUpGrade");
        this.upTip = this.$t("version_management.ver_toUpGrade_tip");
        this.sign = 3;
      }
      this.row = row;
    },
    dotoExecute(row) {
      this.toOpenVisible = true;
      this.upGradeTip = false;
      this.percentage = 0;
      if (this.sign == 1) {
        this.upTitle = this.$t("version_management.backup_progress");
        this.toBackUp(row);
      } else if (this.sign == 2) {
        // 回退
        this.upTitle = this.$t("version_management.rollback_progress");
        this.toRollback(this.row);
      } else if (this.sign == 3) {
        // 升级
        this.verUpdate(this.row);
        this.upTitle = this.$t("version_management.upgrade_progress");
      }
    },
    verUpdate(row) {
      let param = {
        file_name: row.file_name.toString(),
        upload_tm: row.upload_tm.toString()
      };
      HTTP.request("getApi", {
        method: "post",
        urlParam: { pathParam: this.devId + "/verupdate/" },
        // urlParam: { pathParam: "verupdate/" },
        data: param,
        complete: res => {
          if (res.code === 0) {
            this.upGradeProgress = true;
            this.addSetInterval();
          } else {
            this.$message.error(res.msg);
          }
        },
        error: data => {
          this.$message.error(data);
          console.log("QUERY FAILED!BECAUSE => " + data);
        }
      });
    },
    closeDialog() {
      this.clearAndCencle();
      this.toOpenVisible = false;
      this.upGradeTip = true;
      this.successOrError = false;
      this.upGradeProgress = false;
      this.upTitle = this.$t("version_management.ver_toUpGrade");
      this.initInfo();
    },
    // 进度条查询
    getStatus() {
      HTTP.request("getApi", {
        method: "get",
        urlParam: { pathParam: this.devId + "/getstatus/" },
        // urlParam: { pathParam: "getstatus/" },
        complete: res => {
          if (res.code === 0) {
            this.percentage = res.status;
          } else {
            this.upGradeProgress = false;
            this.successOrError = true;
            this.isSuccess = false;
            this.upTitle = this.$t("version_management.error");
            if (this.sign == 1) {
              this.resTip = this.$t("version_management.ver_backup_error");
            } else if (this.sign == 2) {
              this.resTip = this.$t("version_management.ver_rollback_error");
            } else if (this.sign == 3) {
              this.resTip = this.$t("version_management.ver_upgrade_error");
            }
            this.clearAndCencle();
            console.log("QUERY FAILED!BECAUSE => " + res.msg);
          }
        },
        error: data => {
          this.$message.error(data);
          console.log("QUERY FAILED!BECAUSE => " + data);
        }
      });
    },
    addSetInterval() {
      const that = this; // 声明一个变量指向vue实例this,保证作用域一致
      this.positionTimer = setInterval(() => {
        if (that.percentage == 100) {
          clearInterval(this.positionTimer); // 清除定时器
          this.positionTimer = null;
          that.isSuccess = true;
          that.upGradeProgress = false;
          that.successOrError = true;
          that.upTitle = that.$t("version_management.success");
          if (that.sign == 1) {
            that.resTip = that.$t("version_management.ver_backup_success");
          } else if (that.sign == 2) {
            that.resTip = that.$t("version_management.ver_rollback_success");
          } else if (that.sign == 3) {
            that.resTip = that.$t("version_management.ver_upgrade_success");
          } else if (this.sign == 4) {
            this.isupload = false;
            this.resTip = that.$t("version_management.ver_upload_success");
          }
        } else {
          if (that.sign == 4) {
            that.getUpLoadStatus();
          } else {
            that.getStatus();
          }
        }
      }, 5000);
    },
    // 备份
    toBackUp() {
      HTTP.request("getApi", {
        method: "post",
        urlParam: { pathParam: this.devId + "/verbackup/" },
        // urlParam: { pathParam: "verbackup/" },
        complete: res => {
          if (res.code === 0) {
            this.upGradeProgress = true;
            this.addSetInterval();
          } else {
            this.$message.error(res.msg);
          }
        },
        error: data => {
          this.$message.error(data);
          console.log("QUERY FAILED!BECAUSE => " + data);
        }
      });
    },
    // 回退
    toRollback(row) {
      let param = {
        backup_tm: row.backup_tm.toString(),
        backup_ver: row.backup_ver.toString()
      };
      HTTP.request("getApi", {
        method: "post",
        urlParam: { pathParam: this.devId + "/verrollback/" },
        // urlParam: { pathParam: "verrollback/" },
        data: param,
        complete: res => {
          if (res.code === 0) {
            this.upGradeProgress = true;
            this.addSetInterval();
          } else {
            this.$message.error(res.msg);
          }
        },
        error: data => {
          this.$message.error(data);
          console.log("QUERY FAILED!BECAUSE => " + data);
        }
      });
    },
    // 上传容量检测
    spaceCheck(file) {
      let file_size = file.size / 1024 / 1024;
      HTTP.request("getApi", {
        method: "post",
        data: { file_size: file_size.toString() },
        urlParam: { pathParam: this.devId + "/spacecheck/" },
        // urlParam: { pathParam: "spacecheck/" },
        complete: res => {
          if (res.code == 0) {
            this.successIcon = true;
            this.isShow = true;
          } else {
            this.errIcon = true;
            this.isExcceedTip = res.msg;
            this.isShow = false;
            this.isErrorBtn = true;
            console.log("QUERY FAILED!BECAUSE => " + res.msg);
          }
        },
        error: data => {
          this.$message.error(this.$t("tip_msg.network_error"));
          console.log("QUERY FAILED!BECAUSE => " + data);
        }
      });
    },
    // 上传弹框
    toUploadForm() {
      this.updateKey += 1;
      this.percentage = 0;
      this.sign = 4;
      this.uploadVisible = true;
      this.upTitle = this.$t("version_management.ver_upload");
      this.upGradeProgress = false;
      this.isupload = true;
    },
    beforeUpload(file) {
      if (file) {
        this.upFile.append("file", file);
      } else {
        return false;
      }
    },
    // 文件上传
    submitUpload() {
      this.$refs.upload.submit();
    },
    handleChange(file, fileList) {
      if (file.response) {
        if (file.response.code == 0) {
          this.cancleBtn = false;
          this.isShow = false;
          this.addSetInterval();
        } else {
          this.$message.error(file.response.msg);
          this.isErrorBtn = true;
          this.upGradeProgress = false;
          this.isShow = false;
          console.log("QUERY FAILED!BECAUSE => " + file.response.msg);
        }
      } else {
        this.clearAndCencle();
        this.filename = file.name;
        this.spaceCheck(file);
        this.upGradeProgress = false;
        this.isShow = true;
        this.isErrorBtn = false;
      }
    },
    getUpLoadStatus() {
      HTTP.request("getApi", {
        method: "get",
        urlParam: { pathParam: this.devId + "/getuploadstatus/" },
        // urlParam: { pathParam: "getuploadstatus/" },
        complete: res => {
          if (res.code === 0) {
            this.upGradeProgress = true;
            this.percentage = res.status;
          } else {
            this.upGradeProgress = false;
            this.successOrError = true;
            this.isupload = false;
            this.isSuccess = false;
            this.upTitle = this.$t("version_management.error");
            this.resTip = res.msg;
            this.clearAndCencle();
            console.log("QUERY FAILED!BECAUSE => " + res.msg);
          }
        },
        error: data => {
          this.$message.error(data);
          console.log("QUERY FAILED!BECAUSE => " + data);
        }
      });
    },
    // 错误直接停止定时器清空还原
    clear() {
      this.clearAndCencle();
      this.$refs.upload.clearFiles();
      this.filename = "";
      this.upGradeProgress = false;
      this.successIcon = false;
      this.errIcon = false;
      this.isShow = true;
      this.isErrorBtn = false;
      this.cancleBtn = true;
      this.isExcceedTip = "";
      this.successOrError = false;
    },
    closeUploadDialog() {
      this.clear();
      this.initInfo();
    },
    // 取消上传
    cancelUpload() {
      this.clear();
      this.clearAndCencle();
    },
    // 清除取消定时器
    clearAndCencle() {
      clearInterval(this.positionTimer); // 清除定时器
      this.positionTimer = null;
    }
  },
  created() {
    this.initInfo();
  },
  destroyed() {
    clearInterval(this.positionTimer); // 清除定时器
    this.positionTimer = null;
  }
};
</script>

<style>
.verinfo h4 {
  font-size: 14px;
  font-weight: normal;
  margin-bottom: 16px;
  font-family: Microsoft YaHei;
  font-stretch: normal;
  letter-spacing: 0px;
  color: #555555;
}
/* 备份 */
.verinfo .btn_wrap {
  display: flex;
  justify-content: space-between;
  margin-bottom: 7px;
}
.backup_title {
  margin-top: 10px;
  font-size: 14px;
  font-weight: normal;
  font-family: Microsoft YaHei;
  font-stretch: normal;
  letter-spacing: 0px;
  color: #555555;
}
.verinfo .backup_btn {
  text-align: right;
}
.verinfo .iconfont {
  font-size: 20px;
  cursor: pointer;
}
.verinfo .iconfont.blue {
  margin-right: 26px;
}
.iconRed {
  color: #e34d59;
  font-size: 17px;
}
.iconGreen {
  color: #00a870;
  font-size: 17px;
}
.verinfo .backuplist {
  margin-bottom: 109px;
}
.verinfo .el-dialog__body {
  padding: 1rem 1rem 2rem 2rem;
}
.verinfo .upTitle {
  font-family: Microsoft YaHei;
  font-size: 14px;
  font-weight: normal;
  font-stretch: normal;
  line-height: 19px;
  letter-spacing: 0px;
  color: #606266;
}
.verinfo .successOrErrorTip {
  display: flex;
  justify-content: flex-start;
  flex: 1;
}
.verinfo .successOrErrorTip i {
  margin: 0 10px;
}
.verinfo .filename {
  margin: 0 14px;
  width: 229px;
  height: 2.5rem;
  background-color: #ffffff;
  border-radius: 3px;
}
.verinfo .upload {
  display: flex;
}
.verinfo .uploadtip .title {
  font-family: Microsoft YaHei;
  font-size: 12px;
  font-weight: normal;
  font-stretch: normal;
  letter-spacing: 0px;
  color: #e34d59;
}
.verinfo .uploadtip {
  width: 230px;
  margin-left: 20px;
}
</style>

功能描述：

工程售后人员打开CAG的管理门户，在版本管理页面中，可以上传新版本，新版本保存在CAG本地。
在版本管理页面中，可以看到当前已部署版本的版本号。
在版本管理页面中，可以看到系统剩余空间
在版本管理页面中，可以查看已上传的版本信息。
在版本管理页面中，对已上传的版本，可以执行删除操作。
在版本管理页面中，对已上传的版本，可以执行部署升级操作。部署前，需要进行备份，便于部署失败的回退。部署升级过程需要展示：进度信息，过程信息、执行结果信息。
版本升级只升级本模块，分布式部署每个节点单独升级

【版本管理】

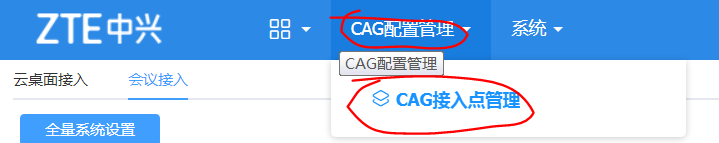

用户正确登录CAG的管理门户后（不登录不允许使用），点击顶部菜单 CAG配置管理->CAG接入点管理

，在网关列表中选择一个网关，点击系统设置图标。
在右边的菜单列表中增加一个菜单项“版本管理”
用户点击版本管理后，右边的页面中显示当前版本、备份列表、版本列表
在备份列表中显示用户备份的历史文件，版本列表中显示以下几列：

1）备份时间，年月日时分秒

2）备份版本号

3）回退，操作命令，用户点击回退操作后，执行该版本的回退操作

4）删除，操作命令，用户点击删除操作后，执行该备份版本的删除操
在版本列表中显示用户之前上传且没有被删除的版本信息，版本列表中显示以下几列：

1）上传时间，年月日时分秒

2）文件名称，用户上传的版本文件名称

3）文件MD5摘要，在系统中保存的实际文件的MD5摘要，16进制小写文本显示

4）文件大小，在系统中保存的实际文件的大小

5）升级，操作命令，用户点击升级操作后，执行该版本的升级操作

6）删除，操作命令，用户点击删除操作后，执行该版本文件的删除操作

【版本上传】

用户点击文件上传按钮后，弹出文件选择对话框，让用户选择要上传的文件
用户点击确定按钮后，开始上传文件
文件上传前，需要检查系统的剩余磁盘空间是否足够（剩余空间-版本文件大小 >=分区总空间的30%），如果不够，不允许上传
文件上传时，服务端和客户端需要同时对文件的大小做限制，文件大小超过（可配置，默认为当前版本的2倍）不允许上传
在上传的过程中需要显示文件上传的进度（按百分比显示）
在上传的过程中需要用户可以取消文件上传，取消文件上传后，服务器上不保留垃圾文件
文件上传成功后，在版本列表中新增一条记录
系统最多保留5个（可配置）历史版本信息，超过最大个数后，自动删除最早的版本文件
如果没有上传成功，服务器上的垃圾文件需要自动清除

【版本删除】

用户点击某个版本的删除按钮，提示用户是否确认删除该版本文件
用户点击确认后，删除版本文件和文件记录
用户点击取消后，退出删除界面

【版本升级】

用户点击某个版本的升级按钮后，提示用户是否确认升级该版本，并提示用户需要手动备份
用户点击确定按钮后，需要检查系统的剩余磁盘空间是否足够（剩余空间-版本文件大小 >=分区总空间的30%），如果不够，不允许升级
在升级的过程中需要显示升级的进度（按百分比显示）
升级成功后，需要更新系统的版本信息
升级的结果需要提示用户，如果升级成功，提示用户升级成功，并显示系统的版本信息；如果升级失败，提示用户错误原因，以及可能的解决方案，并提示用户需要手工执行回退操作

【版本备份】
