java语言根据生成的包含20个随机数组生成对应二叉树(eclipse)

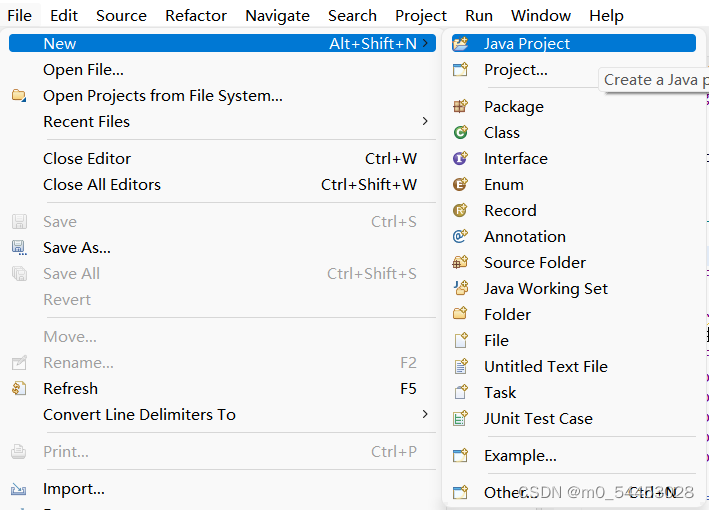

1.先在eclipse中创建一个project

 2.在src中创建3个类（class)

 3.BinaryTree.java

public class BinaryTree {
	public Node root = null;

	//插入
	  public String insert(int value) {
			String error = null;

			Node node = new Node(value);
			if (root == null) {
				root = node;
				root.leftChild  = null;
				root.rightChild = null;
			} else {
				Node current = root;
				Node parent = null;
				while (true) {
					if (value < current.value) {
						parent = current;
						current = current.leftChild;
						if (current == null) {
							parent.leftChild = node;
							break;
						}
					} else if (value > current.value) {
						parent = current;
						current = current.rightChild;
						if (current == null) {
							parent.rightChild = node;
							break;
						}
					} else {
						error = "having same value in binary tree";
					}
				} // end of while
			}
			return error;
	    }

	  /**
		 *
		 * 得到后继节点，即删除节点的左后代
		 */
		private Node getSuccessor(Node delNode) {
			Node successor = delNode;
			Node successorParent = null;
			Node current = delNode.rightChild;

			while (current != null) {
				successorParent = successor;
				successor = current;
				current = current.leftChild;
			}

			//如果后继节点不是删除节点的右子节点时，
			if (successor != delNode.rightChild) {
				//要将后继节点的右子节点指向后继结点父节点的左子节点，
				successorParent.leftChild = successor.rightChild;
				//并将删除节点的右子节点指向后继结点的右子节点
				successor.rightChild = delNode.rightChild;
			}
			//任何情况下，都需要将删除节点的左子节点指向后继节点的左子节点
			successor.leftChild = delNode.leftChild;

			return successor;
		}

	  public boolean delete(int value) {
			Node current = root;    //需要删除的节点
			Node parent = null;     //需要删除的节点的父节点
			boolean isLeftChild = true;   //需要删除的节点是否父节点的左子树

			while (true) {
				if (value == current.value) {
					break;
				} else if (value < current.value) {
					isLeftChild = true;
					parent = current;
					current = current.leftChild;
				} else {
					isLeftChild = false;
					parent = current;
					current = current.rightChild;
				}

				//找不到需要删除的节点，直接返回
				if (current == null)
					return false;
			}

			//分情况考虑
			//1、需要删除的节点为叶子节点
			if (current.leftChild == null && current.rightChild == null) {
				//如果该叶节点为根节点，将根节点置为null
				if (current == root) {
					root = null;
				} else {
					//如果该叶节点是父节点的左子节点，将父节点的左子节点置为null
					if (isLeftChild) {
						parent.leftChild  = null;
					} else { //如果该叶节点是父节点的右子节点，将父节点的右子节点置为null
						parent.rightChild = null;
					}
				}
			}
			//2、需要删除的节点有一个子节点，且该子节点为左子节点
			else if (current.rightChild == null) {
				//如果该节点为根节点，将根节点的左子节点变为根节点
				if (current == root) {
					root = current.leftChild;
				} else {
					//如果该节点是父节点的左子节点，将该节点的左子节点变为父节点的左子节点
					if (isLeftChild) {
						parent.leftChild = current.leftChild;
					} else {  //如果该节点是父节点的右子节点，将该节点的左子节点变为父节点的右子节点
						parent.rightChild = current.leftChild;
					}
				}
			}
			//2、需要删除的节点有一个子节点，且该子节点为右子节点
			else if (current.leftChild == null) {
				//如果该节点为根节点，将根节点的右子节点变为根节点
				if (current == root) {
					root = current.rightChild;
				} else {
					//如果该节点是父节点的左子节点，将该节点的右子节点变为父节点的左子节点
					if (isLeftChild) {
						parent.leftChild = current.rightChild;
					} else {  //如果该节点是父节点的右子节点，将该节点的右子节点变为父节点的右子节点
						parent.rightChild = current.rightChild;
					}
				}
			}
			//3、需要删除的节点有两个子节点，需要寻找该节点的后续节点替代删除节点
			else {
				Node successor = getSuccessor(current);
				//如果该节点为根节点，将后继节点变为根节点，并将根节点的左子节点变为后继节点的左子节点
				if (current == root) {
					root = successor;
				} else {
					//如果该节点是父节点的左子节点，将该节点的后继节点变为父节点的左子节点
					if (isLeftChild) {
						parent.leftChild = successor;
					} else {  //如果该节点是父节点的右子节点，将该节点的后继节点变为父节点的右子节点
						parent.rightChild = successor;
					}
				}
			}
			current = null;
			return true;
		}
	  /**
		 * //中序遍历(递归)：
		 *    1、调用自身来遍历节点的左子树
		 *    2、访问这个节点
		 *    3、调用自身来遍历节点的右子树
		 */
		public void inOrderTraverse() {
			System.out.print("中序遍历:");
			inOrderTraverse(root);
			System.out.println();
		}

		private void inOrderTraverse(Node node) {
			if (node == null)
				return ;

			inOrderTraverse(node.leftChild);
			node.display();
			inOrderTraverse(node.rightChild);
		}
}

4.Node.java

public class Node {
	int  value;
	Node leftChild;
	Node rightChild;

	Node(int value) {
		this.value = value;
	}

	public void display() {
		System.out.print(this.value + "\t");
	}

	@Override
	public String toString() {
		// TODO Auto-generated method stub
		return String.valueOf(value);
	}
}

5.BinaryTreeDemo.java

import java.util.Random;
import java.util.Scanner;

public class BinaryTreeDemo {
		public static void main(String[] args) {
	        BinaryTree binaryTree=new BinaryTree();
	        int a[]=new int[20];   // store 20 random numbers
	        int value;
	        Random r=new Random();
	        for(int i=0;i<20;i++){
	            value= r.nextInt(100);
	            a[i]=value;
	        }

	        for(int i=0;i<20;i++){
	            binaryTree.insert(a[i]);
	            //insert the 20 random numbers into the defined binary tree
	        }
            binaryTree.inOrderTraverse();
	        //delete a node from the tree
	        Scanner sc=new Scanner(System.in);
	        System.out.println("please input a value that you want to delete:");
	        value=sc.nextInt();
	       binaryTree.delete(value);
	       binaryTree.inOrderTraverse();
	        //insert a node randomly into the tree
	        value=r.nextInt(100);
	        binaryTree.insert(value);
	        binaryTree.inOrderTraverse();
	    }


	}

6.运行结果截图：

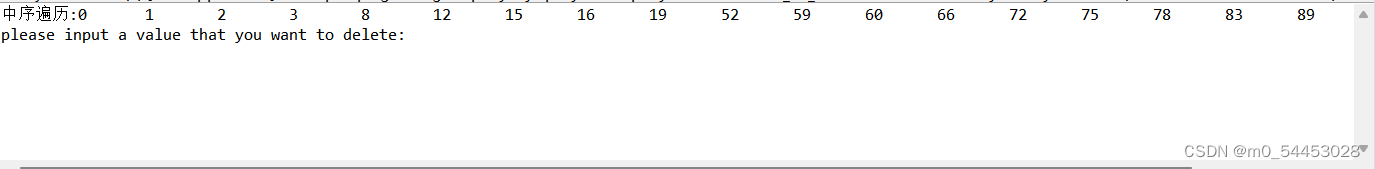

图1

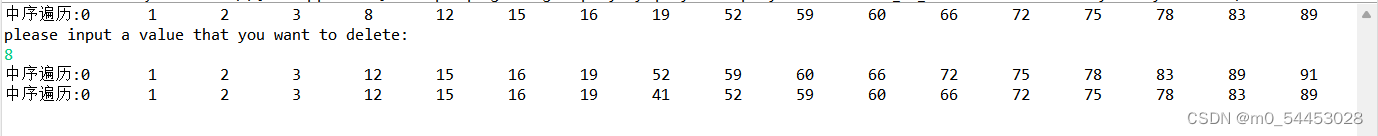

 图2

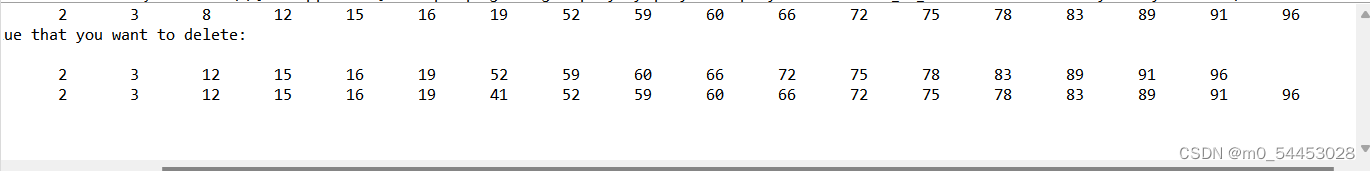

 图2续

 注：生成二叉树代码参考自：二叉树之Java实现二叉树基本操作_fengrunche的博客-优快云博客
