XXL-JOB通过内网穿透来实现执行器添加

frp内网穿透工具

场景需求： xxl-job-admin在阿里云服务器 xxl-job-core执行器在本地运行的 本地又没有公网ip
frp下载地址

linux

1. 下载frp 从官网下载解压一样

# 根据系统架构选择版本（x86_64选amd64，ARM选arm64）
wget https://github.com/fatedier/frp/releases/download/v0.52.3/frp_0.52.3_linux_amd64.tar.gz
tar -zxvf frp_0.52.3_linux_amd64.tar.gz
cd frp_0.52.3_linux_amd64

2. 编辑配置文件 frps.toml

[common]
bind_port = 7000            # 客户端与服务端通信的端口

# 下面的不配置也行
token = your_secure_token   # 认证令牌（需与客户端一致）
dashboard_port = 7500       # 监控面板端口
dashboard_user = admin
dashboard_pwd = 123456

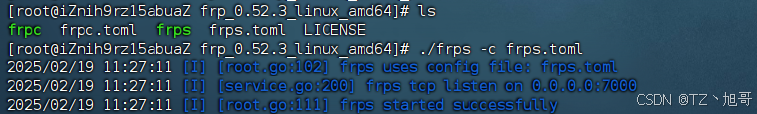

3. 启动服务端

./frps -c frps.toml

4. 开放阿里云安全组端口 7000（frp通信端口）和 7500（监控面板端口）

5. 结束任务
   命令行 ctrl + c

windows

1. 从官网下载解压 frp_0.52.3_windows_amd64.zip
   注意和服务器端版本一致0.52.3

2. 编辑配置文件 frpc.toml

[common]
server_addr = 阿里云公网IP
server_port = 7000
# 服务端没配置则不用配置
token = your_secure_token  # 与服务端一致

[[proxies]]
name = "xxl-job" # 自定义名称
type = "tcp" # 映射TCP协议
localIP = "127.0.0.1"
localPort = 6666 # 本地执行器端口
remotePort = 6666 # 公网映射端口

注意公网映射端口需要 开放阿里云安全组端口

3. 启动客户端

frpc.exe -c frpc.toml

4. 验证穿透
   访问 http://阿里云公网IP:7500，输入账号密码（admin/123456），查看客户端和端口状态。

5. 结束任务
   命令行 ctrl + c

XXL-JOB（Docker实现）

XXL-JOB 官方地址：http://www.xuxueli.com/xxl-job

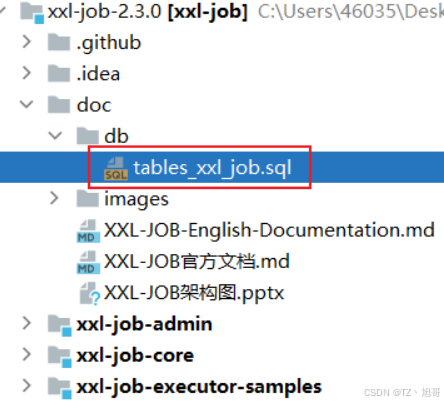

1. 启动mysql服务 创建数据库

如果表xxl_job_registry导入过程报Specified key was too long; max key length is 767 bytes错误，则将i_g_k_v联合索引相关字段的varchar改小一些即可；

2. 服务器拉取并运行xxl-job-admin镜像

docker run -e PARAMS="--spring.datasource.url=jdbc:mysql://阿里云公网ip:3306/xxl_job?useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&serverTimezone=UTC --spring.datasource.username=root --spring.datasource.password=123456" -p 8093:8080  -v $PWD/xxldata:/data/applogs --name=xxl-job-admin -d xuxueli/xxl-job-admin:2.3.0

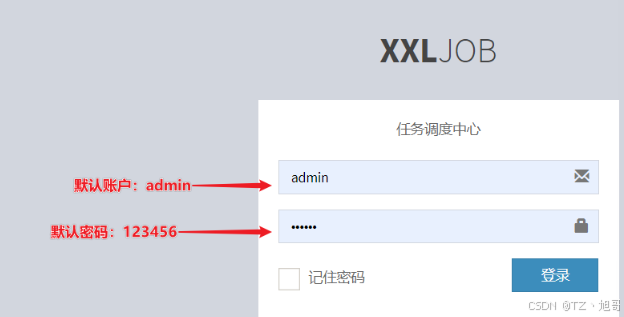

访问容器服务 http://阿里云公网ip:8093/xxl-job-admin

3. 本地项目引入xxl-job核心依赖

<!-- xxl-job-core -->
<dependency>
    <groupId>com.xuxueli</groupId>
    <artifactId>xxl-job-core</artifactId>
    <version>${project.parent.version}</version>
</dependency>

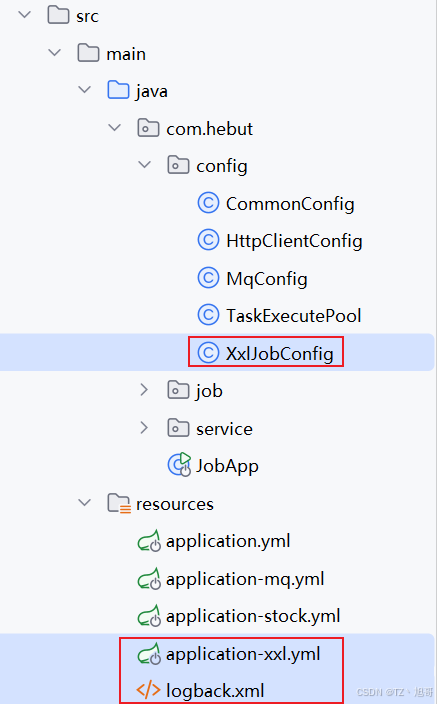

4. 配置xxl-job信息

# XXJOB参数配置
xxl:
  job:
    accessToken:
    admin:
      addresses: http://阿里云公网ip:8093/xxl-job-admin
    executor:
      app-name: hebut-stock-job-executor
      address:
      ip:
      # 心跳端口
      port: 6666
      log-path: .\logs
      log-retentiondays: 30
logging:
  config: classpath:logback.xml

<?xml version="1.0" encoding="UTF-8"?>
<configuration debug="false" scan="true" scanPeriod="1 seconds">

    <contextName>logback</contextName>
    <property name="log.path" value="/data/applogs/xxl-job/xxl-job-executor-sample-springboot.log"/>

    <appender name="console" class="ch.qos.logback.core.ConsoleAppender">
        <encoder>
            <pattern>%d{HH:mm:ss.SSS} %contextName [%thread] %-5level %logger{36} - %msg%n</pattern>
        </encoder>
    </appender>

    <appender name="file" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <file>${log.path}</file>
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <fileNamePattern>${log.path}.%d{yyyy-MM-dd}.zip</fileNamePattern>
        </rollingPolicy>
        <encoder>
            <pattern>%date %level [%thread] %logger{36} [%file : %line] %msg%n
            </pattern>
        </encoder>
    </appender>

    <root level="info">
        <appender-ref ref="console"/>
        <appender-ref ref="file"/>
    </root>

</configuration>

package com.hebut.config;

import com.xxl.job.core.executor.impl.XxlJobSpringExecutor;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * xxl-job config
 */
@Configuration
public class XxlJobConfig {
    private Logger logger = LoggerFactory.getLogger(XxlJobConfig.class);

    @Value("${xxl.job.admin.addresses}")
    private String adminAddresses;

    @Value("${xxl.job.accessToken}")
    private String accessToken;

    @Value("${xxl.job.executor.appname}")
    private String appname;

    @Value("${xxl.job.executor.address}")
    private String address;

    @Value("${xxl.job.executor.ip}")
    private String ip;

    @Value("${xxl.job.executor.port}")
    private int port;

    @Value("${xxl.job.executor.logpath}")
    private String logPath;

    @Value("${xxl.job.executor.logretentiondays}")
    private int logRetentionDays;


    @Bean
    public XxlJobSpringExecutor xxlJobExecutor() {
        logger.info(">>>>>>>>>>> xxl-job config init.");
        XxlJobSpringExecutor xxlJobSpringExecutor = new XxlJobSpringExecutor();
        xxlJobSpringExecutor.setAdminAddresses(adminAddresses);
        xxlJobSpringExecutor.setAppname(appname);
        xxlJobSpringExecutor.setAddress(address);
        xxlJobSpringExecutor.setIp(ip);
        xxlJobSpringExecutor.setPort(port);
        xxlJobSpringExecutor.setAccessToken(accessToken);
        xxlJobSpringExecutor.setLogPath(logPath);
        xxlJobSpringExecutor.setLogRetentionDays(logRetentionDays);

        return xxlJobSpringExecutor;
    }

    /**
     * 针对多网卡、容器内部署等情况，可借助 "spring-cloud-commons" 提供的 "InetUtils" 组件灵活定制注册IP；
     *
     *      1、引入依赖：
     *          <dependency>
     *             <groupId>org.springframework.cloud</groupId>
     *             <artifactId>spring-cloud-commons</artifactId>
     *             <version>${version}</version>
     *         </dependency>
     *
     *      2、配置文件，或者容器启动变量
     *          spring.cloud.inetutils.preferred-networks: 'xxx.xxx.xxx.'
     *
     *      3、获取IP
     *          String ip_ = inetUtils.findFirstNonLoopbackHostInfo().getIpAddress();
     */
}

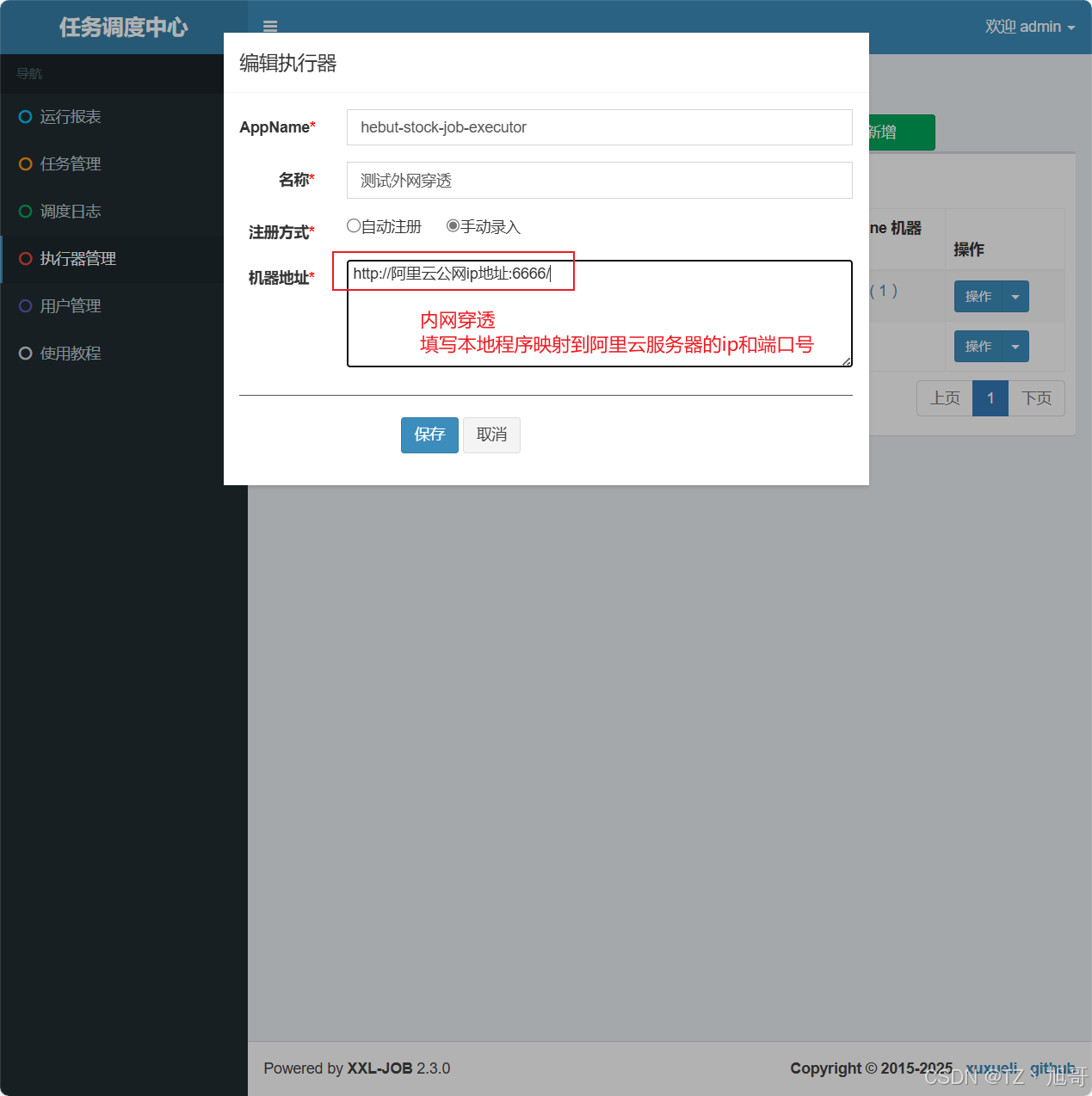

5. 在任务调度中心添加执行器管理

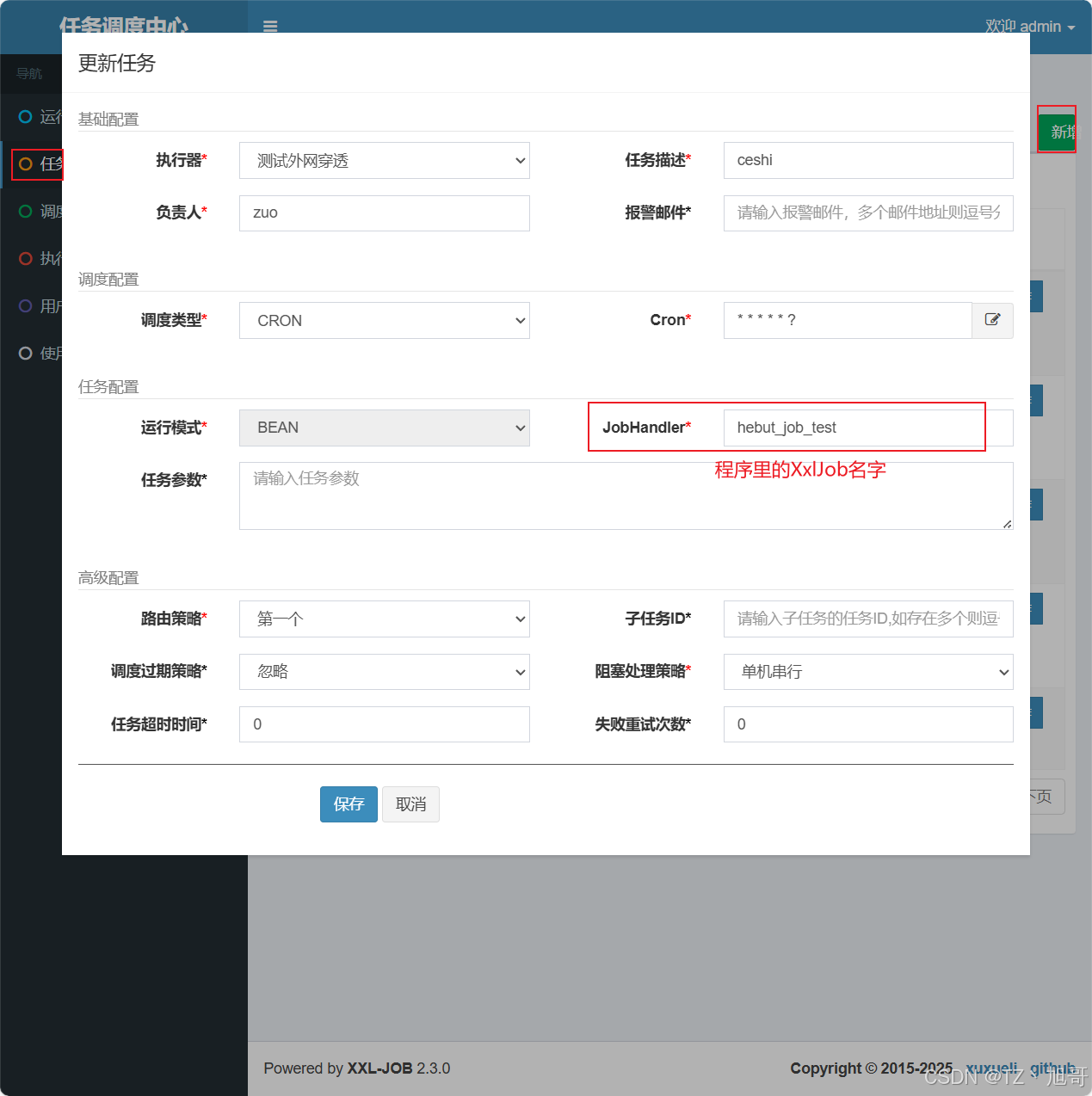

6. 编写和测试内网穿透是否成功(定时任务)

@Component
public class StockJob {

    @XxlJob("hebut_job_test")
    public void jobTest(){
        System.out.println("jobTest run.....");
    }

}
