【el-upload】ele-form 表单 el-upload 新增、修改、查看文件

注意事项

主要需要注意【修改】的时候，删除文件时需要考虑删除的是已经上传过的文件，还是修改时新上传的文件（代码 onRemoveHandler 方法中展示逻辑处理）

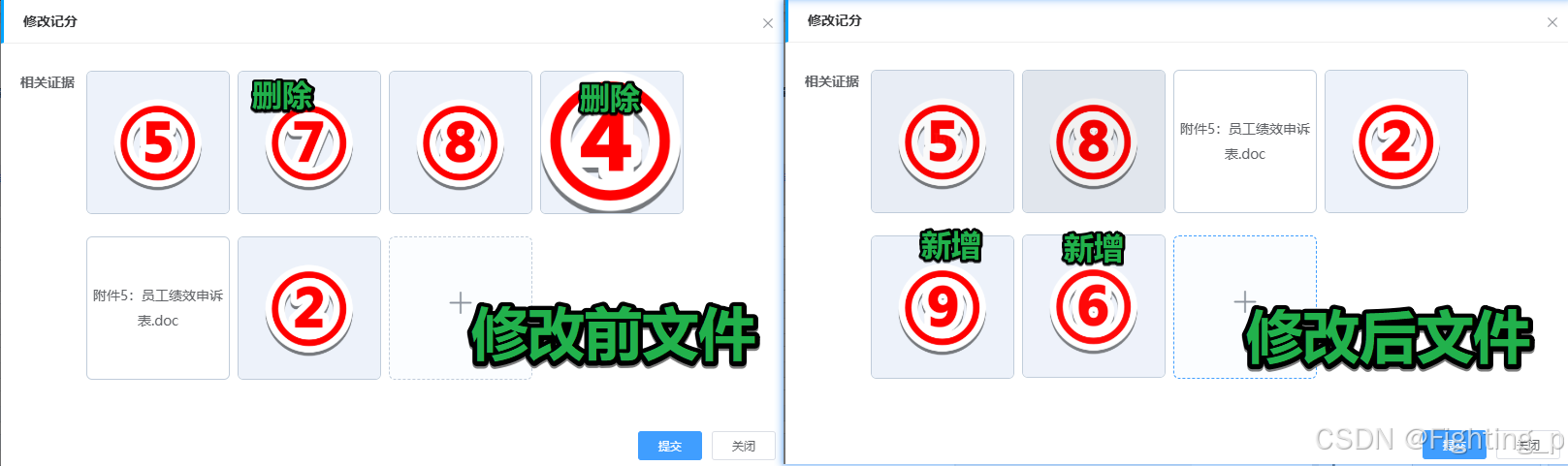

页面展示

代码

<!-- 记分管理： 新增、修改、详情 -->
<template>
  <el-dialog
    :title="title"
    :visible.sync="dialogVisible"
    width="60%"
    top="8vh"
    :before-close="handleClose"
    :close-on-click-modal="dialogType === 'detail'"
  >
    <ele-form
      ref="submitRef"
      inline
      form-btn-size="mini"
      :disabled="dialogType === 'detail'"
      :form-data="formData"
      :form-desc="formDesc"
      :is-show-back-btn="false"
    >
      <template v-if="['add', 'edit'].includes(dialogType)" #attachmentList>
        <el-upload
          ref="ElUploadRef"
          class="upload_demo"
          list-type="picture-card"
          :accept="fileTypeList.join(',')"
          action="/supervise_basic/upload/oss/fileupload"
          name="files"
          multiple
          :file-list="fileList"
          :headers="{ 'X-Token': getToken() }"
          :data="{ relativePath: 'XGZJ/' }"
          :on-success="onSuccessHandler"
          :on-error="onErrorHandler"
          :on-remove="onRemoveHandler"
          :before-upload="beforeUploadHandler"
        >
          <i class="el-icon-plus" />
          <!-- 展示文件 -->
          <div slot="file" slot-scope="{ file }" class="file_container">
            <!-- 展示图片文件 -->
            <el-image
              v-if="['.png', '.jpg', '.jpeg'].includes(file.name.slice(file.name.lastIndexOf('.')))"
              :src="file.url"
              :preview-src-list="[file.url]"
              fit="cover"
            />
            <!-- 展示非图片文件 -->
            <div v-else class="file_name">
              {{ file.name }}
            </div>
            <!-- 按钮区域 -->
            <span class="el-upload-list__item-actions">
              <!-- 删除按钮（也可在此区域添加文件预览按钮等） -->
              <span class="el-upload-list__item-delete" @click="onRemoveHandler(file)">
                <i class="el-icon-delete" />
              </span>
            </span>
          </div>
        </el-upload>
      </template>
    </ele-form>

    <span v-if="dialogType !== 'detail'" slot="footer" class="dialog-footer">
      <el-button type="primary" size="mini" @click="submitHandler">提交</el-button>
      <el-button size="mini" @click="handleClose">关闭</el-button>
    </span>
  </el-dialog>
</template>

<script>
import { mapGetters } from 'vuex'
import _ from 'lodash.clonedeep'
import { getToken } from '@/utils/tool'
import { addScore, editScore, getScore } from '@/api/twelve-points'
import { operationFormDesc } from '../constant/formList'

export default {
  name: 'OperationDialog',
  components: {},

  data() {
    return {
      dialogVisible: false,
      dialogType: '',
      rowData: {},
      formData: {
        attachmentList: []
      },
      getToken,
      fileList: [],
      fileTypeList: ['.png', '.jpg', '.jpeg', '.doc'],
      fileMaxSize: 5
    }
  },

  computed: {
    ...mapGetters(['glbmOptions', 'sysConfigData']),
    title() {
      const obj = {
        add: '新增记分',
        edit: '修改记分',
        detail: '记分详情'
      }
      return obj[this.dialogType]
    },
    formDesc() {
      // 防止某些表单项条件展示时顺序错乱
      return this.dialogVisible ? operationFormDesc(this) : {}
    },
    submitAx() {
      const obj = {
        add: addScore,
        edit: editScore
      }
      return obj[this.dialogType]
    }
  },

  watch: {
    dialogVisible() {
      this.$refs.submitRef &&
        this.$refs.submitRef.$refs.form &&
        this.$refs.submitRef.$refs.form.clearValidate()
    }
  },

  created() {
    this.fileTypeList.push(...this.fileTypeList.map((item) => item.toUpperCase()))
  },

  methods: {
    open(type, rowData = {}) {
      this.rowData = _(rowData)
      this.dialogType = type
      if (type !== 'add') {
        this.getDetail(rowData.jfbh)
      }
      this.dialogVisible = true
    },
    getDetail(jfbh) {
      getScore(jfbh).then((res) => {
        this.$common.CheckCode(res, null, () => {
          const { data = {} } = res
          for (const key in this.formDesc) {
            this.$set(this.formData, key, data[key])

            // 编辑时要回显已有文件
            key === 'attachmentList' &&
              (this.fileList = data[key].map((item) => {
                return {
                  name: item.wjmc,
                  url: this.sysConfigData.mon_sys_ossurl + item.wjlj,
                  type: item.wjgs
                }
              }))
          }
        })
      })
    },

    beforeUploadHandler(file) {
      const ext = file.name.substring(file.name.lastIndexOf('.'))
      console.log('ext----打印', ext)
      const isLt = file.size / 1024 / 1024 < this.fileMaxSize

      if (!this.fileTypeList.includes(ext)) {
        this.$message.error(`请上传${this.fileTypeList.map((item) => item)}格式的文件！`)
        return false
      } else if (!isLt) {
        this.$message.error(`上传文件大小不能超过 ${this.fileMaxSize}MB!`)
        return false
      } else {
        return true
      }
    },

    onRemoveHandler(file) {
      console.log('file----', file)
      /**
       * 新上传的文件 → file.response?.data?.fileUploadInfoList[0].path
       * 编辑时已有的文件 → file.url （通过文件路径匹配文件时需将 open 方法中给文件路径拼接的前缀去掉，即 file.url.replace(this.sysConfigData.mon_sys_ossurl, '')）
       */
      const filePath =
        file.response?.data?.fileUploadInfoList[0].path ||
        file.url.replace(this.sysConfigData.mon_sys_ossurl, '')
      // 根据文件路径和文件名共同匹配当前删除文件的索引
      const index = this.formData.attachmentList.findIndex(
        (item) => item.wjlj === filePath && item.wjmc === file.name
      )
      /**
       * 删除文件
       * 1. 要删除 el-upload 中文件信息
       * 2. 要删除表单中记录的文件信息
       */
      const { uploadFiles } = this.$refs.ElUploadRef
      uploadFiles.splice(index, 1) // 删除 el-upload 中文件信息
      this.formData.attachmentList.splice(index, 1) // 删除表单中记录的文件信息
    },

    // eslint-disable-next-line handle-callback-err
    onErrorHandler(err, file, fileList) {
      this.$message.error(`${file.name}文件上传失败，请重新上传！`)
    },

    // 文件上传成功
    onSuccessHandler(response) {
      console.log('response----', response)
      const fileList = response.data.fileUploadInfoList
        ? response.data.fileUploadInfoList.map((item) => {
            return {
              wjmc: item.filename,
              wjlj: item.path,
              wjgs: item.fileType
            }
          })
        : []
      this.formData.attachmentList.push(...fileList)
    },
    submitHandler() {
      this.$refs.submitRef.validate().then((valid) => {
        this.submitAx(this.formData).then((res) => {
          this.$common.CheckCode(res, '提交成功', () => {
            this.$emit('update')
            this.handleClose()
          })
        })
      })
    },
    handleClose() {
      this.rowData = {}
      this.fileList = []

      for (const key in this.formData) {
        if (this.formData[key] && this.formData[key].constructor === Array) {
          this.formData[key] = []
        } else if (this.formData[key] && this.formData[key].constructor === Object) {
          this.formData[key] = {}
        } else {
          this.formData[key] = ''
        }
      }
      this.dialogVisible = false
    }
  }
}
</script>

<style lang='scss' scoped>
@import '@/styles/dialog-scss.scss';

>>> .ele-form {
  .el-upload {
    margin-bottom: 10px;
  }
}

// 新增/编辑：文件上传时展示文件样式
.file_container {
  width: 100%;
  height: 100%;
  text-align: center;
  .el-image {
    width: 100%;
    height: 100%;
  }
  .file_name {
    width: 100%;
    height: 100%;
    display: flex;
    justify-content: center;
    align-items: center;
  }
}

// 详情：文件预览样式
>>> .form_file_wrapper {
  color: #333;
  .form_file_image {
    width: 100px;
    height: 100px;
    border: 1px solid #c0ccda;
    border-radius: 6px;
    cursor: pointer;
    margin-right: 10px;
  }
  .form_file_link {
    margin-right: 10px;
  }
}
</style>

formList.js

export const operationFormDesc = (_this) => {
  return {
    // ...
    attachmentList: {
      type: 'upload',
      label: '相关证据',
      layout: 24,
      render: (h, content, value) => {
        return _this.$common.formShowFiles(h, content, value, _this, 'wjmc', 'wjlj', {
          type: 'primary'
        })
      }
    }
  }
}

formShowFiles 公共方法

export default {
  /**
   * 表单回显文件
   */
  formShowFiles(h, content, value, _this, wjmc = 'filename', wjlj = 'saved_filename', linkAttrs = {}) {
    return h(
      'div',
      { staticClass: 'form_file_wrapper' },
      value && value.length
        ? value.map((item, index) => {
            if (/\.(gif|jpg|jpeg|png|GIF|JPG|JPEG|PNG)$/.test(item[wjmc])) {
              // 判断是否为图片
              return h('el-image', {
                key: index,
                staticClass: 'form_file_image',
                attrs: {
                  src: _this.sysConfigData.mon_sys_ossurl + item[wjlj],
                  fit: 'cover',
                  'preview-src-list': [_this.sysConfigData.mon_sys_ossurl + item[wjlj]]
                }
              })
            } else {
              // 不是图片的以链接的形式展示
              return h('el-link', {
                key: index,
                staticClass: 'form_file_link',
                attrs: {
                  href: _this.sysConfigData.mon_sys_ossurl + item[wjlj],
                  underline: false,
                  target: '_blank',
                  download: item[wjmc],
                  ...linkAttrs
                },
                domProps: { innerText: item[wjmc] }
              })
            }
          })
        : '暂无'
    )
  },
}
