vue3后台管理系统之layout组件的搭建

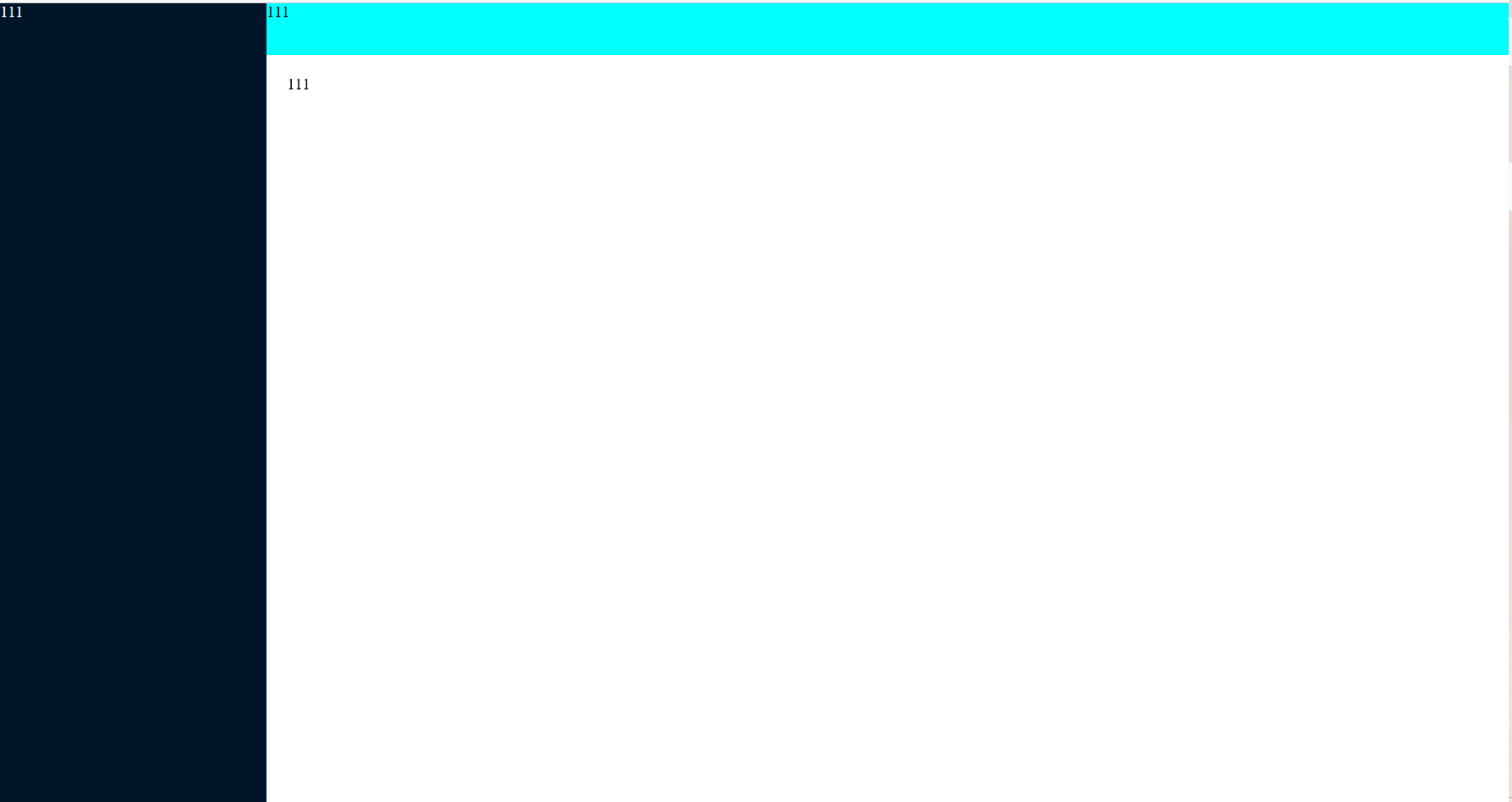

1.1静态布局

<template>
    <div class="layout_container">
        <!-- 左侧导航 -->
        <div class="layout_slider"></div>
        <!-- 顶部导航 -->
        <div class="layout_tabbar"></div>
        <!-- 内容展示区 -->
        <div class="layout_main"></div>
    </div>
</template>

<!-- <script lang="ts"></script> -->

<style scoped lang="scss">
.layout_container {
    width: 100%;
    height: 100vh;

    .layout_slider {
        color: white;
        width: $base-menu-width;
        height: 100vh;
        background: $base-menu-background;
        transition: all 0.3s;

        .scrollbar {
            width: 100%;
            height: calc(100vh - $base-menu-logo-height);

            .el-menu {
                border-right: none;
            }
        }
    }

    .layout_tabbar {
        position: fixed;
        width: calc(100% - $base-menu-width);
        height: $base-tabbar-height;
        top: 0px;
        left: $base-menu-width;
        transition: all 0.3s;
        background-color: aqua;

        &.fold {
            width: calc(100vw - $base-menu-min-width);
            left: $base-menu-min-width;
        }
    }

    .layout_main {
        position: absolute;
        width: calc(100% - $base-menu-width);
        height: calc(100vh - $base-tabbar-height);
        left: $base-menu-width;
        top: $base-tabbar-height;
        padding: 20px;
        overflow: auto;
        transition: all 0.3s;

        &.fold {
            width: calc(100vw - $base-menu-min-width);
            left: $base-menu-min-width;
        }
    }
}
</style>

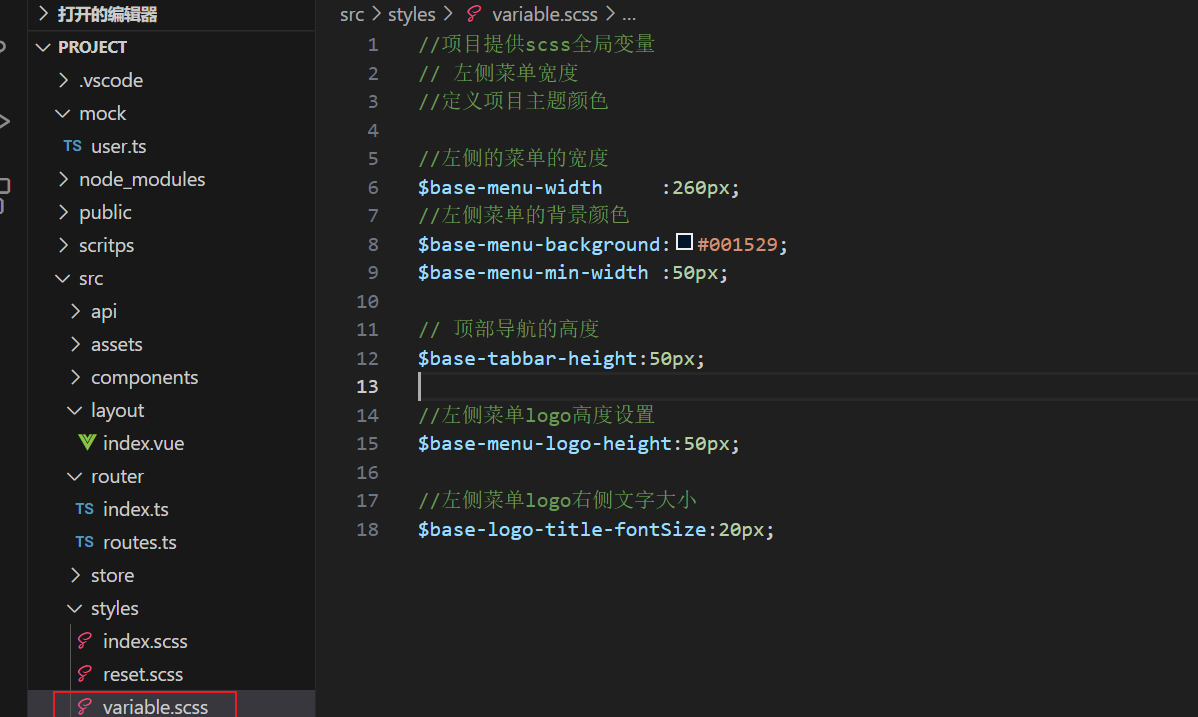

//项目提供scss全局变量
// 左侧菜单宽度
//定义项目主题颜色

//左侧的菜单的宽度
$base-menu-width     :260px;
//左侧菜单的背景颜色
$base-menu-background:#001529;
$base-menu-min-width :50px;

// 顶部导航的高度
$base-tabbar-height:50px;

//左侧菜单logo高度设置
$base-menu-logo-height:50px;

//左侧菜单logo右侧文字大小
$base-logo-title-fontSize:20px;

1.2动态logo和标题搭建

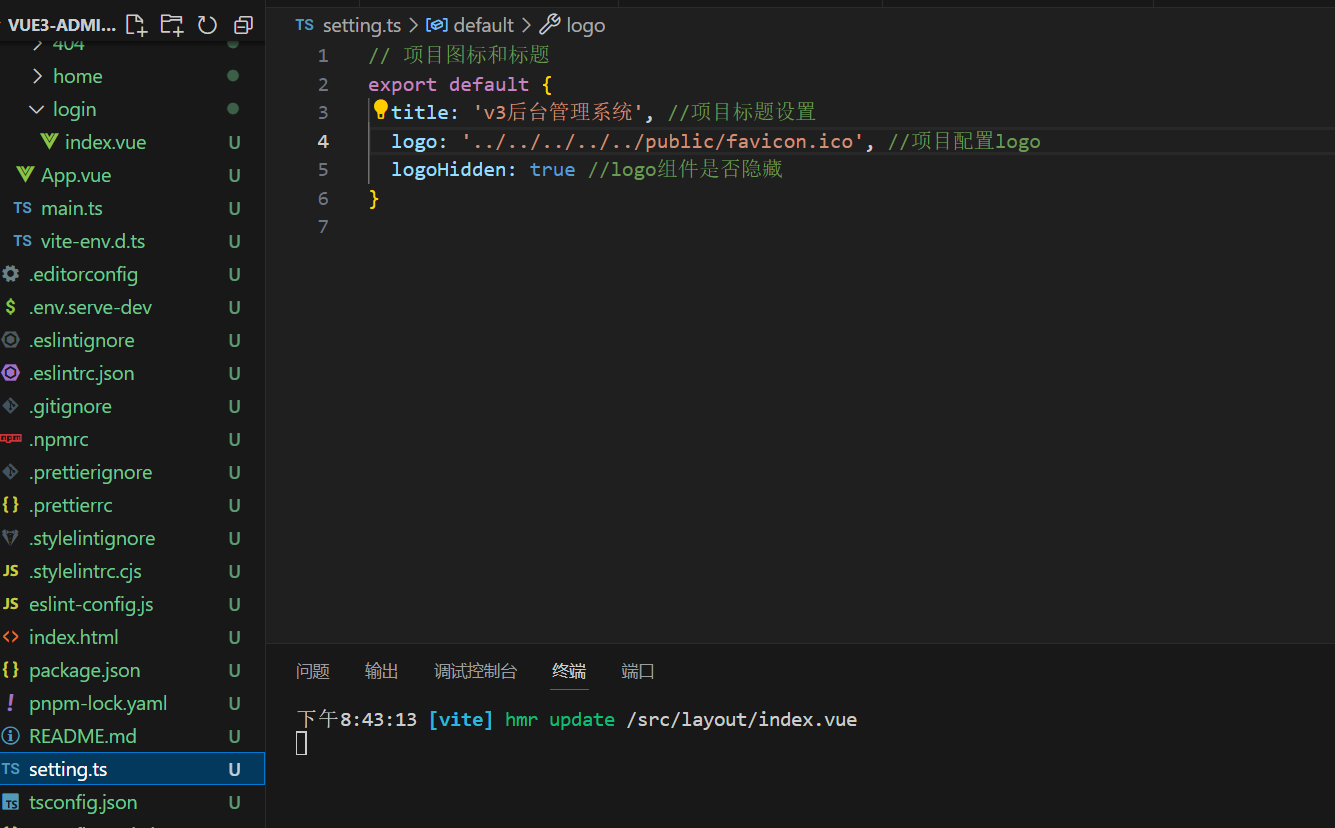

src下创建setting.ts

// 项目图标和标题
export default {
    title: 'v3后台管理系统', //项目标题设置
    logo: '../../../../../public/logo.png', //项目配置logo
    logoHidden: true, //logo组件是否隐藏
}

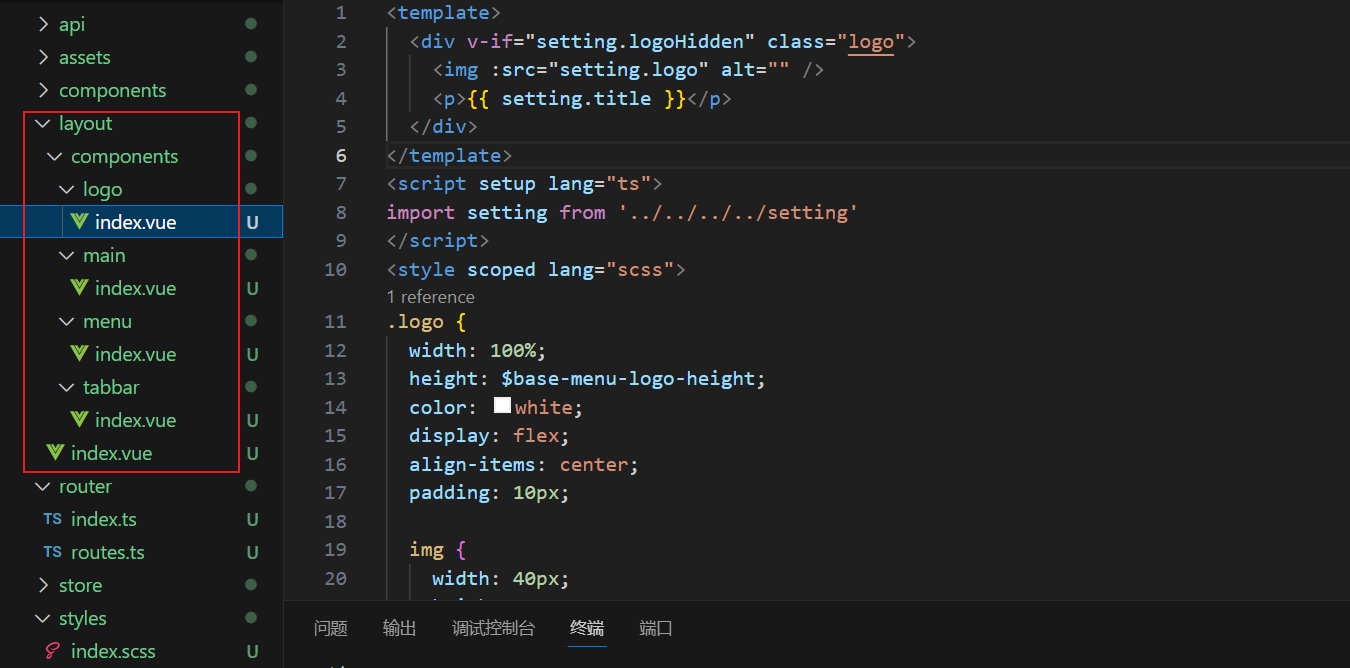

<template>
    <div class="logo" v-if="setting.logoHidden">
        <img :src="setting.logo" alt="" />
        <p>{
  { setting.title }}</p>
    </div>
</template>
<script setup lang="ts">
import setting from '@/setting'
</script>
<style scoped lang="scss">
.logo {
    width: 100%;
    height: $base-menu-logo-height;
    color: white;
    display: flex;
    align-items: center;
    padding: 10px;

    img {
        width: 40px;
        height: 40px;
    }

    p {
        font-size: $base-logo-title-fontSize;
        margin-left: 10px;
    }
}
</style>

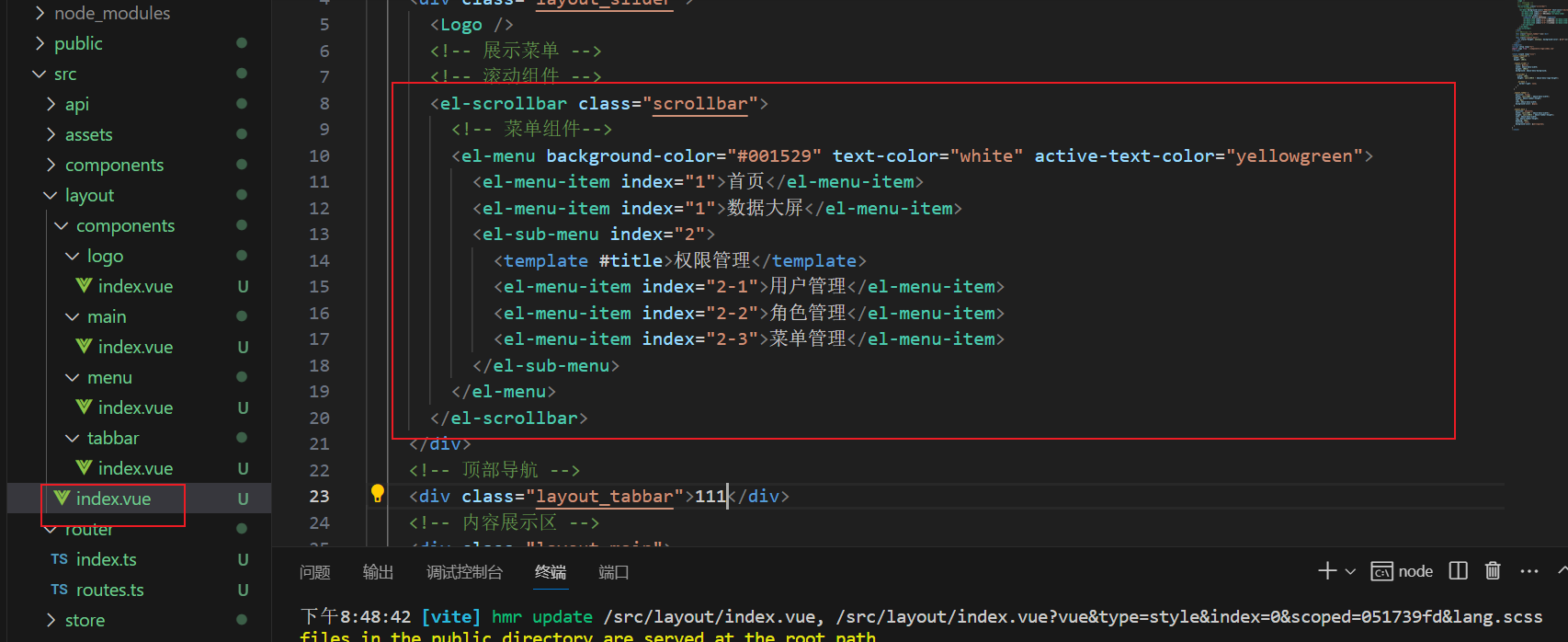

1.3左侧静态布局

<template>
    <div class="layout_container">
        <!-- 左侧导航 -->
        <div class="layout_slider">
            <Logo />
            <!-- 展示菜单 -->
            <!-- 滚动组件 -->
            <el-scrollbar class="scrollbar">
                <!-- 菜单组件-->
                <el-menu background-color="#001529" text-color="white" active-text-color="yellowgreen">
                    <el-menu-item index="1">首页</el-menu-item>
                    <el-menu-item index="1">数据大屏</el-menu-item>
                    <el-sub-m
