kafka 副本同步-leader和follower的leo，hw更新流程

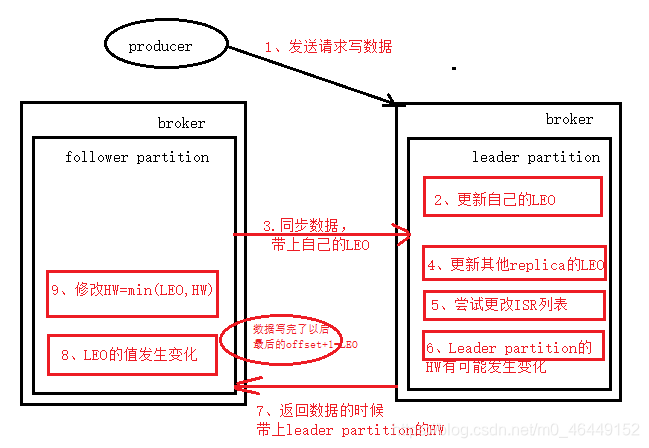

1、流程图

2、源码详解

Leader端：
KafkaApi.handleProducerRequest replicaManager.appendMessages
-> appendToLocalLog
   // 把数据写到leader partition里面
-> partition.appendMessagesToLeader
-> log.append
 -> segment.append(把数据写入到segment里面去)
  2. 更新自己的LEO
 -> updateLogEndOffset(更新LEO = lastOffset+1)

Follower端：
KafkaServer.startup replicaManager = new ReplicaManager
//添加follower partition去leader partition那儿拉取数据任务。
3、follower 同步数据，并带上自己的LEO
replicaFetcherManager.addFetcherForPartitions

Leader端：
KafkaApi.handleFetchRequest replicaManager.fetchMessages
//TODO leader partition这儿维护了这个partition的所有的replica的LEO值
updateFollowerLogReadResults
 // 更新follower的LEO的值
 partition.updateReplicaLogReadResult(replicaId, readResult){
     4、更新所有的replica的LEO的值
     replica.updateLogReadResult(logReadResult)
     5、尝试修改ISR列表
     maybeExpandIsr(replicaId)
}
  def maybeExpandIsr(replicaId: Int) {
    val leaderHWIncremented = inWriteLock(leaderIsrUpdateLock) {
      // check if this replica needs to be added to the ISR
      leaderReplicaIfLocal() match {
        case Some(leaderReplica) =>
          //获取到所有的replica
          val replica = getReplica(replicaId).get

          //获取到leader partition的HW的值
          val leaderHW = leaderReplica.highWatermark

          //判断一下是否要更新ISR列表

          //!inSyncReplicas.contains(replica)如果这个replica 目前不在ISR列表之中
          //TODO  replica.logEndOffset.offsetDiff(leaderHW) >= 0
          //这个replica的LEO的值要比leader partition的HW值要大
          //说明这个replica已经跟leader partition数据保持同步了。
          //所以把这个replica加入到ISR列表里面。

          //ISR(p0 p1 p2)
          if(!inSyncReplicas.contains(replica) &&
             assignedReplicas.map(_.brokerId).contains(replicaId) &&
                  replica.logEndOffset.offsetDiff(leaderHW) >= 0) {
            val newInSyncReplicas = inSyncReplicas + replica
            info("Expanding ISR for partition [%s,%d] from %s to %s"
                         .format(topic, partitionId, inSyncReplicas.map(_.brokerId).mkString(","),
                                 newInSyncReplicas.map(_.brokerId).mkString(",")))
            // update ISR in ZK and cache
            //就要更新ISR列表
            updateIsr(newInSyncReplicas)
            replicaManager.isrExpandRate.mark()
          }

          // check if the HW of the partition can now be incremented
          // since the replica maybe now be in the ISR and its LEO has just incremented
          6. 尝试更新HW的值
          maybeIncrementLeaderHW(leaderReplica)

        case None => false // nothing to do if no longer leader
      }
    }
handleFetchRequest.sendResponseCallback
 7.返回数据的时候带上leader partition的HW
              new FetchResponsePartitionData(data.error, data.hw, data.messages.asInstanceOf[FileMessageSet].toMessageFormat(Message.MagicValue_V0))

Follower 端：
AbstractFetcherThread.doWork.processFetchRequest
// 处理拉取到的数据
ReplicaFetcherThread.processPartitionData
  def processPartitionData(topicPartition: TopicPartition, fetchOffset: Long, partitionData: PartitionData) {
    try {
      val topic = topicPartition.topic
      val partitionId = topicPartition.partition
      val replica = replicaMgr.getReplica(topic, partitionId).get
      val messageSet = partitionData.toByteBufferMessageSet

      maybeWarnIfMessageOversized(messageSet, topicPartition)

      if (fetchOffset != replica.logEndOffset.messageOffset)
        throw new RuntimeException("Offset mismatch for partition %s: fetched offset = %d, log end offset = %d.".format(topicPartition, fetchOffset, replica.logEndOffset.messageOffset))
      if (logger.isTraceEnabled)
        trace("Follower %d has replica log end offset %d for partition %s. Received %d messages and leader hw %d"
          .format(replica.brokerId, replica.logEndOffset.messageOffset, topicPartition, messageSet.sizeInBytes, partitionData.highWatermark))

      //TODO 调用跟leader partition一样的代码
      //把数据写到磁盘上面
      8.同时更新LEO的值
      replica.log.get.append(messageSet, assignOffsets = false)
      if (logger.isTraceEnabled)
        trace("Follower %d has replica log end offset %d after appending %d bytes of messages for partition %s"
          .format(replica.brokerId, replica.logEndOffset.messageOffset, messageSet.sizeInBytes, topicPartition))

      //partitionData.highWatermark：leader parttion的HW的的值
      9.作为自己的HW的=min(logEndOffset.HW)
      val followerHighWatermark = replica.logEndOffset.messageOffset.min(partitionData.highWatermark)

      // for the follower replica, we do not need to keep
      // its segment base offset the physical position,
      // these values will be computed upon making the leader
      //修改自己的HW的值
      replica.highWatermark = new LogOffsetMetadata(followerHighWatermark)
      if (logger.isTraceEnabled)
        trace("Follower %d set replica high watermark for partition [%s,%d] to %s"
          .format(replica.brokerId, topic, partitionId, followerHighWatermark))
      if (quota.isThrottled(new TopicAndPartition(topic, partitionId)))
        quota.record(messageSet.sizeInBytes)
    } catch {
      case e: KafkaStorageException =>
        fatal(s"Disk error while replicating data for $topicPartition", e)
        Runtime.getRuntime.halt(1)
    }
  }
