springboot-thymeleaf

核心技术

核心框架：springboot
持久层框架：mybatis,mybatis-puls
模块引擎：thymeleaf
日志管理：LogBack
数据库：mysql
视图框架：SpringMvc
API文档：Swagger2

环境搭配

pom.xml


<!--thymeleaf引擎-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>

<!--web-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>

<!--mysql引擎-->
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <scope>runtime</scope>
</dependency>

<!-- lombok -->
<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <optional>true</optional>
</dependency>

<!-- Mybatis-Plus启动器 -->
<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>3.4.1</version>
</dependency>


<!--mybatis-plus自动代码生成-->
<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-generator</artifactId>
    <version>3.4.1</version>
</dependency>

<!--添加 模板引擎 依赖 代码生成器-->
<dependency>
    <groupId>org.apache.velocity</groupId>
    <artifactId>velocity-engine-core</artifactId>
    <version>2.2</version>
</dependency>

<!--swagger-->
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger-ui</artifactId>
    <version>2.9.2</version>
</dependency>

<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger2</artifactId>
    <version>2.9.2</version>
</dependency>

<!--knife4j的版本-->
<dependency>
    <groupId>com.github.xiaoymin</groupId>
    <artifactId>knife4j-spring-boot-starter</artifactId>
    <version>2.0.7</version>
</dependency>

yml

spring:
  application:
    name: school
  # 数据源配置
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/school?userUnicode=true&characterEncoding=UTF-8&serverTimezone=GMT%2B8
    username: root
    password: root
  # 格式化时区
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
    time-zone: GMT+8
    # jackson实体转json时 为NULL不参加序列化的汇总
    default-property-inclusion: non_null
  thymeleaf:
  	cache: false #关闭thymeleaf缓存

# 配置端口号
server:
  port: 8081

mybatis-plus:
  configuration:
    log-impl: org.apache.ibatis.logging.slf4j.Slf4jImpl
  # 扫描 Mapper.xml
  mapper-locations: classpath*:/mapper/*.xml
  # 配置别名
  type-aliases-package: com.bdqn.school.entity
  # 逻辑删除
  global-config:
    db-config:
      logic-delete-field: deleted  # 全局逻辑删除的实体字段名(since 3.3.0,配置后可以忽略不配置步骤2)
      logic-delete-value: 1 # 逻辑已删除值(默认为 1)
      logic-not-delete-value: 0 # 逻辑未删除值(默认为 0)

框架构造


import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.core.exceptions.MybatisPlusException;
import com.baomidou.mybatisplus.generator.AutoGenerator;
import com.baomidou.mybatisplus.generator.config.*;
import com.baomidou.mybatisplus.generator.config.rules.DateType;
import com.baomidou.mybatisplus.generator.config.rules.NamingStrategy;
import org.apache.commons.lang3.StringUtils;

import java.util.Scanner;


public class CodeGenerator {

    /**
     * <p>
     * 读取控制台内容
     * </p>
     */
    public static String scanner(String tip) {
        Scanner scanner = new Scanner(System.in);
        StringBuilder help = new StringBuilder();
        help.append("请输入" + tip + "：");
        System.out.println(help.toString());
        if (scanner.hasNext()) {
            String ipt = scanner.next();
            if (StringUtils.isNotEmpty(ipt)) {
                return ipt;
            }
        }
        throw new MybatisPlusException("请输入正确的" + tip + "！");
    }

    public static void main(String[] args) {
        // 创建代码生成器对象
        AutoGenerator mpg = new AutoGenerator();

        // 全局配置
        GlobalConfig gc = new GlobalConfig();
        gc.setOutputDir(scanner("请输入你的项目路径") + "/src/main/java");
        gc.setAuthor("cp");
        //生成之后是否打开资源管理器
        gc.setOpen(false);
        //重新生成时是否覆盖文件
        gc.setFileOverride(false);
        //%s 为占位符
        //mp生成service层代码,默认接口名称第一个字母是有I
        gc.setServiceName("%sService");
        //设置主键生成策略  自动增长
        gc.setIdType(IdType.AUTO);
        //设置Date的类型   只使用 java.util.date 代替
        gc.setDateType(DateType.ONLY_DATE);
        //开启实体属性 Swagger2 注解
        gc.setSwagger2(true);
        mpg.setGlobalConfig(gc);

        // 数据源配置
        DataSourceConfig dsc = new DataSourceConfig();
        dsc.setUrl("jdbc:mysql://localhost:3306/school?useUnicode=true&characterEncoding=UTF-8&serverTimezone=GMT%2B8");
        dsc.setDriverName("com.mysql.cj.jdbc.Driver");
        dsc.setUsername("root");
        dsc.setPassword("root");
        //使用mysql数据库
        dsc.setDbType(DbType.MYSQL);
        mpg.setDataSource(dsc);

        // 包配置
        PackageConfig pc = new PackageConfig();
        pc.setModuleName(scanner("请输入模块名"));
        pc.setParent("com.bdqn");
        pc.setController("controller");
        pc.setService("service");
        pc.setServiceImpl("service.impl");
        pc.setMapper("mapper");
        pc.setEntity("entity");
        pc.setXml("mapper");
        mpg.setPackageInfo(pc);

        // 策略配置
        StrategyConfig strategy = new StrategyConfig();
        //设置哪些表需要自动生成
        strategy.setInclude(scanner("表名，多个英文逗号分割").split(","));

        //实体类名称驼峰命名
        strategy.setNaming(NamingStrategy.underline_to_camel);

        //列名名称驼峰命名
        strategy.setColumnNaming(NamingStrategy.underline_to_camel);
        //使用简化getter和setter
        strategy.setEntityLombokModel(true);
        //设置controller的api风格  使用RestController
        strategy.setRestControllerStyle(true);
        //驼峰转连字符
        strategy.setControllerMappingHyphenStyle(true);
        strategy.setTablePrefix("");
        mpg.setStrategy(strategy);
        mpg.execute();
    }
}

config配置文件

Knife4jConfiguration


import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;


@Configuration
@EnableSwagger2
public class Knife4jConfiguration {

    @Bean(value = "defaultApi2")
    public Docket defaultApi2() {
        Docket docket=new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(new ApiInfoBuilder()
                        //.title("swagger-bootstrap-ui-demo RESTful APIs")
                        .description("# swagger-bootstrap-ui-demo RESTful APIs")
                        .termsOfServiceUrl("http://www.xx.com/")
                        .contact("xx@qq.com")
                        .version("1.0")
                        .build())
                //分组名称
                .groupName("2.X版本")
                .select()
                //这里指定Controller扫描包路径
                .apis(RequestHandlerSelectors.basePackage("com.bdqn.school.controller"))
                .paths(PathSelectors.any())
                .build();
        return docket;
    }
}

MybatisPlusConfig


import com.baomidou.mybatisplus.extension.plugins.PaginationInterceptor;
import com.baomidou.mybatisplus.extension.plugins.pagination.optimize.JsqlParserCountOptimize;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;


@Configuration
public class MybatisPlusConfig {

    @Bean
    public PaginationInterceptor paginationInterceptor() {
        PaginationInterceptor paginationInterceptor = new PaginationInterceptor();
        // 设置请求的页面大于最大页后操作， true调回到首页，false 继续请求  默认false
        // paginationInterceptor.setOverflow(false);
        // 设置最大单页限制数量，默认 500 条，-1 不受限制
        // paginationInterceptor.setLimit(500);
        // 开启 count 的 join 优化,只针对部分 left join
        paginationInterceptor.setCountSqlParser(new JsqlParserCountOptimize(true));
        return paginationInterceptor;
    }
}

MyMetaObjectHandler


import com.baomidou.mybatisplus.core.handlers.MetaObjectHandler;
import com.baomidou.mybatisplus.extension.plugins.OptimisticLockerInterceptor;
import lombok.extern.slf4j.Slf4j;
import org.apache.ibatis.reflection.MetaObject;
import org.springframework.context.annotation.Bean;
import org.springframework.stereotype.Component;

import java.util.Date;


@Slf4j
@Component
public class MyMetaObjectHandler implements MetaObjectHandler {
    @Override
    public void insertFill(MetaObject metaObject) {
        log.info("start insert fill ....");
        // 起始版本 3.3.0(推荐使用)
        this.strictInsertFill(metaObject, "createTime", Date.class, new Date());

        // 起始版本 3.3.0(推荐使用)
        //在执行增加操作的时候,不仅仅要给createTime赋值,而且要给modifiedTime赋值
        this.strictInsertFill(metaObject, "modifiedTime", Date.class, new Date());
    }

    @Override
    public void updateFill(MetaObject metaObject) {
        log.info("start update fill ....");

        // 起始版本 3.3.0(推荐)
        this.strictUpdateFill(metaObject, "modifiedTime", Date.class, new Date());
    }

    /**
     * 乐观锁
     * @return
     */
    @Bean
    public OptimisticLockerInterceptor optimisticLockerInterceptor() {
        return new OptimisticLockerInterceptor();
    }
}

Thymeleaf

创建HTML

<html xmlns:th="http://www.thymeleaf.org">

获取变量值${…}

<p th:text="${name}"></p>

链接表达式: @{…}

<a th:href="@{/student/edit}">edit</a>

判断

<div th:if="${yes}">
    <p>hell</p>
</div>

循环

<!DOCTYPE HTML>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <title>hello</title>
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8"/>
</head>
<body>
    <!-- 不存在则忽略，显示hello null!(可以通过默认值进行设置)-->
    <p th:text="'Hello ' + (${name}?:'admin')">3333</p>
    <table>
        <tr>
            <th>ID</th>
            <th>NAME</th>
            <th>AGE</th>
        </tr>
        <tr th:each="emp : ${empList}">
            <td th:text="${emp.id}">1</td>
            <td th:text="${emp.name}">海</td>
            <td th:text="${emp.age}">18</td>
        </tr>
    </table>
</body>
</html>

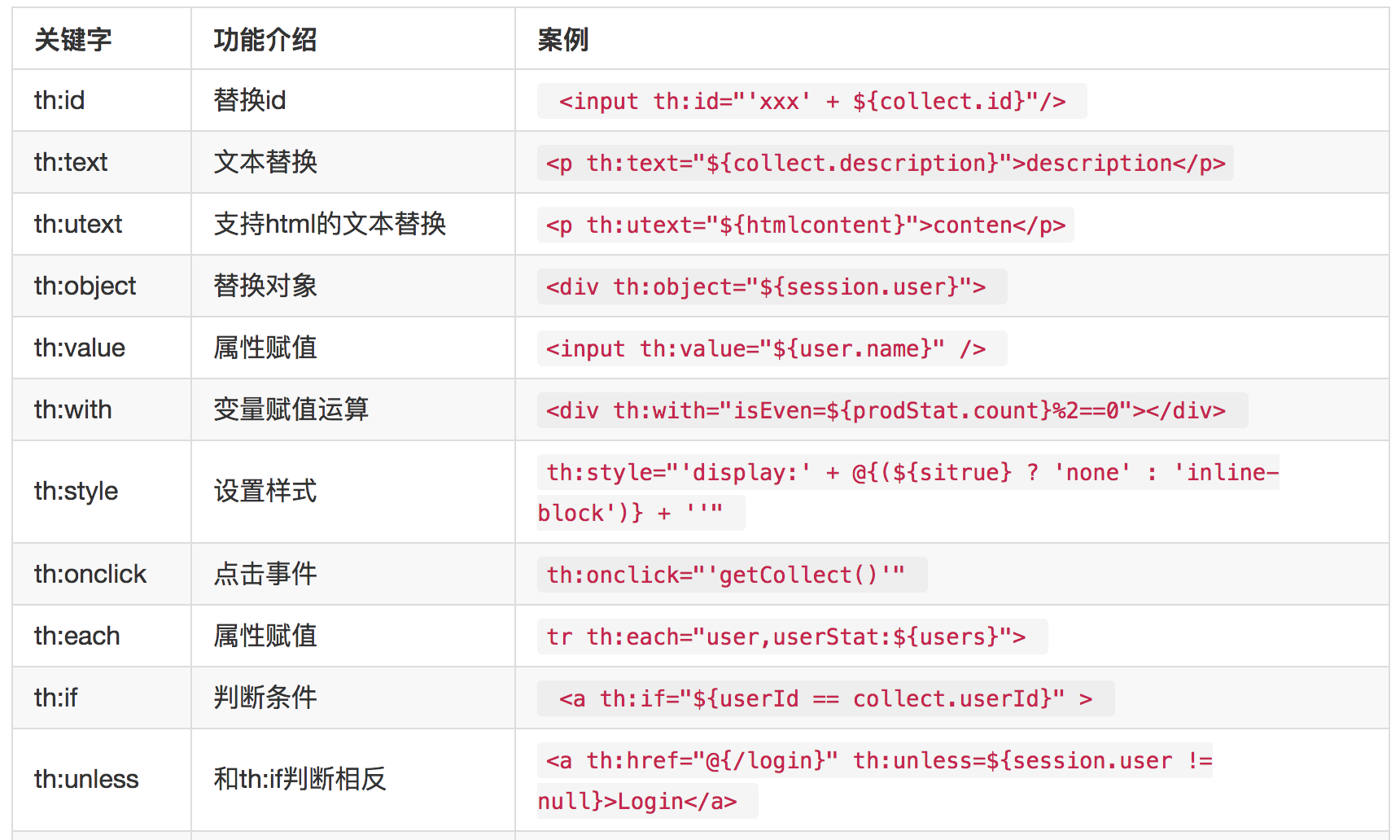

常用标签

表单模板

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>

<form th:action="@{/find}">

    <select name="tj" >
        <option th:value="2">状态</option>
        <option th:value="1">未满员</option>
        <option th:value="0">已满员</option>
    </select>

    <input type="text" name="classname"th:value="${classname}">
    <button type="submit">查询</button>
</form>
<table border="1">
    <tr>
        <th>ID</th>
        <th>班级名称</th>
        <th>限定人数</th>
        <th>已有人数</th>
        <th>状态</th>
        <th colspan="2">操作</th>
    </tr>

    <tr th:each="li : ${list.getRecords()}">
        <td th:text="${li.classId}"></td>
        <td th:text="${li.className}"></td>
        <td th:text="${li.classEstimateNumber}"></td>
        <td th:text="${li.classActualNumber}"></td>
        <td th:text="${li.getClassState()==1}?'满员':'未满员'"></td>
<!--        <td><a th:if="${li.getClassState()!=1}">新增</a></td>-->
<!--        #dates.format(li.createtime,'yyyy-MM-dd HH:mm')-->
        <td>
        <a th:onclick="|javascript:add('${li.classState}','${li.classId}')|">新增</span></a>
        </td>
        <td>
        <a th:onclick="|javascript:xq('${li.classId}')|">详情</a>
        </td>
    </tr>

    <tr>
        <td style="text-align: center" colspan="4">
            <a th:href="@{/find(pageNum=1,tj=${tj})}">首页</a>|
            <a th:if="${list?.hasPrevious()}" th:href="@{/find(pageNum=${list.current}-1,tj=${tj})}">上一页</a>|
            <a th:if="${list?.hasNext()}" th:href="@{/find(pageNum=${list.current}+1,tj=${tj})}">下一页</a>
            <a th:href="@{/find(pageNum=${list?.pages},tj=${tj})}">末页</a>
            第<span th:text="${list?.current}"></span>页/共<span th:text="${list?.pages}"></span>页&nbsp;
        </td>
    </tr>

</table>
<script src="https://cdn.jsdelivr.net/npm/jquery@1.12.4/dist/jquery.min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/bootstrap@3.3.7/dist/js/bootstrap.min.js"></script>
<script>
    function add(classState,classId) {
        if(classState==1){
            alert("此班级已满员！")
        }else {
            location.href='/add?classId='+classId;
        }
    }

    function xq(classId) {
        location.href='/xq?classId='+classId;
    }
</script>
</body>
</html>

新增模板

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<html lang="zh-CN">
<head>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <title>编辑</title>
    <link href="https://cdn.jsdelivr.net/npm/bootstrap@3.3.7/dist/css/bootstrap.min.css" rel="stylesheet">
    <script src="https://cdn.jsdelivr.net/npm/html5shiv@3.7.3/dist/html5shiv.min.js"></script>
    <script src="https://cdn.jsdelivr.net/npm/respond.js@1.4.2/dest/respond.min.js"></script>
    <style type="text/css">
        .form-box{
            width: 800px;
            height: 500px;
            border: 1px solid #DCDFE6;
            position: absolute;
            top: 50%;
            left: 50%;
            /*平移*/
            transform: translate(-50%,-50%);
            padding: 10px;
        }
        .form-box:hover{
            box-shadow: 0 2px 4px rgba(0, 0, 0, .12), 0 0 6px rgba(0, 0, 0, .04)
        }
        .form-title{
            text-align: center;
        }
    </style>
</head>
<body>
<div class="form-box">
    <h1>新增用户信息</h1>
    <form th:action="@{/addatu}" th:method="post">
<!--        <div class="form-group">-->
<!--            <label for="id">学生编号</label>-->
<!--            <input type="text" class="form-control"  name="studentId" id="id" readonly placeholder="学生编号">-->
<!--        </div>-->
        <div class="form-group">
            <label for="name">学生姓名</label>
            <input type="text" class="form-control" name="studentName" id="name" placeholder="请输入学生姓名">
        </div>
        <div class="form-group">
            <label for="gender">学生性别</label>
            <input type="text" class="form-control" name="studentSex"  id="gender" placeholder="请输入学生性别">
        </div>
        <div class="form-group">
            <label for="age">学生出生日期</label>
            <input type="date" class="form-control"  name="studentTime" id="age" placeholder="请输入学生年龄">
        </div>
        <div class="form-group">
            <label for="classid">学生班级</label>
            <input type="text" class="form-control" name="studentClassId"  th:value="${classId}" hidden="hidden"  id="classid" placeholder="请输入学生班级">
        </div>

        <button type="submit" class="btn btn-default">提交</button>
        <button type="button" onclick="location.href='find'" class="btn btn-default">返回</button>
    </form>
</div>
<script src="https://cdn.jsdelivr.net/npm/jquery@1.12.4/dist/jquery.min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/bootstrap@3.3.7/dist/js/bootstrap.min.js"></script>
</body>
</html>

常用注解

//逻辑删除
@TableLogic

//新增自动填充
@TableField(fill = FieldFill.INSERT)

//新增修改自动填充
@TableField(fill = FieldFill.INSERT_UPDATE)

//乐观锁
@Version

//格式时间 "yyyy-MM-dd HH:mm:ss"更加详细,但是input 中的 date 只精确到 年月日
@DateTimeFormat(pattern = "yyyy-MM-dd")

//处理与数据库名称不统一
@TableField(value = "student_time")

//网页时间格式显示
//th:text="${#dates.format(li.studentTime,'yyyy-MM-dd HH:mm')}"

//页面重定向
return "redirect:/";

常用注解

//逻辑删除
@TableLogic

//新增自动填充
@TableField(fill = FieldFill.INSERT)

//新增修改自动填充
@TableField(fill = FieldFill.INSERT_UPDATE)

//乐观锁
@Version

//格式时间 "yyyy-MM-dd HH:mm:ss"更加详细,但是input 中的 date 只精确到 年月日
@DateTimeFormat(pattern = "yyyy-MM-dd")

//处理与数据库名称不统一
@TableField(value = "student_time")

//网页时间格式显示
//th:text="${#dates.format(li.studentTime,'yyyy-MM-dd HH:mm')}"

//页面重定向
return "redirect:/";
