Kafka服务端源码剖析六 -- requestQueue队列里的请求是如何被处理的？

上一小节我们分析到客户端发送过来的请求都被封装成Request对象存储到了RequestChannel的requestQueue队列里了，这一小节我们看一下Server端是如何处理队列里的Request的？

  /**
   * Start up API for bringing up a single instance of the Kafka server.
   * Instantiates the LogManager, the SocketServer and the request handlers - KafkaRequestHandlers
   */
  def startup() {
    try {

         . . . 略
      //这个地方是之前我们看到的启动SocketServe服务的地方
      //现在SocketServer服务已经启动了，也并且接受到了请求数据了
      //我们这次分析的是如何处理接收到的这些数据，所以我们代码要接着往下看。

      //TODO 启动socketserver服务
        socketServer = new SocketServer(config, metrics, kafkaMetricsTime)
        socketServer.startup()

        . . . 略

        /* start processing requests */
        //我们看上面的源码作者给的注释 就很清楚，这儿就是处理接收到的请求的。
        apis = new KafkaApis(socketServer.requestChannel, replicaManager, adminManager, groupCoordinator,
          kafkaController, zkUtils, config.brokerId, config, metadataCache, metrics, authorizer, quotaManagers, clusterId)
       //在Scala里面，new 一个对象就会导致这个类的主构造函数运行，
       //在Scala的代码里，经常会遇到源码作者把初始化的操作放到主构造函数里。
       //所以这儿我们看一下KafkaRequestHandlerPool的主构造函数。
        requestHandlerPool = new KafkaRequestHandlerPool(config.brokerId, socketServer.requestChannel, apis, config.numIoThreads)

       . . . 略

      }
    }
    catch {
      case e: Throwable =>
        fatal("Fatal error during KafkaServer startup. Prepare to shutdown", e)
        isStartingUp.set(false)
        shutdown()
        throw e
    }
  }

分析一下KafkaRequestHandlerPool的主构造函数：

class KafkaRequestHandlerPool(val brokerId: Int,
                              val requestChannel: RequestChannel,
                              val apis: KafkaApis,
                              numThreads: Int) extends Logging with KafkaMetricsGroup {

  /* a meter to track the average free capacity of the request handlers */
  private val aggregateIdleMeter = newMeter("RequestHandlerAvgIdlePercent", "percent", TimeUnit.NANOSECONDS)

  this.logIdent = "[Kafka Request Handler on Broker " + brokerId + "], "
  val threads = new Array[Thread](numThreads)
  val runnables = new Array[KafkaRequestHandler](numThreads)
  //创建numThreads个KafkaRequestHandler线程并启动
  //默认numThreads数是8，由num.io.threads参数控制
  for(i <- 0 until numThreads) {
    runnables(i) = new KafkaRequestHandler(i, brokerId, aggregateIdleMeter, numThreads, requestChannel, apis)
    threads(i) = Utils.daemonThread("kafka-request-handler-" + i, runnables(i))
    threads(i).start()
  }

  def shutdown() {
    info("shutting down")
    for(handler <- runnables)
      handler.shutdown
    for(thread <- threads)
      thread.join
    info("shut down completely")
  }
}

我们接着在看KafkaRequestHandler线程的run方法，看启动起来到底是要做什么？

def run() {
    while(true) {
      try {
        var req : RequestChannel.Request = null
        while (req == null) {
          // We use a single meter for aggregate idle percentage for the thread pool.
          // Since meter is calculated as total_recorded_value / time_window and
          // time_window is independent of the number of threads, each recorded idle
          // time should be discounted by # threads.
          val startSelectTime = SystemTime.nanoseconds
          // 这儿就是不断的从队列里面获取Request
          req = requestChannel.receiveRequest(300)
          val idleTime = SystemTime.nanoseconds - startSelectTime
          aggregateIdleMeter.mark(idleTime / totalHandlerThreads)
        }

        if(req eq RequestChannel.AllDone) {
          debug("Kafka request handler %d on broker %d received shut down command".format(
            id, brokerId))
          return
        }
        req.requestDequeueTimeMs = SystemTime.milliseconds
        trace("Kafka request handler %d on broker %d handling request %s".format(id, brokerId, req))
        //TODO 对该请求处理
        apis.handle(req)
      } catch {
        case e: Throwable => error("Exception when handling request", e)
      }
    }
  }

我们看到启动的这8个线程就是去获取队列里面的Request的。我们看到每获取到一个Request都交给了KafkaApis处理。继续跟踪下去看：

 def handle(request: RequestChannel.Request) {
    try {
      trace("Handling request:%s from connection %s;securityProtocol:%s,principal:%s".
        format(request.requestDesc(true), request.connectionId, request.securityProtocol, request.session.principal))
      ApiKeys.forId(request.requestId) match {
        // 处理生产者的请求
        case ApiKeys.PRODUCE => handleProducerRequest(request)
        case ApiKeys.FETCH => handleFetchRequest(request)

       . . . 略


继续跟踪 handleProducerRequest（request）方法

/**
   * Handle a produce request
   */
  def handleProducerRequest(request: RequestChannel.Request) {
    val produceRequest = request.body.asInstanceOf[ProduceRequest]
    val numBytesAppended = request.header.sizeOf + produceRequest.sizeOf

    val (existingAndAuthorizedForDescribeTopics, nonExistingOrUnauthorizedForDescribeTopics) = produceRequest.partitionRecords.asScala.partition {
      case (topicPartition, _) => authorize(request.session, Describe, new Resource(auth.Topic, topicPartition.topic)) && metadataCache.contains(topicPartition.topic)
    }

    val (authorizedRequestInfo, unauthorizedForWriteRequestInfo) = existingAndAuthorizedForDescribeTopics.partition {
      case (topicPartition, _) => authorize(request.session, Write, new Resource(auth.Topic, topicPartition.topic))
    }

    // the callback for sending a produce response
    // 第二步
    def sendResponseCallback(responseStatus: Map[TopicPartition, PartitionResponse]) {

      val mergedResponseStatus = responseStatus ++
        unauthorizedForWriteRequestInfo.mapValues(_ =>
           new PartitionResponse(Errors.TOPIC_AUTHORIZATION_FAILED.code, -1, Message.NoTimestamp)) ++
        nonExistingOrUnauthorizedForDescribeTopics.mapValues(_ =>
           new PartitionResponse(Errors.UNKNOWN_TOPIC_OR_PARTITION.code, -1, Message.NoTimestamp))

      var errorInResponse = false

      mergedResponseStatus.foreach { case (topicPartition, status) =>
        if (status.errorCode != Errors.NONE.code) {
          errorInResponse = true
          debug("Produce request with correlation id %d from client %s on partition %s failed due to %s".format(
            request.header.correlationId,
            request.header.clientId,
            topicPartition,
            Errors.forCode(status.errorCode).exceptionName))
        }
      }
      // 第四步
      def produceResponseCallback(delayTimeMs: Int) {
        if (produceRequest.acks == 0) {
          // no operation needed if producer request.required.acks = 0; however, if there is any error in handling
          // the request, since no response is expected by the producer, the server will close socket server so that
          // the producer client will know that some error has happened and will refresh its metadata
          if (errorInResponse) {
            val exceptionsSummary = mergedResponseStatus.map { case (topicPartition, status) =>
              topicPartition -> Errors.forCode(status.errorCode).exceptionName
            }.mkString(", ")
            info(
              s"Closing connection due to error during produce request with correlation id ${request.header.correlationId} " +
                s"from client id ${request.header.clientId} with ack=0\n" +
                s"Topic and partition to exceptions: $exceptionsSummary"
            )
            requestChannel.closeConnection(request.processor, request)
          } else {
            requestChannel.noOperation(request.processor, request)
          }
        } else {
          val respHeader = new ResponseHeader(request.header.correlationId)
          val respBody = request.header.apiVersion match {
            case 0 => new ProduceResponse(mergedResponseStatus.asJava)
            case version@(1 | 2) => new ProduceResponse(mergedResponseStatus.asJava, delayTimeMs, version)
            // This case shouldn't happen unless a new version of ProducerRequest is added without
            // updating this part of the code to handle it properly.
            case version => throw new IllegalArgumentException(s"Version `$version` of ProduceRequest is not handled. Code must be updated.")
          }
          // 第五步
          requestChannel.sendResponse(new RequestChannel.Response(request, new ResponseSend(request.connectionId, respHeader, respBody)))
        }
      }

      // When this callback is triggered, the remote API call has completed
      request.apiRemoteCompleteTimeMs = SystemTime.milliseconds
      // 第三步
      quotas.produce.recordAndMaybeThrottle(
        request.session.sanitizedUser,
        request.header.clientId,
        numBytesAppended,
        produceResponseCallback)
    }

    if (authorizedRequestInfo.isEmpty)
      sendResponseCallback(Map.empty)
    else {
      val internalTopicsAllowed = request.header.clientId == AdminUtils.AdminClientId

      // Convert ByteBuffer to ByteBufferMessageSet
      val authorizedMessagesPerPartition = authorizedRequestInfo.map {
        case (topicPartition, buffer) => (topicPartition, new ByteBufferMessageSet(buffer))
      }

      // call the replica manager to append messages to the replicas
      // 第一步:写入数据
      replicaManager.appendMessages(
        produceRequest.timeout.toLong,
        produceRequest.acks,
        internalTopicsAllowed,
        authorizedMessagesPerPartition,
        sendResponseCallback)

      // if the request is put into the purgatory, it will have a held reference
      // and hence cannot be garbage collected; hence we clear its data here in
      // order to let GC re-claim its memory since it is already appended to log
      produceRequest.clearPartitionRecords()
    }
  }

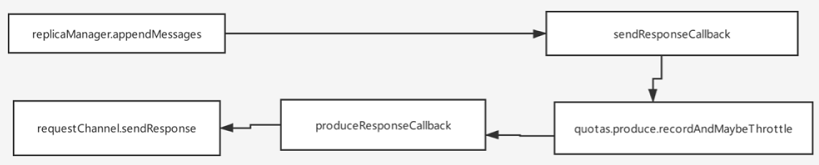

整一下了一下代码调用顺序，如下：

上面代码跟踪到第五步，点击如下

/** Send a response back to the socket server to be sent over the network */
  def sendResponse(response: RequestChannel.Response) {
  //TODO 把响应装到responseQueues队列里
    responseQueues(response.processor).put(response)
    for(onResponse <- responseListeners)
      onResponse(response.processor)
  }

我们发现是将response最终添加到了一个阻塞队列里面

// new Array[BlockingQueue[RequestChannel.Response]](numProcessors)
// 也就是说每个Processor都对应一个BlockingQueue 阻塞队列。
private val responseQueues = new Array[BlockingQueue[RequestChannel.Response]](numProcessors)

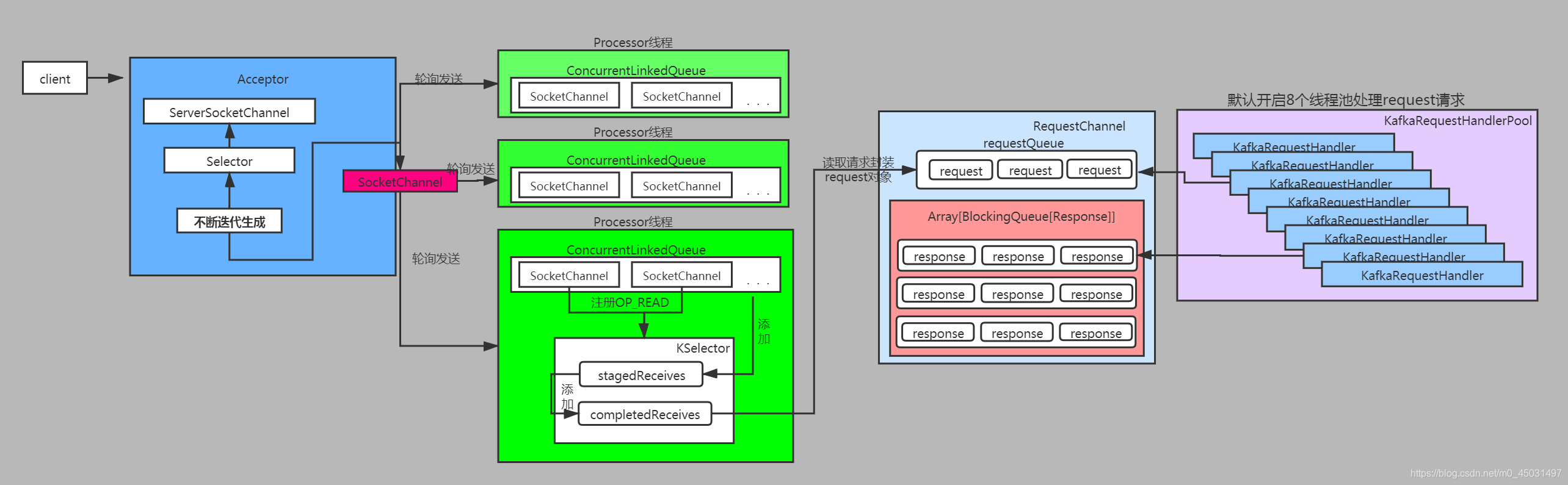

每个线程处理了请求先把数据写到了磁盘，写完磁盘以后封装了Response响应，接着把响应封装到了3个ResponseQueue队列里面，一个ResponseQueue对应一个Processor线程。现在返回给客户端的响应已经存储到了队列了。
