【GDAL应用】shp数据转带坐标系的二值图

1、实现功能

将shp数据转化为带坐标系的二值图；
shp数据可以是面要素也可以是线要素；
必须具有转化为二值图的属性字段，如FID_1，具体字段数值代表栅格化后的value值。

2、实现代码

# -*- coding:utf-8 -*-
import argparse
import os
from osgeo import gdalconst, gdal, ogr
import numpy as np
import sys
import traceback
import shutil

# 用于打包所需要的依赖库，加入环境变量
# proj_str = os.path.dirname(sys.argv[0]) + '/proj'
# os.environ['PROJ_LIB'] = proj_str


def shp2Raster(shp, templatePic, output, field, nodata):
    """
    shp:字符串，一个矢量，从0开始计数，整数
    templatePic:字符串，模板栅格，一个tif，地理变换信息从这里读，栅格大小与该栅格一致
    output:字符串，输出栅格，一个tif
    field:字符串，栅格值的字段
    nodata:整型或浮点型，矢量空白区转换后的值
    """
    ndsm = templatePic
    data = gdal.Open(ndsm, gdalconst.GA_ReadOnly)
    geo_transform = data.GetGeoTransform()
    proj = data.GetProjection()
    # source_layer = data.GetLayer()
    x_min = geo_transform[0]
    y_max = geo_transform[3]
    x_max = x_min + geo_transform[1] * data.RasterXSize
    y_min = y_max + geo_transform[5] * data.RasterYSize
    x_res = data.RasterXSize
    y_res = data.RasterYSize
    mb_v = ogr.Open(shp)
    mb_l = mb_v.GetLayer()
    pixel_width = geo_transform[1]
    # 输出影像为16位整型
    target_ds = gdal.GetDriverByName('GTiff').Create(output, x_res, y_res, 1, gdal.GDT_Int16)

    target_ds.SetGeoTransform(geo_transform)
    target_ds.SetProjection(proj)
    band = target_ds.GetRasterBand(1)
    NoData_value = nodata
    band.SetNoDataValue(NoData_value)
    band.FlushCache()
    gdal.RasterizeLayer(target_ds, [1], mb_l, options=["ATTRIBUTE=%s" % field, 'ALL_TOUCHED=TRUE'])
    # gdal.RasterizeLayer(target_ds, [1], mb_l)

    target_ds = None  # todo 释放内存，只有强制为None才可以释放干净


if __name__ == "__main__":

    parser = argparse.ArgumentParser()
    parser.add_argument('-o', '--open_path', type=str, default='./samples', help=u'样本目录')
    # parser.add_argument('-t', '--temp', type=str, default='./temp', help=u'样本缓存目录')
    parser.add_argument('-l', '--labels', type=str, default='./labels', help=u'样本标签目录')
    args = parser.parse_args()
    open_path = args.open_path
    # temp = args.temp
    label_path = args.labels

    open_path = os.path.realpath(open_path)  # 去除斜杠

    if not os.path.exists('temp'):
        os.makedirs('temp')
    temp = "./temp"
    text_path = os.path.join(label_path , 'train.txt')
    sample_line = os.path.join(label_path, "sample_line")
    if not os.path.exists(sample_line):
        os.makedirs(sample_line)

    try:
        if len(os.listdir(open_path)) == 1:
            print(os.listdir(open_path)[0])
            print(open_path.split("\\")[-1])
            if os.listdir(open_path)[0] == open_path.split("\\")[-1]:
                raise IOError("Please put multiple sample folders directly in the zip file, don't nest folders.")

        path_list = []
        temp_list = []
        fileFolders = os.listdir(open_path)
        for fileFolder in fileFolders:
            real_path = os.path.join(open_path, fileFolder)
            if os.path.isdir(real_path):
                # print(real_path)
                files = os.listdir(real_path)
                for file in files:
                    if file[-3:] == "tif":
                        temp_list.append(os.path.join(real_path, file))
                    if file[-3:] == "shp":
                        temp_list.append(os.path.join(real_path, file))
                        refer_Name = file[0:-12] + "_V1"
                path_list.append(temp_list)
                temp_list = []

        for i in path_list:
            tifName = os.path.split(i[0])[1]
            tmp = temp + "\\" + tifName[:-4] + "_mask.tif"
            print(tmp)
            shp2Raster(i[1], i[0], tmp, 'FID_1', 0)
            # img = cv2.imread(tmp, cv2.IMREAD_UNCHANGED)
            # img[np.where(img > 0)] = 255
            outfile = sample_line + "\\" + tifName[:-4] + "_LINE" + tifName[-4:]
            # cv2.imwrite(outfile, img)

            dataset = gdal.Open(tmp)
            width = dataset.RasterXSize
            height = dataset.RasterYSize
            bandCount = dataset.RasterCount
            # 空间参考
            srcProj = dataset.GetProjection()
            srcTranform = dataset.GetGeoTransform()  # 获取原数据仿射变换参数
            band = dataset.GetRasterBand(1)
            bandArray = band.ReadAsArray(0, 0, width, height).astype(np.int8)
            bandArray[np.where(bandArray > 0)] = 255
            driver = gdal.GetDriverByName("GTiff")
            datasetOut = driver.Create(outfile, width, height, 1, gdal.GDT_Byte)
            datasetOut.SetProjection(srcProj)
            datasetOut.SetGeoTransform(srcTranform)
            datasetOut.GetRasterBand(1).WriteArray(bandArray)
            datasetOut.FlushCache()
            dataset.FlushCache()
            datasetOut = None
            dataset = None

        f = open(text_path, "w+")
        for root, dirs, files in os.walk(open_path):
            for tif in files:
                if tif.endswith("tif"):
                    tifpath = os.path.realpath(os.path.join(root, tif))
                    label_name = tif.split(".")[0] + "_LINE.tif"
                    # print(label_name)
                    img_file_path = os.path.realpath(os.path.join(sample_line, label_name))
                    f.write(tifpath + " " + img_file_path + "\n")
        f.close()
        print("Making labels is done!")
    except:
        traceback.print_exc()

    # 递归删除文件夹
    try:
        shutil.rmtree("./temp")
    except:
        pass

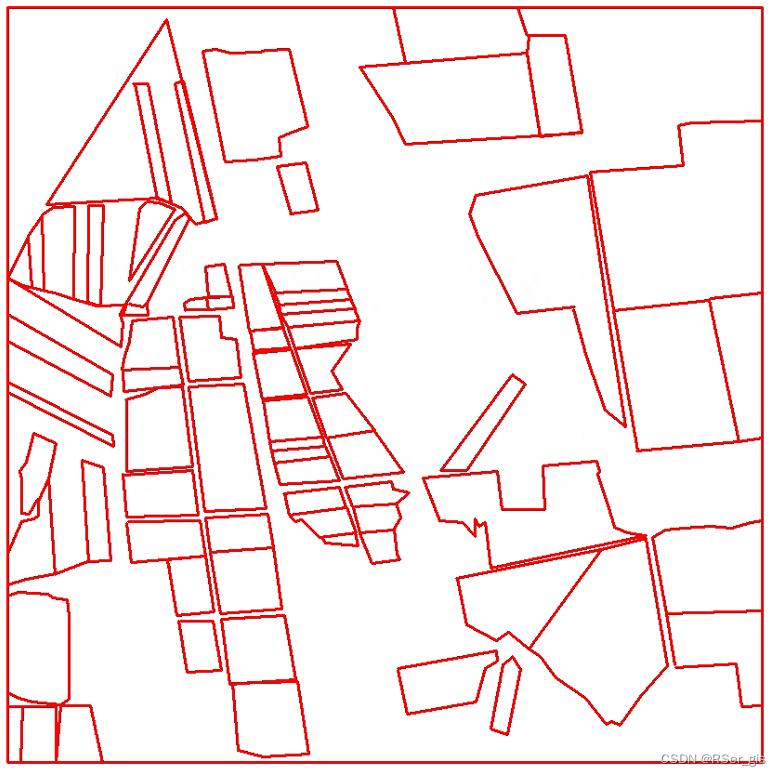

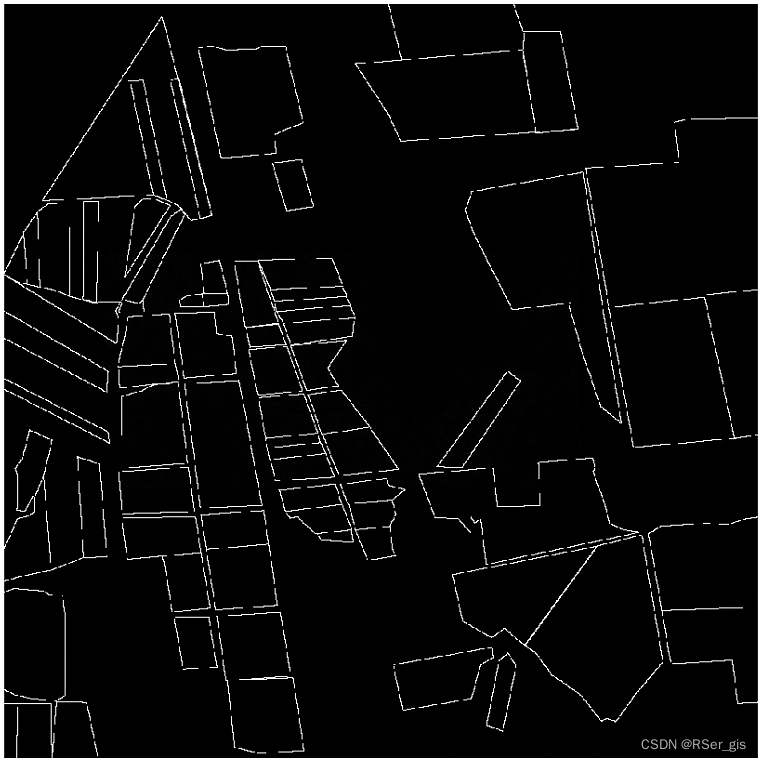

3、实现效果
