1.概念：

依赖倒置原则（Dependence Inversion Principle）是程序要依赖于抽象接口，不要依赖于具体实现。简单的说就是要求对抽象进行编程，不要对实现进行编程，这样就降低了客户与实现模块间的耦合。

2.依赖倒转原则用处：

有些时候为了代码复用，一般会把常用的代码写成函数或类库。这样开发新项目时，直接用就行了。比如做项目时大多要访问数据库，所以我们就把访问数据库的代码写成了函数。每次做项目去调用这些函数。那么我们的问题来了。我们要做新项目时，发现业务逻辑的高层模块都是一样的，但客户却希望使用不同的数据库或存储住处方式，这时就出现麻烦了。我们希望能再次利用这些高层模块，但高层模块都是与低层的访问数据库绑定在一起，没办法复用这些高层模块。所以不管是高层模块和低层模块都应该依赖于抽象，具体一点就是接口或抽象类，只要接口是稳定的，那么任何一个更改都不用担心了。

3.注意事项：

高层模块不应该依赖低层模块。两个都应该依赖抽象。
抽象不应该依赖结节。细节应该依赖抽象。

4.模拟场景：

假设现在需要一个Monitor工具，去运行一些已有的APP，自动化来完成我们的工作。Monitor工具需要启动这些已有的APP，并且写下Log。

代码实现1：

REPORT yabapoodip1.

CLASS appone DEFINITION.
  PUBLIC SECTION.
    METHODS:
      start,
      exportlog.
ENDCLASS.
CLASS appone IMPLEMENTATION.
  METHOD start.
    WRITE: / '1号APP开始启动'.
  ENDMETHOD.

  METHOD exportlog.
    WRITE: / '1号APP输出日志'.
  ENDMETHOD.
ENDCLASS.

CLASS apptwo DEFINITION.
  PUBLIC SECTION.
    METHODS:
      start,
      exportlog.
ENDCLASS.
CLASS apptwo IMPLEMENTATION.
  METHOD start.
    WRITE: / '2号APP开始启动'.
  ENDMETHOD.

  METHOD exportlog.
    WRITE: / '2号APP输出日志'.
  ENDMETHOD.
ENDCLASS.

CLASS main DEFINITION.

  PUBLIC SECTION.
    METHODS:
      constructor IMPORTING iv_appnum TYPE int4,
      start,
      exportlog.

  PRIVATE SECTION.
    DATA: mv_appnumber TYPE int4,
          mo_appone    TYPE REF TO appone,
          mo_apptwo    TYPE REF TO apptwo.
ENDCLASS.

CLASS main IMPLEMENTATION.
  METHOD constructor.
    mv_appnumber = iv_appnum.
    CASE mv_appnumber.
      WHEN 1.
        mo_appone = NEW appone( ).
      WHEN 2.
        mo_apptwo = NEW apptwo( ).
      WHEN OTHERS.
    ENDCASE.
  ENDMETHOD.
  METHOD start.
    CASE mv_appnumber.
      WHEN 1.
        mo_appone->start( ).
      WHEN 2.
        mo_apptwo->start( ).
    ENDCASE.
  ENDMETHOD.

  METHOD exportlog.
    CASE mv_appnumber.
      WHEN 1.
        mo_appone->exportlog( ).
      WHEN 2.
        mo_apptwo->exportlog( ).
    ENDCASE.
  ENDMETHOD.
ENDCLASS.

START-OF-SELECTION.

  DATA(go_main) = NEW main( 1 ).
  go_main->start( ).
  go_main->exportlog( ).

  go_main = NEW main( 2 ).
  go_main->start( ).
  go_main->exportlog( ).

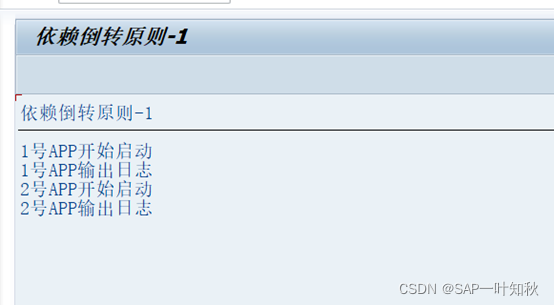

代码解析1：

在代码实现1中我们已经轻松实现了Monitor去运行已有APP并且写下LOG的需求。并且代码已经上线了.

春...夏...秋...冬...

就这样，三年过去了。

一天客户找上门了，公司业务扩展了，现在需要新加2个APP用Monitor自动化。这样我们就必须得改Monitor。

代码实现2：

*&---------------------------------------------------------------------*
*& Report YABAPOODIP1
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT yabapoodip1.

CLASS appone DEFINITION.
  PUBLIC SECTION.
    METHODS:
      start,
      exportlog.
ENDCLASS.
CLASS appone IMPLEMENTATION.
  METHOD start.
    WRITE: / '1号APP开始启动'.
  ENDMETHOD.

  METHOD exportlog.
    WRITE: / '1号APP输出日志'.
  ENDMETHOD.
ENDCLASS.

CLASS apptwo DEFINITION.
  PUBLIC SECTION.
    METHODS:
      start,
      exportlog.
ENDCLASS.
CLASS apptwo IMPLEMENTATION.
  METHOD start.
    WRITE: / '2号APP开始启动'.
  ENDMETHOD.

  METHOD exportlog.
    WRITE: / '2号APP输出日志'.
  ENDMETHOD.
ENDCLASS.

CLASS appthree DEFINITION.
  PUBLIC SECTION.
    METHODS:
      start,
      exportlog.
ENDCLASS.
CLASS appthree IMPLEMENTATION.
  METHOD start.
    WRITE: / '3号APP开始启动'.
  ENDMETHOD.

  METHOD exportlog.
    WRITE: / '3号APP输出日志'.
  ENDMETHOD.
ENDCLASS.

CLASS appfour DEFINITION.
  PUBLIC SECTION.
    METHODS:
      start,
      exportlog.
ENDCLASS.
CLASS appfour IMPLEMENTATION.
  METHOD start.
    WRITE: / '4号APP开始启动'.
  ENDMETHOD.

  METHOD exportlog.
    WRITE: / '4号APP输出日志'.
  ENDMETHOD.
ENDCLASS.

CLASS main DEFINITION.

  PUBLIC SECTION.
    METHODS:
      constructor IMPORTING iv_appnum TYPE int4,
      start,
      exportlog.

  PRIVATE SECTION.
    DATA: mv_appnumber TYPE int4,
          mo_appone    TYPE REF TO appone,
          mo_apptwo    TYPE REF TO apptwo,
          mo_appthree  TYPE REF TO appone,
          mo_appfour   TYPE REF TO apptwo.
ENDCLASS.

CLASS main IMPLEMENTATION.
  METHOD constructor.
    mv_appnumber = iv_appnum.
    CASE mv_appnumber.
      WHEN 1.
        mo_appone = NEW appone( ).
      WHEN 2.
        mo_apptwo = NEW apptwo( ).
      WHEN OTHERS.
    ENDCASE.
  ENDMETHOD.
  METHOD start.
    CASE mv_appnumber.
      WHEN 1.
        mo_appone->start( ).
      WHEN 2.
        mo_apptwo->start( ).
      WHEN 3.
        mo_appthree->start( ).
      WHEN 4.
        mo_appfour->start( ).
    ENDCASE.
  ENDMETHOD.

  METHOD exportlog.
    CASE mv_appnumber.
      WHEN 1.
        mo_appone->exportlog( ).
      WHEN 2.
        mo_apptwo->exportlog( ).
      WHEN 3.
        mo_appthree->exportlog( ).
      WHEN 4.
        mo_appfour->exportlog( ).
    ENDCASE.
  ENDMETHOD.
ENDCLASS.

START-OF-SELECTION.

  DATA(go_main) = NEW main( 1 ).
  go_main->start( ).
  go_main->exportlog( ).

  go_main = NEW main( 2 ).
  go_main->start( ).
  go_main->exportlog( ).

  go_main = NEW main( 3 ).
  go_main->start( ).
  go_main->exportlog( ).

  go_main = NEW main( 4 ).
  go_main->start( ).
  go_main->exportlog( ).

代码解析2：

这样会给系统添加新的相互依赖。并且随着时间和需求的推移，会有更多的APP需要用Monitor来监测，这个Monitor工具也会被越来越对的if...else或者case...when撑爆炸，而且代码随着APP越多，越难维护。最终会导致Monitor走向灭亡(下线)。

介于这种情况，可以用Monitor这个模块来生成其它的程序，使得系统能够用在需要的APP上。OOD给我们提供了一种机制来实现这种“依赖倒置”。

代码实现3：

*&---------------------------------------------------------------------*
*& Report YABAPOODIP2
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT yabapoodip2.

INTERFACE iapp.
  METHODS:
    start,
    exportlog.
ENDINTERFACE.

CLASS appone DEFINITION.
  PUBLIC SECTION.
    INTERFACES iapp.
    ALIASES: start FOR iapp~start,
             exportlog FOR iapp~exportlog.
ENDCLASS.

CLASS appone IMPLEMENTATION.
  METHOD start.
    WRITE: / '1号APP开始启动'.
  ENDMETHOD.

  METHOD exportlog.
    WRITE: / '1号APP输出日志'.
  ENDMETHOD.
ENDCLASS.

CLASS apptwo DEFINITION.
  PUBLIC SECTION.
    INTERFACES iapp.
    ALIASES: start FOR iapp~start,
             exportlog FOR iapp~exportlog.
ENDCLASS.

CLASS apptwo IMPLEMENTATION.
  METHOD start.
    WRITE: / '2号APP开始启动'.
  ENDMETHOD.

  METHOD exportlog.
    WRITE: / '2号APP输出日志'.
  ENDMETHOD.
ENDCLASS.

CLASS appthree DEFINITION.
  PUBLIC SECTION.
    INTERFACES iapp.
    ALIASES: start FOR iapp~start,
             exportlog FOR iapp~exportlog.
ENDCLASS.

CLASS appthree IMPLEMENTATION.
  METHOD start.
    WRITE: / '3号APP开始启动'.
  ENDMETHOD.

  METHOD exportlog.
    WRITE: / '3号APP输出日志'.
  ENDMETHOD.
ENDCLASS.

CLASS main DEFINITION.
  PUBLIC SECTION.
    METHODS:
      constructor IMPORTING io_monitor TYPE REF TO iapp,
      start,
      exportlog.
  PRIVATE SECTION.
    DATA: mo_monitor TYPE REF TO iapp.
ENDCLASS.

CLASS main IMPLEMENTATION.
  METHOD constructor.
    mo_monitor = io_monitor.
  ENDMETHOD.

  METHOD start.
    mo_monitor->start( ).
  ENDMETHOD.

  METHOD exportlog.
    mo_monitor->exportlog( ).
  ENDMETHOD.
ENDCLASS.

START-OF-SELECTION.
  DATA(lo_appone) = NEW appone( ).

  DATA(lo_main) = NEW main( lo_appone ).
  lo_main->start( ).
  lo_main->exportlog( ).

  DATA(lo_apptwo) = NEW apptwo( ).
  lo_main = NEW main( lo_apptwo ).
  lo_main->start( ).
  lo_main->exportlog( ).

  DATA(lo_appthree) = NEW appthree( ).
  lo_main = NEW main( lo_appthree ).
  lo_main->start( ).
  lo_main->exportlog( ).

代码解析3：

现在Monitor依赖于IApp这个接口，而与具体实现的APP类没有关系，所以无论再怎么添加APP都不会影响到Monitor本身，只需要去添加一个实现IApp接口的APP类就可以了。
