UserControl的动态加载

  动态加载控件，采用UserControl在WrapPanel控件中动态加载，并且实现随着窗体变化实现自适应换行。

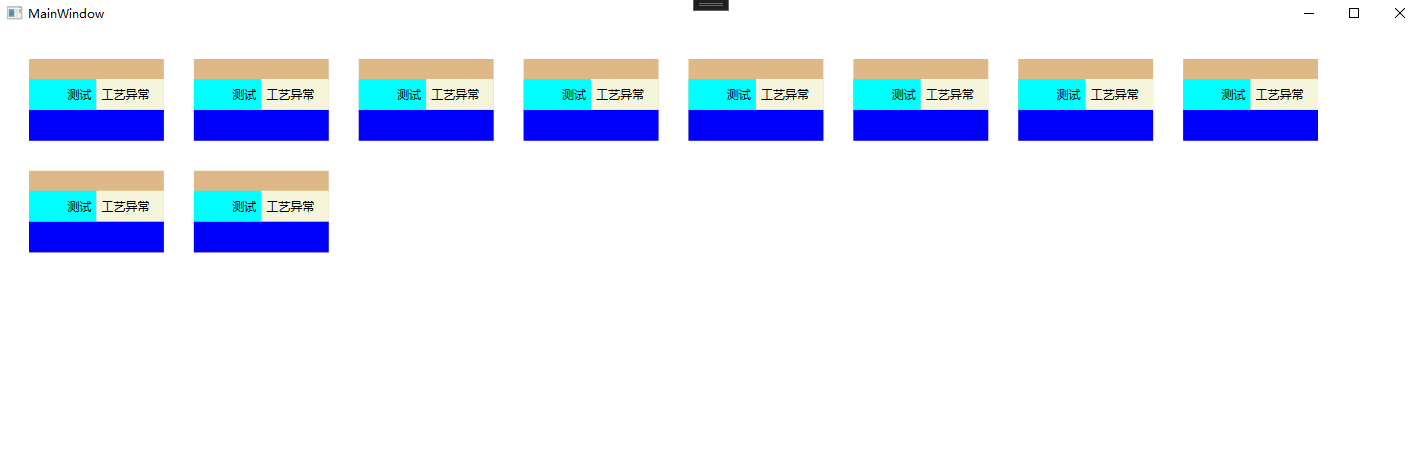

效果如下：

Window.xaml

<Window x:Class="testMultiDevices.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:local="clr-namespace:testMultiDevices"
        Title="MainWindow" Width="Auto" Height="Auto">
    <Grid>
        <ItemsControl x:Name="itemsControl" ItemsSource="{Binding UserControls}"
                      HorizontalAlignment="Stretch" VerticalAlignment="Stretch">
            <ItemsControl.ItemsPanel>
                <ItemsPanelTemplate>
                    <WrapPanel Orientation="Horizontal" x:Name="wrapPanel"
                               HorizontalAlignment="Stretch" VerticalAlignment="Stretch" Margin="15"/>
                </ItemsPanelTemplate>
            </ItemsControl.ItemsPanel>
        </ItemsControl>
    </Grid>
</Window>

MainWindow.cs

using System.Windows;
using System.Windows.Controls;

namespace testMultiDevices
{
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            ItemsControl itemsControl = FindName("itemsControl") as ItemsControl;
            if (itemsControl != null)
            {
                MainViewModel viewModel = new MainViewModel(itemsControl);
                DataContext = viewModel;
                this.SizeChanged += (sender, e) =>
                {
                    viewModel.WindowSizeChangedCommand.Execute(e.NewSize);
                };
            }
            //this.MinHeight = 500;
            //this.MinWidth = 500;
        }
    }
}

MainViewModel.cs

using System;
using System.Collections.ObjectModel;
using System.Windows.Controls;
using System.Windows.Input;
using System.ComponentModel;
using System.Windows;

namespace testMultiDevices
{
    public class MainViewModel :Notify
    {
        private readonly ItemsControl itemsControl;
        public ObservableCollection<UserControl> UserControls { get; set; }
        private double availableWidth;
        private double availableHeight;



        public double AvailableWidth
        {
            get { return availableWidth; }
            set
            {
                if (availableWidth != value)
                {
                    availableWidth = value;
                    OnPropertyChanged();
                    UpdateItemWidth();
                }
            }
        }


        public double AvailableHeight
        {
            get { return availableHeight; }
            set
            {
                if (availableHeight != value)
                {
                    availableHeight = value;
                    OnPropertyChanged();
                    UpdateItemHeight();
                }
            }
        }



        public ICommand WindowSizeChangedCommand { get; set; }
        public MainViewModel(ItemsControl itemsControl)
        {
            this.itemsControl = itemsControl;
            UserControls = new ObservableCollection<UserControl>();
            for (int i = 0; i < 10; i++)
            {
                AddUserControl();
            }
            WindowSizeChangedCommand = new MyCommand(ExecuteWindowSizeChanged);
        }



        public void AddUserControl()
        {
            var control = new testControl();
            UserControls.Add(control);
        }



        private void ExecuteWindowSizeChanged(object parameter)
        {
            if (parameter != null && parameter.GetType() == typeof(Size))
            {
                Size size = (Size)parameter;
                AvailableWidth = size.Width;
                AvailableHeight = size.Height;
            }
        }



        private void UpdateItemWidth()
        {
            if (UserControls.Count > 0 && itemsControl != null)
            {
                double gapWidth = 15;
                double effectiveWidthForCount = itemsControl.ActualWidth - itemsControl.Margin.Left - itemsControl.Margin.Right;
                int itemCountPerRow = (int)((effectiveWidthForCount + gapWidth) / (150 + gapWidth));
                if (itemCountPerRow == 0) itemCountPerRow = 1;
                double newItemWidth = (effectiveWidthForCount - (itemCountPerRow - 1) * gapWidth) / itemCountPerRow;
                foreach (var item in UserControls)
                {
                    UserControl userControl = item as UserControl;
                    if (userControl != null)
                    {
                        userControl.Width = newItemWidth;
                    }
                }
            }
        }



        private void UpdateItemHeight()
        {
            if (UserControls.Count > 0 && itemsControl != null)
            {
                double gapHeight = 10;  // 假设垂直间隙为10，可调整
                double effectiveHeight = itemsControl.ActualHeight - itemsControl.Margin.Top - itemsControl.Margin.Bottom;
                double itemHeight = 100;  // 假设用户控件高度为100，可根据实际调整
                int rowCount = (int)((effectiveHeight + gapHeight) / (itemHeight + gapHeight));
                if (rowCount == 0) rowCount = 1;
                double newItemHeight = (effectiveHeight - (rowCount - 1) * gapHeight) / rowCount;
                foreach (var item in UserControls)
                {
                    UserControl userControl = item as UserControl;
                    if (userControl != null)
                    {
                        userControl.Height = newItemHeight;
                    }
                }
            }
        }


    }
}

testControl.xaml

<UserControl x:Class="testMultiDevices.testControl"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:local="clr-namespace:testMultiDevices"
             mc:Ignorable="d"
             d:DesignHeight="100" d:DesignWidth="150">
    <Grid Margin="15,15,15,15">
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="*" />
            <ColumnDefinition Width="*" />
            <ColumnDefinition Width="Auto" />
        </Grid.ColumnDefinitions>
        <Grid.RowDefinitions>
            <RowDefinition Height="20" />
            <RowDefinition Height="*" />
            <RowDefinition Height="*" />
            <RowDefinition Height="Auto" />
        </Grid.RowDefinitions>

        <Border Background="BurlyWood" Grid.Column="0" Grid.Row="0" Grid.ColumnSpan="3" Grid.RowSpan="3"/>
        <Border Background="Blue"   Grid.Row="2" Grid.ColumnSpan="3" Grid.RowSpan="3"/>

        <Grid Grid.Column="0" Grid.Row="1">
            <Border Background="Aqua"/>
            <Label Content="测试" HorizontalAlignment="Right" VerticalContentAlignment="Center"/>
        </Grid>
        <Grid Grid.Column="1" Grid.Row="1">
            <Border Background="Beige"/>
            <Label Content="工艺异常" HorizontalContentAlignment="Left" VerticalContentAlignment="Center"/>
        </Grid>
    </Grid>
</UserControl>

MyCommand.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Input;

namespace testMultiDevices
{
    public class MyCommand : ICommand
    {
        private readonly Action _execute;
        private readonly Func<bool> _canExecute;

        private readonly Action<object> execute2;
        private readonly Predicate<object> canExecute2;

        // 无参数命令的构造函数
        public MyCommand(Action execute, Func<bool> canExecute = null)
        {
            _execute = execute ?? throw new ArgumentNullException(nameof(execute));
            _canExecute = canExecute;
        }

        // 带参数命令的构造函数
        public MyCommand(Action<object> execute, Predicate<object> canExecute = null)
        {
            execute2 = execute ?? throw new ArgumentNullException(nameof(execute));
            canExecute2 = canExecute;
        }

        public event EventHandler CanExecuteChanged
        {
            add { CommandManager.RequerySuggested += value; }
            remove { CommandManager.RequerySuggested -= value; }
        }

        public bool CanExecute(object parameter)
        {
            if (execute2 != null)
            {
                return canExecute2 == null || canExecute2(parameter);
            }
            return _canExecute == null || _canExecute();
        }

        public void Execute(object parameter)
        {
            if (execute2 != null)
            {
                execute2(parameter);
            }
            else
            {
                _execute();
            }
        }
    }
}

Notify.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Linq;
using System.Runtime.CompilerServices;
using System.Text;
using System.Threading.Tasks;

namespace testMultiDevices
{
    public abstract class Notify : INotifyPropertyChanged
    {

        public event PropertyChangedEventHandler PropertyChanged;

        public void OnPropertyChanged(string name = null)
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(name));
        }

    }
}
